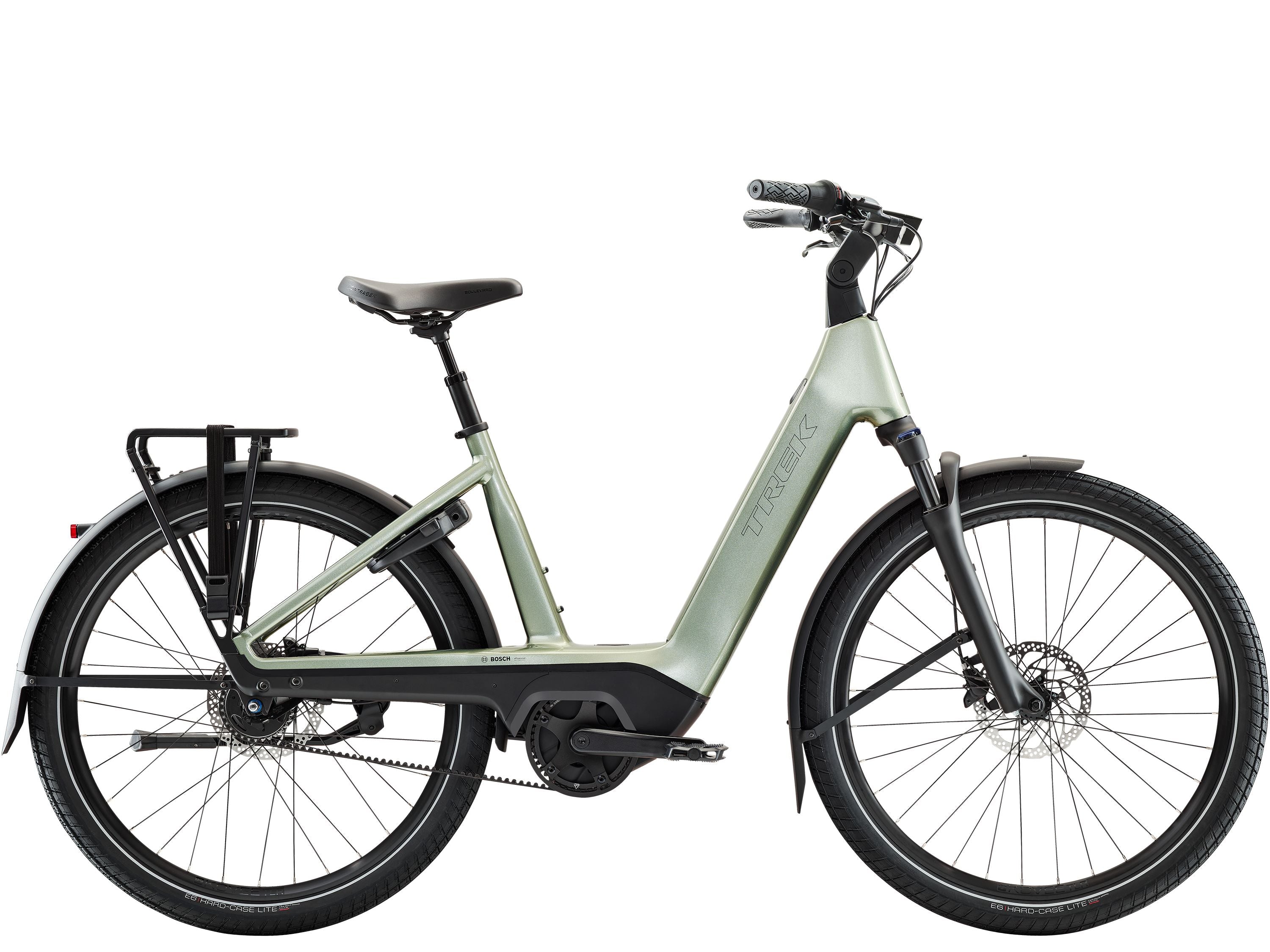

Charter+ 4 Nexus 5 Belt 800 Wh Lowstep
The Charter+ 4 Nexus 5 Belt 800 Wh low-step is a low-maintenance and easy-to-use city e-bike for commutes, joyrides and everyday errands. Its adjustable cockpit lets you customise the ride fit from an upright, comfort-first position to a more active pedal-efficient fit. It comes ready to roll with an e-bike-specific Shimano Nexus 5 internal gear hub paired with a long lasting and silent Gates CDC belt and a Bosch Performance Line motor with 800 Wh battery for your biggest adventures. It's topped off with a 63 mm SR Suntour coil-sprung fork to smooth out rough r
Technology
Assembled in Germany - Explore the factory in Saxony, Germany, where every European Trek, Electra, and Diamant bike is built.
Specification
| Frame | Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 27.5 |
| Fork | SR Suntour |
| Fork | SR Suntour SF25-NVX32, coil spring, preload adjuster, 5mm ThruSkew, 63mm travel |
| Tires | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40" |
| Hub Front | Shimano Tourney HB-QC300, centerlock |
| Hub Rear | Shimano Nexus C7000, 5-speed |
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
| Shifter | Shimano |
| Shifters | Shimano Nexus C7000, 5 speed |
| Crank | ProWheel alloy, 170 mm length |
| Cassette | Gates CDX 32T, stainless steel |
| Brake | Shimano |
| Brakeset | Shimano MT200 hydraulic disc |
| Brake Rotor | Shimano RT30, CentreLock, 180 mm // Shimano CL300, centerlock, 180mm |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Boulevard |
| Seatpost | Alloy, suspension, 31.6 mm, 300 mm length |
| Handlebar | Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width |
| Stem | Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length |
| Grips | Trek ergonomic PRO, lock-on |
| Fenders | Trek Charter alloy mudguard |
| Kickstand | Pletscher Comp Flex 40 |
| Battery | Bosch PowerTube 800Wh, smart system |
| Controller | Bosch Purion 200 |
| Motor | Bosch Performance Line, 250W, 75Nm, 20mph |
| Size Chart Rider Height | Rider Height - 170.0 - 185.0 |
| Size Chart Rider Inseam | Inseam - 80.0 - 99.0 |
