Product Details

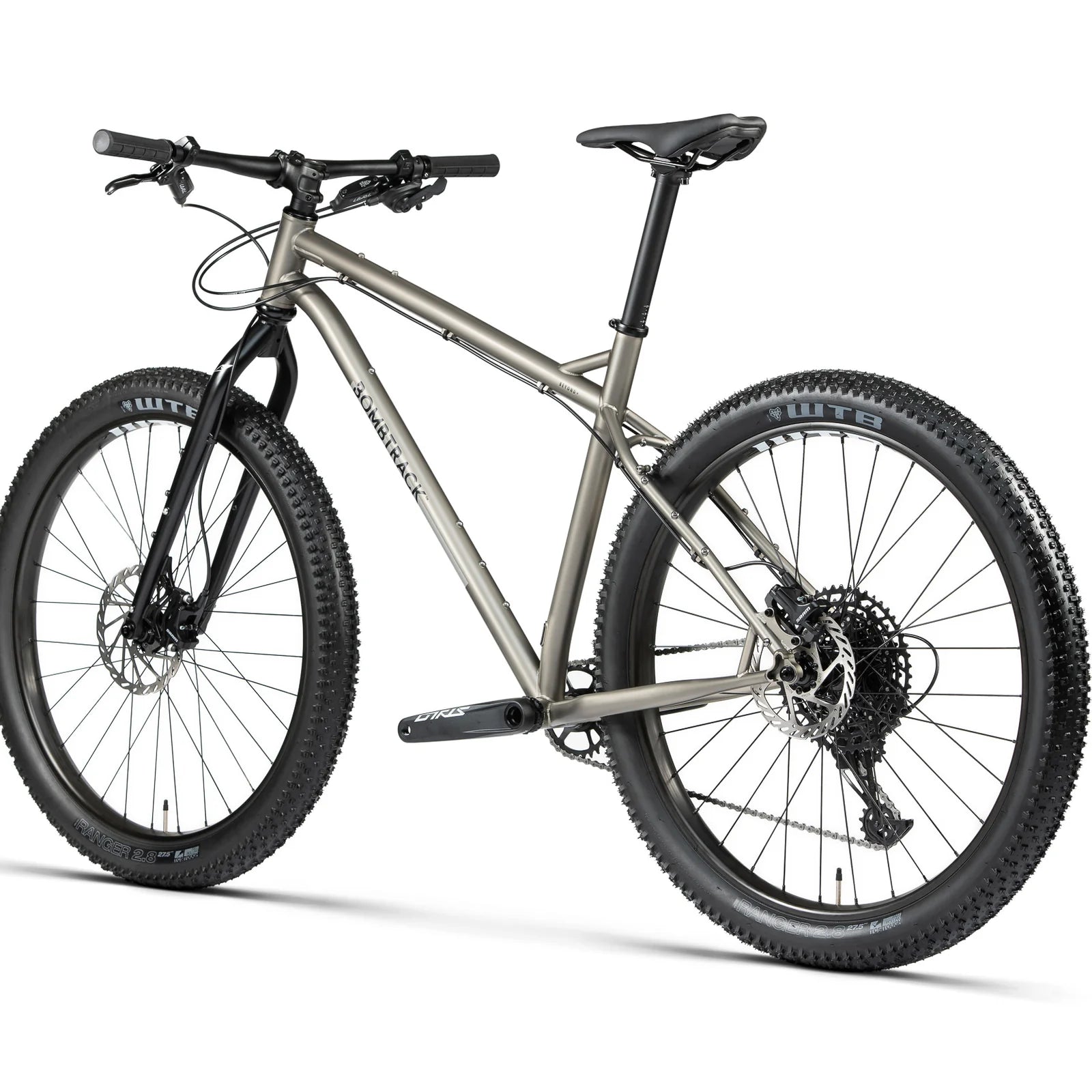

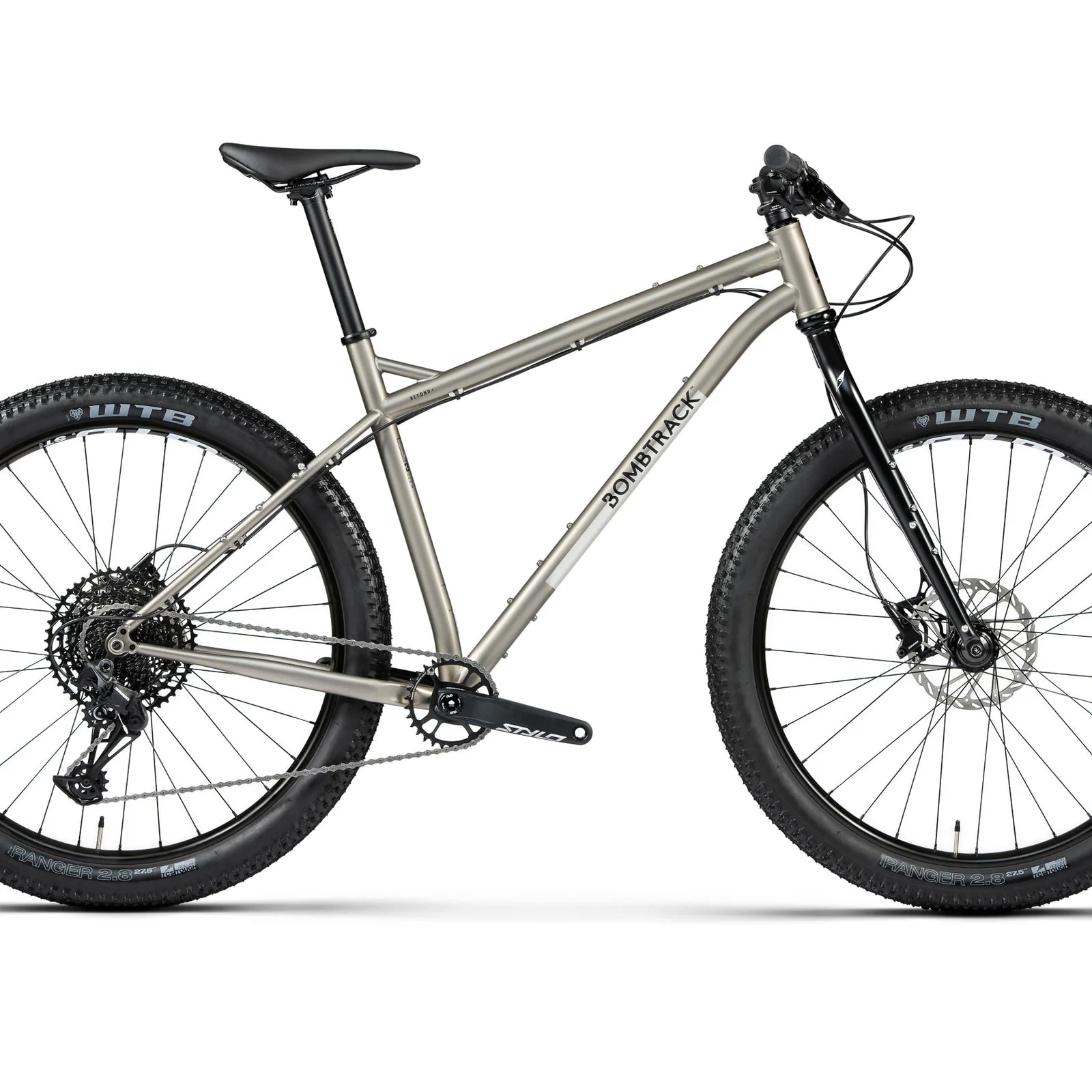

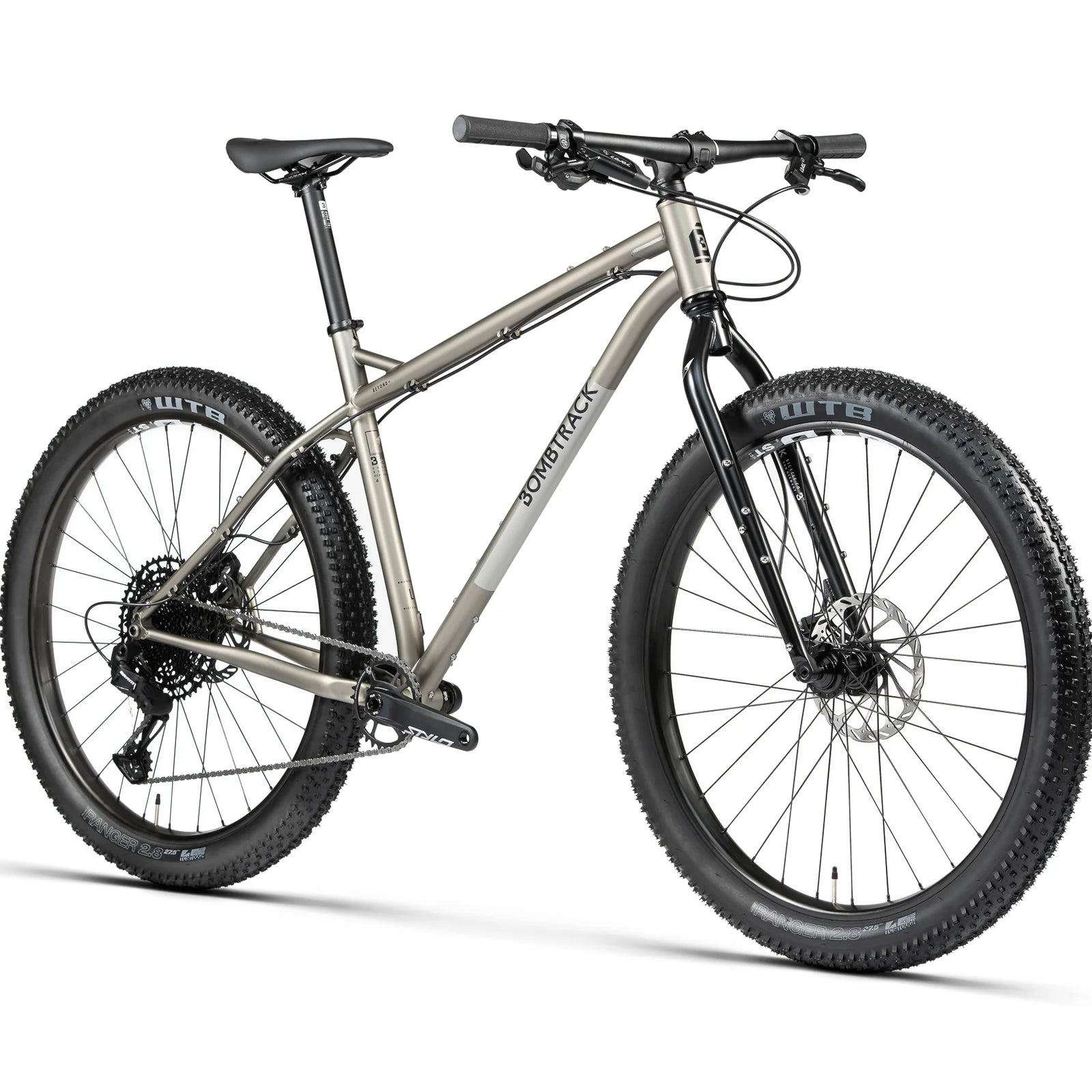

Taking off-road riding to its limits, the Beyond+ won’t take no for an answer. 2.8’’ tubeless ready tyres, as well as 27.5’’ diameter wheels, which will cruise over anything – a joy to ride unloaded but just as capable with a full rack of bike packing equipment. Powered by a Sram 12-speed SX Eagle groupset, only gradients close to vertical will be unmanageable, thanks to the impressive 11 – 50T cassette. And when you do crest the summit at a remarkable speed, twin-piston Level hydraulic brakes will stop the bike in an instant. With dropper post routing and suspension-corrected geometry, you can add both later if desired.

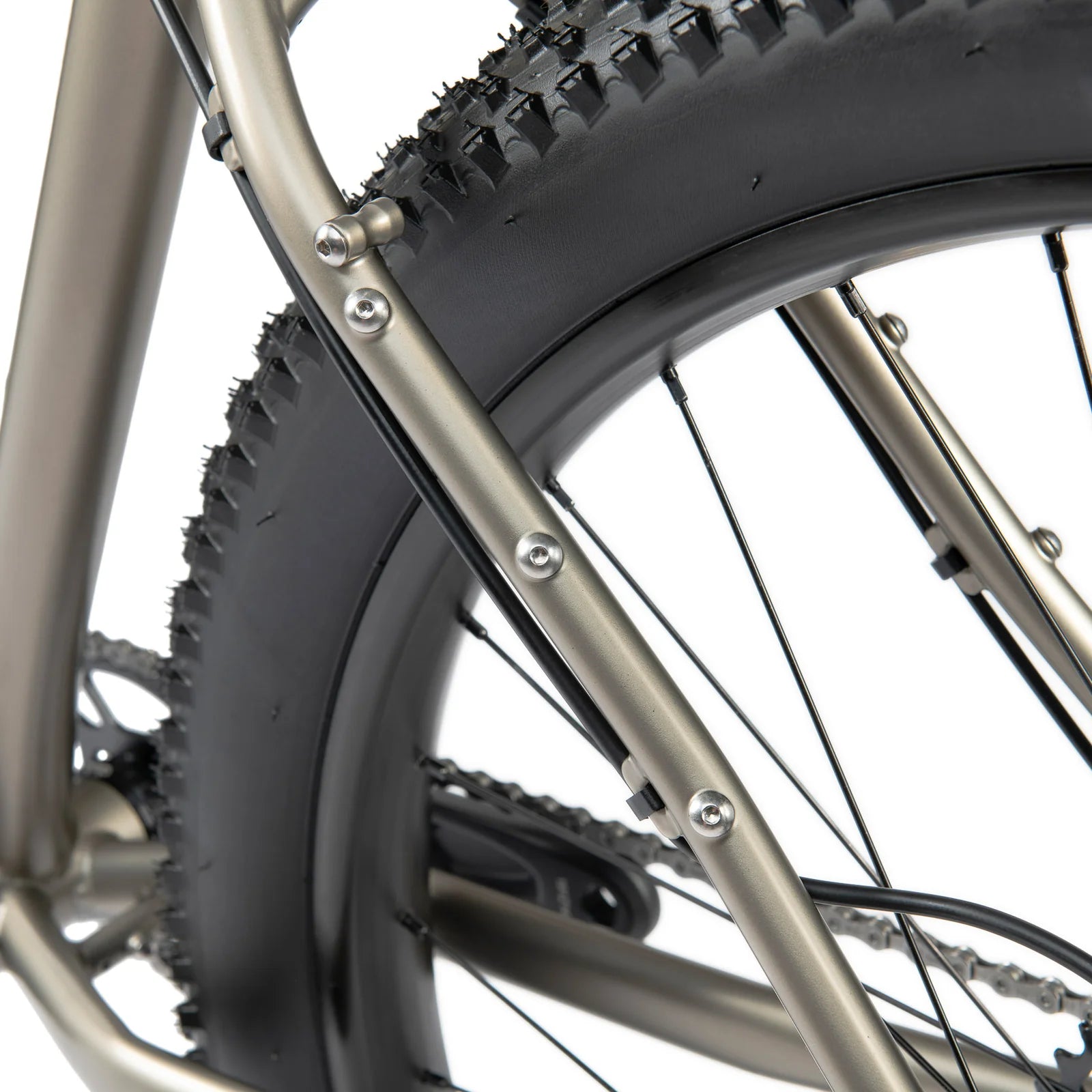

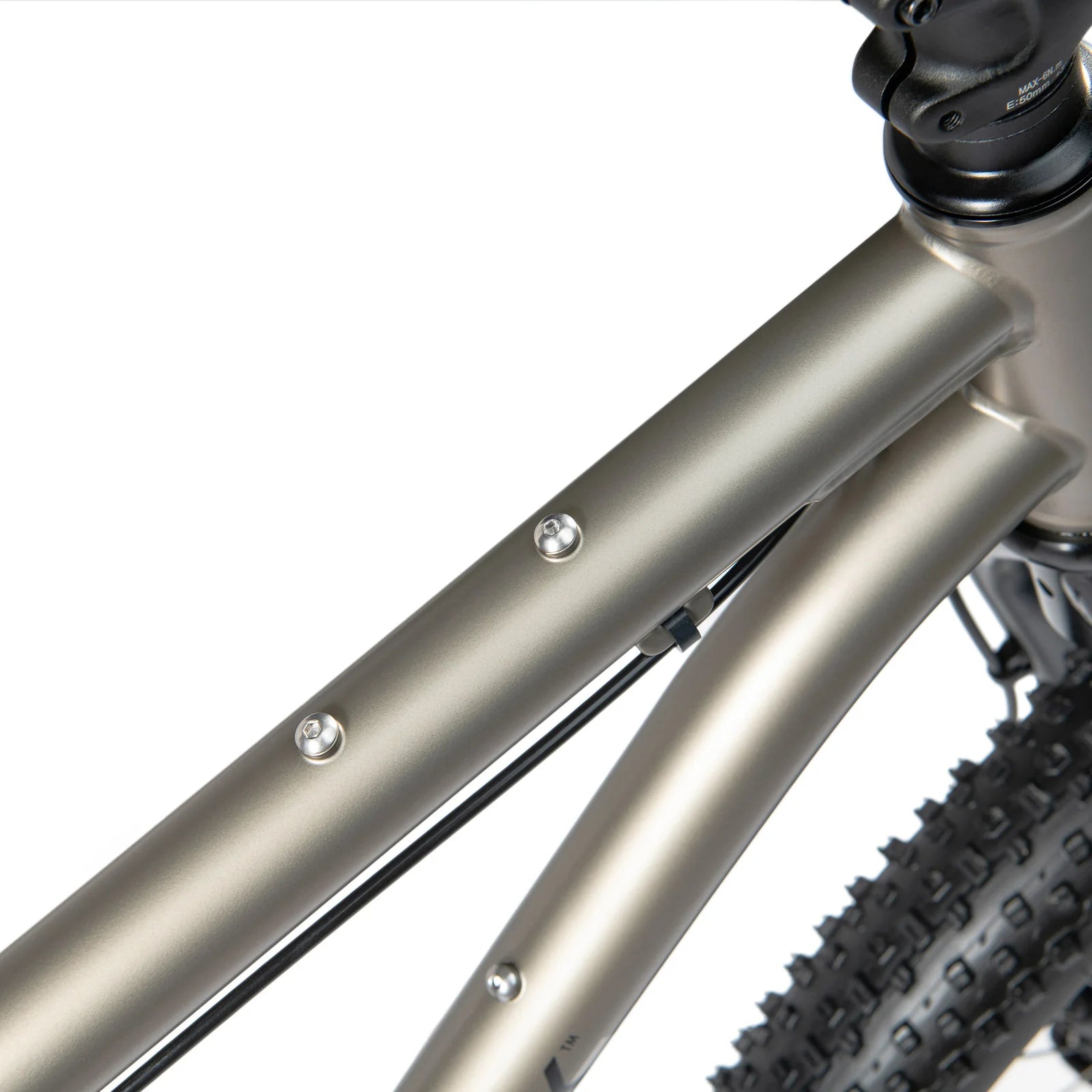

Frame 4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell*

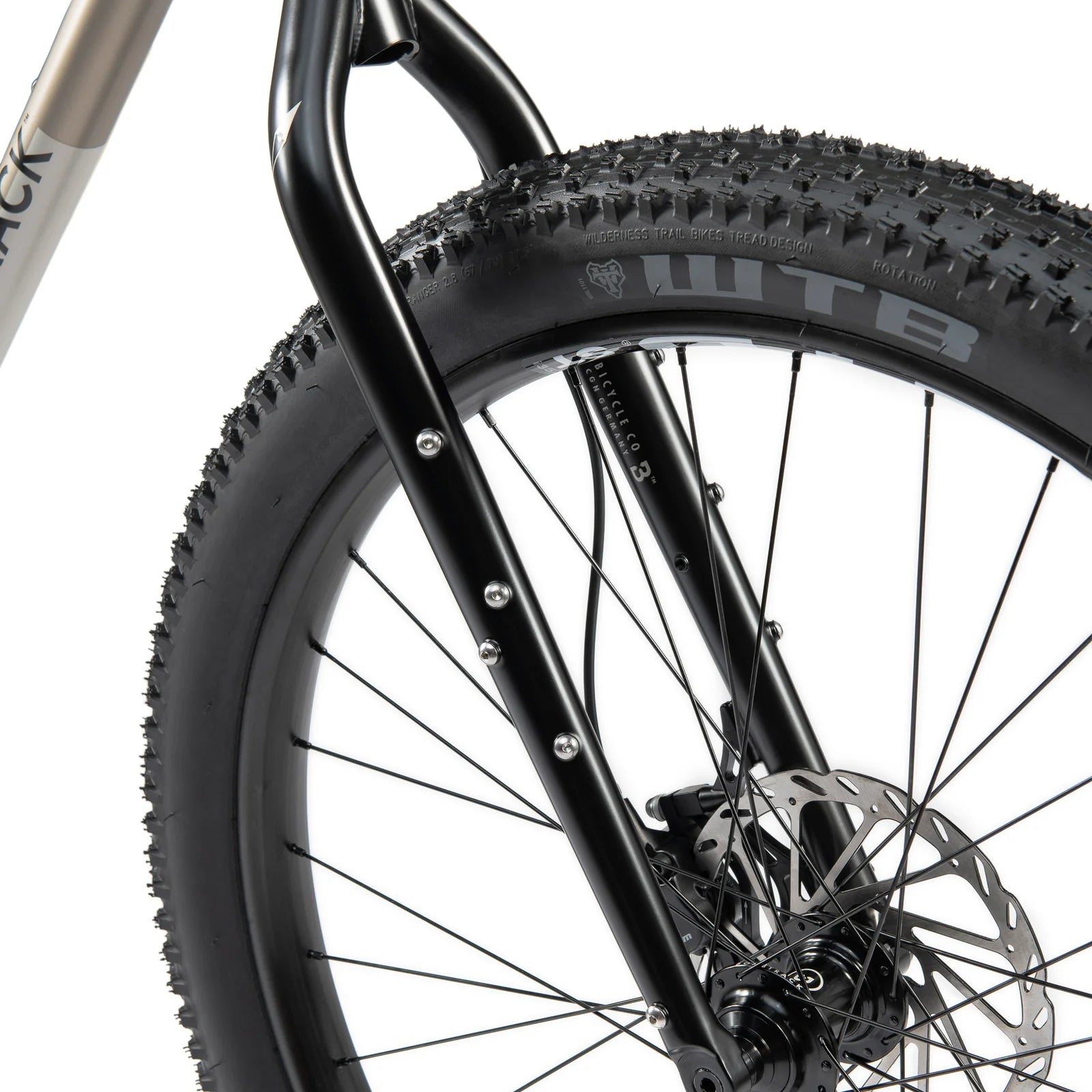

Fork BOMBTRACK BPS 4130 crmo, double butted blades, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
Handlebar BOMBTRACK TRAIL flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise

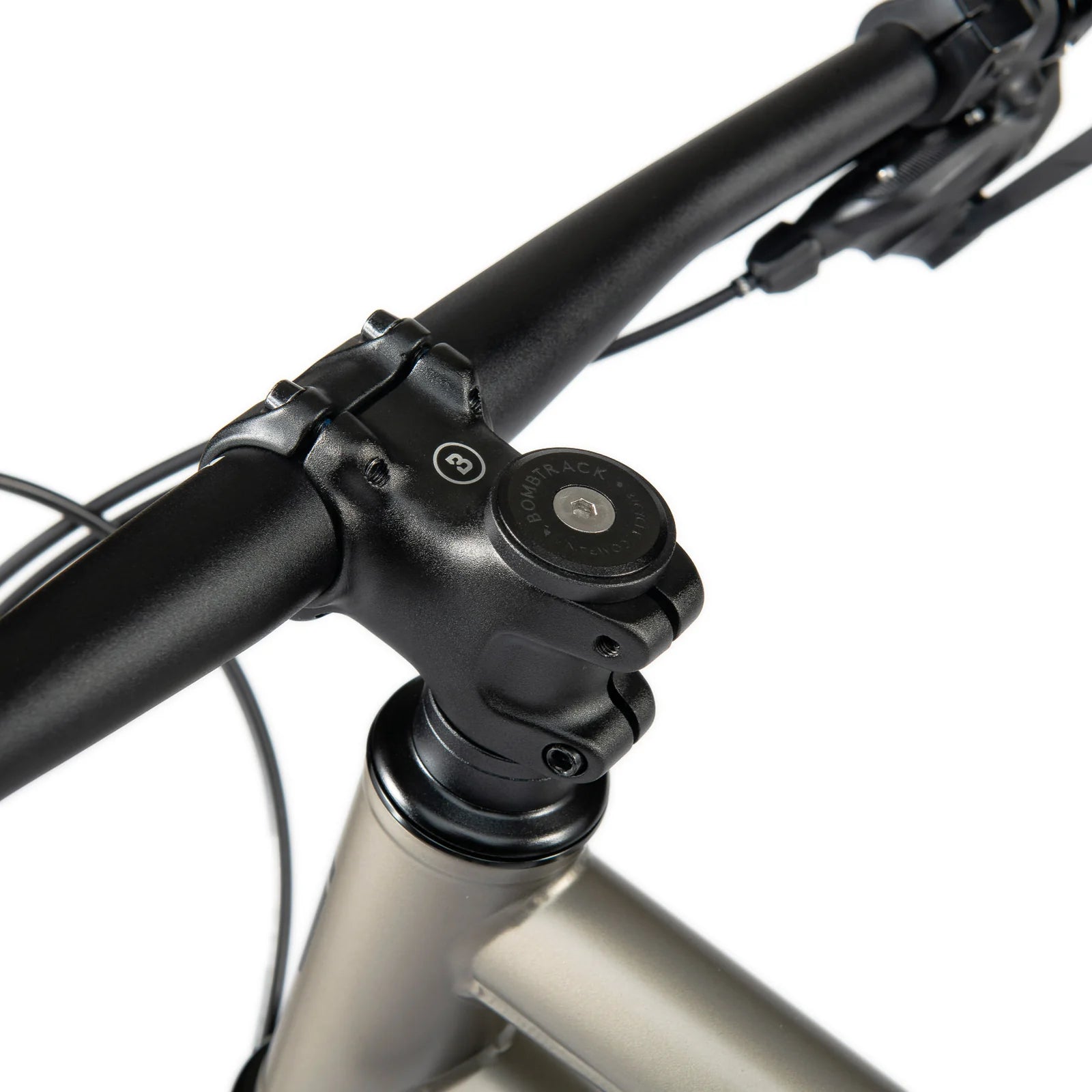

Stem BOMBTRACK TRAMP forged aluminium stem, 3°
Headset Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8''

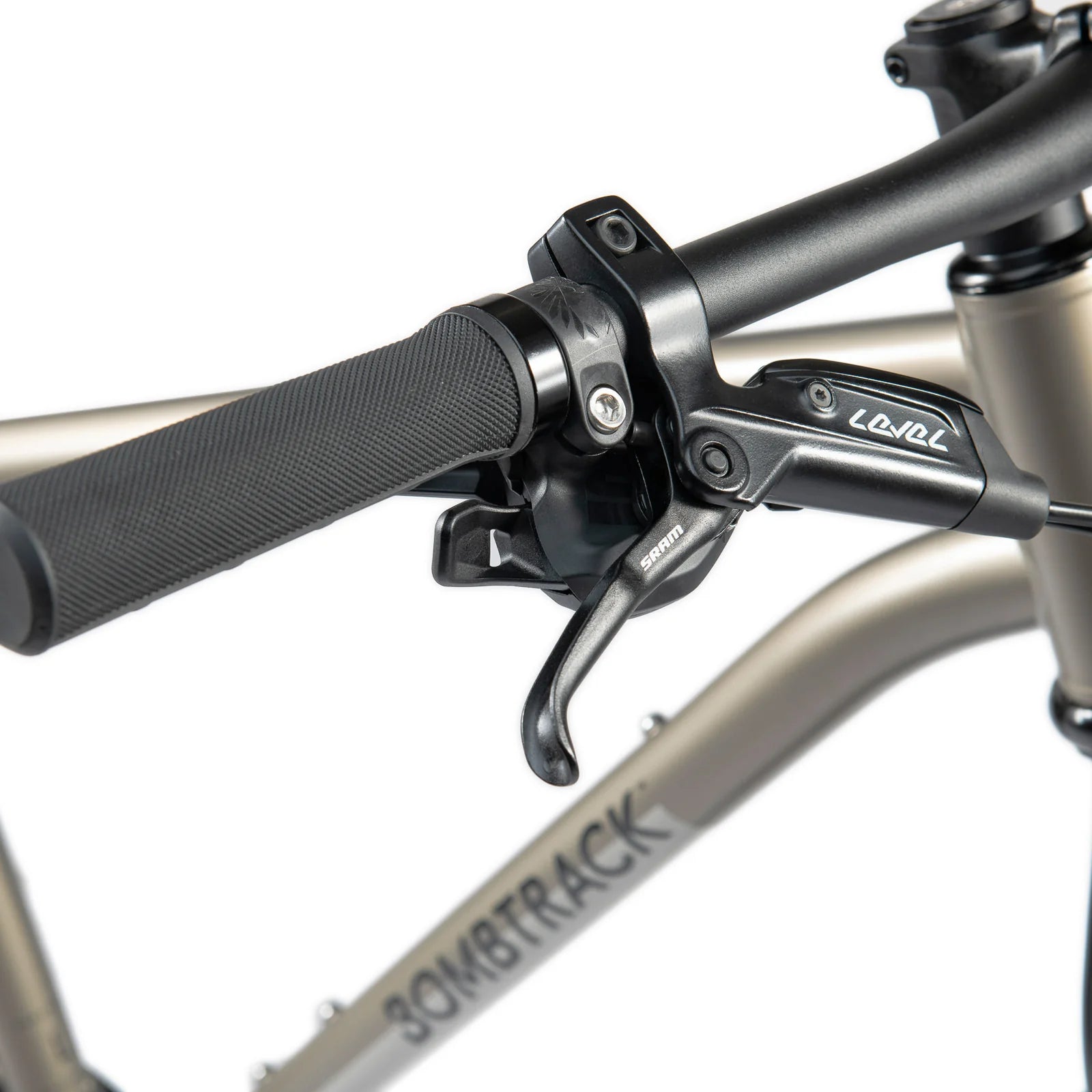

Levers SRAM LEVEL hydraulic
Shifter SRAM SX-EAGLE 12-speed trigger shifter
Brakes SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors

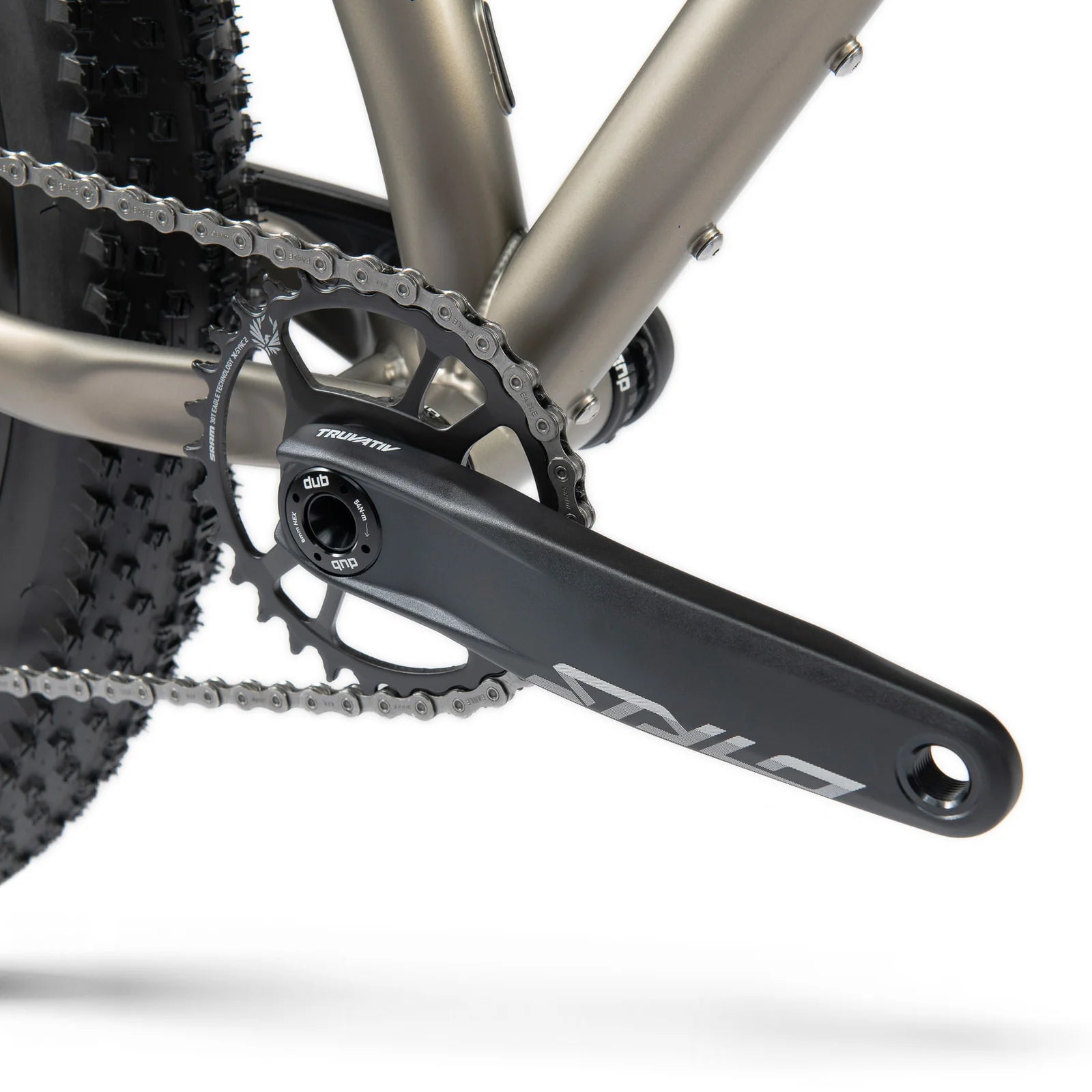

Crankset TRUVATIV STYLO 6K aluminium crank, Boost DUB
Pedals -
Chain SRAM NX EAGLE chain, 1/2'' x 11/128'', 118L
Chainring SRAM EAGLE X-SYNC 2, narrow-wide, 30 T

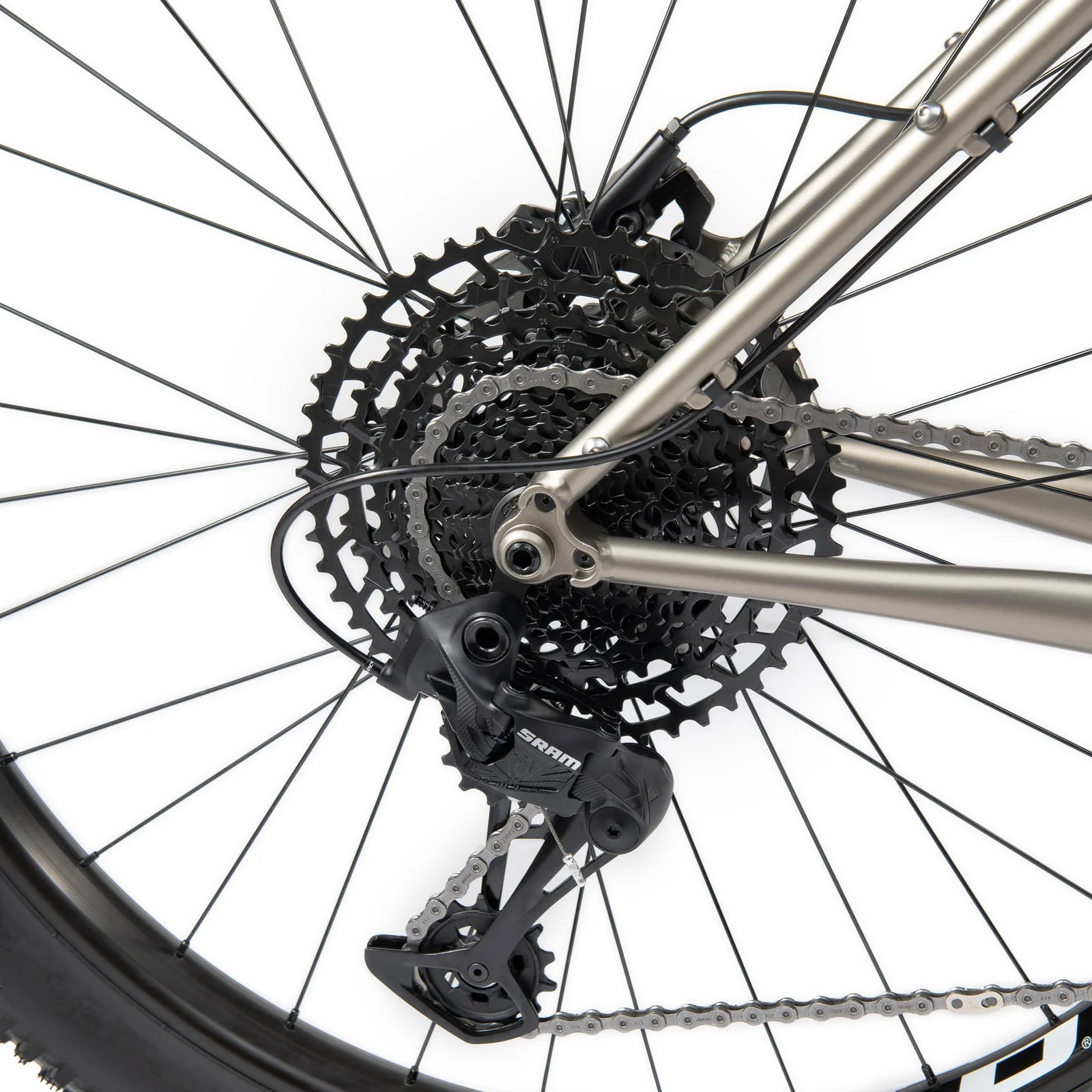

Cassette SRAM PG-1210 EAGLE 12-speed, 11 - 50 T
Front derailleur -
Rear derailleur SRAM SX EAGLE, clutch, long cage
Front hub BOMBTRACK GRAD Boost sealed hub, 6-bolt disc
Rear hub BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc
Through axle 15 x 110 mm / 12 x 148 mm
Front rim WTB ST i35 double wall, TCS 2.0, 32h
Rear rim WTB ST i35 double wall, TCS 2.0, 32h

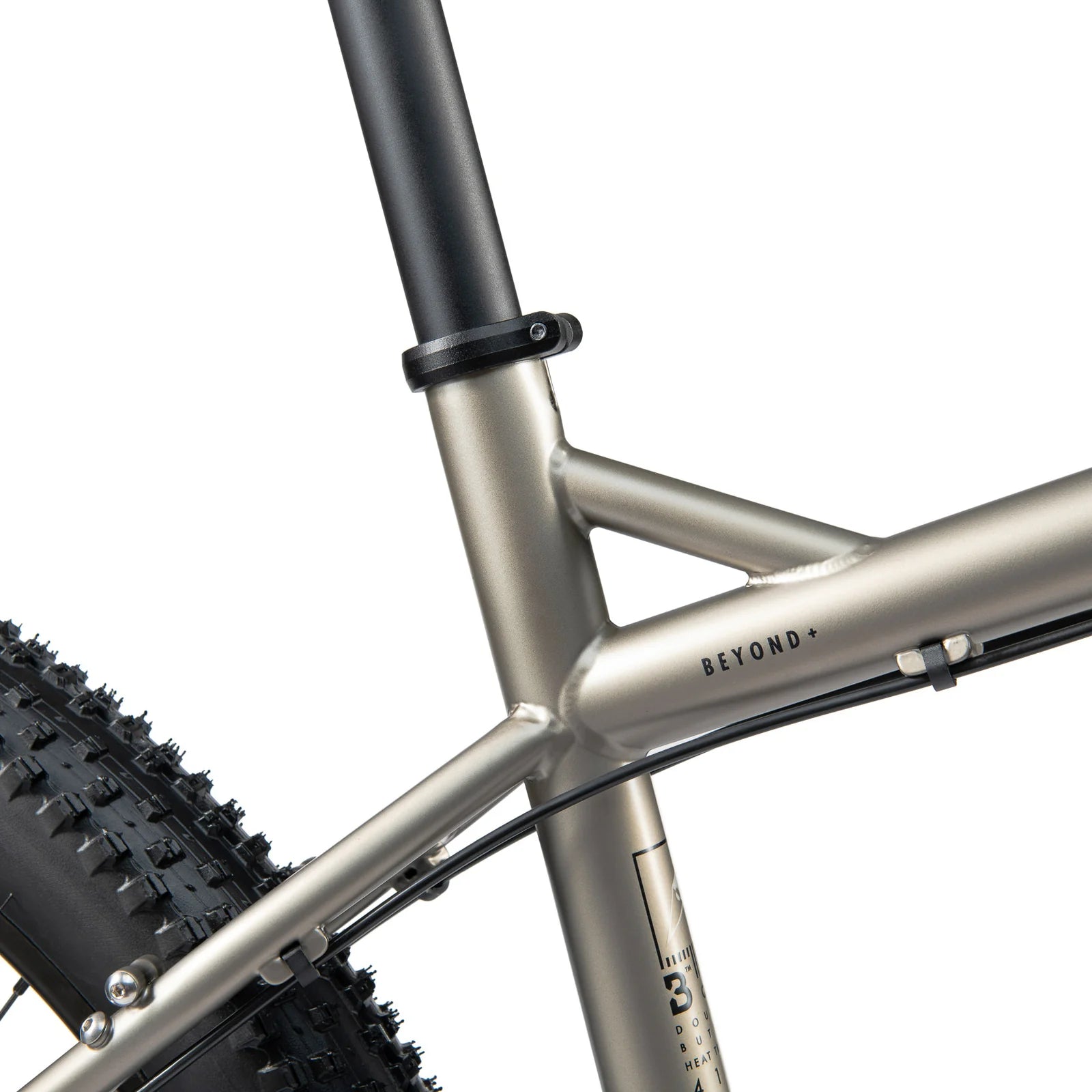

Seat post BOMBTRACK YEW aluminium seatpost, 30.9 mm x 400 mm
Seat clamp BOMBTRACK ORIGIN forged aluminium seat clamp, 34.9 mm
Front tire WTB RANGER TCS TOUGH / FAST ROLLING 27.5'' x 2.8'', tubeless ready
Rear tire WTB RANGER TCS TOUGH / FAST ROLLING 27.5'' x 2.8'', tubeless ready
Fender -
Rack -
Light -
Weight 14.4 kg (size M)
Weight frameset 2910 g frame (size M, incl. TA, hanger)
Maximum rider weight 165 kg incl. luggage
ASTM riding condition 3
