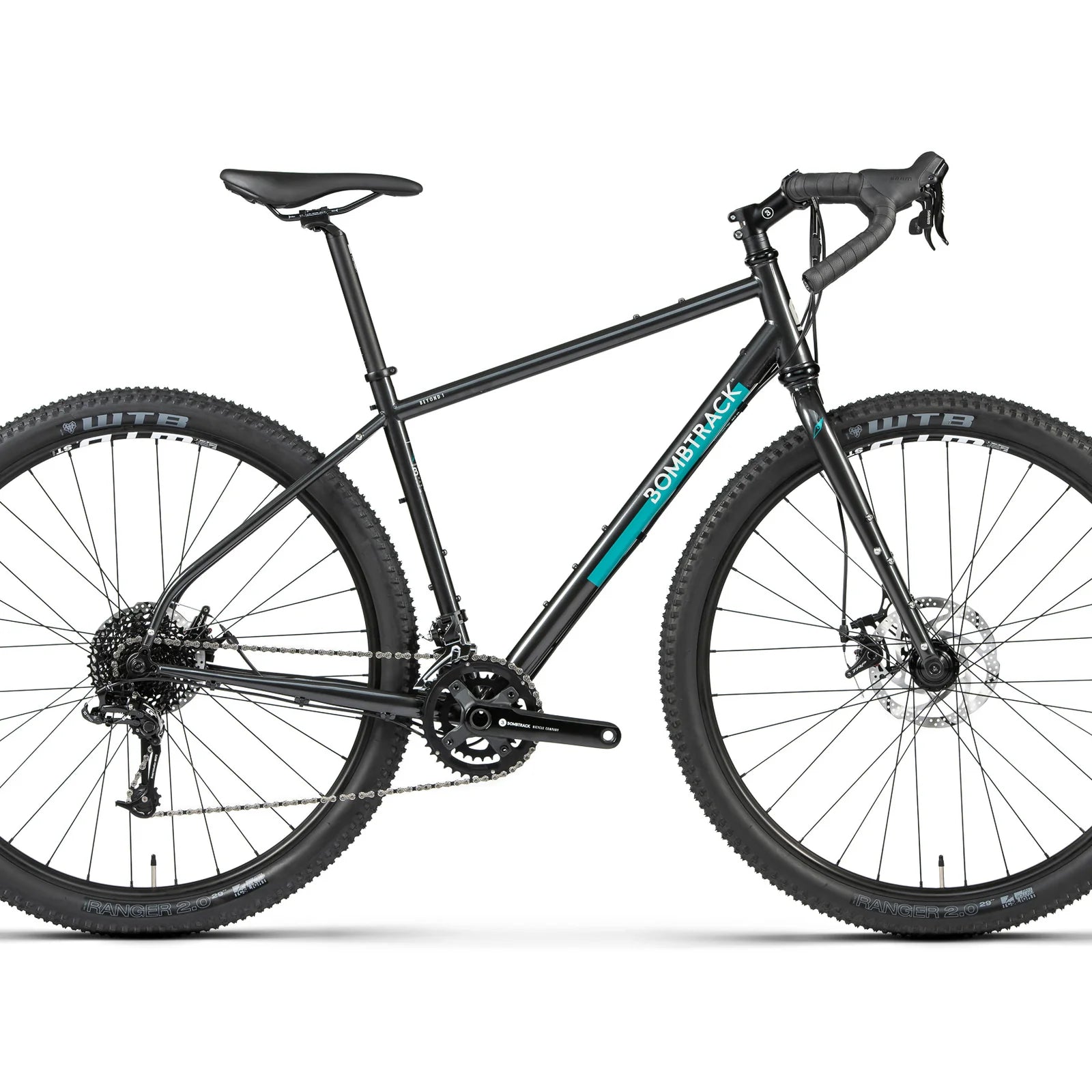

BOMBTRACK BEYOND 1 Complete Bike
£1,950.00£2,500.00
Product Details
The Beyond 1 serves as the perfect first bike for fledgling adventurists. With tyres as wide as a mountain bike accompanied by a 28 / 40T chainset, this bike will be able to reach wherever you’ve plotted on the map. Leverage-boosting bars provide added control, and an eye-watering selection of mounting points mean you won’t need to leave anything at home. Its simplicity makes it easy to service, too.
| Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
| Fork | 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

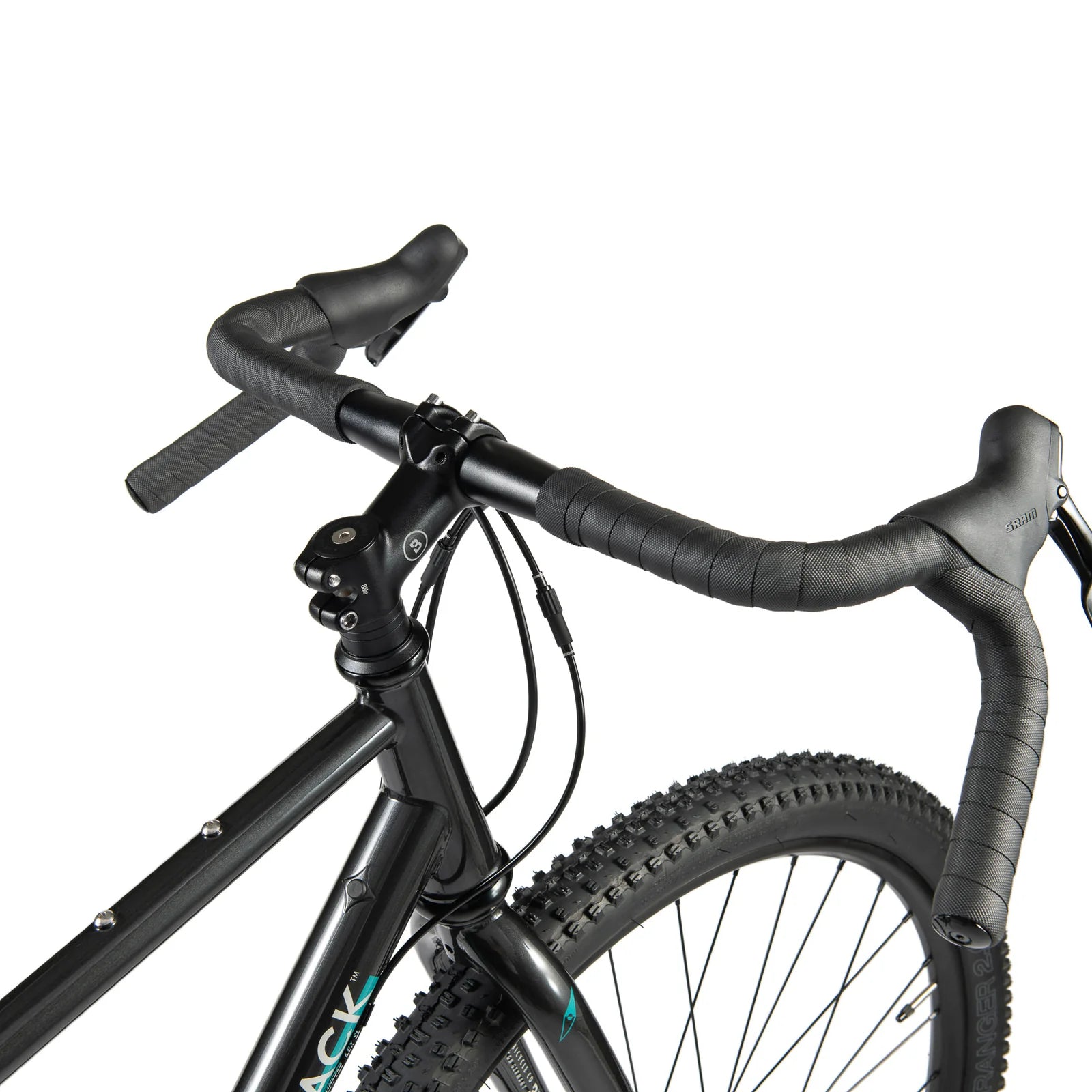

| Handlebar | BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
| Grips | BOMBTRACK COMMAND bar tape |
| Stem | BOMBTRACK WANDER forged aluminium stem, +17° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |

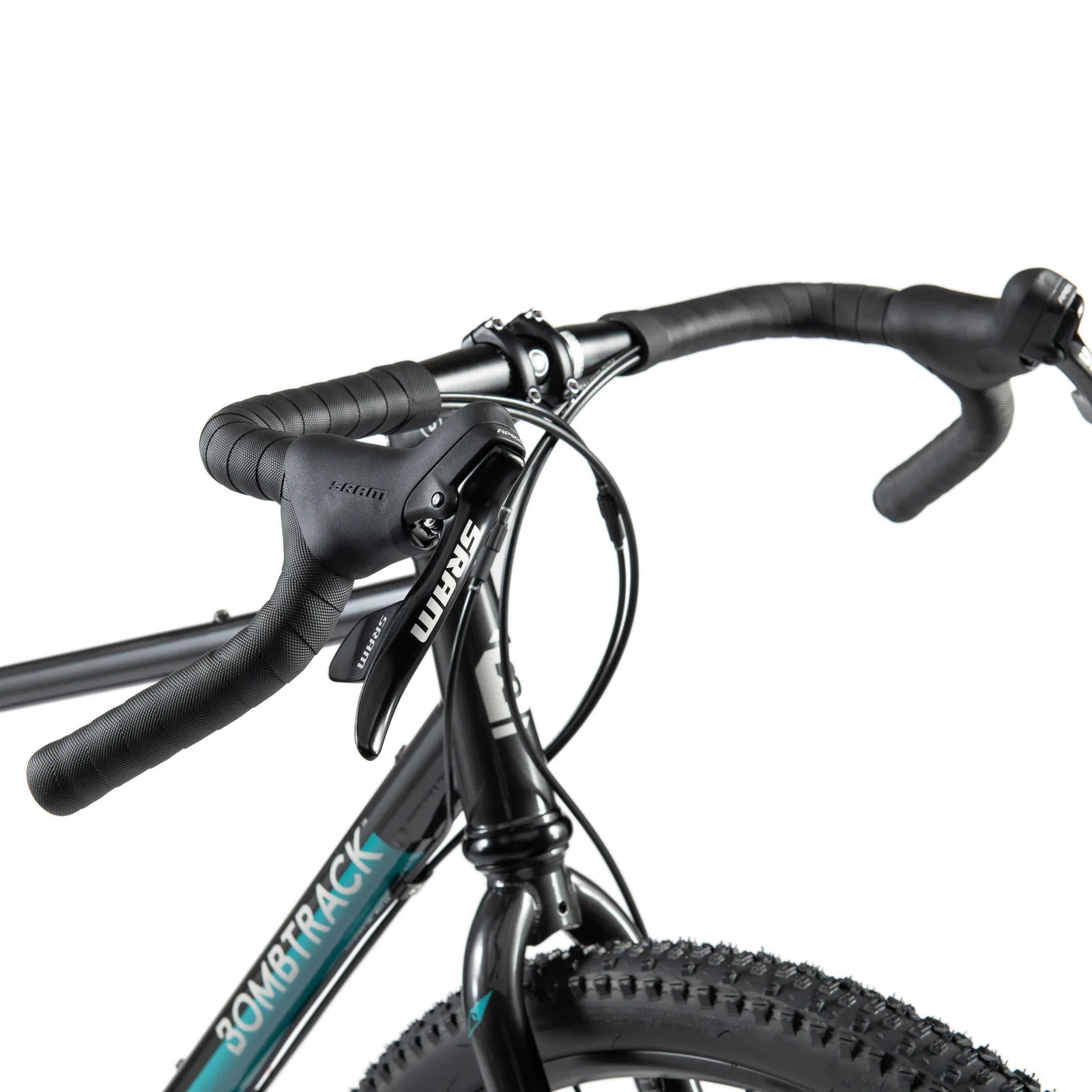

| Levers | SRAM Apex double tap mechanic |
| Shifter | SRAM Apex double tap 2 x 10 |

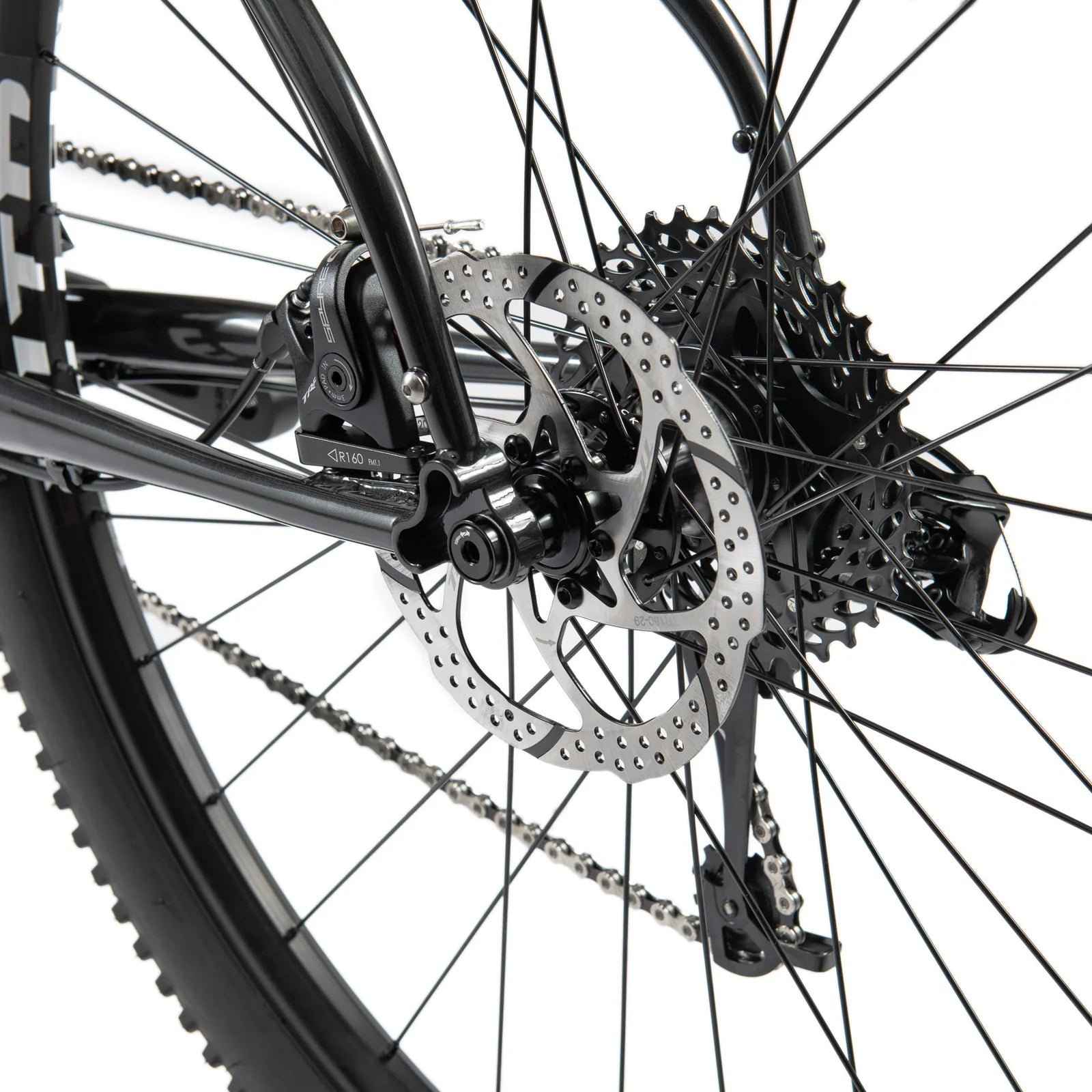

| Brakes | TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |
| Crankset | BOMBTRACK AMES forged aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | KMC X10 chain, 1/2'' x 11/128'', 114L |
| Chainring | Aluminium / Steel, 40 / 28 T |
| Cassette | SRAM PG-1020 10-speed, 11 - 36 T |
| Front derailleur | Microshift FD-M612-B |
| Rear derailleur | SRAM GX, long cage |
| Front hub | BOMBTRACK GRAD sealed hub, 6-bolt disc |
| Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle | 15 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle | BOMBTRACK ORIGIN saddle |
| Seat post | BOMBTRACK BEECH 27.2 mm x 400 mm |
| Seat clamp | BOMBTRACK ORIGIN 29.8 mm |
| Front tire | WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Rear tire | WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
| Fender | - |
| Rack | - |
| Light | - |
| Weight | 12.9 kg (size M) |
| Weight frameset | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
