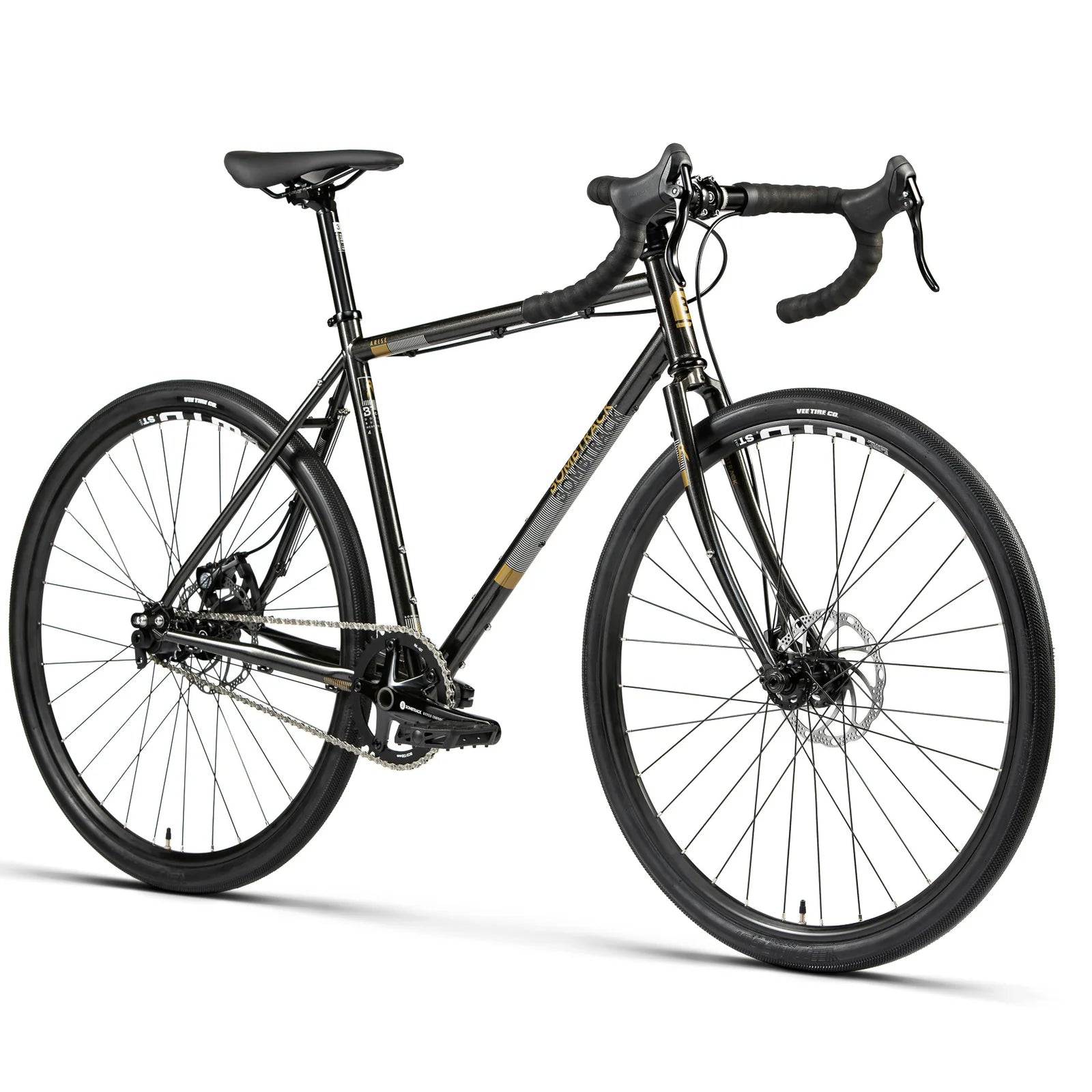

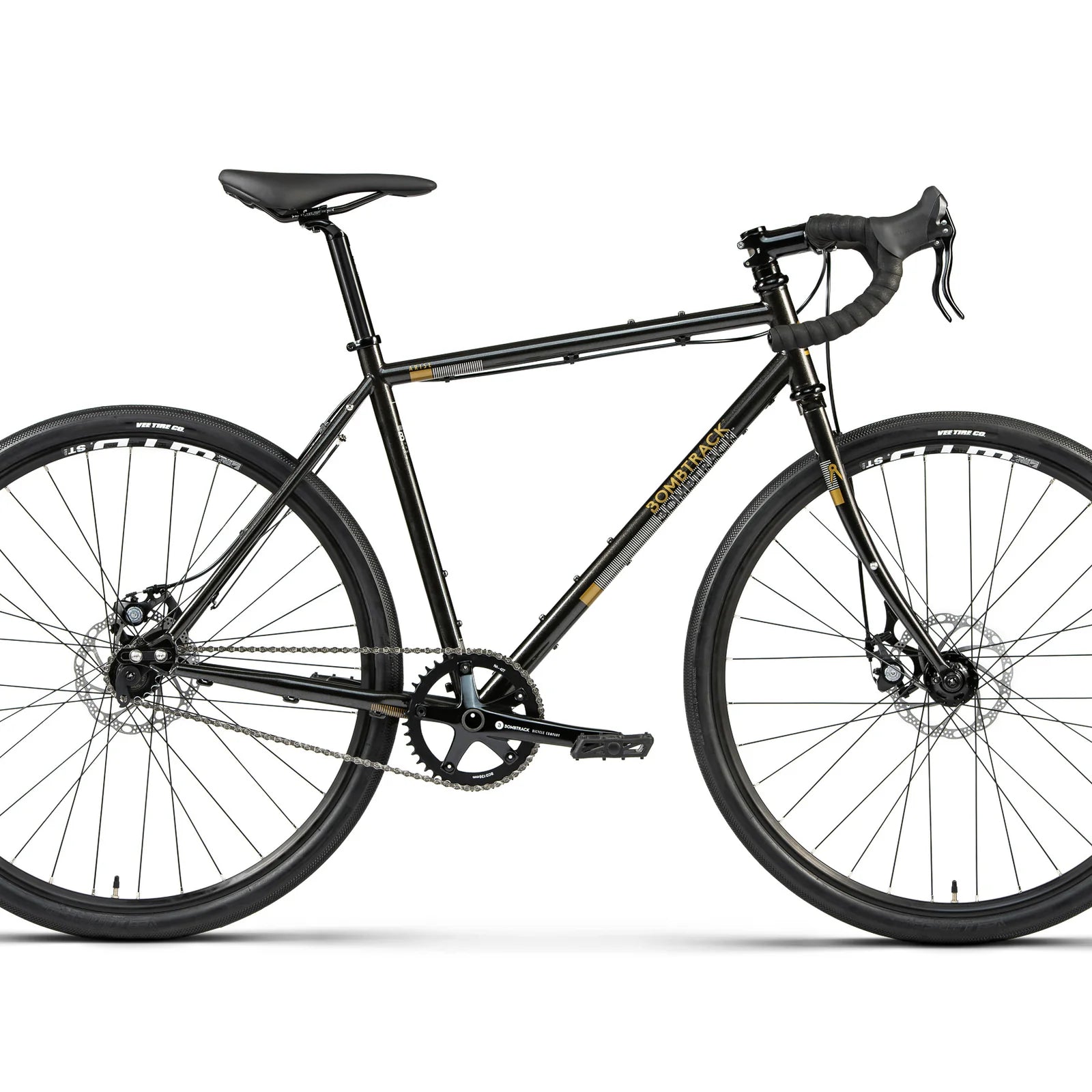

BOMBTRACK ARISE Complete Bike
£2,500.00
Product Details
A simple, versatile bike, our Arise uses a single-speed drivetrain so you can focus on riding, not maintenance. The fast wheels, wide tyres, and flared bars mean there’s not much this bike cannot handle, from trails to commuting. Infinitely adaptable with fittings for mudguards and a rack, and you even have the option of converting the frame and hub to run an 11-speed drivetrain.
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | BOMBTRACK CONTROL bar tape |
| Stem | BOMBTRACK ROAM forged aluminium stem, -7° |
| Headset | NECO H282 sealed external aheadset, 1.1/8'' |
| Levers | TEKTRO RL-340 brake levers |
| Shifter | - |

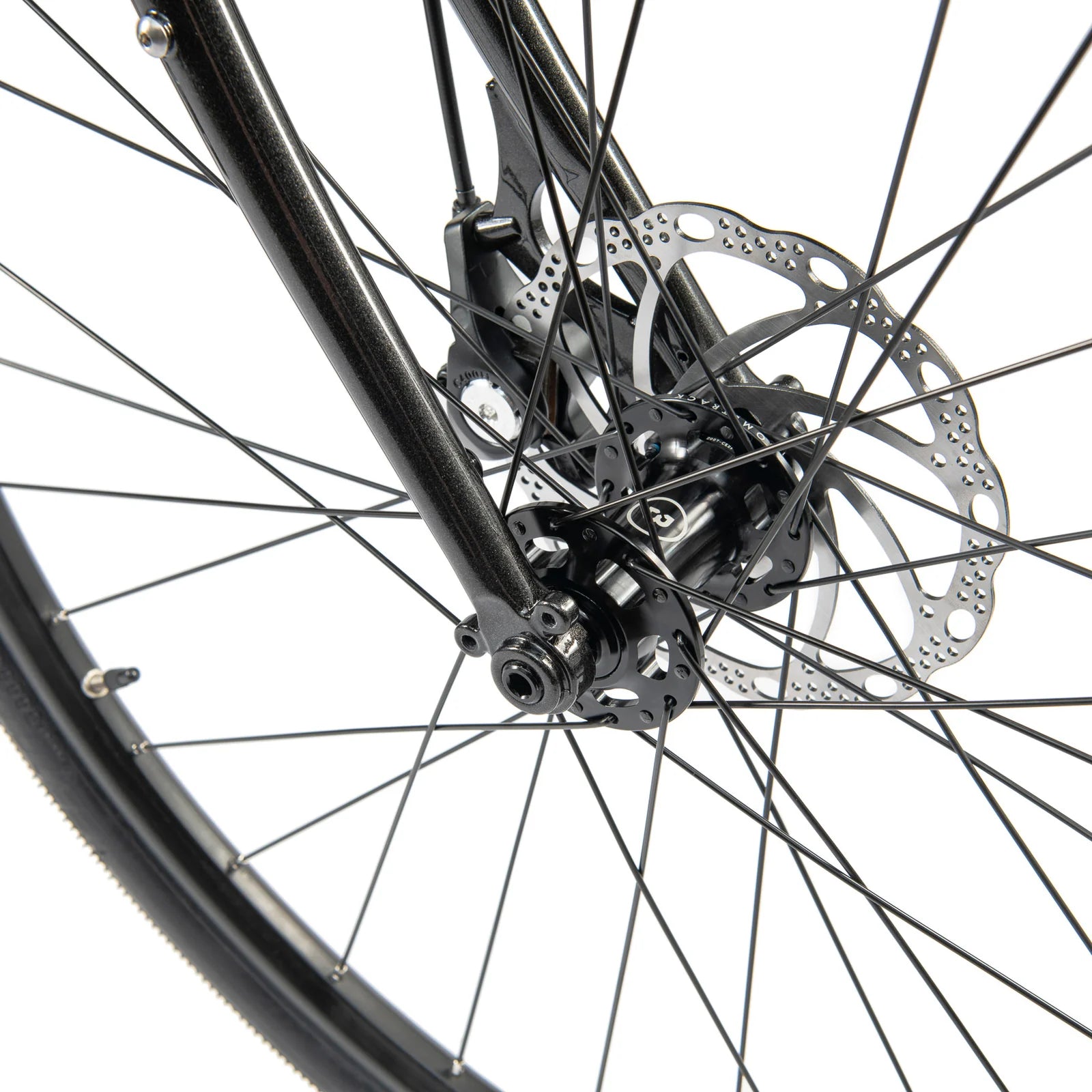

| Brakes | TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors |
| Crankset | BOMBTRACK TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | WELLGO B109N flat pedal |
| Chain | KMC X9 chain, 1/2'' x 11/128'', 98L |
| Chainring | BOMBTRACK RIDGE aluminium chainring, narrow-wide, 42 T |
| Cassette | 16 T heat treated crmo, 1/2'' x 11/128'' |
| Front derailleur | - |
| Rear derailleur | - |
| Front hub | BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | BOMBTRACK ORIGIN saddle |
| Seat post | BOMBTRACK BEECH 27.2 mm x 300 mm |
| Seat clamp | BOMBTRACK ORIGIN 29.8 mm |
| Front tire | "XS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622 |
| Rear tire | "XS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622 |
| Fender | - |
| Rack | - |
| Light | - |
| Weight | 11.4 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
