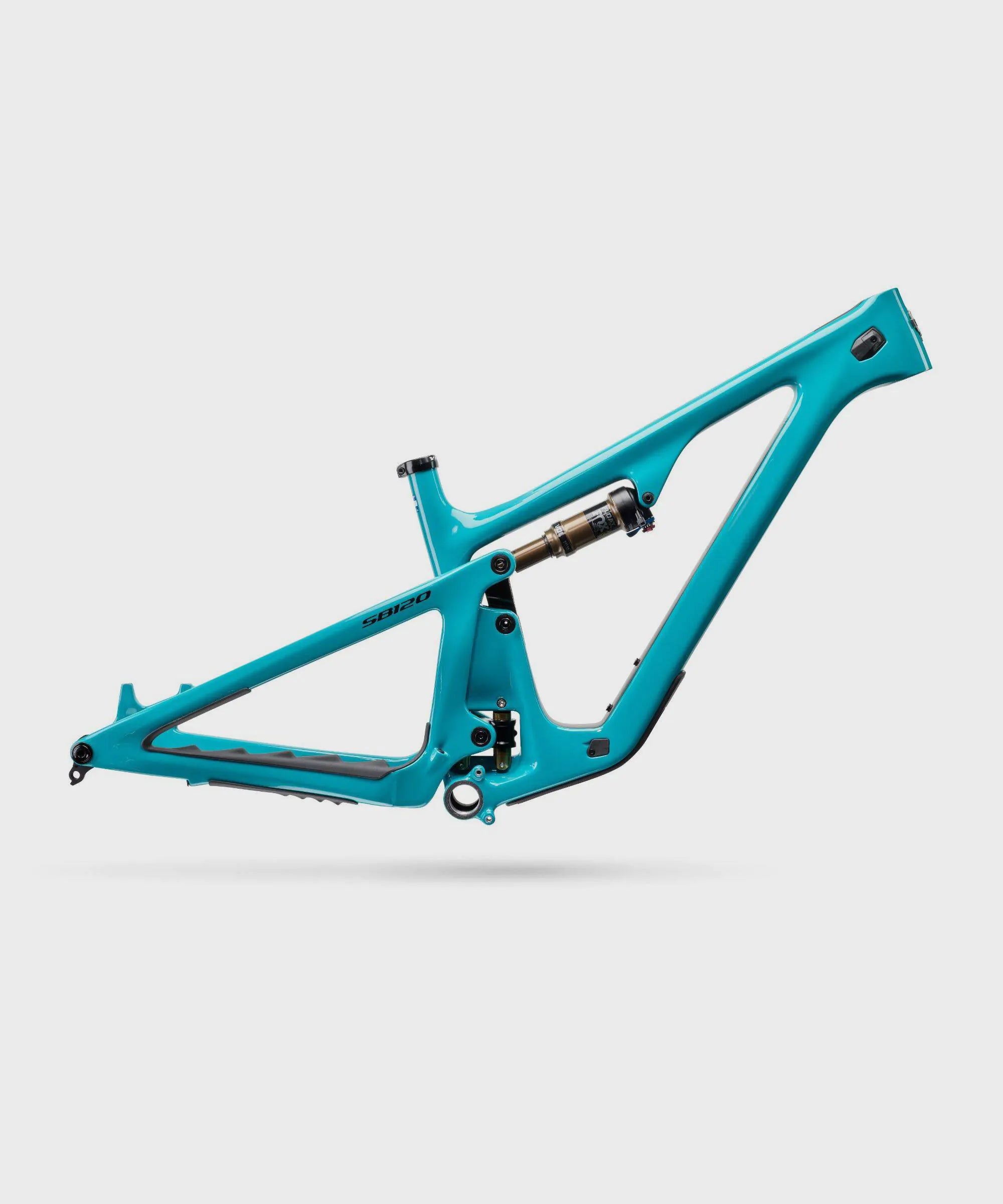

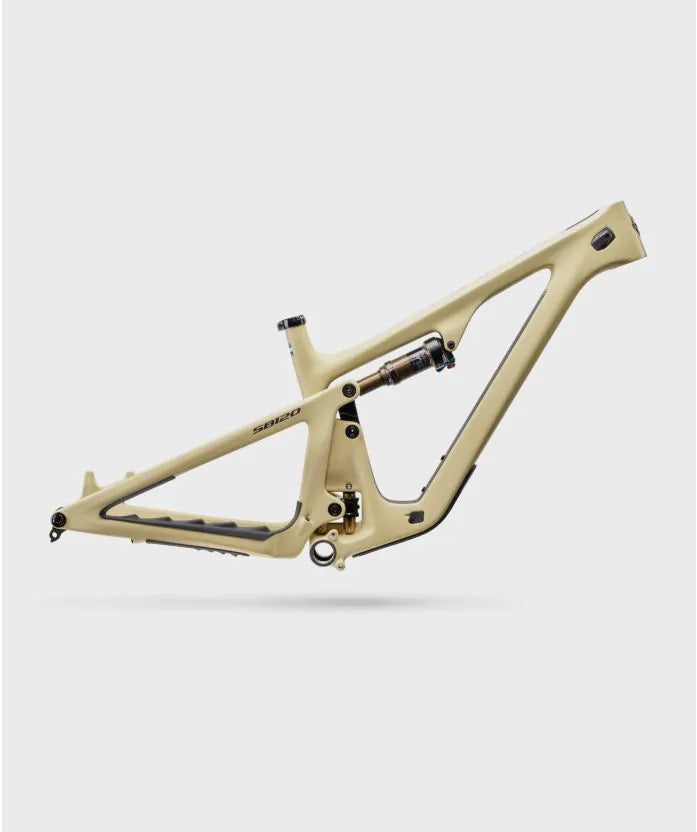

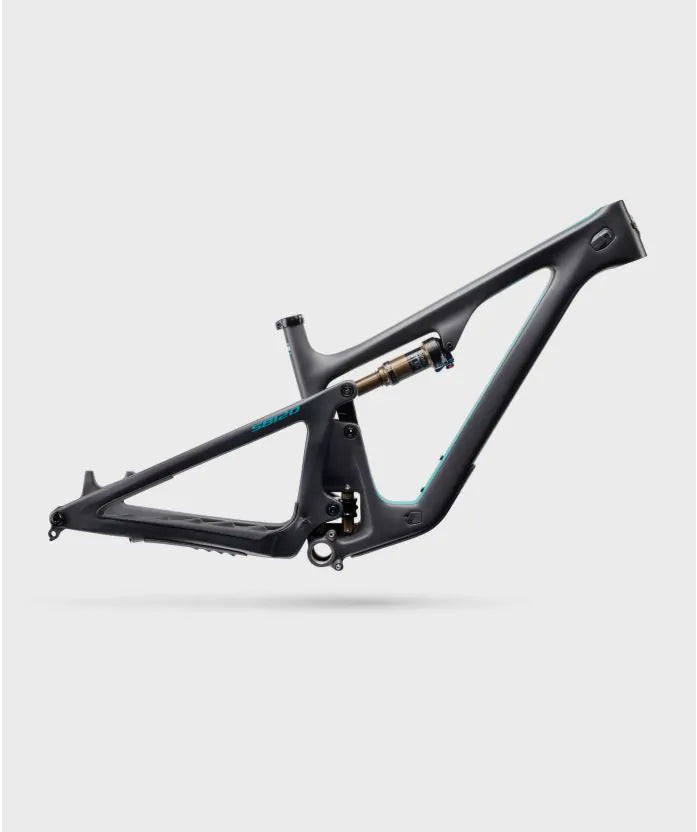

Yeti SB120 T-Series 29" Frame
Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for "Cross Country". Steer clear of pigeon holes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the sb120 means to you. And you alone. Definition ready.
120MM
FRAME TRAVEL
11%
LEVERAGE RATE
29"
WHEEL SIZE
66.5°
HEAD TUBE ANGLE
76.5°
EFF. SEAT ANGLE
FRAME HIGHLIGHTS
- NEW short travel trail frame platform
- NEW Switch Infinity assembly on T-Series
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Ultra-compact shock extender
- Boost spacing
- Sizes XS-XXL
TRAIL. CHECK MATE.
Crushing souls on the descent is more than half the fun. And a hell of a lot more than half the point. The SB120 is wicked quick in your direction of choice.
SIZE GUIDE
| X-SMALL | 4'10" - 5'3" | |||||
| SMALL | 5'1" - 5'7" | |||||
| MEDIUM | 5'5" - 5'11" | |||||
| LARGE | 5'10" - 6'3" | |||||
| X-LARGE | 6'1" - 6'7" | |||||
| XX-LARGE | 6'5" - 6'11" |
SPECIFICATION
TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
| SHOCK | FOX FACTORY FLOAT |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 130MM FORK | XS | SM | MD | LG | XL | XXL | |
| A | SEAT TUBE LENGTH | 345 | 365 | 400 | 440 | 470 | 485 |
| B | EFF. TOP TUBE LENGTH | 540 | 571 | 603 | 625 | 652 | 672 |
| C | HEAD TUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| D | EFF. SEAT TUBE ANGLE | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| E | ACTUAL SEATTUBE ANGLE | 71.1 | 71.5 | 71.9 | 72.3 | 72.7 | 73.2 |
| F | CHAINSTAY LENGTH | 433 | 435 | 437 | 439 | 441 | 443 |
| G | WHEELBASE | 1122 | 1157 | 1191 | 1217 | 1249 | 1274 |
| H | ESTIMATED BB HEIGHT | 335 | 335 | 335 | 335 | 335 | 335 |
| I | STANDOVER | 699 | 709 | 714 | 718 | 720 | 725 |
| J | HEAD TUBE LENGTH | 92 | 98 | 104 | 115 | 126 | 147 |
| K | FORK (AXLE TO CROWN) | 544 | 544 | 544 | 544 | 544 | 544 |
| L | FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 | 44 |
| M | STACK | 604 | 610 | 615 | 625 | 635 | 655 |
| N | REACH | 395 | 425 | 455 | 475 | 500 | 515 |
| O | FRONT CENTER | 689 | 722 | 754 | 778 | 808 | 831 |
| P | VERTICAL FORK TRAVEL | 119 | 119 | 119 | 119 | 119 | 119 |
