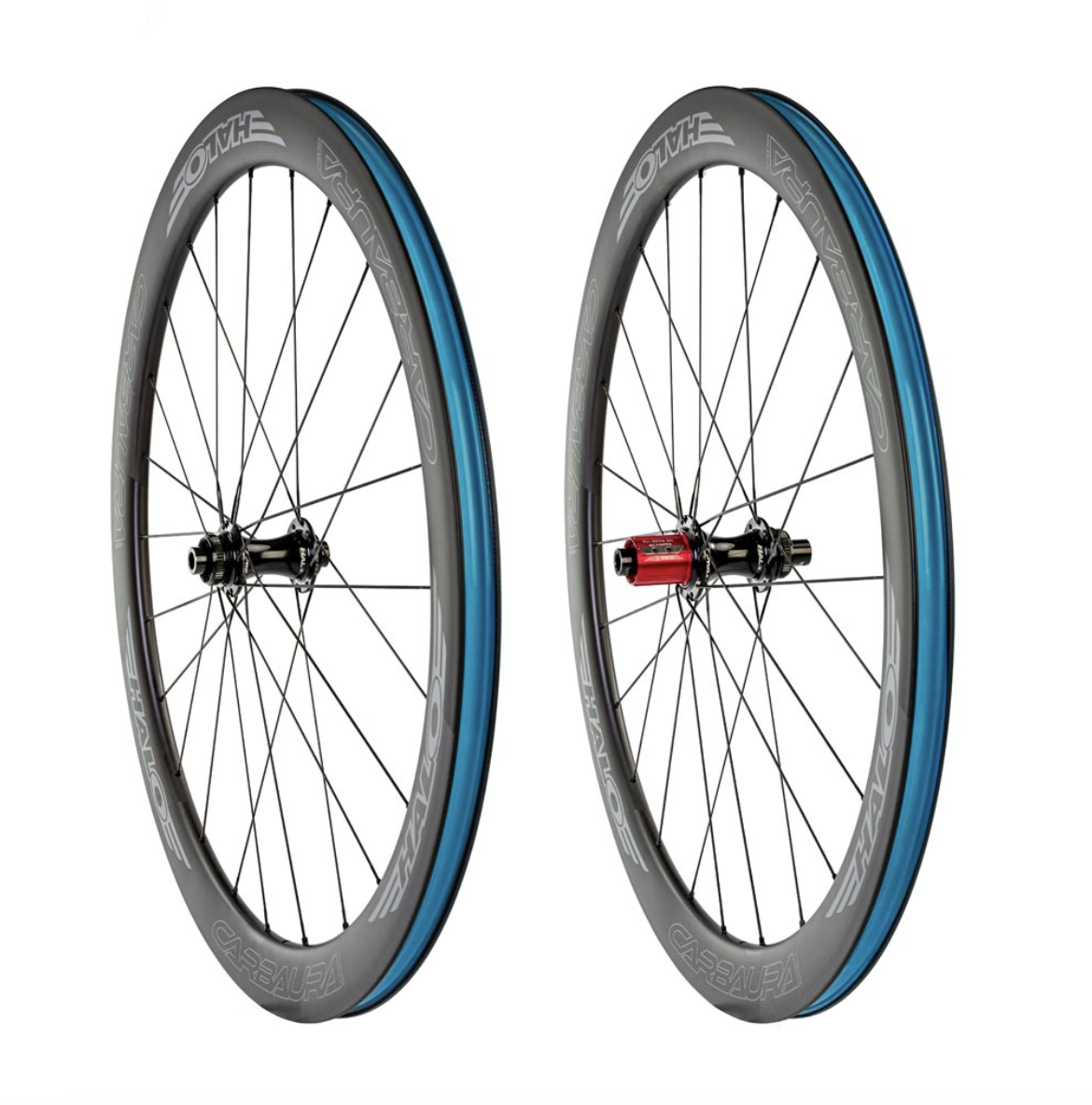

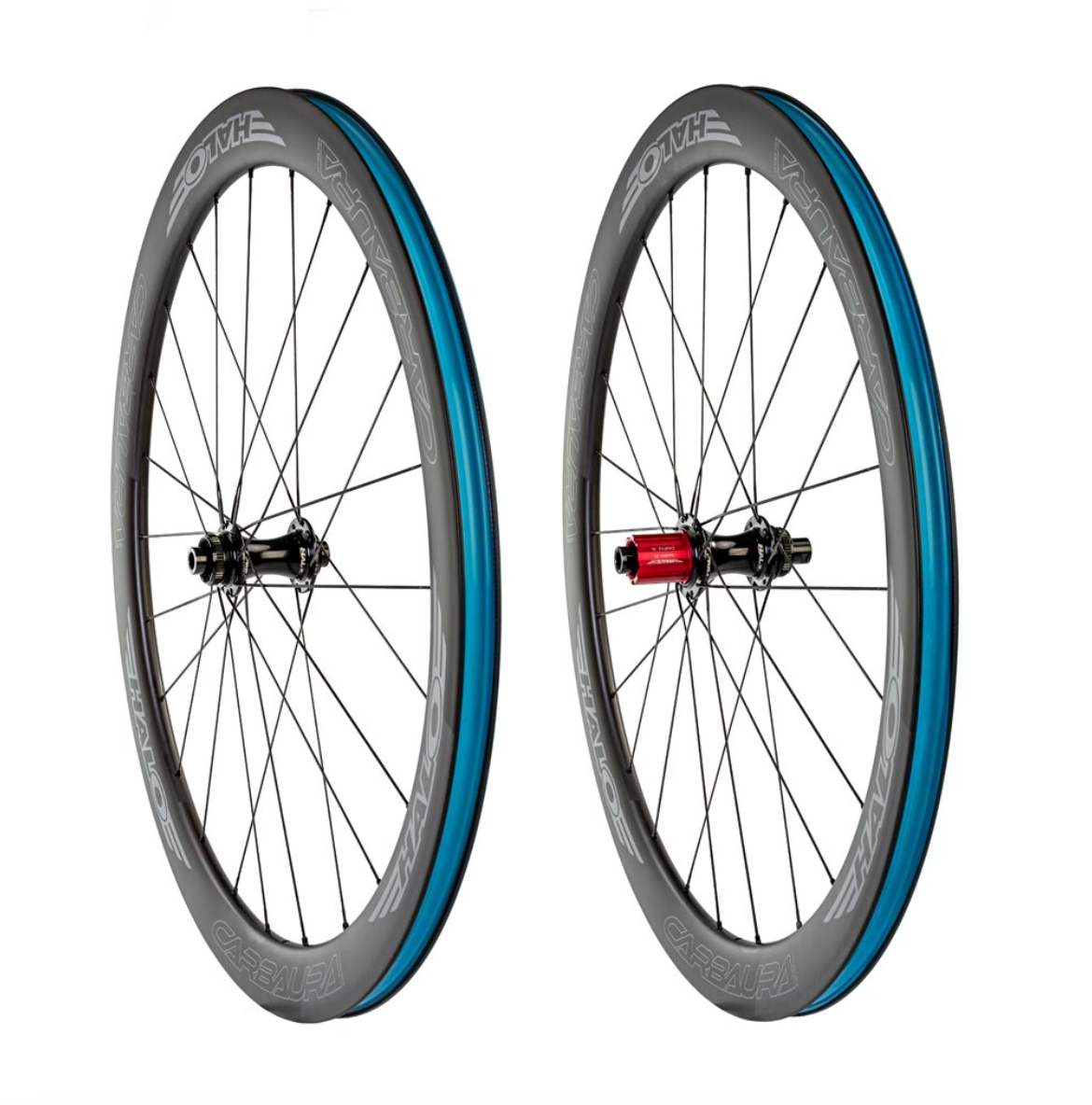

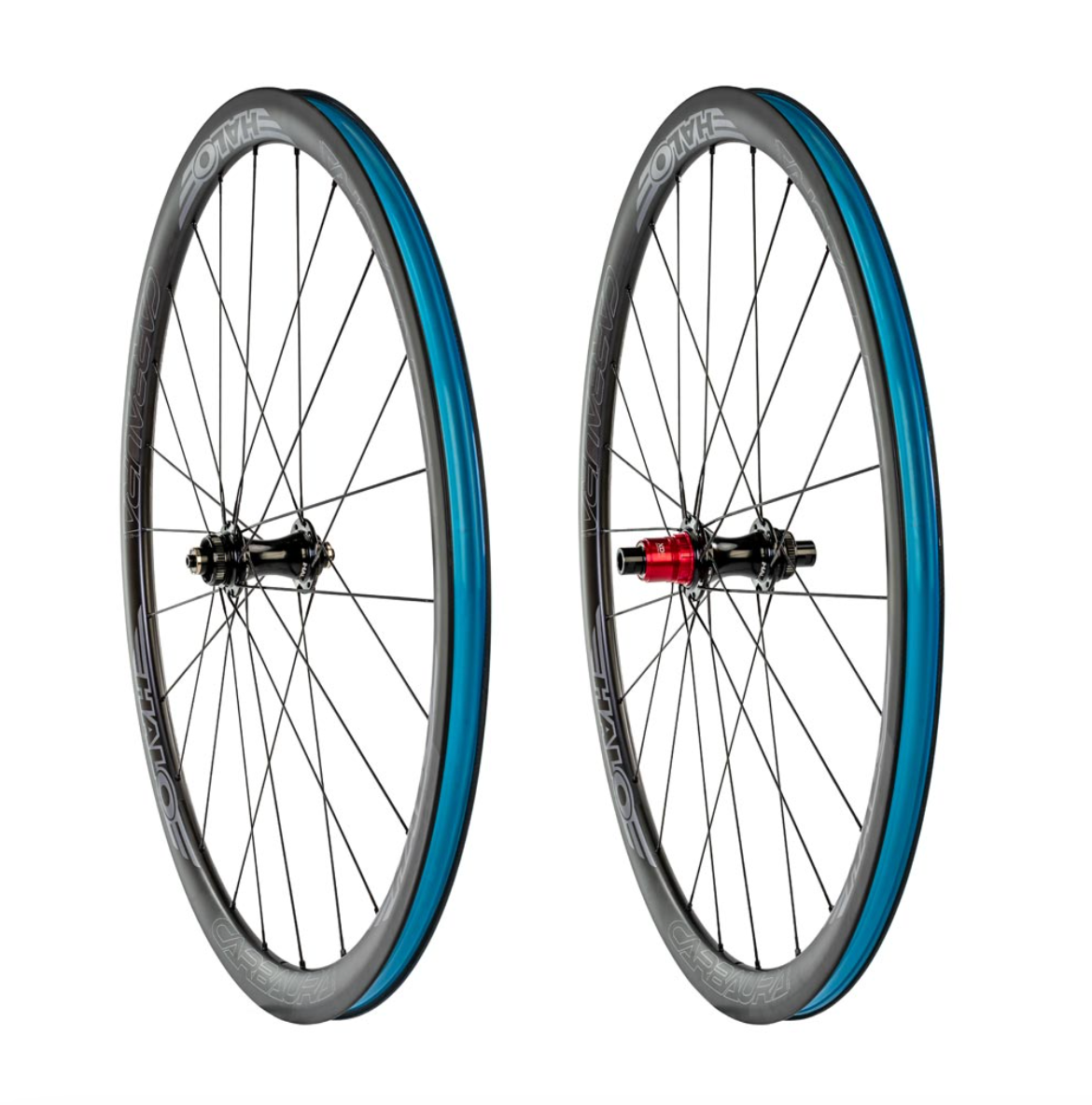

Our Carbaura RCD wheelsets have been designed to keep you one step ahead of the competition.

Built around an optimized, Computational Fluid Dynamics tested, aerodynamic profile in a Carbon Fibre chassis, low weights, linear compliance and lateral stiffness were our primary aims with the Carbaura RCD wheelsets.

The tried and tested 19mm internal and 25mm external rim widths allow you to run a choice of traditional or tubeless tyres and are well suited to tyres ranging from 25c through to 35c widths to deliver enhanced comfort and grip.

At the centre of the Carbaura RCD wheelsets are our RD2 hubs equipped with a centre lock, to accept disc brakes for consistently powerful braking in all weathers and to eliminate rim wear.

The RD2 hub set also incorporates Supadrive, which offers a 120-point near-instant engagement with the ability to withstand substantial torque loads. With multiple World Championship titles across a range of disciplines, the Supadrive system is tried and tested to the very highest level. It is our most advanced and reliable drive system to date.

Handcrafted with lightweight bladed aero spokes to decrease resistance and widely spaced hub flanges the Carbaura RCD wheelsets have been built to reduce any possible lateral flex and increase power transfer. Both front and rear wheels use a 16/8e lacing pattern to balance spoke tensions and withstand torque and braking forces from the centre of the wheels.

Available in two depths, 35mm, a lower inertia option great for undulating courses, and 50mm, a more aerodynamic option for flatter routes.

Included Fittings

• Front100 x 12mm thru
• Rear142 x 12mm thru

100kg is our recommended maximum rider weight limit for these wheels. Rider weights beyond 100kg are often still viable with our wheels, but this does add extra stress to the components and we recommend regular checks with an experienced mechanic. Any warranty issues will be assessed by our in-house team on a case-by-case basis.

Carbaura Mini Site

Specifications

• SpokesHalo Black Aero Racing Stainless spokes
• NipplesHalo Black Brass nipples
• Rim Depth35/50mm
• Internal Width19mm
• External Width25mm
• Front Hub Spacing100mm
• Rear spacing142mm
• Drillings24H Front and Rear
• FreehubShimano HG, Sram XDR and Campagnolo versions
• Freehub BodyAlloy (Steel tabs on HG)
• Drive SystemSupadrive
• Disc MountCentre Lock
• Spoke pattern16/8e Front and Rear
• Recommended Tyre size25-35c
• TubelessTubeless ready
• ColourRaw UD Carbon
