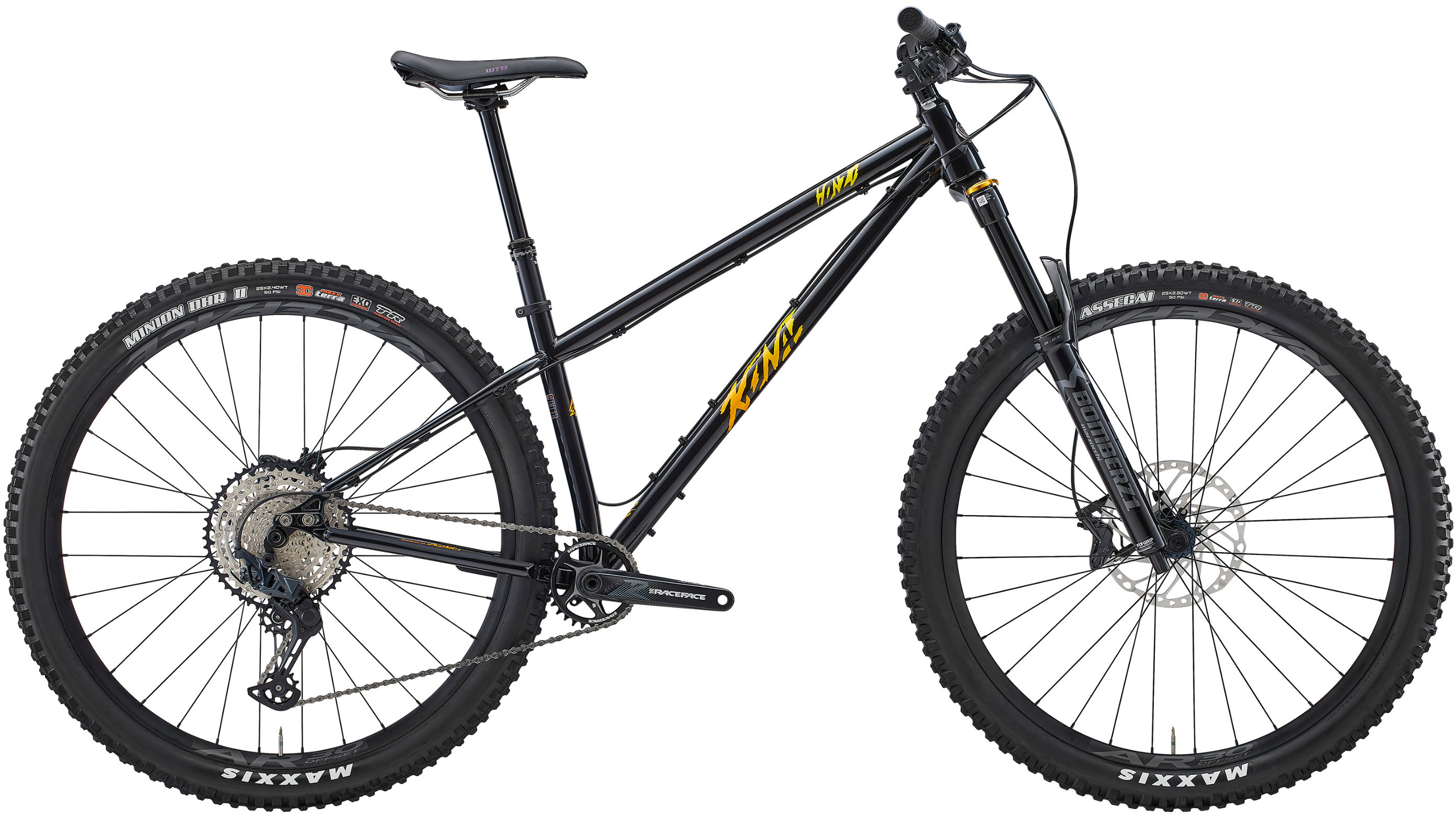

Kona Honzo ESD - Black 2023

Kona Honzo ESD - Black 2023

Size
Quantity
Looking to purchase with a cycle to work scheme?

Click here to get in touch and get the ball rolling!



If Mad Max rode a bike, it would be the Honzo ESD. It’s part Honzo, part monster, and with geometry that inspired the Process X, it’s made for those who want to punish the trails. A steel frame holds a Marzocchi Bomber Z1 fork with 150mm of travel. It’s got strong 4-piston brakes, grippy Maxxis rubber, and a headtube badge that will scare your children at night. This is the Warrior of the Wasteland.

“The Honzo ESD is one of the current breeds of hardcore hardtails proving that you don’t need rear suspension to tackle the gnarliest lines. That’s down largely to the excellent geometry and capable fork, combining to give buckets of control, composure, stability, and confidence.”

- Bike Radar


SPECIFICATIONS

FRAME MATERIAL Kona Cromoly Butted
SIZES S, M, L, XL
REAR SHOCK n/a
FORK Marzocchi Bomber Z1 Grip Damper 150mm Tapered 110mm Spacing
CRANKARMS Race Face Aeffect R
CHAINRINGS 30t Wide/Narrow
B/B Race Face 73mm
PEDALS n/a
CHAIN Shimano Deore
CASSETTE Shimano SLX 10-51t 12spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano SLX
SHIFTERS Shimano XT
BRAKE CALIPERS Shimano Deore
FRONT BRAKE ROTOR Shimano RT64 203mm (centerlock)
REAR BRAKE ROTOR Shimano RT64 180mm (centerlock)
BRAKE LEVERS Shimano Deore
HEADSET FSA Orbit 1.5 E ZS
HANDLEBAR Race Face Aeffect R 35
STEM Race Face Aeffect R 35
SEATPOST TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt
FRONT HUB Shimano SLX 110x15mm
REAR HUB Shimano SLX 148x12mm
SPOKES Stainless Black 14g
RIMS Race Face AR 30
FRONT TIRE Maxxis Assegai EXO TR 3C 29x2.5" WT
REAR TIRE Maxxis Minion DHR II EXO TR 3C 29x2.4" WT
PAINT COLOR Gloss Metallic Black w/ Furnace Fade & Purple Decals
EXTRAS n/a

All specifications are subject to change without notice

GEOMETRYmminches

  SIZE S M L XL
1 ST LENGTH 380 380 420 450
2 TT LENGTH 578 605 633 670
3 REACH 440 465 490 525
4 STACK 625 634 643 652
5 STANDOVER 712 710 709 706
6 HT ANGLE 63.0 63.0 63.0 63.0
7 HT LENGTH 90 100 110 120
8 ST ANGLE 77.5 77.5 77.5 77.5
9 CS LENGTH 417 417 417 417
10 BB DROP 62.5 62.5 62.5 62.5
11 BB HEIGHT 312.5 312.5 312.5 312.5
12 WHEELBASE 1186 1216 1245 1285
13 FRONT CENTER 776 806 835 875
14 FORK LENGTH 560 560 560 560
15 FORK OFFSET 42 42 42 42
KONA Geometry
