Bottom bracket shell:
68mm wide, standard English threaded 1.37 x 24t
Our Fatties Fit Fine (FFF) stays and our beautiful slope-crowned custom fork provide room for tyres up to 650b x 42mm! With fenders!Please get in touch with a member of the team to discuss the availability of size, build kit, and colour if the option you require is out of stock - 0131 374 5324 /
[email protected]
Fork:Surly Straggler4130 CroMoly, disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyeletsSo what is this Straggler anyway? The easy answer is to say that we added disc brakes to a Cross-Check and this is close to accurate. People have asked us to make a disc version of our highly versatile Cross-Check for a long time now and almost everything about the two are very similar. Straggler is slightly different, though.
The most obvious difference of course is that the Straggler has disc caliper mounts instead of rim brake studs. It'll accept rotors up to 160mm. The rear dropouts are unique, too. They're a partially closed horizontal design that accommodates singlespeed or geared drivetrains. They feature stop screws that thread in from the rear to further secure the wheel and to position the rear wheel for optimal shifting, plus a forward-mounted stop screw on the drive side to keep the wheel from slipping forward under the force of your gargantuan legs. The rear dropouts are spaced 135mm instead of 132.5mm like the Cross-Check simply because there are far more options for disc hubs in this spacing.Weight:
Straggler shares all of the Cross-Check's braze-ons for fenders, racks and bottle cages. The Straggler's geometry is slightly different, with angles and tube lengths very close but not identical to the Cross-Check, but like the Cross-Check it's ready to take you just about anywhere. It's a day tripper and a weekender. It's a 'rough road' road bike. It's a cyclocross bike with no pretense about racing. It's a utilitarian townie. It's a light-duty touring bike. It's an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else. We think that's pretty neat.54cm = 4.74 lb (2.27kg) Fork--uncut = 2.3 lb (1050g)
Specifications
Wheel sizes:
650b/27.5"Material
100% Surly proprietary 4130 CroMoly tubing
Fork
4130 CroMoly, disc only
Steerer
Headset Compatibility
1 1/8" a-head
Seatpost
27.2mm
Seat Clamp
SURLY BIKES30.0mm (we include our Surly stainless clamp with our framesets)
BUILT TO LASTFront Derailleur
28.6 mm band-on
BB Shell
68mm English
Rear spacing
135mm
QUESTIONS AND ANSWERS
Colour
Glitter Dreams, Closet Black or Mint Green

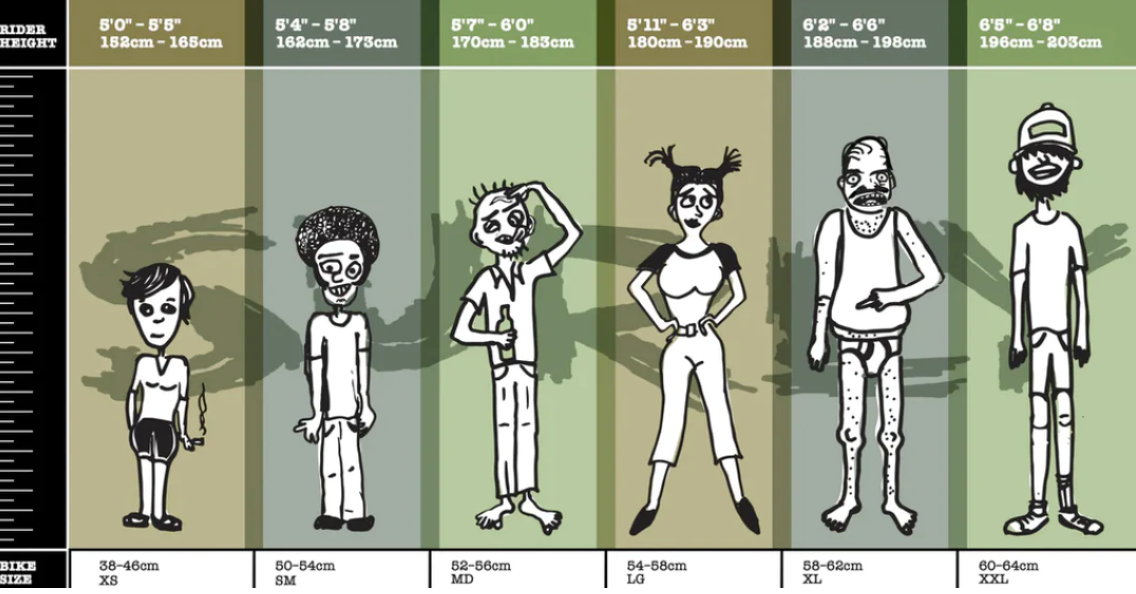

Surly Sizing guide is attached in the photos.
Due to the increased demand, the best way to get your hand on a Surly bike is to call us to check the availability on the model and build kit you are looking for. Some models can be pre-ordered and reserved for when
they come into stock.Check out our Custom Builds!
