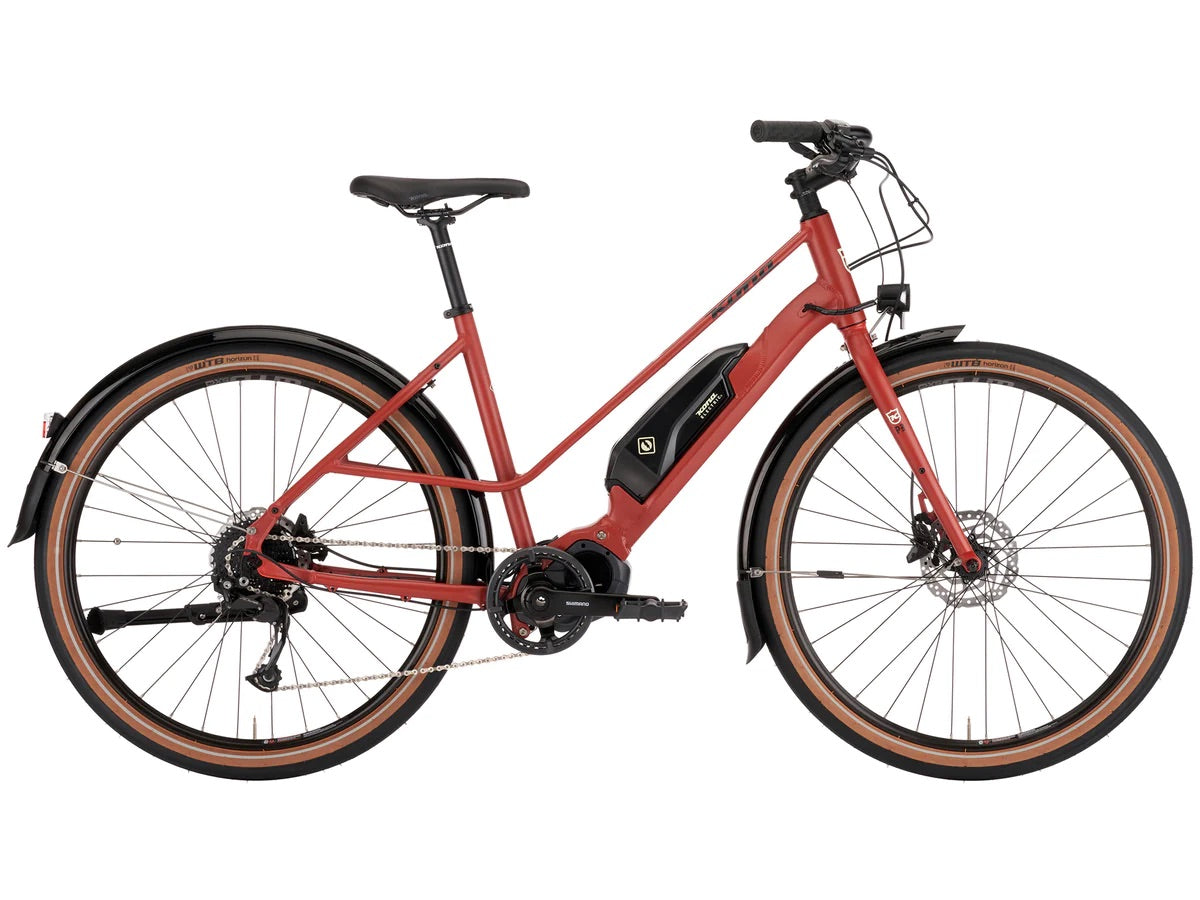

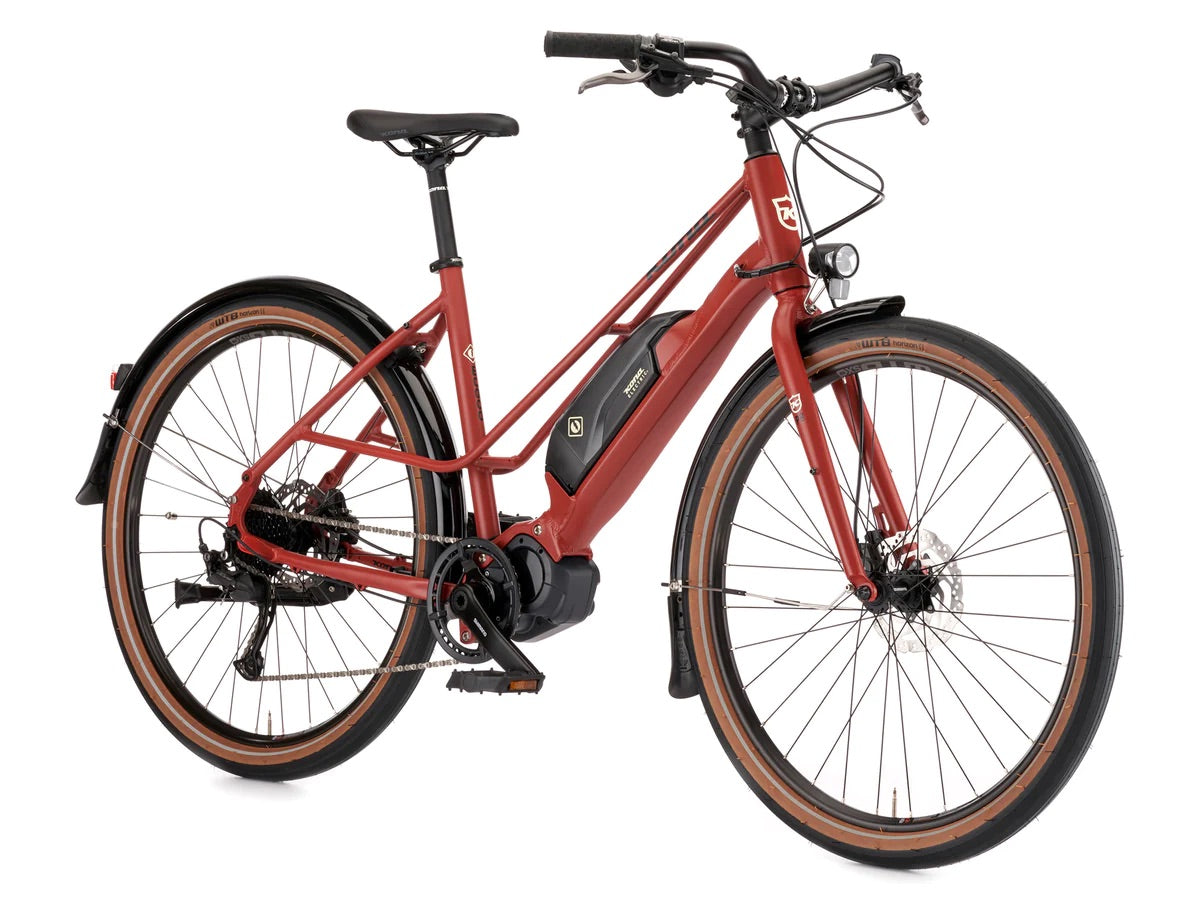

The Ecoco has been spotted alongside trendsetters all over the world. It makes running errands fun. It’s the perfect boardwalk beach cruiser and it doesn’t have to worry about fitting into a bathing suit. Its eye-catching paint on its low-slung step-through frame is a showstopper, and its Shimano E6100 motor ensures that you’ll make it to the top of that big hill in time to watch every single sunset. Dependable shifting and disc brakes will keep all the moving parts running smoothly. It comes with fenders, front and rear lights, and a kickstand. The only thing needed, is you!

SPECS & GEOMETRY

SPECIFICATIONS

FRAME MATERIAL	Kona 6061 Aluminum Butted
SIZES	S, M, L
REAR SHOCK	n/a
FORK	Kona Project Two Aluminum Disc
CRANKARMS	Shimano E6100
CHAINRINGS	38t
B/B	n/a
PEDALS	Kona JS2
CHAIN	KMC X9
CASSETTE	Shimano Alivio 11-34t 9spd
CHAINGUIDE	Shimano E-Bike Chain Guard
F/D	n/a
R/D	Shimano Alivio
SHIFTERS	Shimano Acera
BRAKE CALIPERS	Shimano MT410
FRONT BRAKE ROTOR	Shimano RT10 160mm (centerlock)
REAR BRAKE ROTOR	Shimano RT10 160mm (centerlock)
BRAKE LEVERS	Shimano MT401
HEADSET	Feimin H863
HANDLEBAR	Kona Handplant
STEM	Kona Control
SEATPOST	Kona Commuter 27.2mm
SEAT CLAMP	Kona Clamp
GRIPS	Kona Key Grip Slip on
SADDLE	Kona Comfort
FRONT HUB	Shimano Alivio 100x9mm
REAR HUB	Shimano Alivio 135x10mm
SPOKES	Stainless 14g
RIMS	WTB SX19
FRONT TIRE	WTB Horizon Comp Puncture Protect 650x47c
REAR TIRE	WTB Horizon Comp Puncture Protect 650x47c

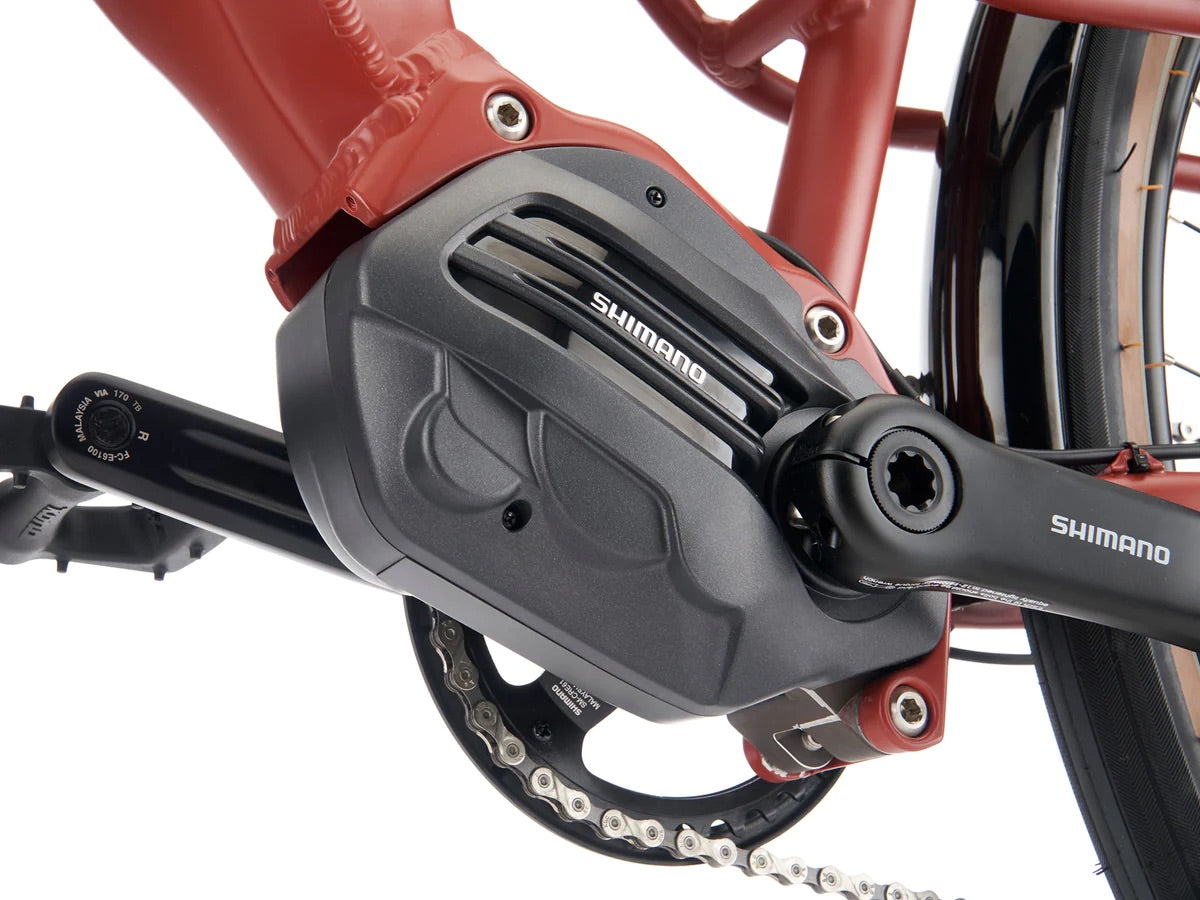

DRIVEUNIT	Shimano E6100 20MPH
BATTERY	Shimano 504Wh
DISPLAY	Shimano SC-E7000 Display
CHARGER	Shimano STEPS 2A
BATTERYLOCK	Abus
PAINT COLOUR	Matte Bloodstone w/ Charcoal & Bone Decals

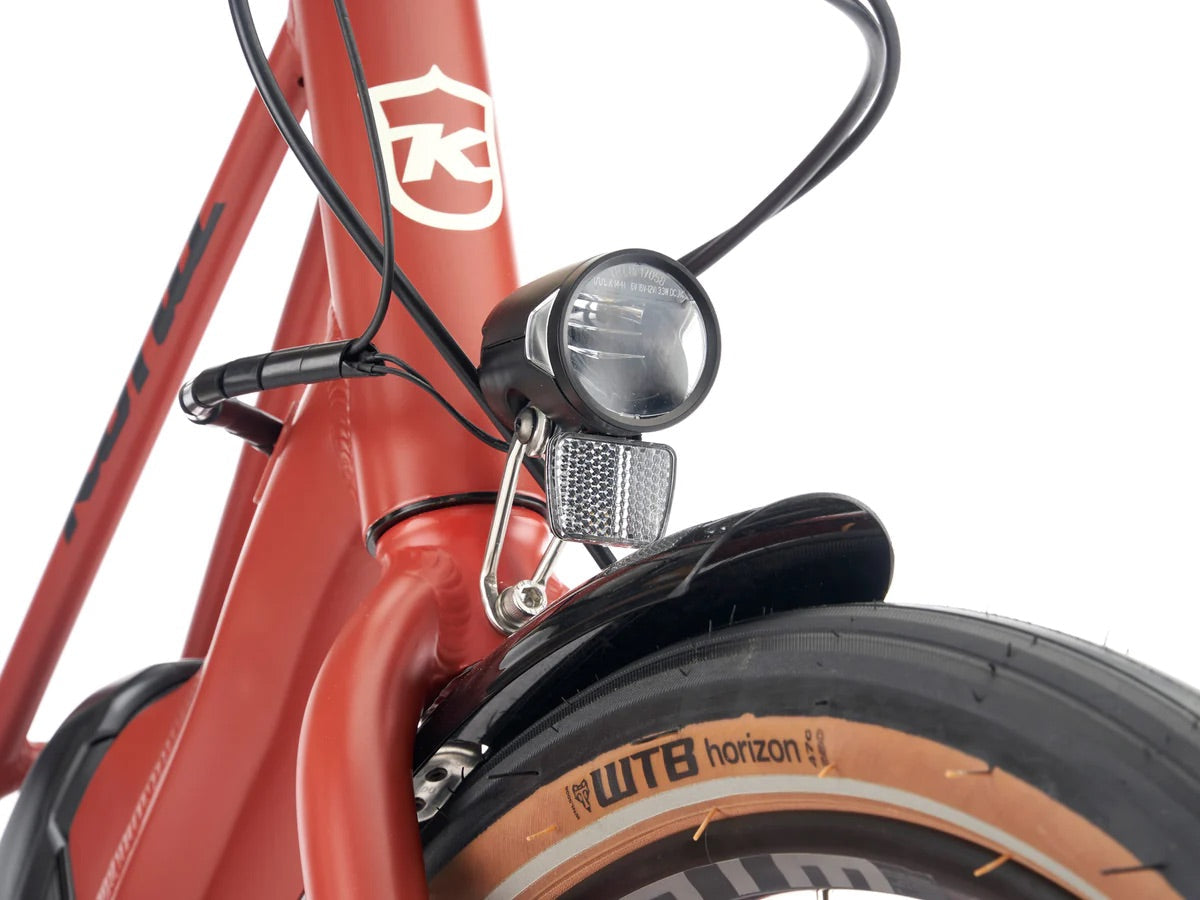

EXTRAS	Fenders, Front & Rear Light, Kickstand

All specifications are subject to change without notice

GEOMETRY

	SIZE	S	M	L
1	ST LENGTH	420	470	520
2	TT LENGTH	551	596	635
3	REACH	397	422	438
4	STACK	573	606	644
5	STANDOVER	584	584	591
6	HT ANGLE	70.0	70.0	70.0
7	HT LENGTH	140	175	215
8	ST ANGLE	75.0	74.0	73.0
9	CS LENGTH	450	450	450
10	BB DROP	70	70	70
11	BB HEIGHT	272	272	272
12	WHEELBASE	1078	1115	1144
13	FRONT CENTER	637	674	703
14	FORK LENGTH	409	409	409
15	FORK OFFSET	50	50	50
