Vecnum freeQENCE - THE ultimate suspension stem with the longest travel, damping an sag. Effectively absorbs up to 75% of vibrations and shocks.

Scope of delivery:

1x Suspension stem Vecnum freeQENCE in desired length

1x Manual for operation, mounting, maintenance

1x Gauge for testing the minimum distance from stem to head tube for freeQENCE 90

THE SUSPENSION STEM

More comfort, safety & fun.
For gravel, road, touring bikes,
suspensionless (e-)bikes.

MORE FUN ON THE BIKE
UP TO 75% LESS VIBRATIONS AND IMPACTS

The suspension stem freeQENCE absorbs up to 75% of all vibrations and impacts and therefore reduces your fatigue. You are riding more comfortable, faster and safer on paved roads, cobblestones, gravel roads, singletrails and technical terrain. The significant relief of your wrists may also avoid tingling and numb hands.

GEOMETRY NEUTRAL
PARALLELOGRAM

The torsionally stiff and ultra compact parallelogram construction guarantees optimal absorption of vertical impacts. In contrast to single pivot suspension stems, the handle bar does not tilt down. In contrast to supension forks, the frame geometry remains unchanged. The freeQENCE parallelogram enables an internal spring linkage.

TOP PERFORMANCE
IN ALL HANDLEBAR POSITIONS

In contrast to single pivot supsenion stems, the lever length does not influence the spring characteristics - due to the elaborate and complex parallelogram kinematics. No matter if you use your handebars hoods, drop or top position - suspension and damping performance always remain optimal.

30 MM TRAVEL
WITH DAMPING & SAG

Four unobtrusive but perfectly tuned high-tech elastomers protect you from harsh impacts and vibrations. The maximum suspension travel of 30mm is split into 20mm positive travel and 10mm negative travel - similar to the sag of a supension fork. The supension stem freeQENCE has a homogeneous, linear spring characteristic with srong progression towards the end of stroke.

EXTERNALLY ADUSTABLE
FROM 50 TO 120 KG

The suspension stem freeQENCE offers you an external and steples adjustment to your weight and inteded riding style. The patented internal spring linkage makes setting up your desired spring characteristics easier than on any suspension fork.

SPIRIT OF GRAVEL
LIGHTWEIGHT, AGILE, STRONG

The freeQENCE design is consequently optimized for high loads and low weight - starting with 287 grams at 90mm length. That is only about 150 grams additional weight compared to a standard stem. Without the disadvantages of a supension fork, your bike does not suffer ftom aerodynamic losses, it remains light and agile when sprinting and riding out of the saddle. The bike geometry remains unchanged. You do not need a lockout for your freeQENCE stem.

SIMPLY
UPGRADE YOUR BIKE

The suspension stem freeQENCE is simply mounted like a standard a-head stem. Upgrading is easy and done in a few minutes. Thanks to the open face 4-screw clamping, nothing needs to be dismounted from your handlebars.

IN 3 LENGTHS
FOR ALL SUSPENSIONLESS BIKES

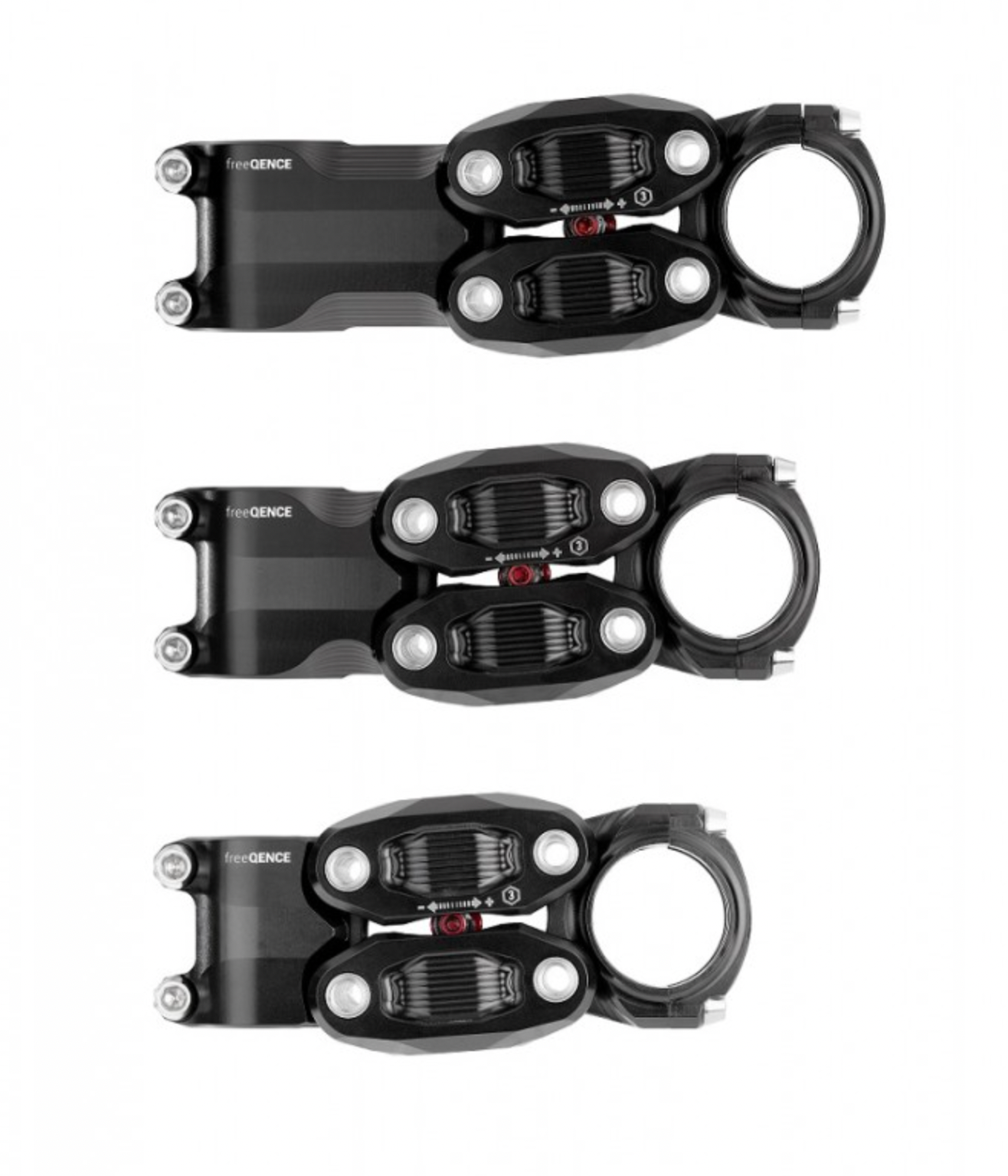

Available in 3 lengths - 90 mm, 105 mm, 120 mm.
For 1⅛ inch forks and all handlebar types with 31,8 mm diameter including carbon handlebars. Please note the required shaft length of your fork.

DESIGN. BUILD. RIDE.
VECNUM ALLGAEU GERMANY

At Vecnum, development, CNC processing, assembly and field testing is all single source and under one roof. As usual we focus on highest quality: all structural freeQENCE parts are machined from solid AL7075, the stem is equipped with titanium axles and screws, etc.
The suspension stem freeQENCE was tested externally by the independant EFBE laboratory according to their test standards for gravel stems and handlebars.

INFO & COMPATIBILITY

• Suspensionless (e-)bikes with 1­⅛ inch forks

• 31,8mm diameter handlebars, including carbon, all widths and types

• Required minimum distance from stem to head tube has to be tested with gauge included in freeQENCE 90 package
