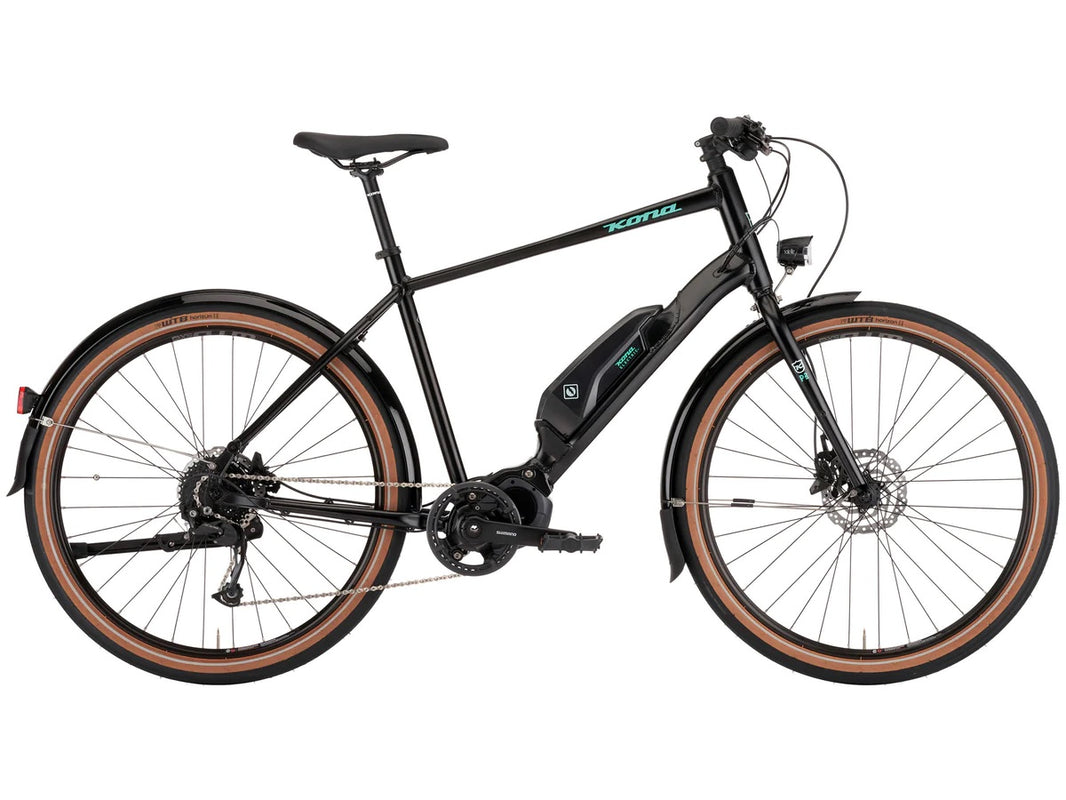

The Dew-E has redefined what commuting means to riders all over the world. In fact, we’ve heard it’s the best part of going to work for some people. We love the ride quality of the Dew-E and the fact that it’s helping cut down on the number of cars on the road. The semi-integrated battery keeps the lines of the bike nice and clean, while the Shimano pedal-assist motor keeps every rider smiling no matter how far or how steep their ride. Complete with front and rear fenders and lights, the Dew-E is ready to rise and shine for the daily grind!



SPECS & GEOMETRY

SPECIFICATIONS

FRAME MATERIAL	Kona 6061 Aluminum Butted
SIZES	S, M, L, XL
REAR SHOCK	n/a
FORK	Kona Project Two Aluminum Disc
CRANKARMS	Shimano E6100
CHAINRINGS	38t
B/B	n/a
PEDALS	Kona JS2
CHAIN	KMC X9

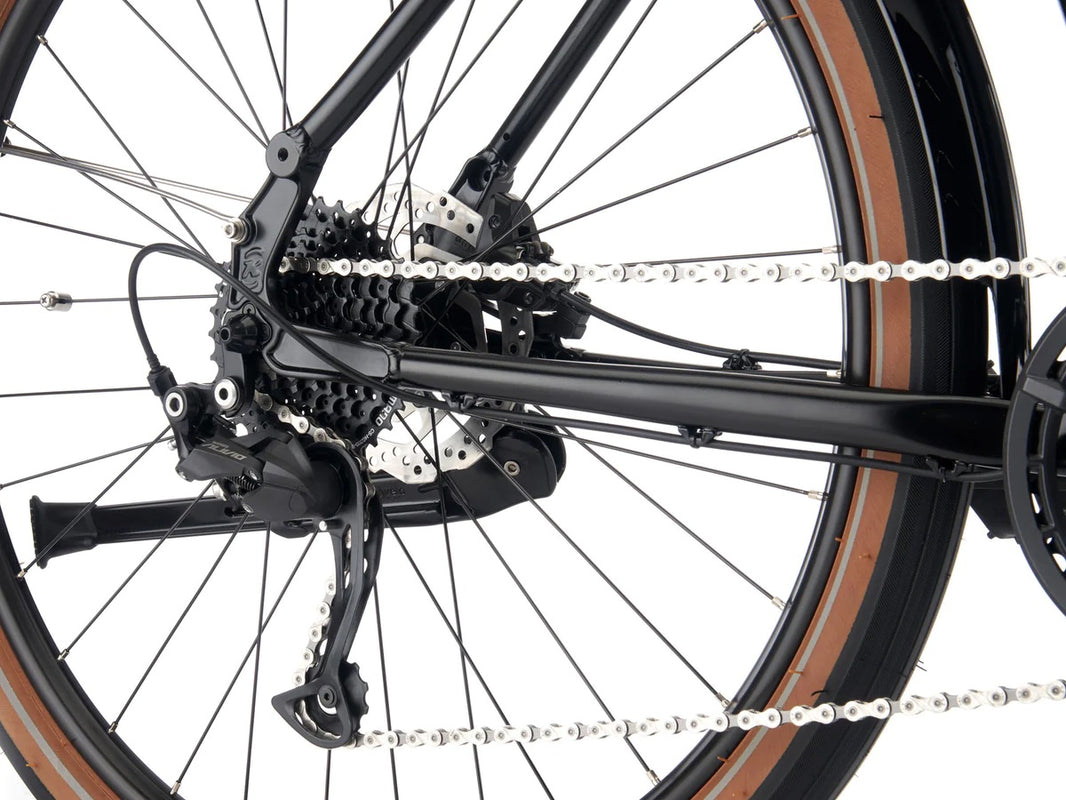

CASSETTE	Shimano Alivio 11-34t 9spd
CHAINGUIDE	Shimano E-Bike Chain Guard
F/D	n/a
R/D	Shimano Alivio
SHIFTERS	Shimano Acera
BRAKE CALIPERS	Shimano MT410
FRONT BRAKE ROTOR	Shimano RT10 160mm (centerlock)
REAR BRAKE ROTOR	Shimano RT10 160mm (centerlock)
BRAKE LEVERS	Shimano MT401
HEADSET	Feimin H863

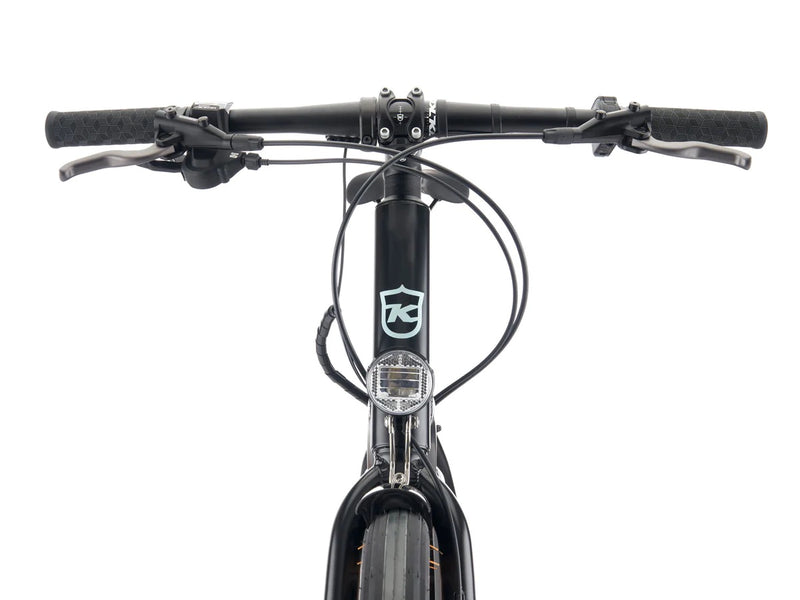

HANDLEBAR	Kona Aluminum Riser
STEM	Kona Control
SEATPOST	Kona Commuter 31.6mm
SEAT CLAMP	Kona Clamp
GRIPS	Kona Key Grip Slip on
SADDLE	Kona Comfort
FRONT HUB	Shimano Alivio 100x9mm
REAR HUB	Shimano Alivio 135x10mm
SPOKES	Stainless 14g
RIMS	WTB SX19
FRONT TIRE	WTB Horizon Comp Puncture Protect 650x47c
REAR TIRE	WTB Horizon Comp Puncture Protect 650x47c

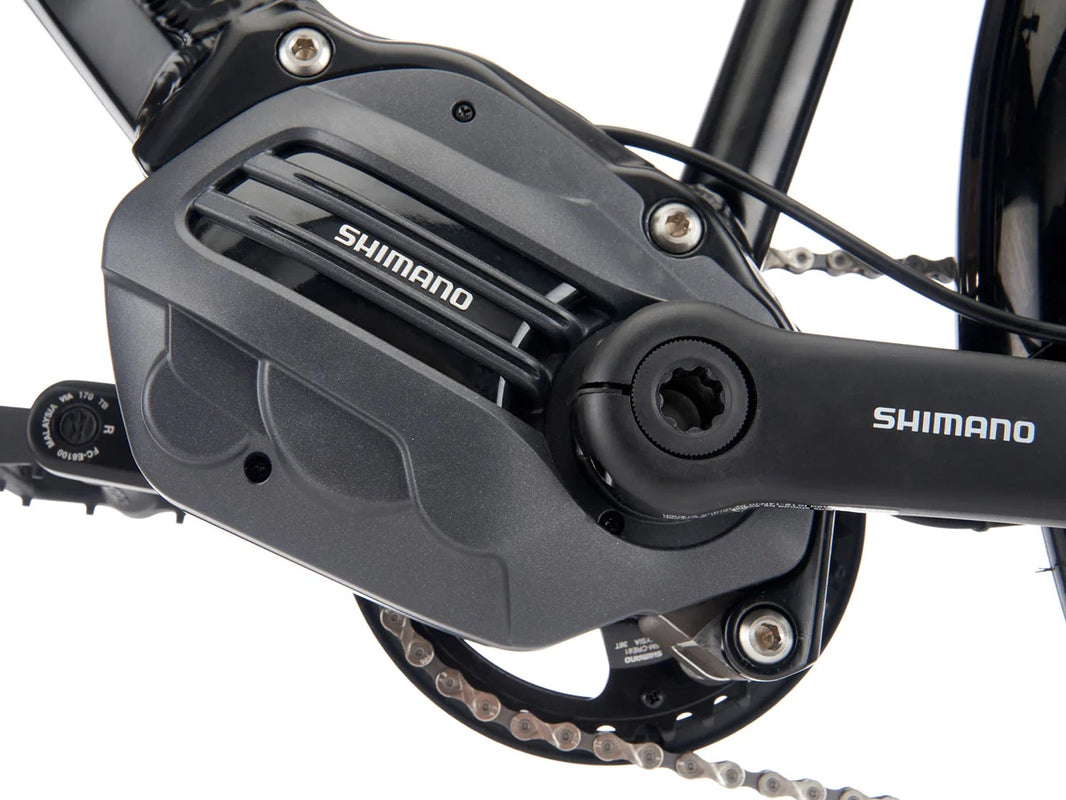

DRIVEUNIT	Shimano E6100 20MPH

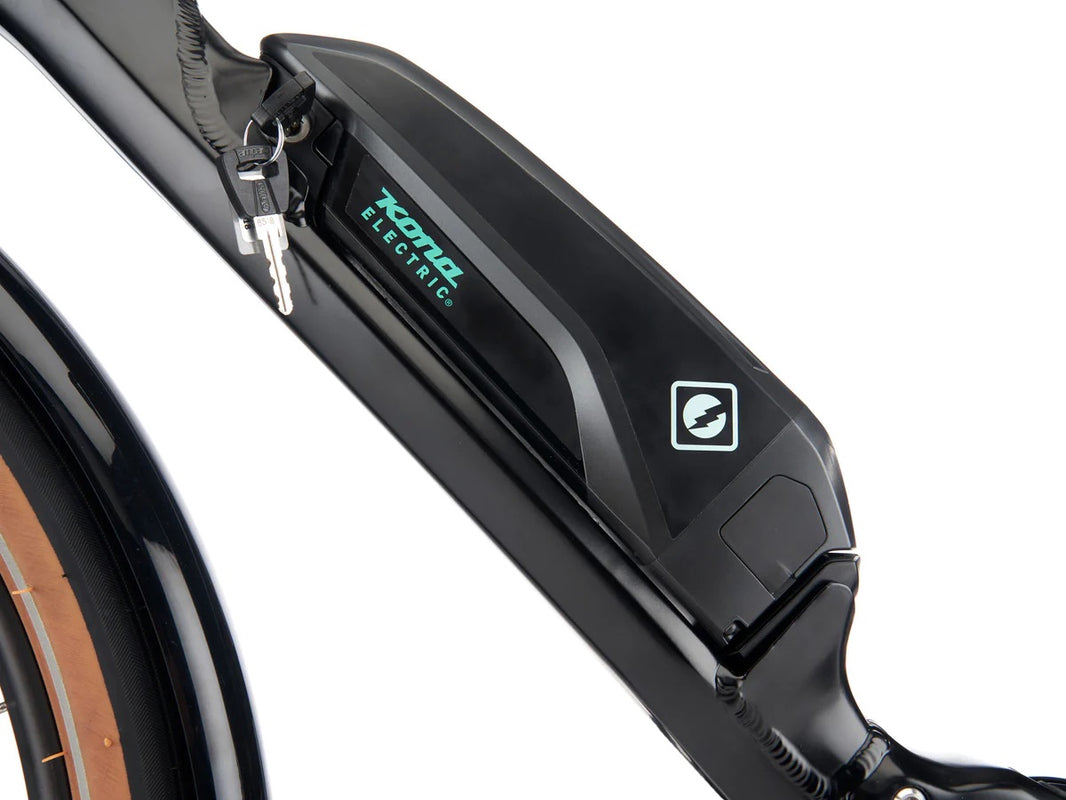

BATTERY	Shimano 504Wh
DISPLAY	Shimano SC-E7000 Display
CHARGER	Shimano STEPS 2A
BATTERYLOCK	Abus
PAINT COLOR	Satin Black w/ Metallic Mint & Metallic Silver Decals

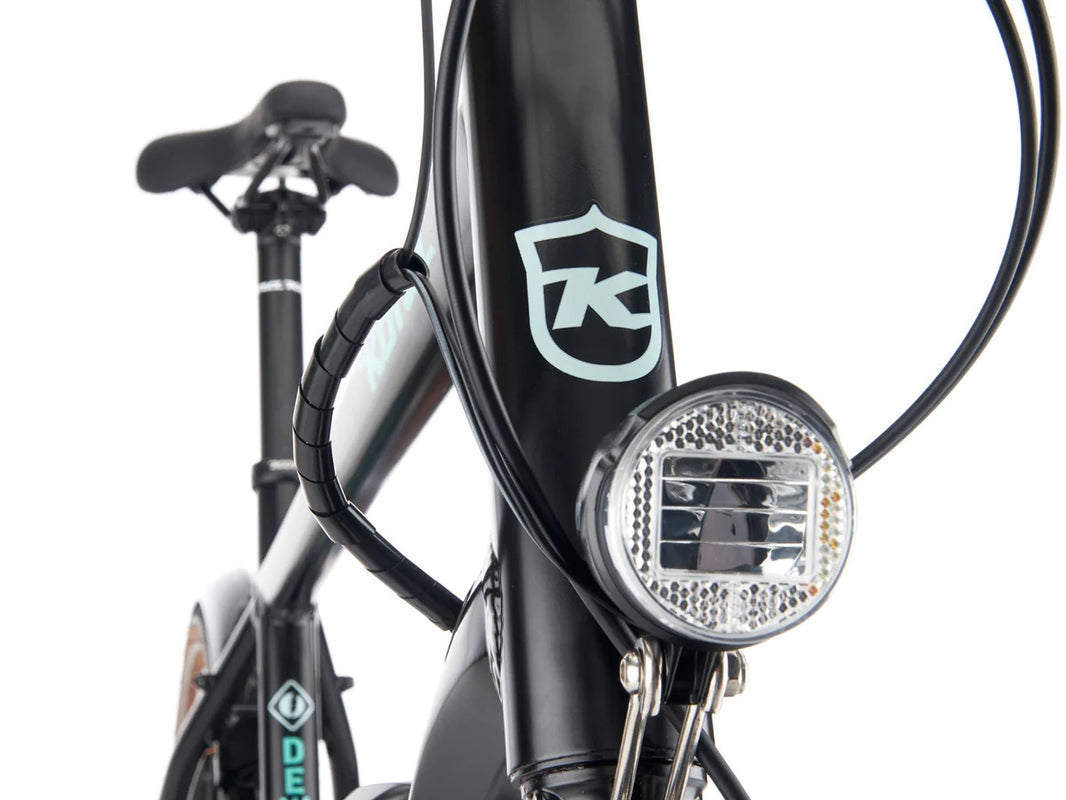

EXTRAS	Fenders, Front & Rear Light, Kickstand

All specifications are subject to change without notice

GEOMETRY

	SIZE	S	M	L	XL
1	ST LENGTH	420	470	520	580
2	TT LENGTH	548	594	633	683
3	REACH	398	423	439	465
4	STACK	558	596	634	671
5	STANDOVER	692	736	782	832
6	HT ANGLE	70.0	70.0	70.0	70.0
7	HT LENGTH	135	175	215	255
8	ST ANGLE	75.0	74.0	73.0	72.0
9	CS LENGTH	460	460	460	460
10	BB DROP	60	60	60	60
11	BB HEIGHT	282	282	282	282
12	WHEELBASE	1089	1127	1157	1197
13	FRONT CENTER	635	674	704	743
14	FORK LENGTH	410	410	410	410
15	FORK OFFSET	50	50	50	50
