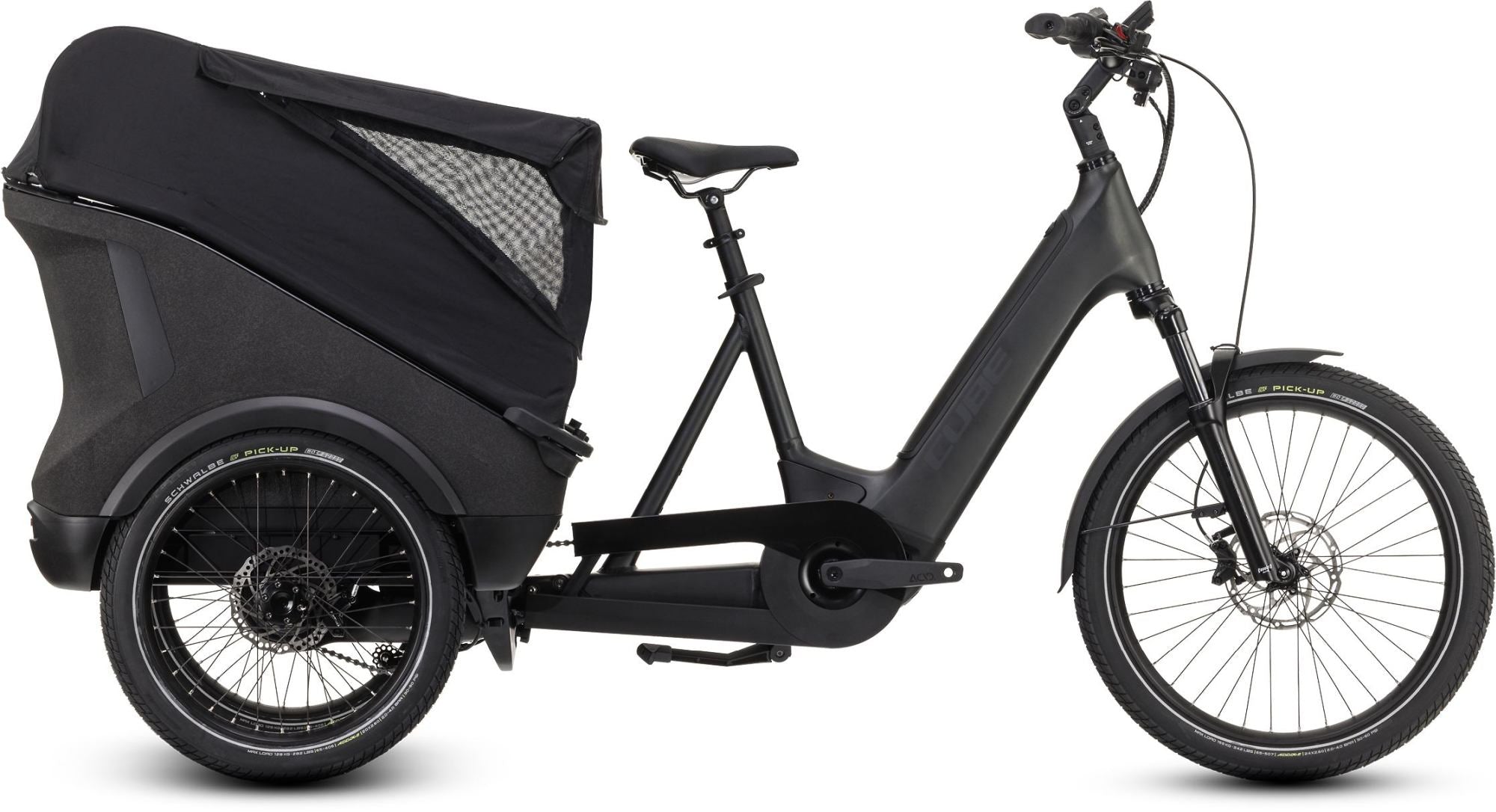

CUBE TRIKE CARGO HYBRID 1500 GREY/REFLEX

Frame Style
Colour
Size
Quantity
Cities bring people together, but as they fill up mobility becomes more challenging. The Trike Cargo Hybrid 1500 offers one solution, combining a 50kg cargo-carrying capacity with Bosch power and a 1500Wh battery capacity for the best possible range. Its unique tilting mechanism decouples the load carrier from the rider, making it as easy and natural-feeling to ride as any regular hybrid bike. Bosch's fourth-generation CX Line drive system and an easy-to-use, stepless hub gear make light work of any route. There's a Suntour Mobie34 Cargo suspension fork up front for added comfort, while a telescopic seatpost and adjustable handlebar mean it's quick and easy to set up for any rider. Powerful disc brakes offer plenty of stopping power, even in wet conditions. And at the rear, the versatile cargo box is waterproof and features a lockable lid. Now. who needs a van?.

Frame description
Combining the easy handling of a bicycle with the safety and stability of three wheels, the innovative Trike Cargo Hybrid 1500 is part of our contribution to a cleaner urban environment. Fourth generation Bosch CX Line drive is powered by twin 750Wh batteries, for a total of 1500Wh – meaning extended range. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the lightweight and tough cargo box is waterproof and lockable – the ideal way to transport just about anything across town, up to a load of 50kg. There's even a storage compartment in the main frame, and the option to fit a front rack. With a short wheelbase, easy handling and tight turning circle all designed to beat the urban traffic and make parking easy, the future's looking brighter already.

Specification

Frame Aluminium Gravity Casting, Comfort Ride Geometry, Tilting Technology, Downtube Storage
Fork SR Suntour MOBIE 34 CARGO 24", 100mm
Headset ACROS Carrier Mount Headset
Stem Cube Comfort Stem Pro, 31.8mm, Adjustable
Handlebar CUBE Comfort Trail Bar, 700mm
Grips ACID Travel Comfort Gripshift
Shifters Enviolo Cargo manual
Brakes Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
Crankset ACID E-Crank, 170mm, 42T
Crankset chainring sizes 42T
Cassette KMC 3mm, 18T
Number of gears 999
Chain KMC e101 EPT
Rims CUBE EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready
Front hub Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost
Rear hub Cube Trike Hub, Straightpull
Front tire Schwalbe Pick-Up, Super Defense, 65-507
Rear tire Schwalbe Pick-Up, Super Defense, 65-406
Pedals CUBE PP MTB
Saddle Natural Fit Sequence Comfort
Seatpost Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
Seat post = dropper Yes/No NO
Seatpost clamp CUBE Varioclose, 40mm
Front light ACID Front Light PRO-E 110, 5-16V, DC
Rear light Supernova T-M99
Kickstand Ursus XXS
Mudguard ACID 75
Bell Ring Bell
Engine Bosch Drive Unit Cargo Line 85Nm (BDU37)
Battery Bosch PowerTube 750 Axial + Bosch PowerTube 750 Axial
Charger Bosch 4A
Remote Bosch LED Remote
Display Bosch Kiox 300
Net weight (kg) 80
Gross weight (kg) 113
Max. system weight (kg) 220
Max. rider weight (kg) 115
Body size ONESIZE
Accessories 93730,93490
