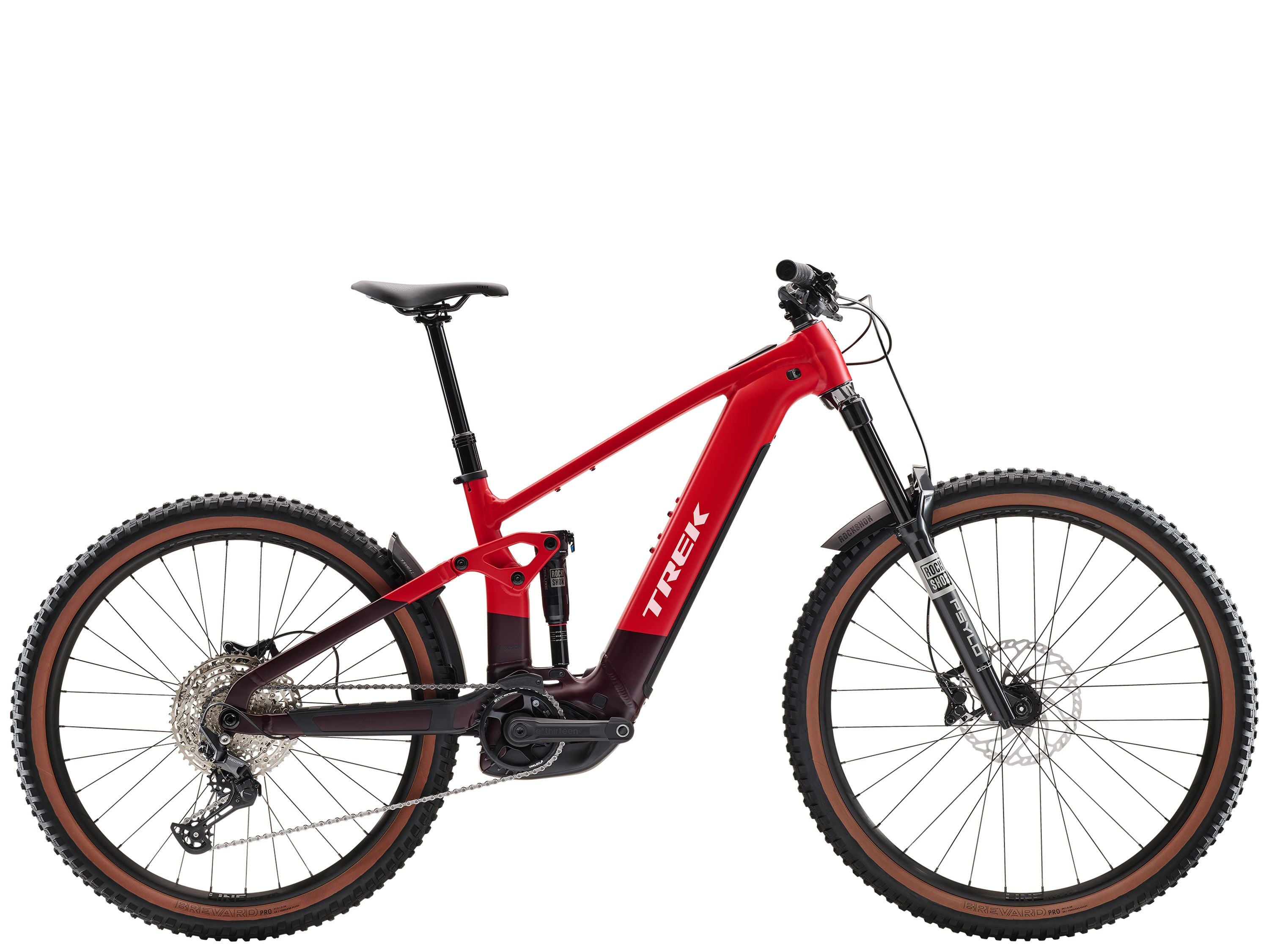

Rail+ 5 Gen 5
The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
Technology
Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
Specification
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 27.5 |
| Fork | RockShox |
| Fork | RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, |
| Rearsuspension | RockShox |
| Suspension Rear | RockShox Deluxe Select+ RT, 205 mm x 65mm |
| Tires | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" // Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Hub Front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle |
| Shifter | Shimano |
| Derailleur Rear | Shimano Deore M6100, long cage |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 |
| Brake Rotor | Shimano RT66, 6-bolt, 203 mm |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Fenders | Trek custom mudguard |
| Battery | Bosch PowerTube 800 Wh, smart system Bosch PowerTube 800Wh, smart system |
| Controller | Bosch System Controller BRC3100, smart system Bosch Sys |
| Motor | Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) Bosch Performance Line CX (Europe and APAC: 25 km/h, |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
