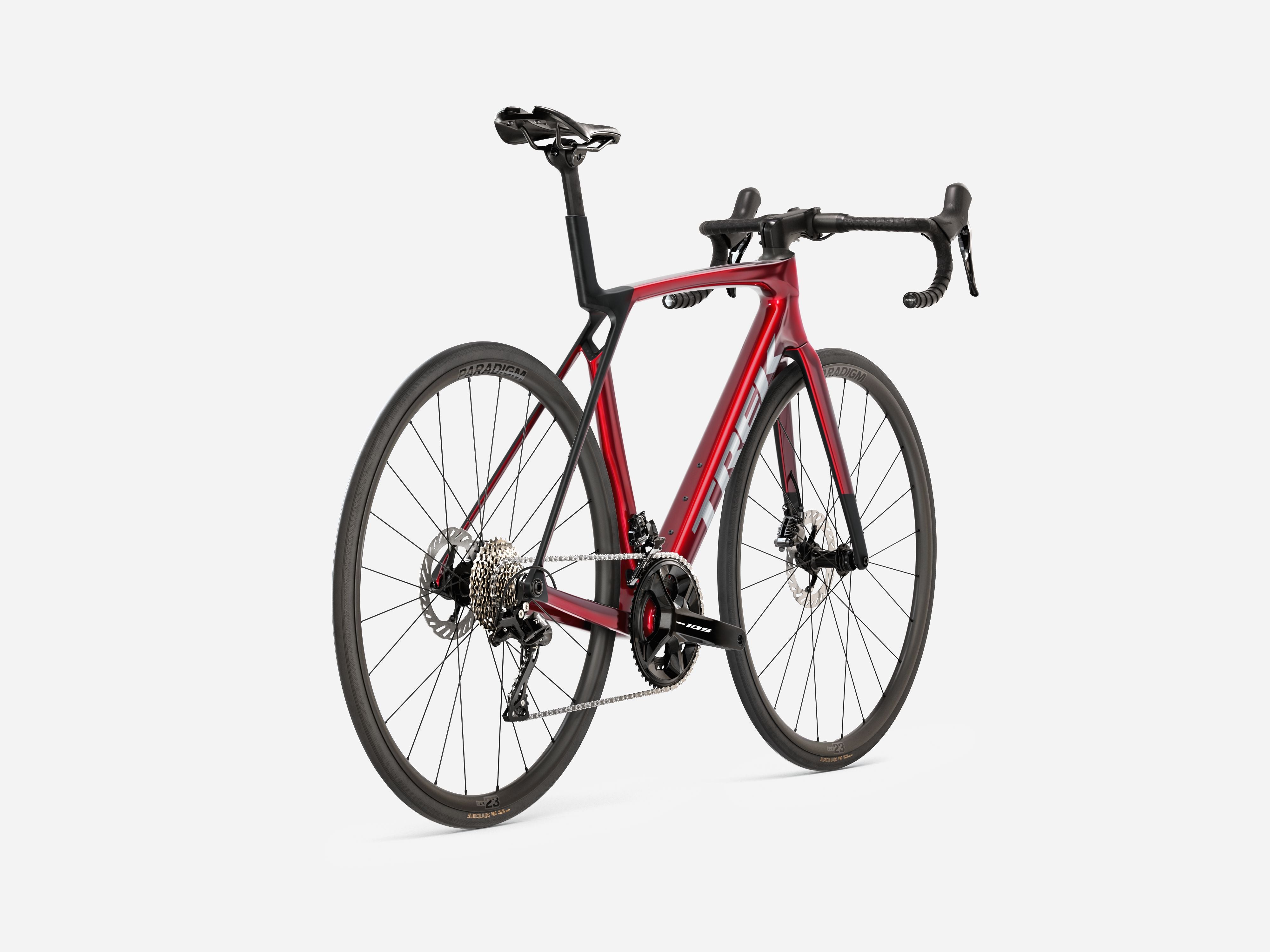

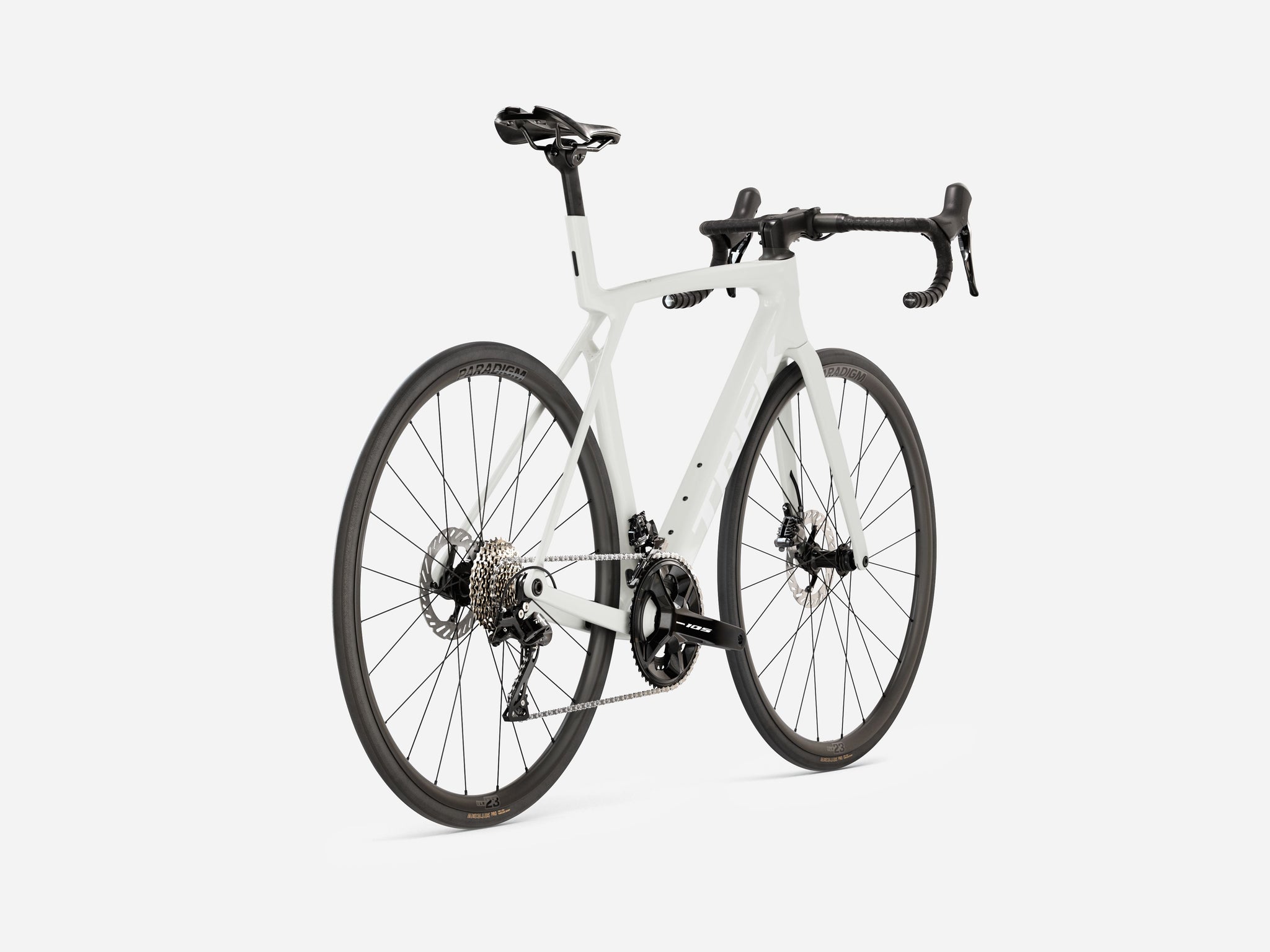

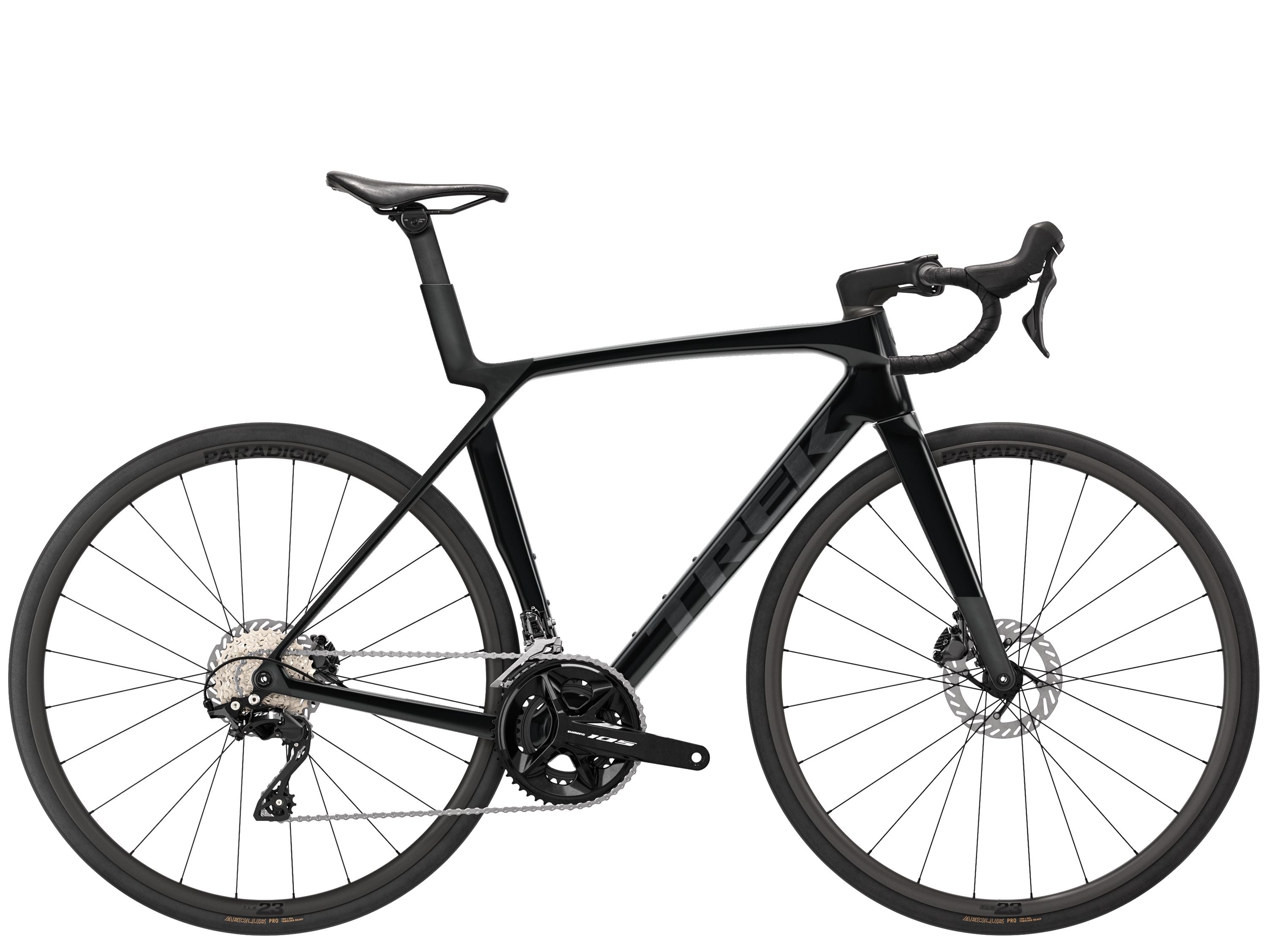

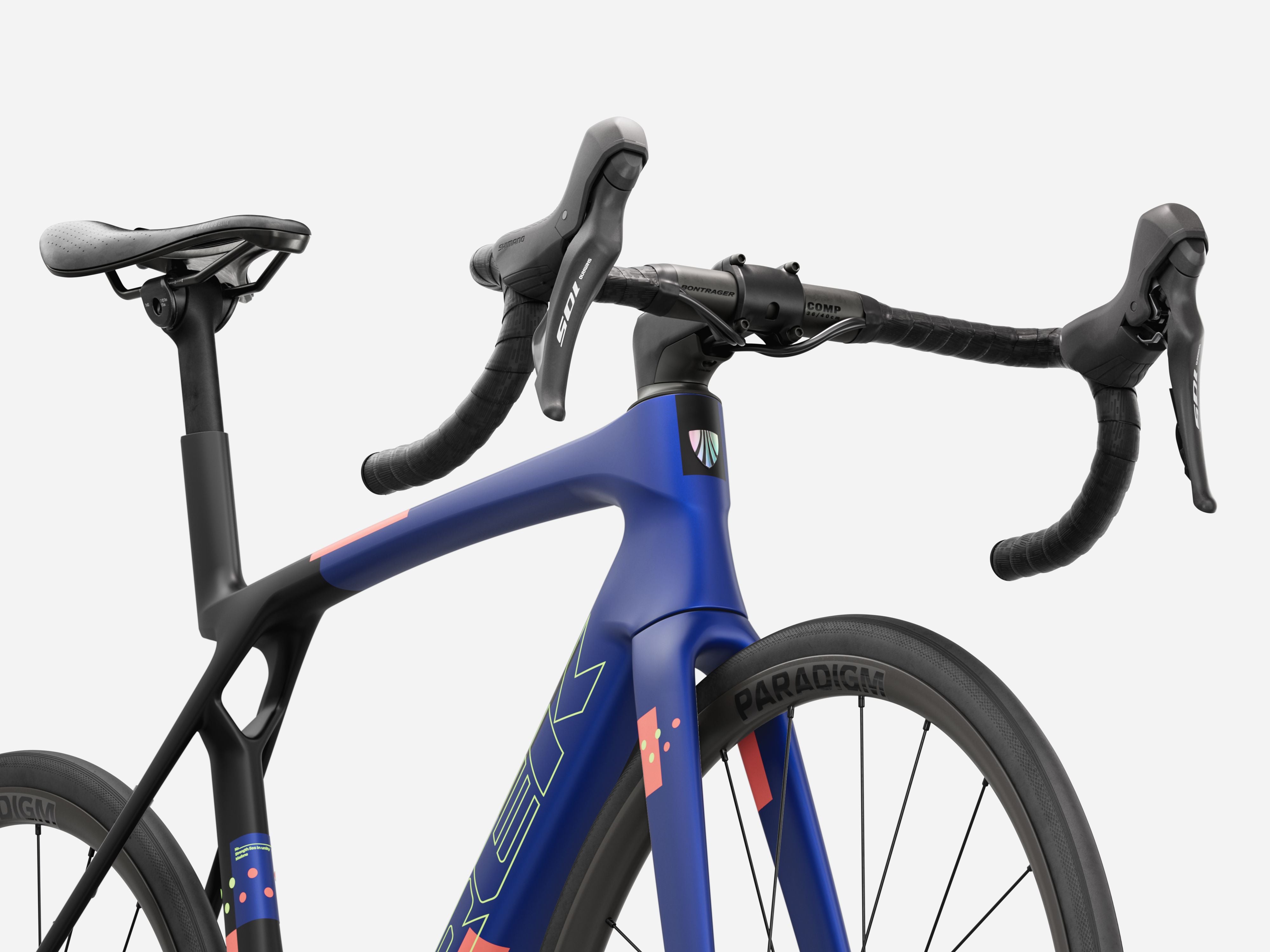

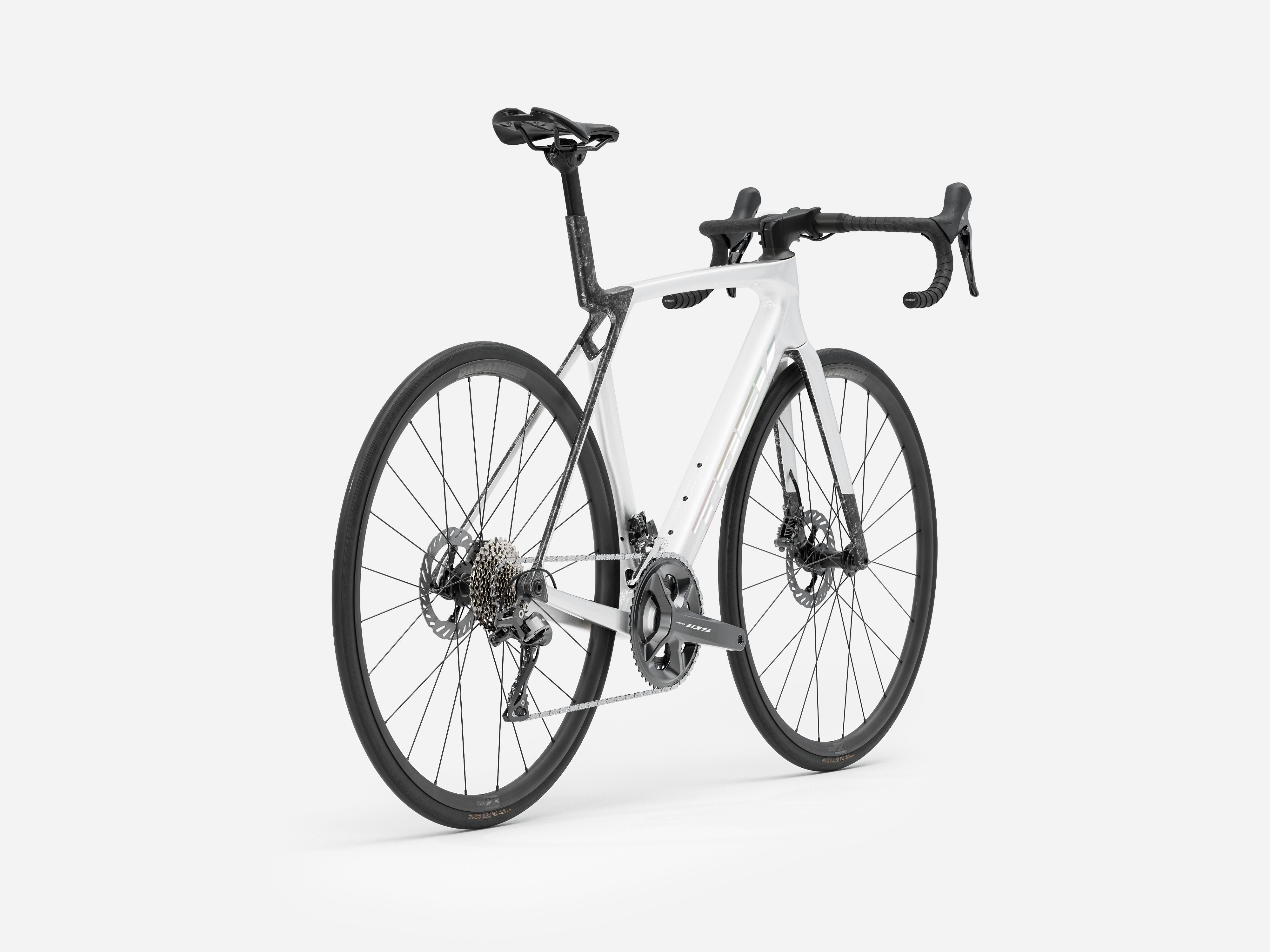

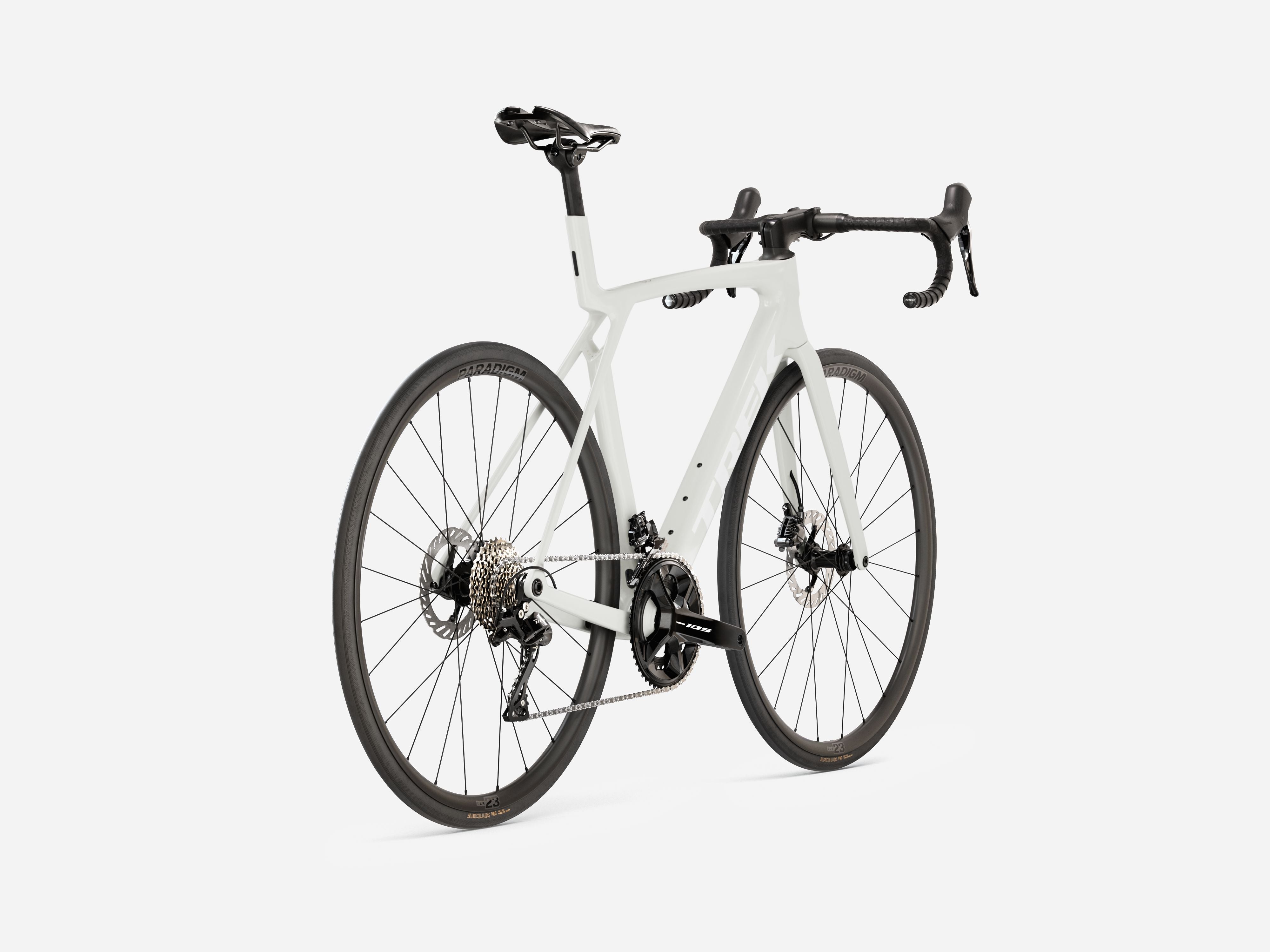

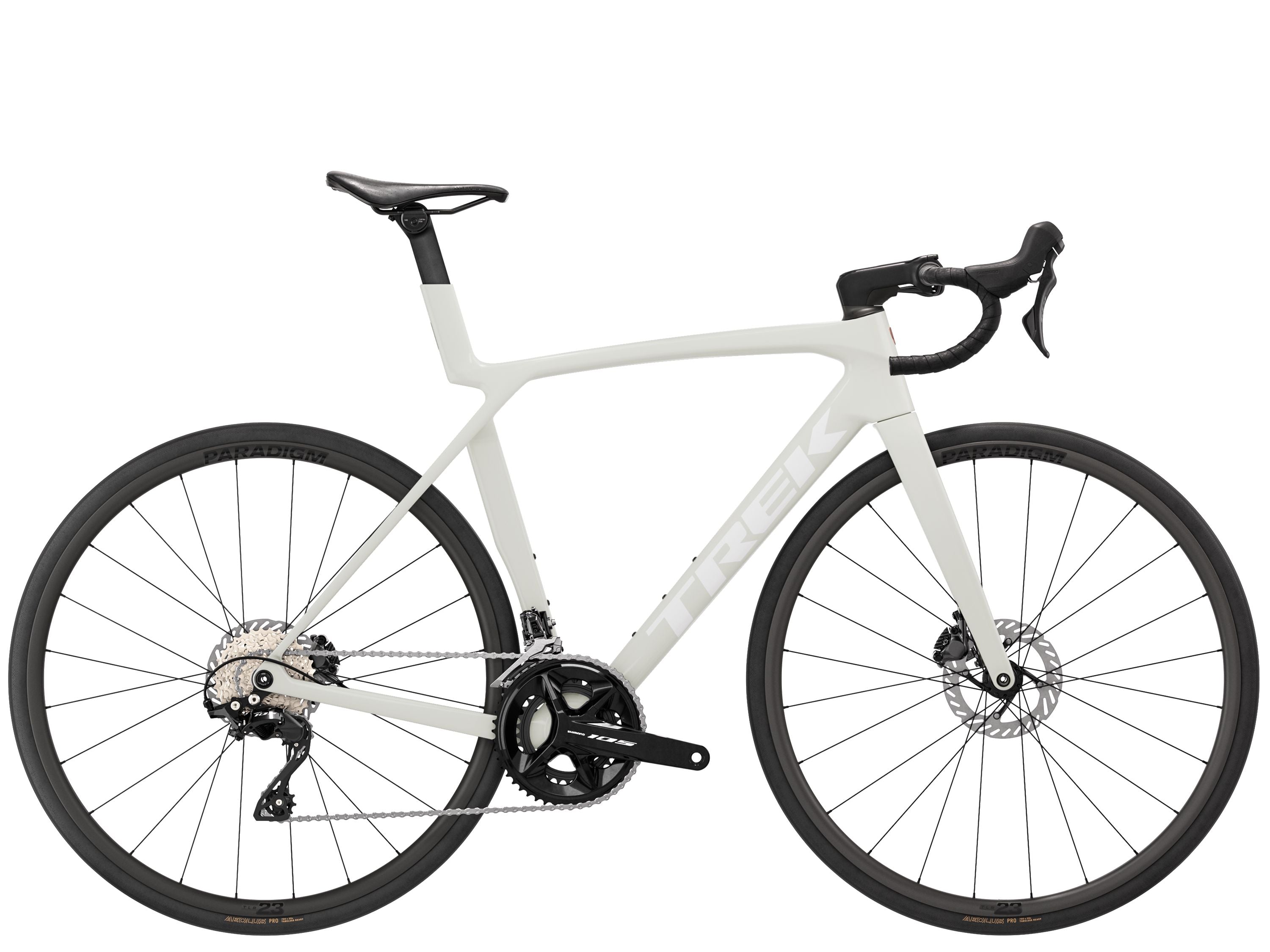

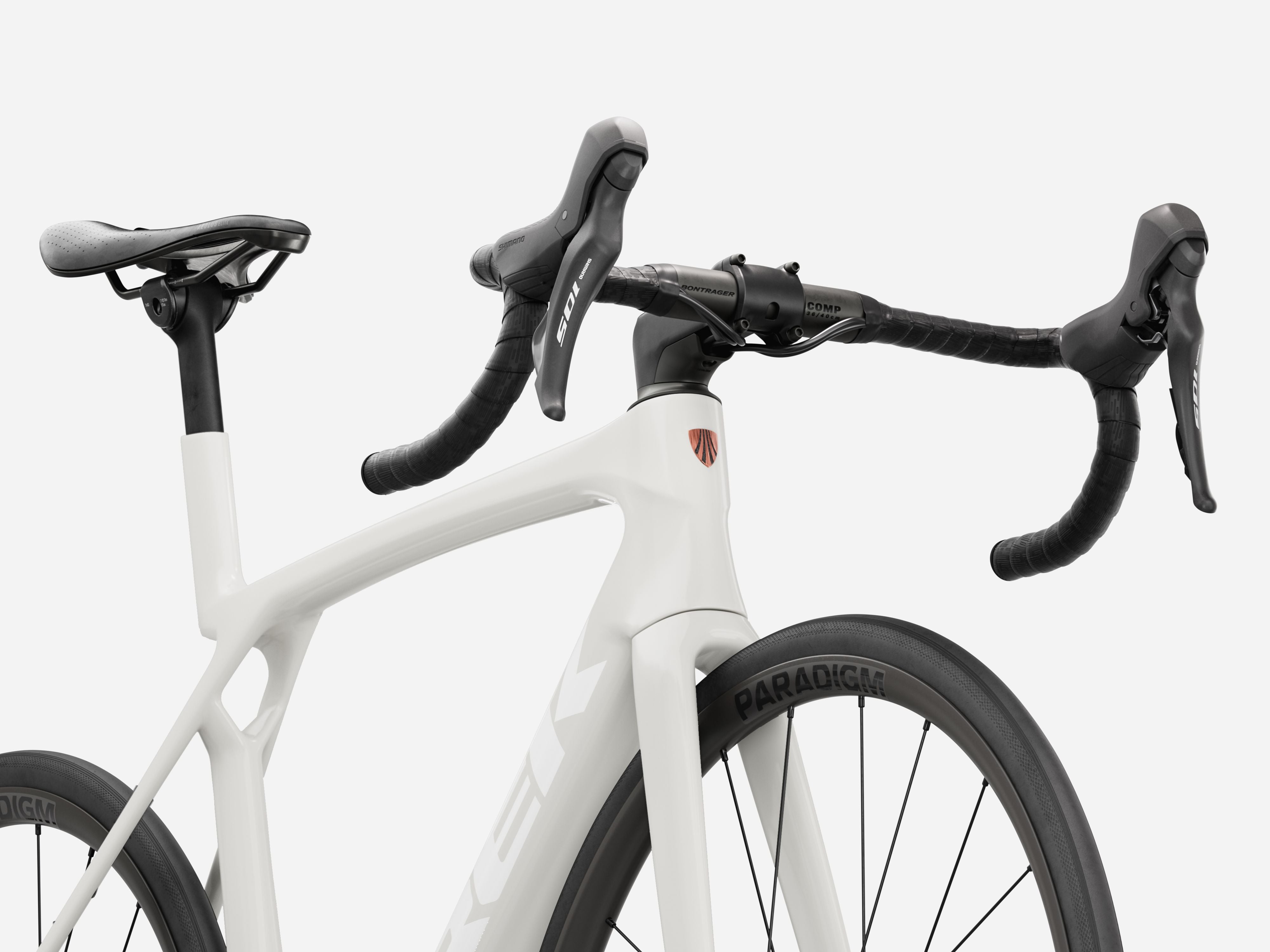

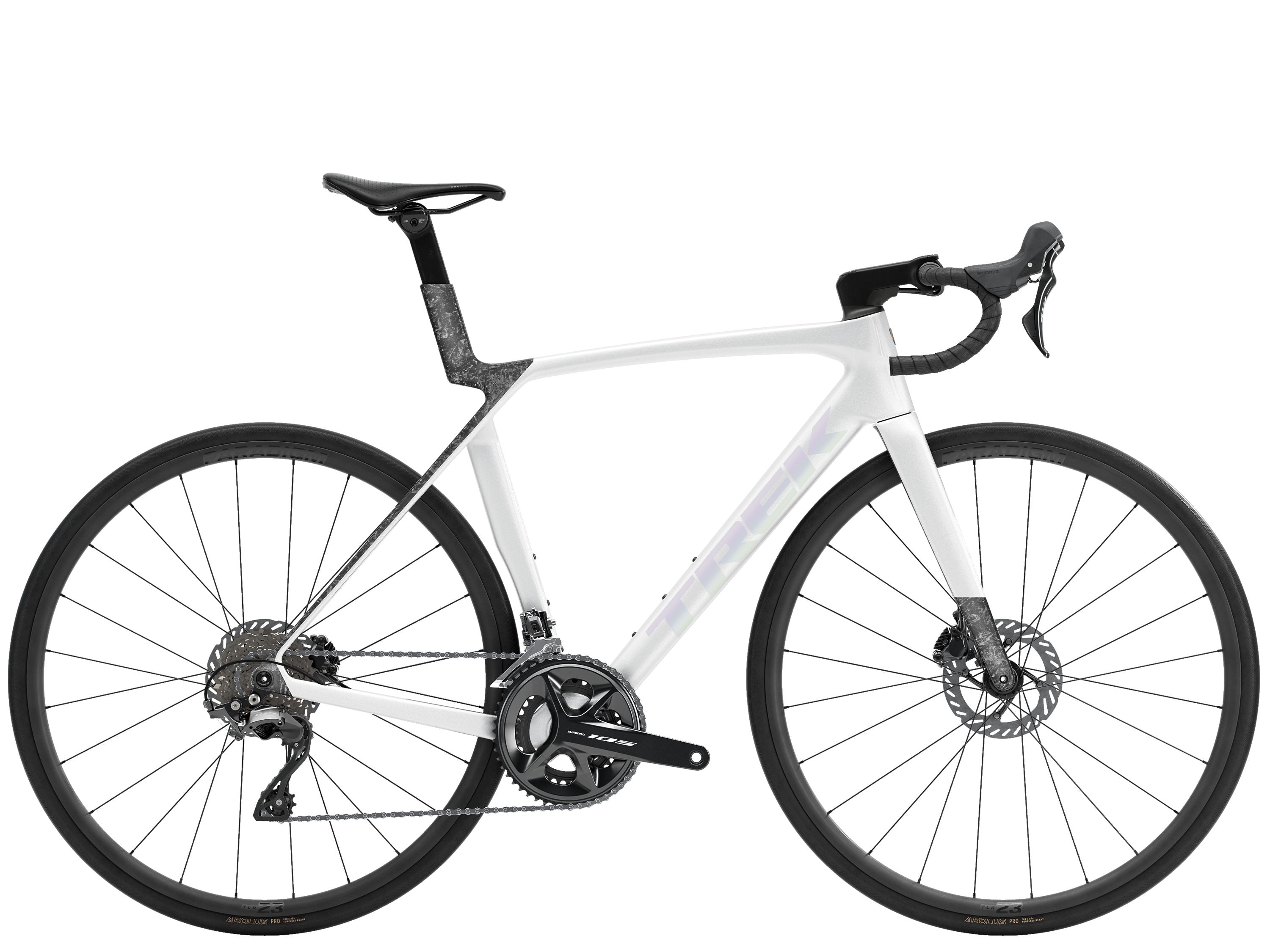

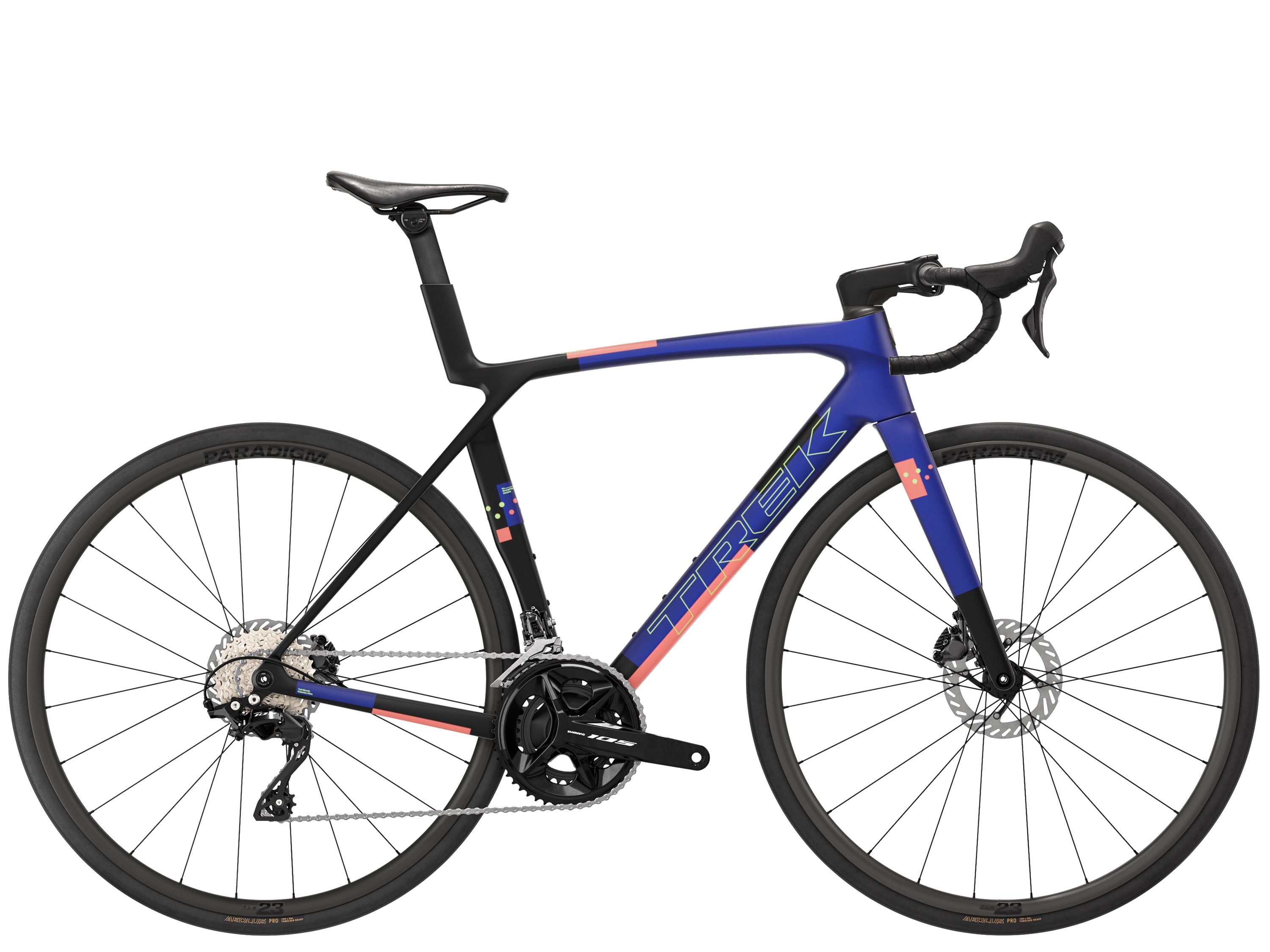

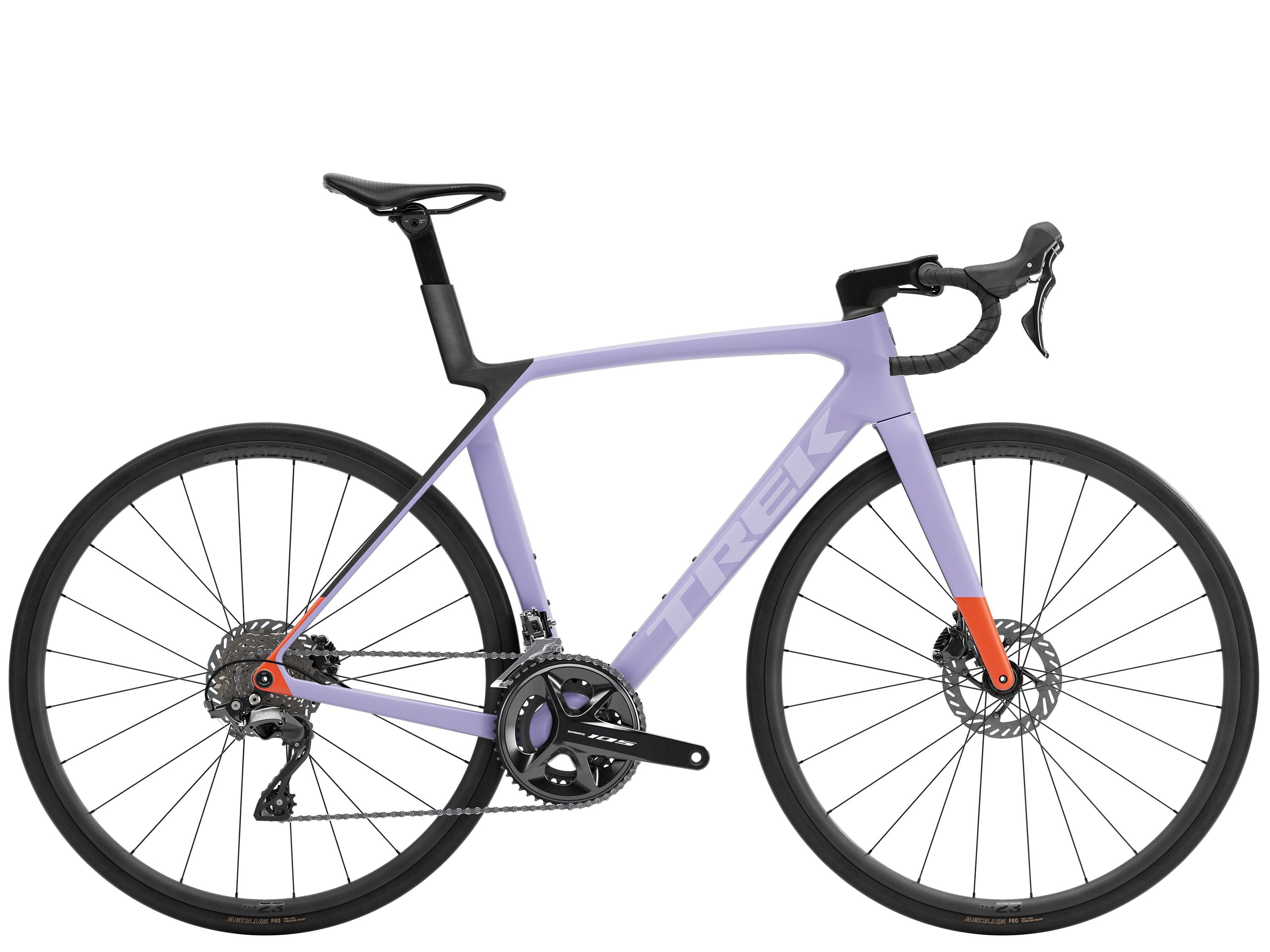

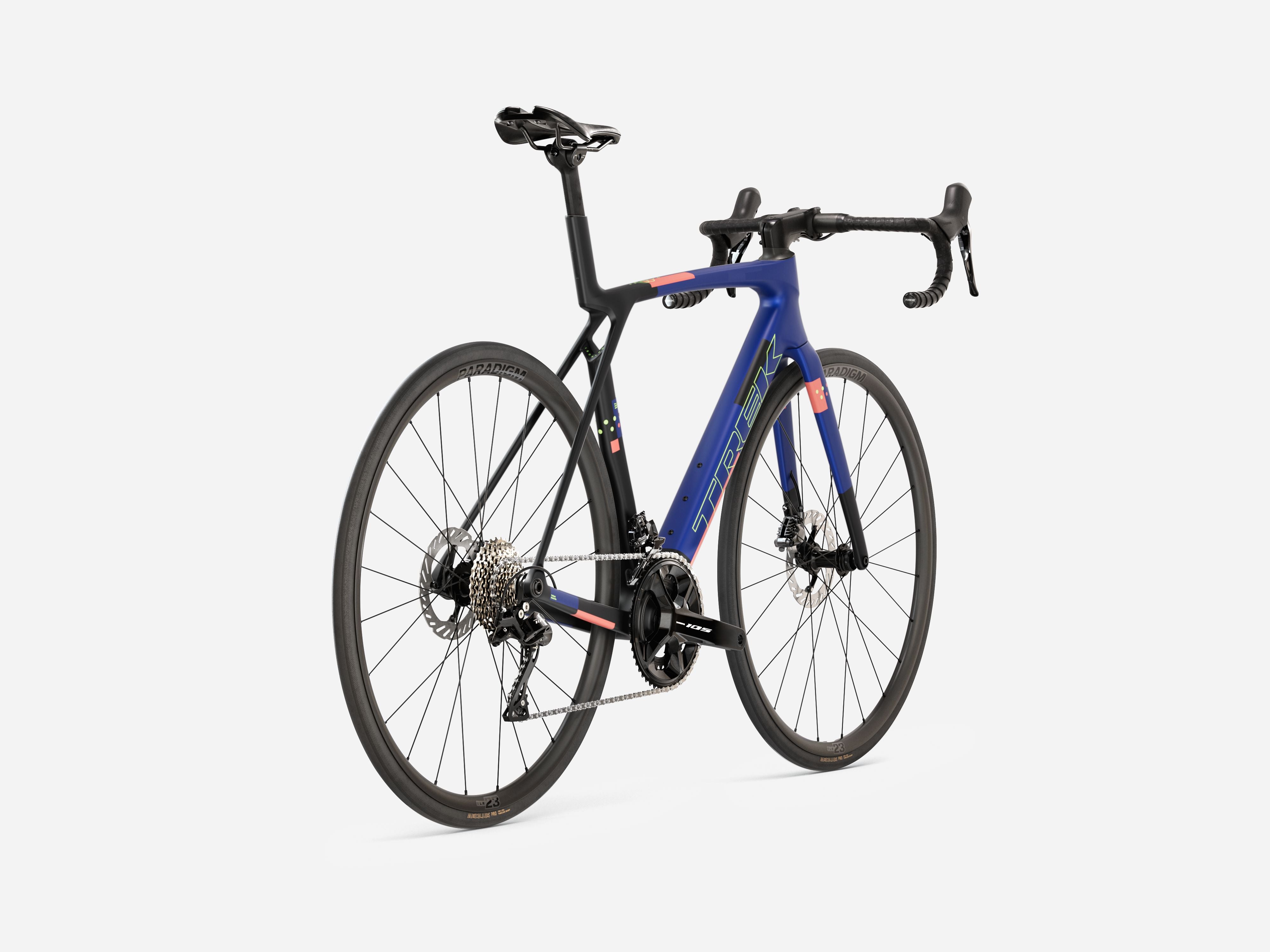

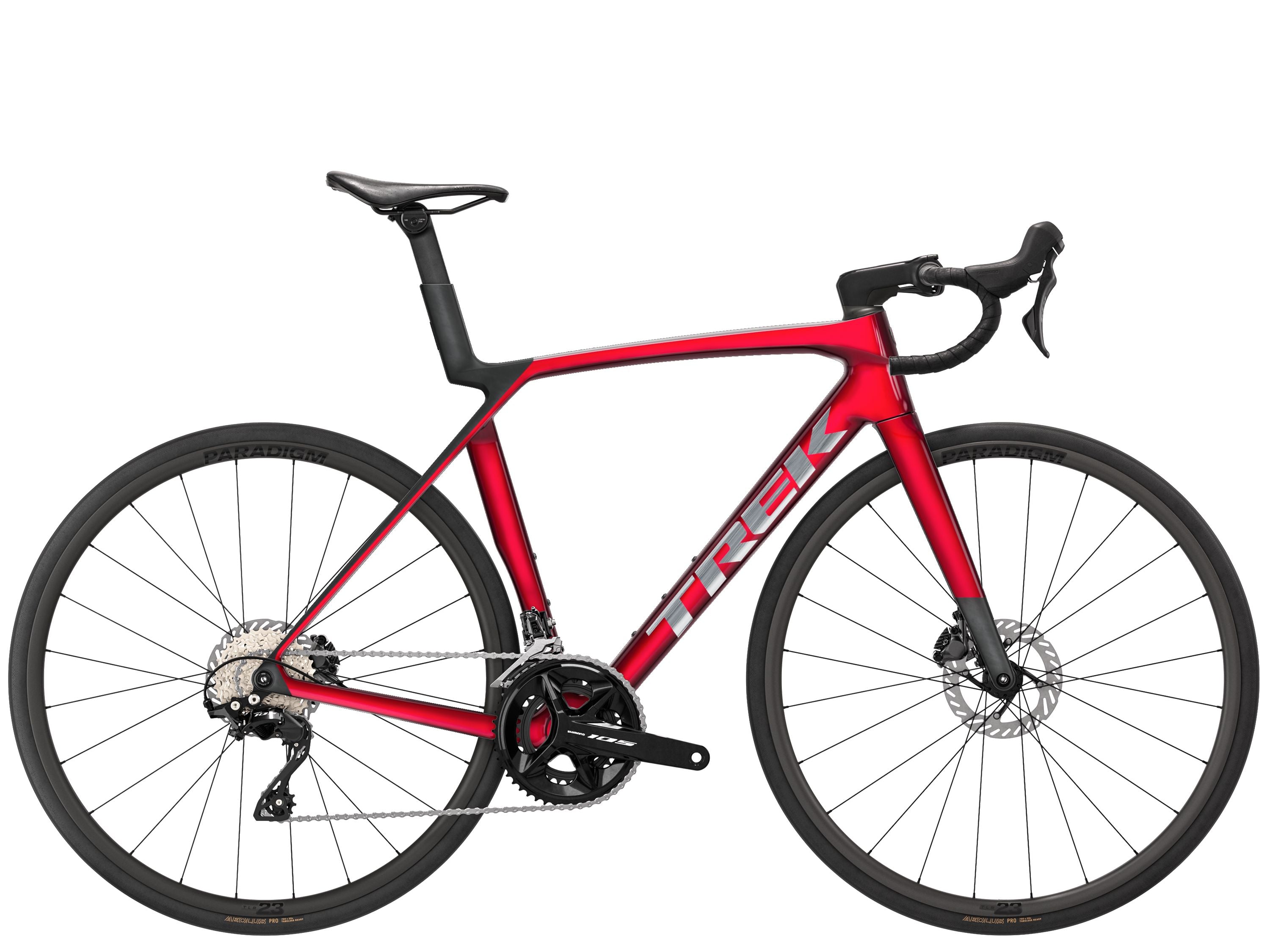

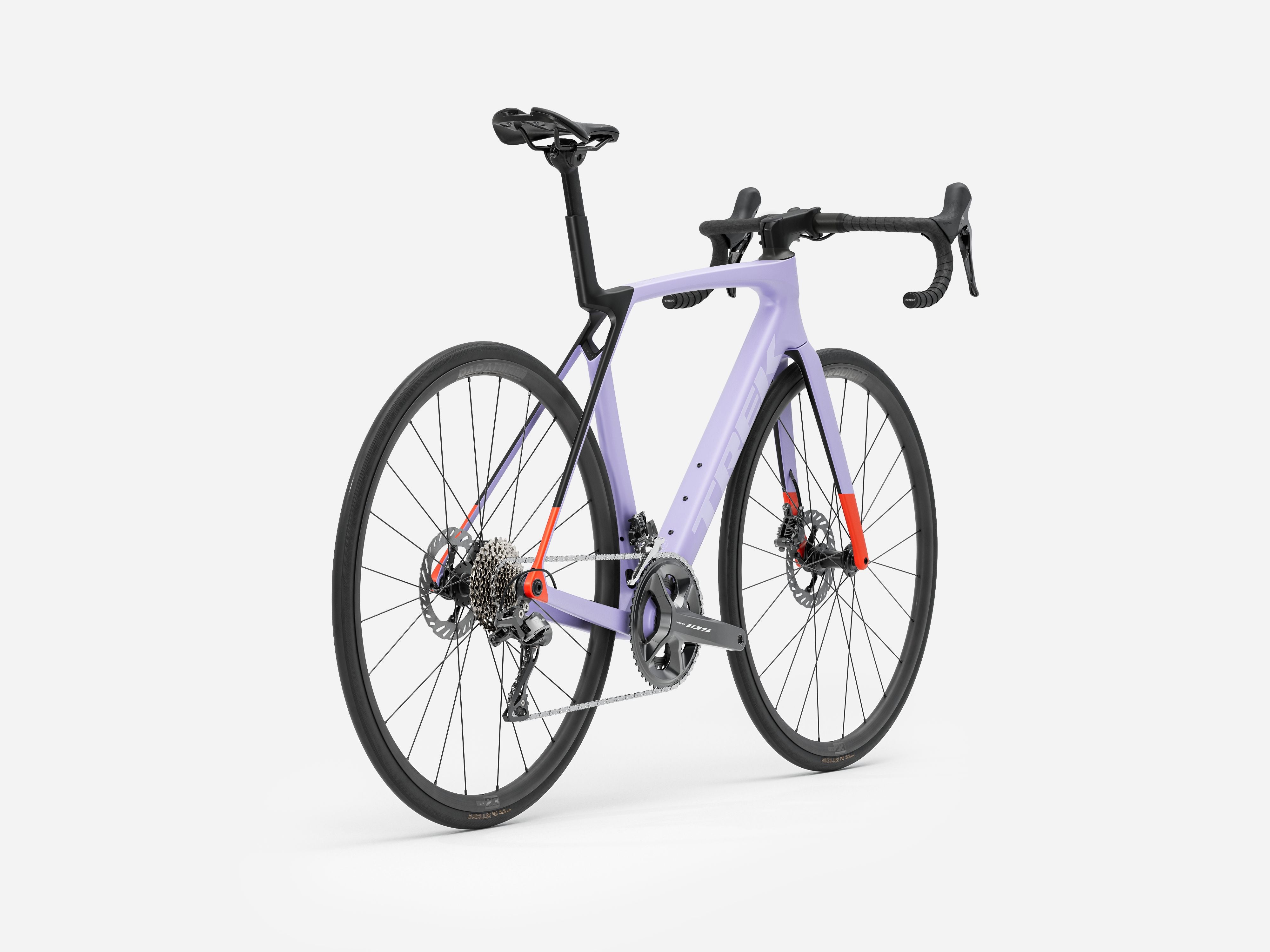

Madone SL 5 Gen 8
The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. A Shimano 105 groupset, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.
Technology
Our lightest Madone SL Disc ever - New light and fast aero tube shaping paired with light-yet-economical 500 Series OCLV Carbon makes Gen 8 our lightest Madone SL Disc f/s ever and the ideal climbing bike.
Specification

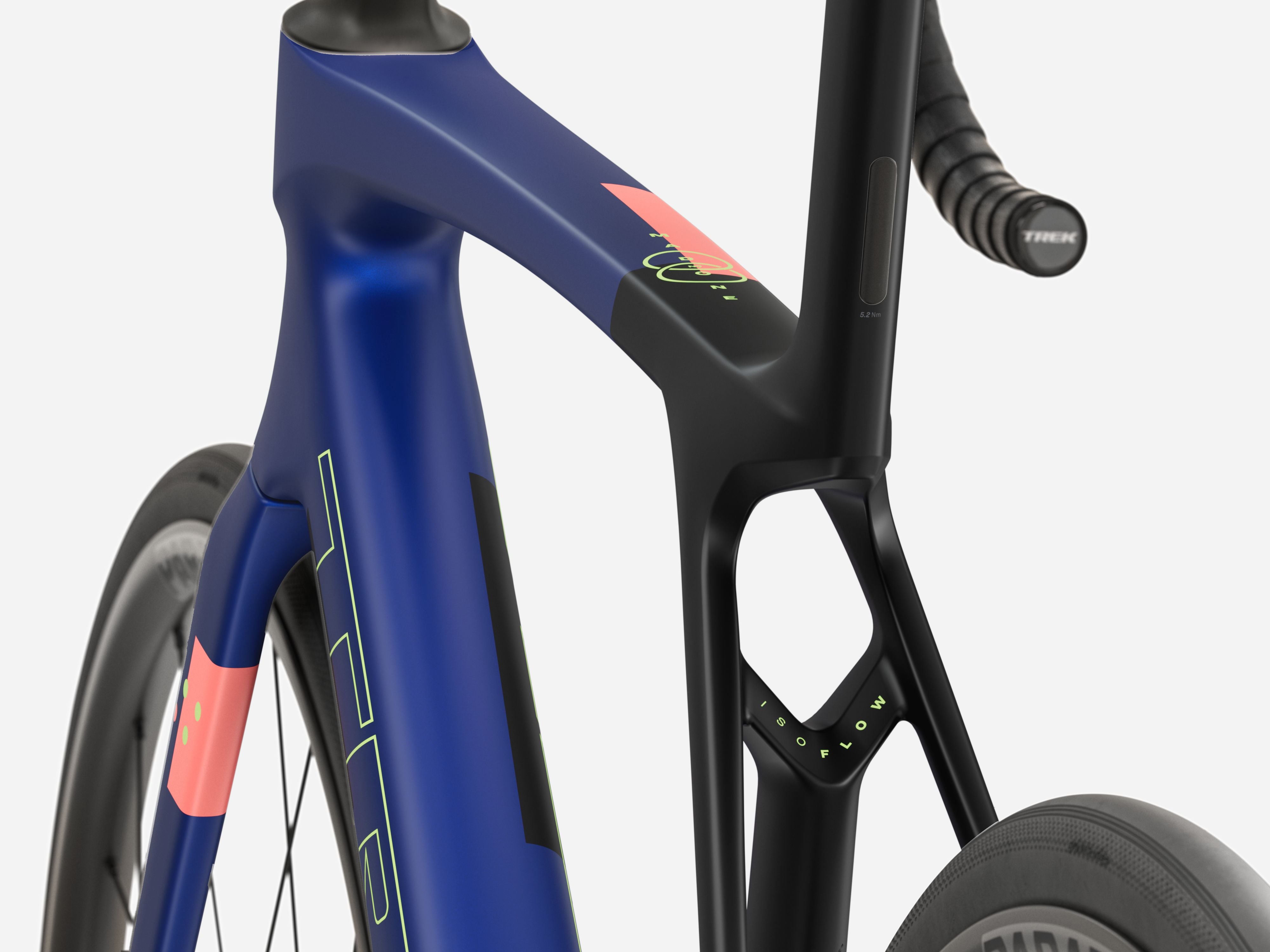

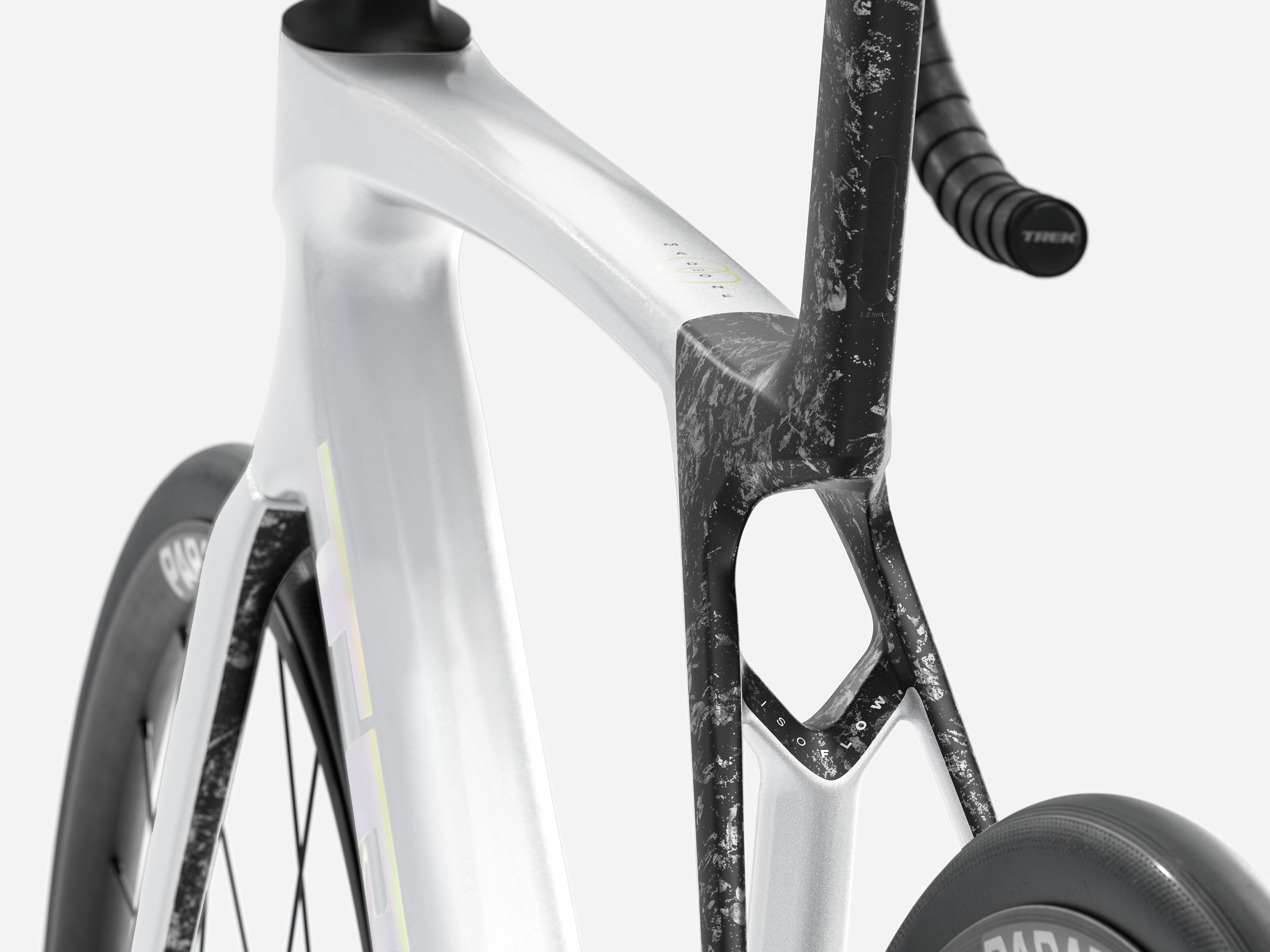

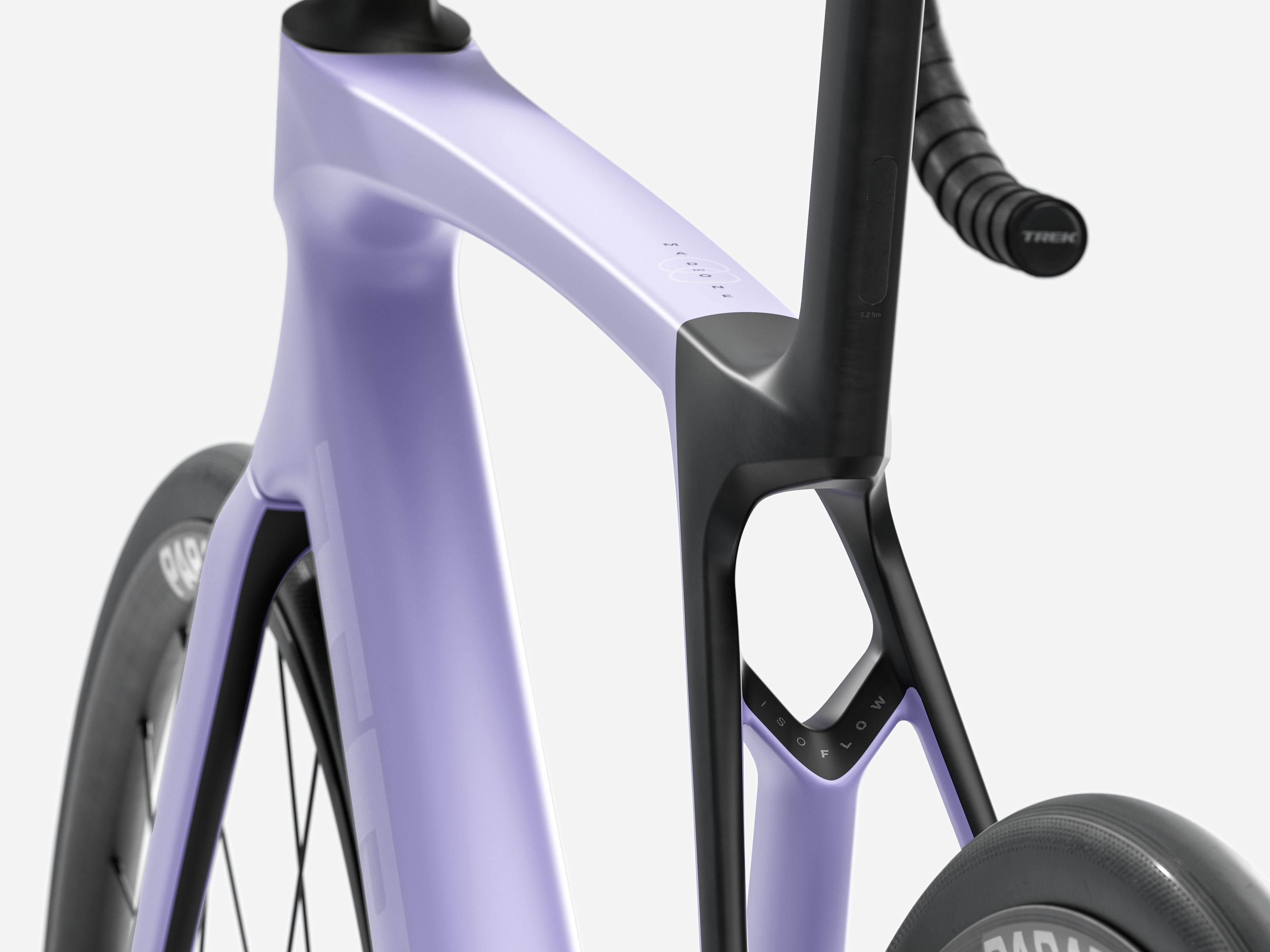

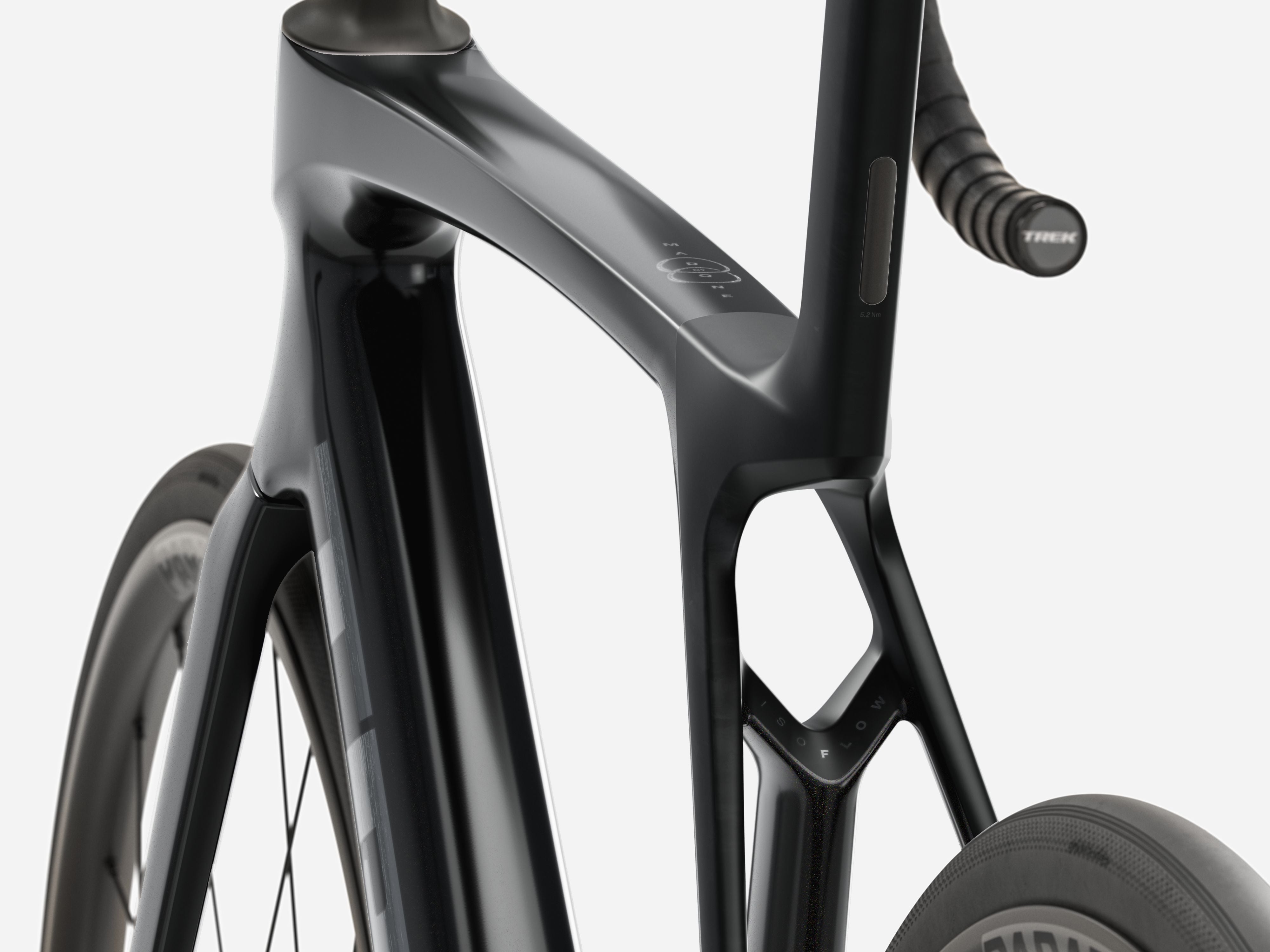

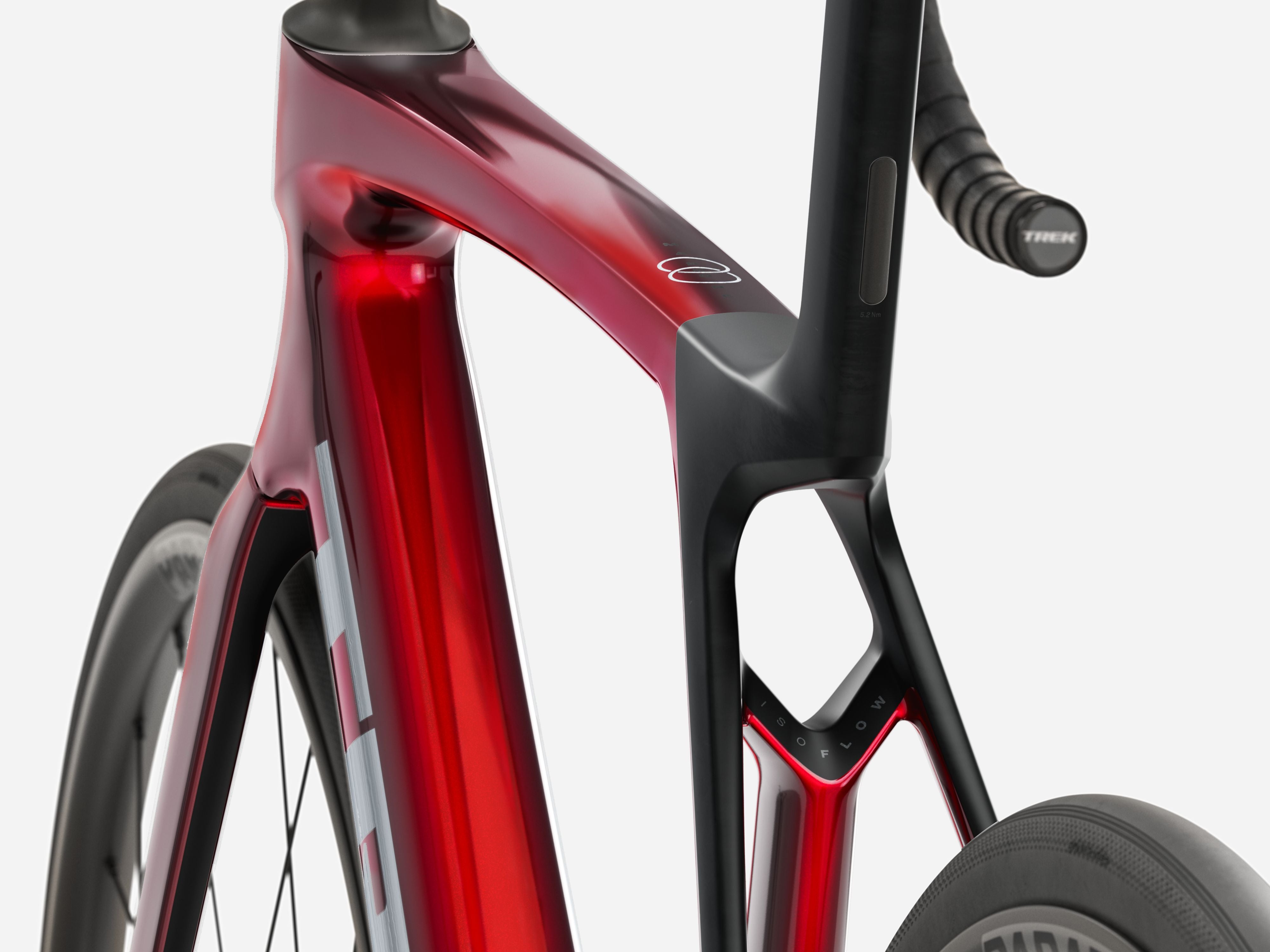

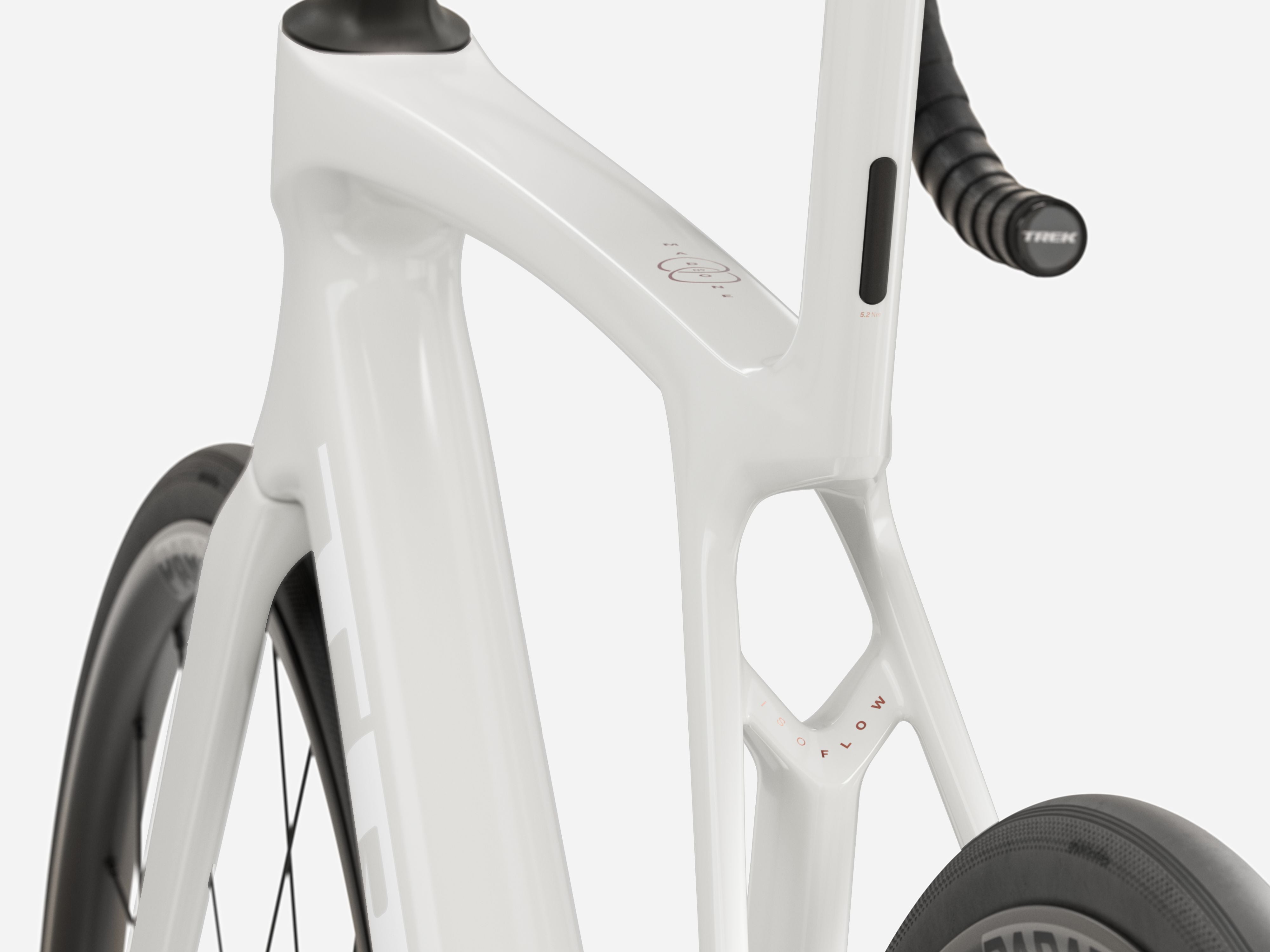

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
|---|---|
| Frame Material | CARBON |
| Rim Size | 28 |
| Fork | Trek |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Tires | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm |
| Hub Front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Shifter | Shimano |
| Shifters | Shimano 105 R7120, 12 speed |
| Derailleur Front | Shimano 105 R7100, braze-on, down swing |

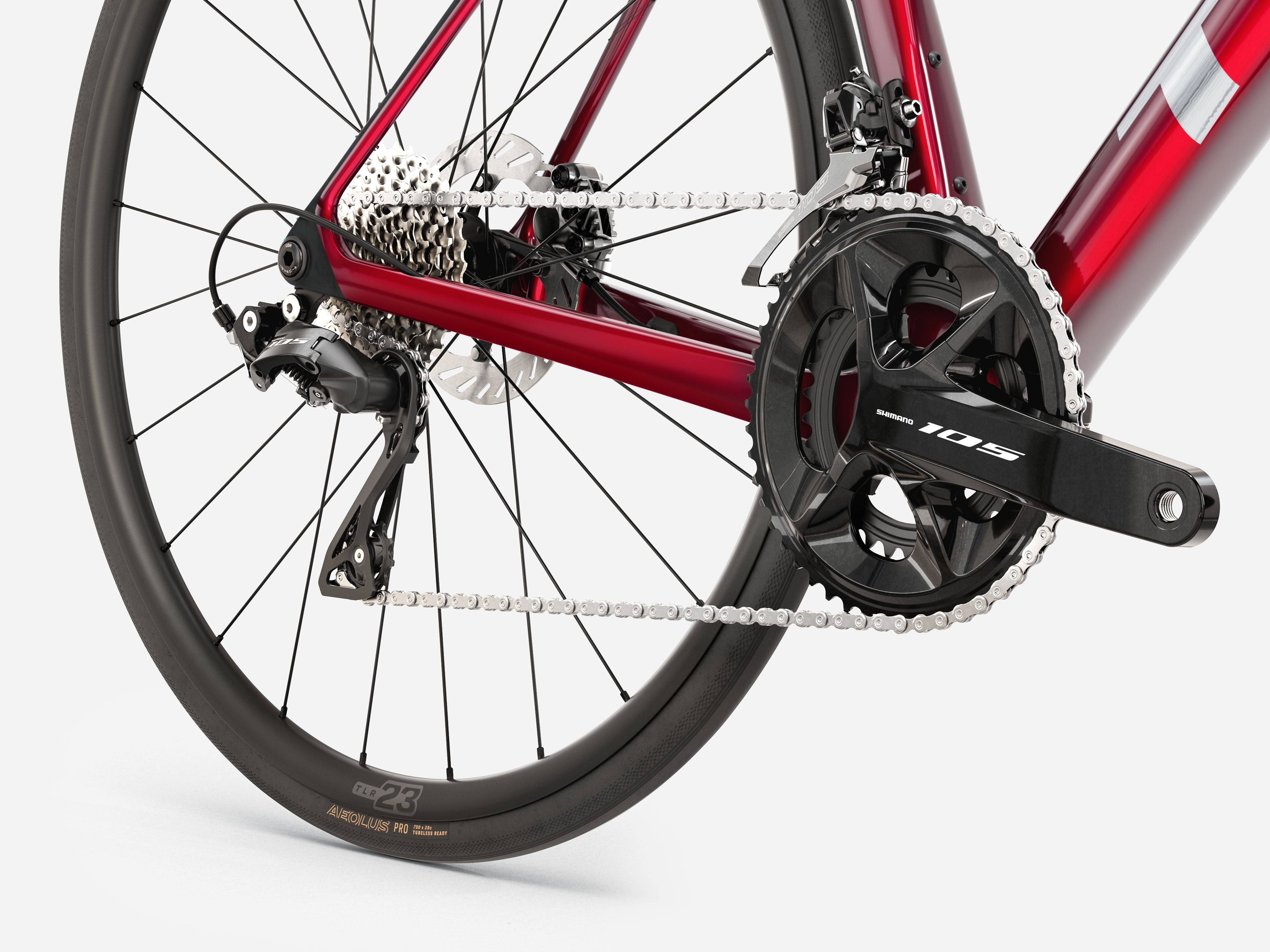

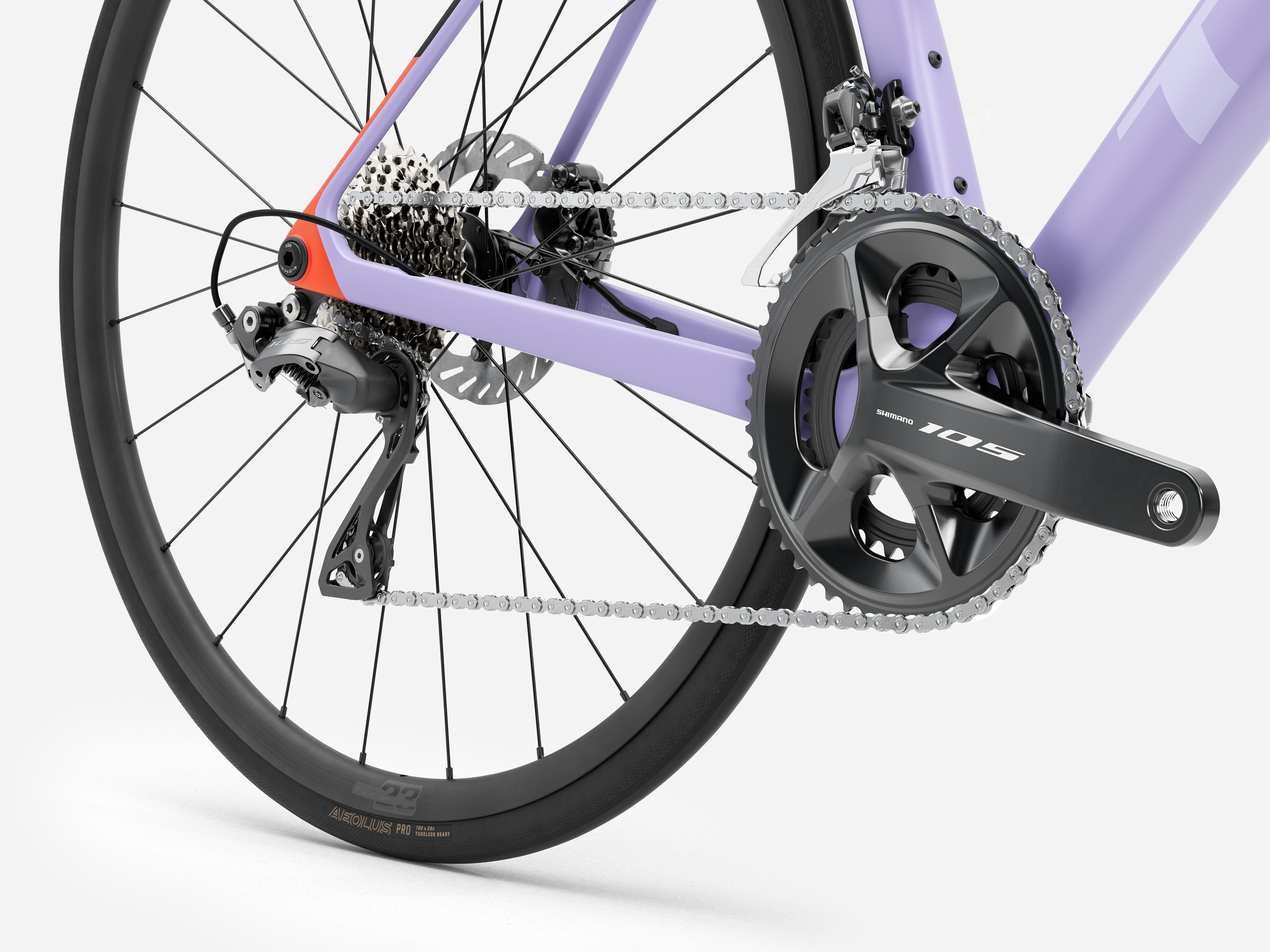

| Derailleur Rear | Shimano 105 R7100, 36T max cog |

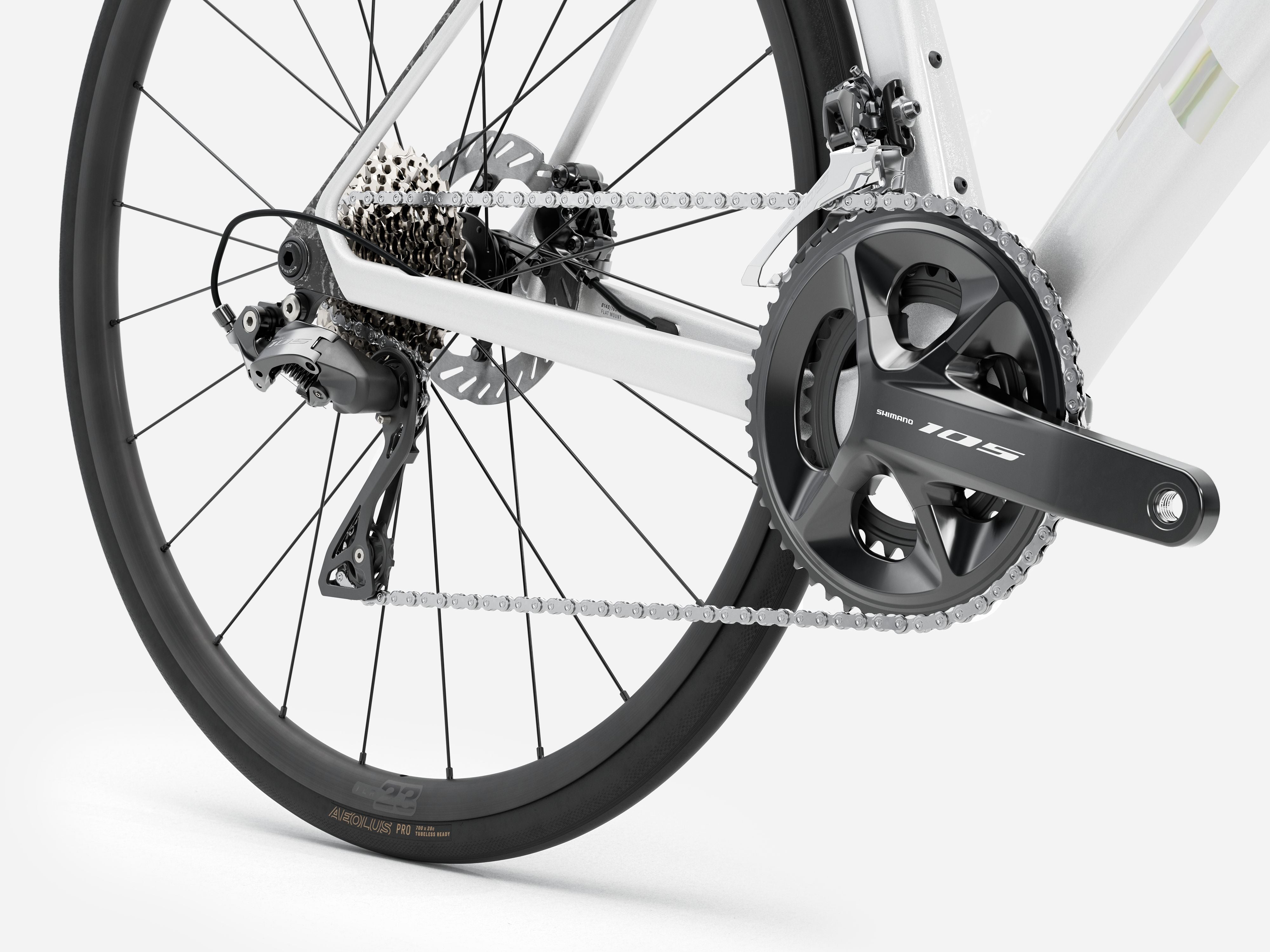

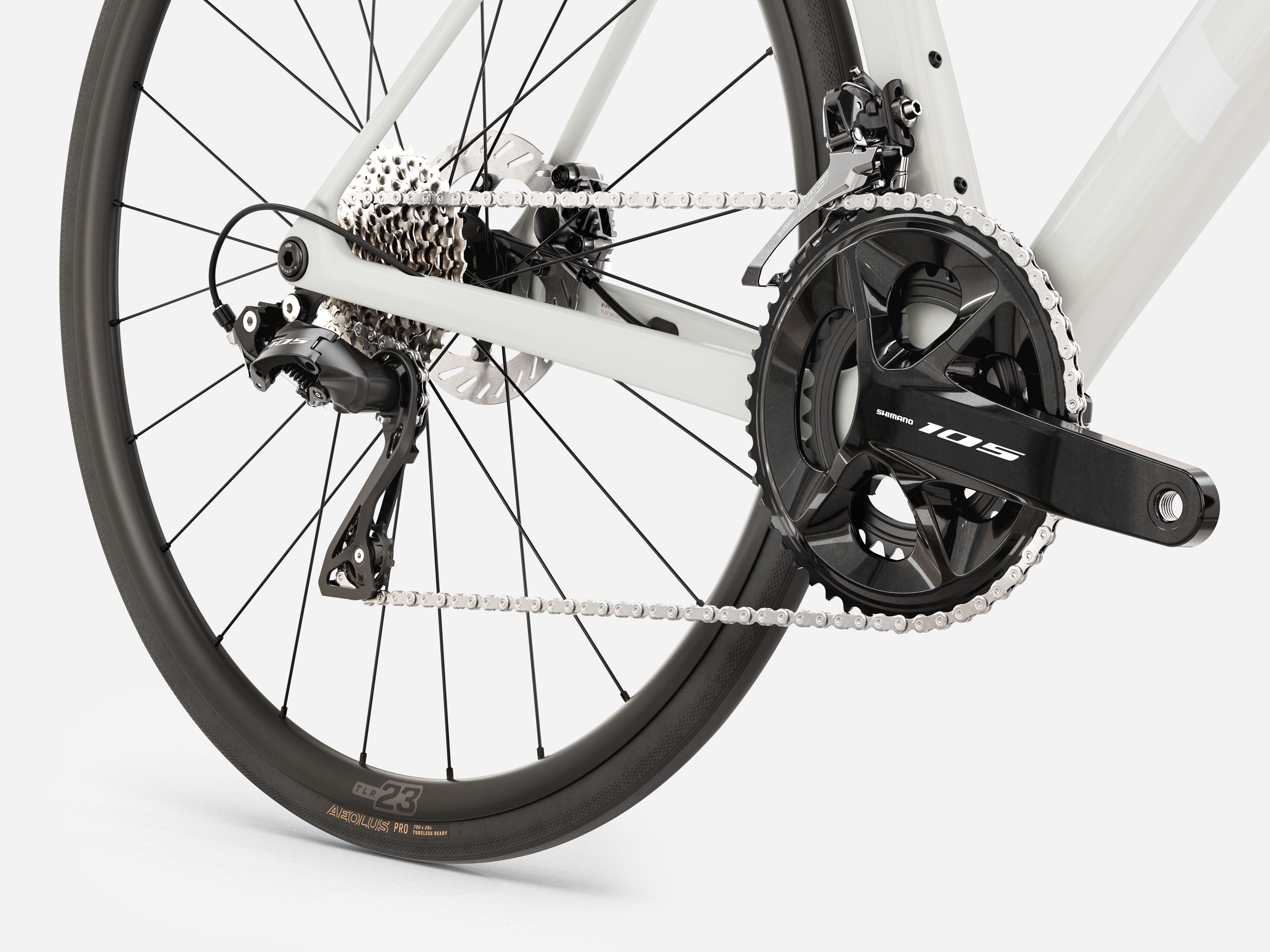

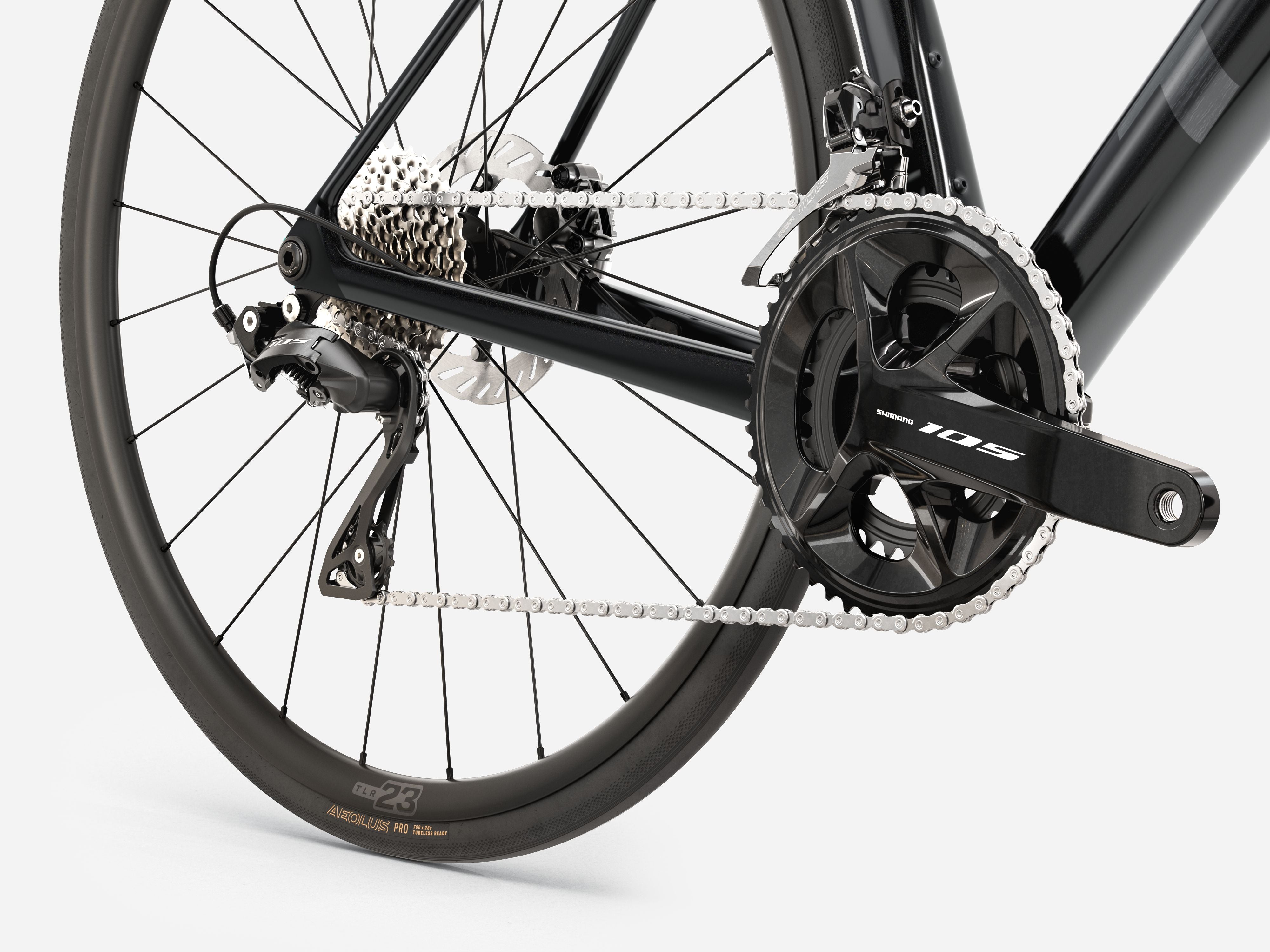

| Crank | Shimano 105 R7100, 50/34, 170 mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Brake Rotor | Shimano CL700, CentreLock, 160 mm |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145 mm width |
| Seatpost | Madone aero carbon seat post, 0 mm offset, short length |

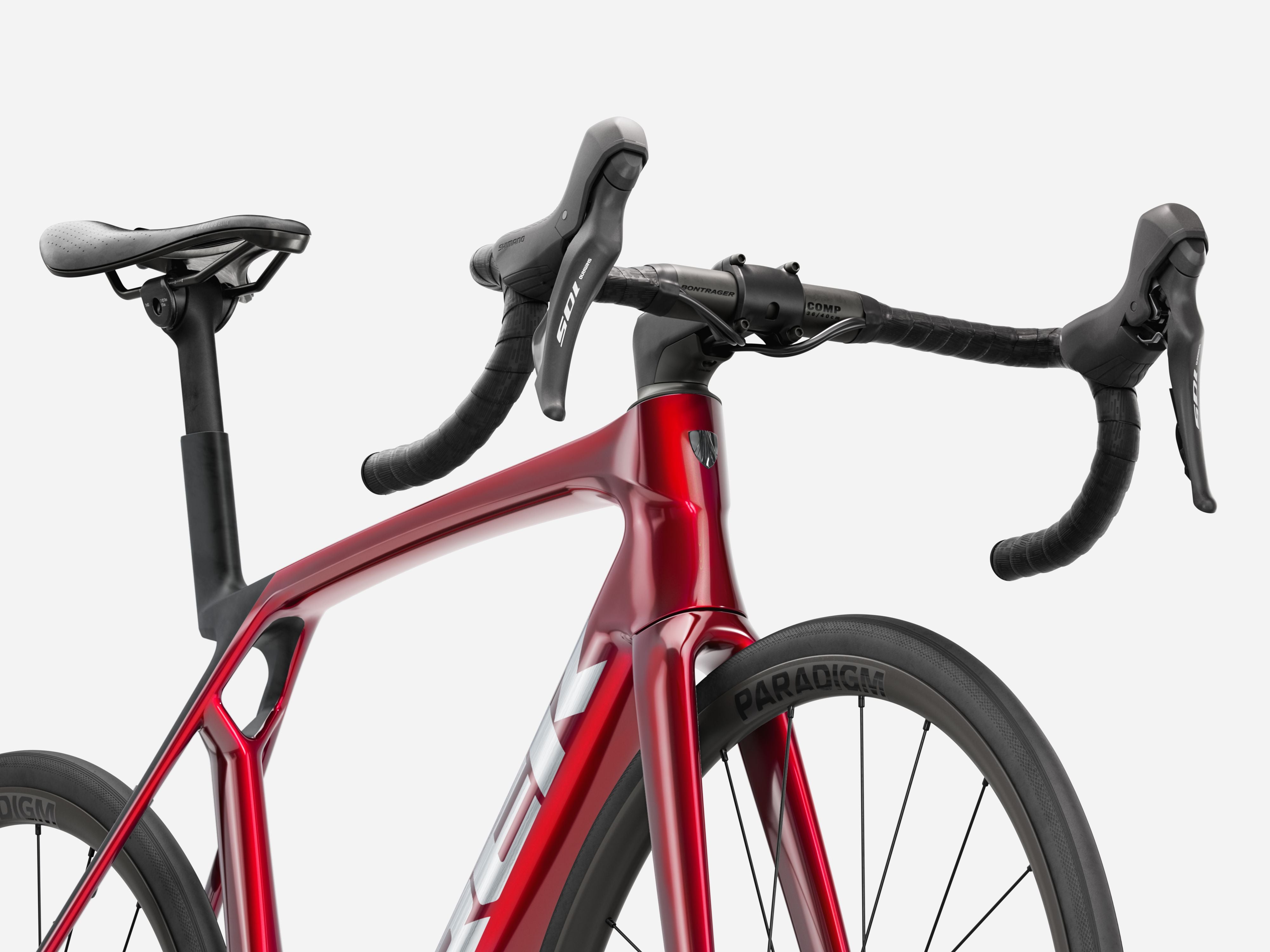

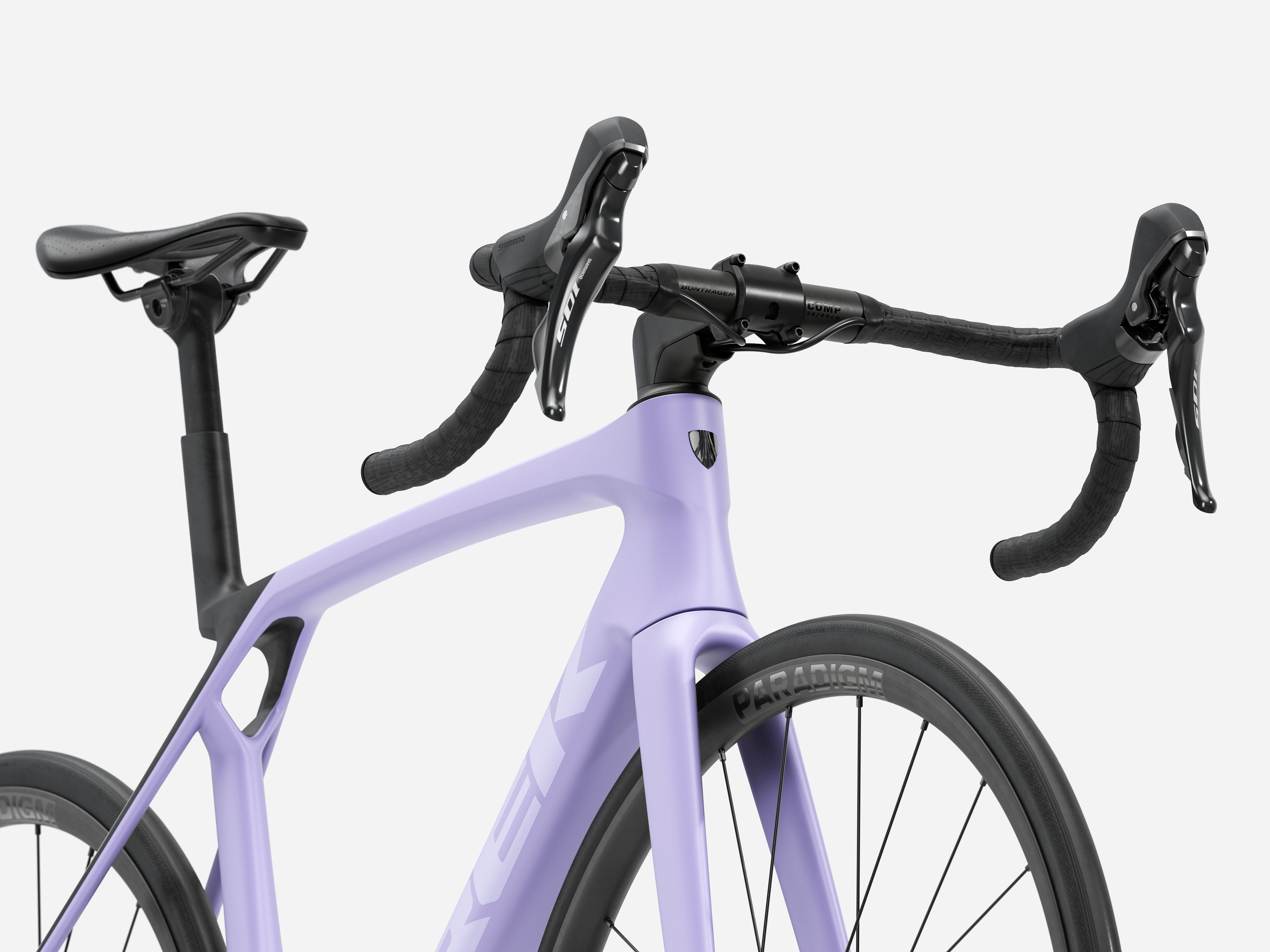

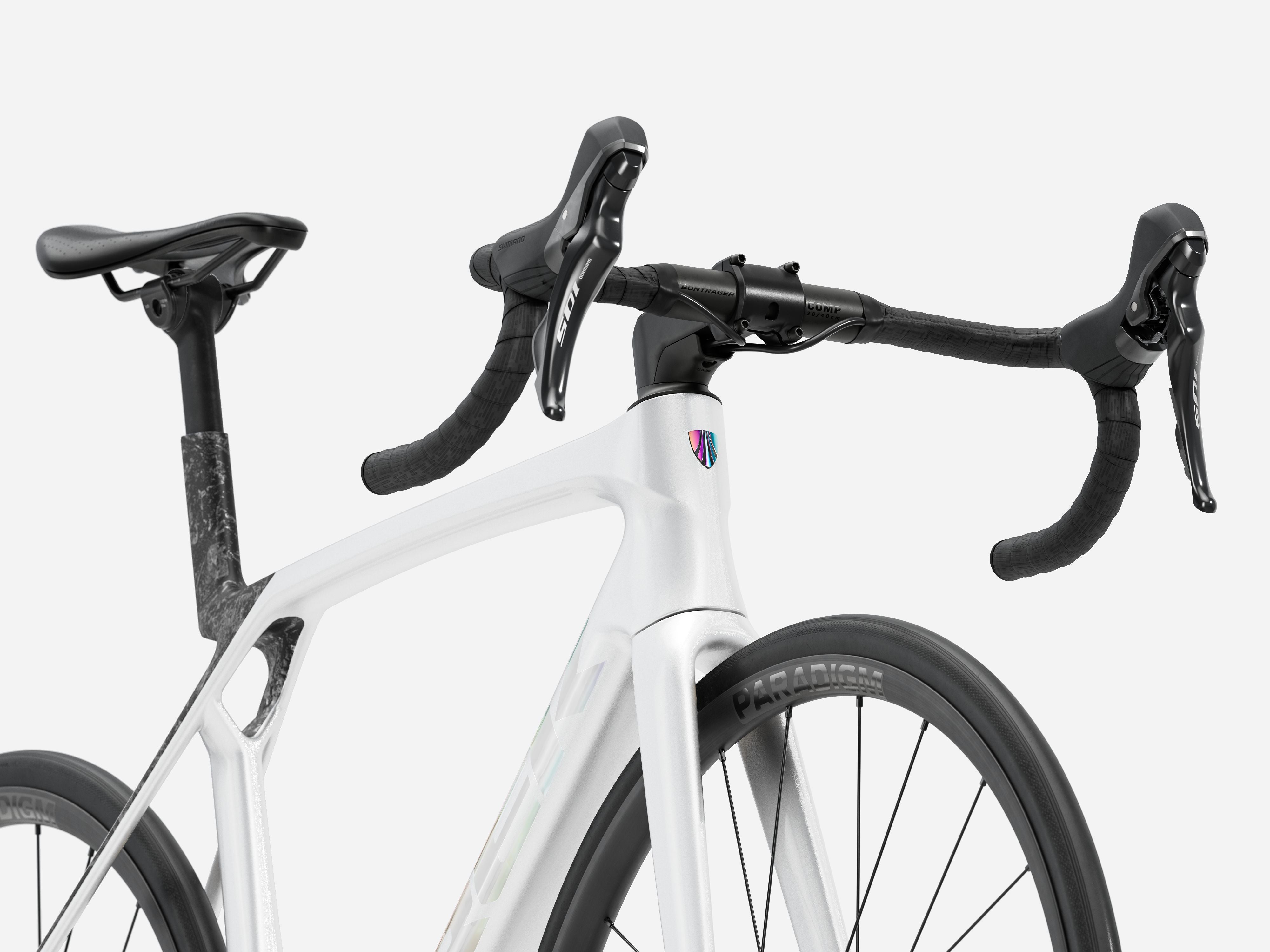

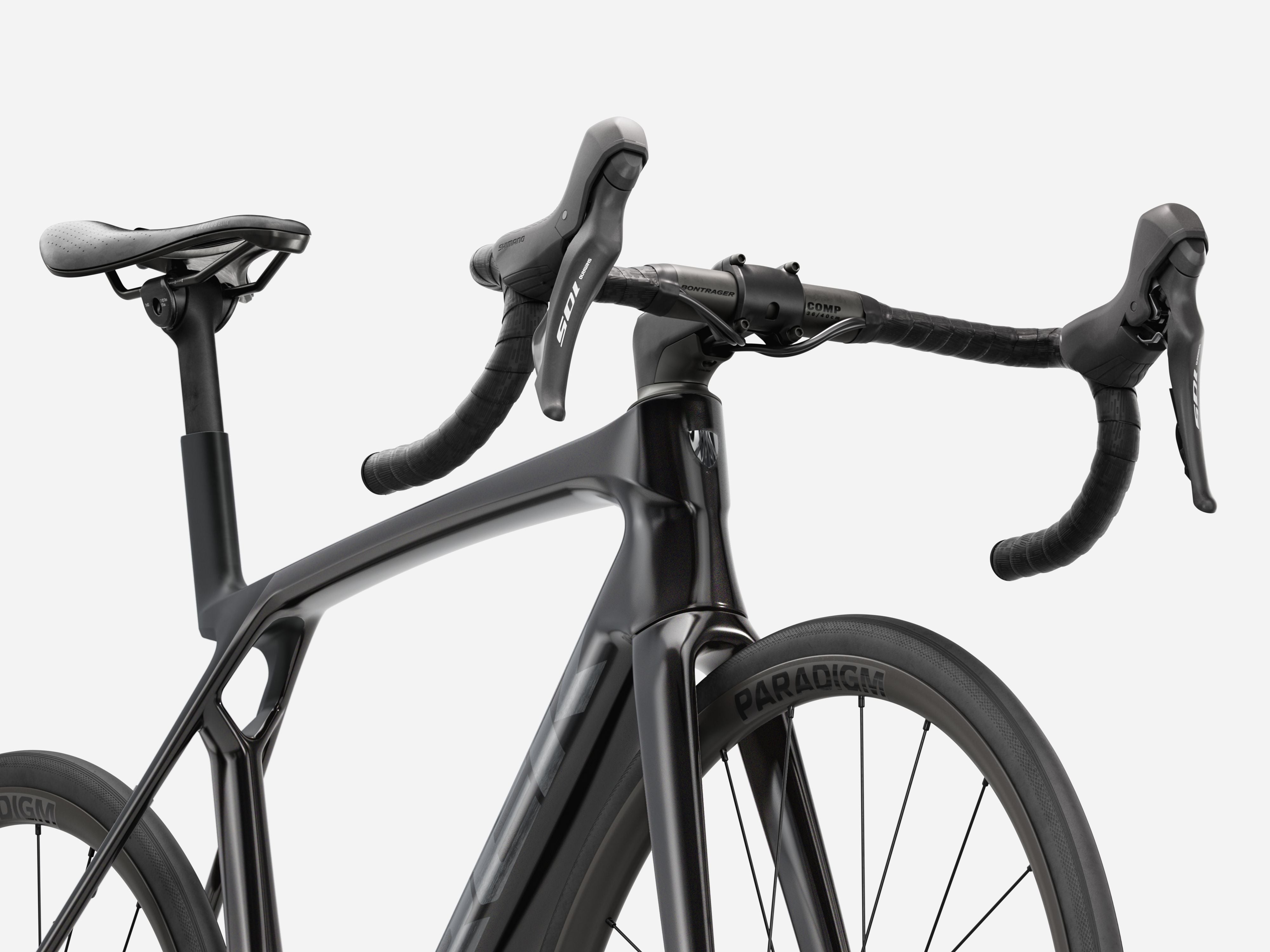

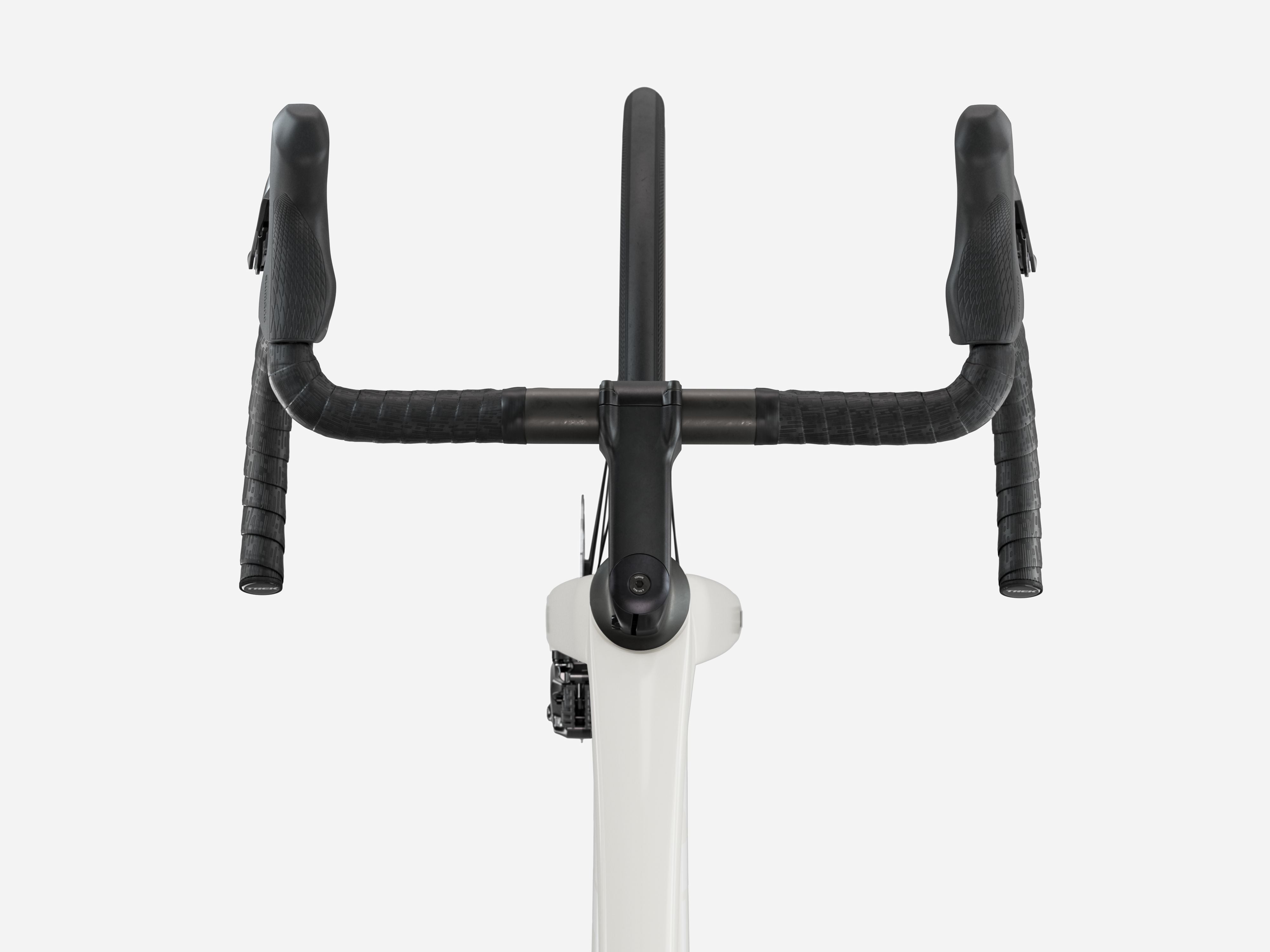

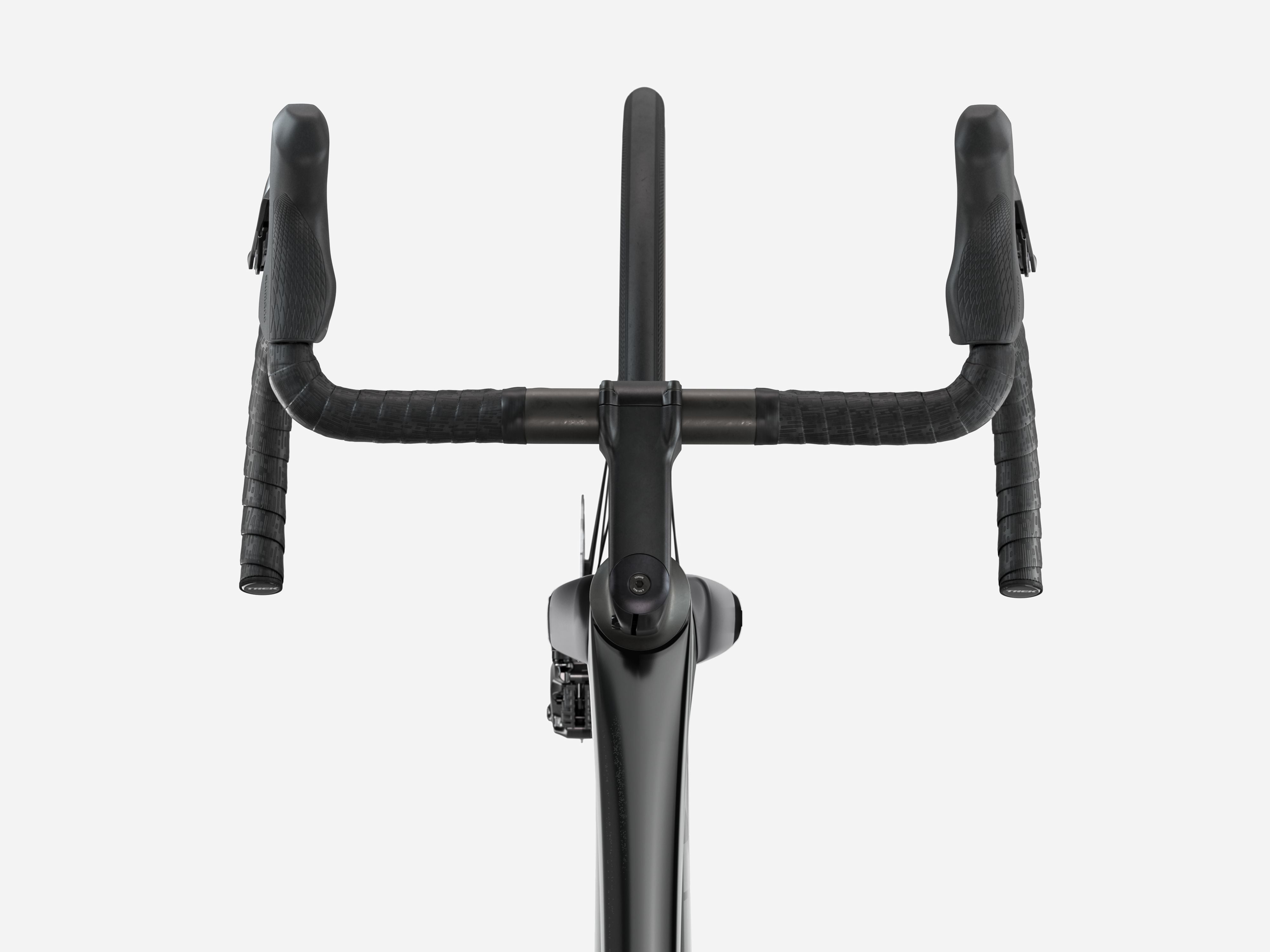

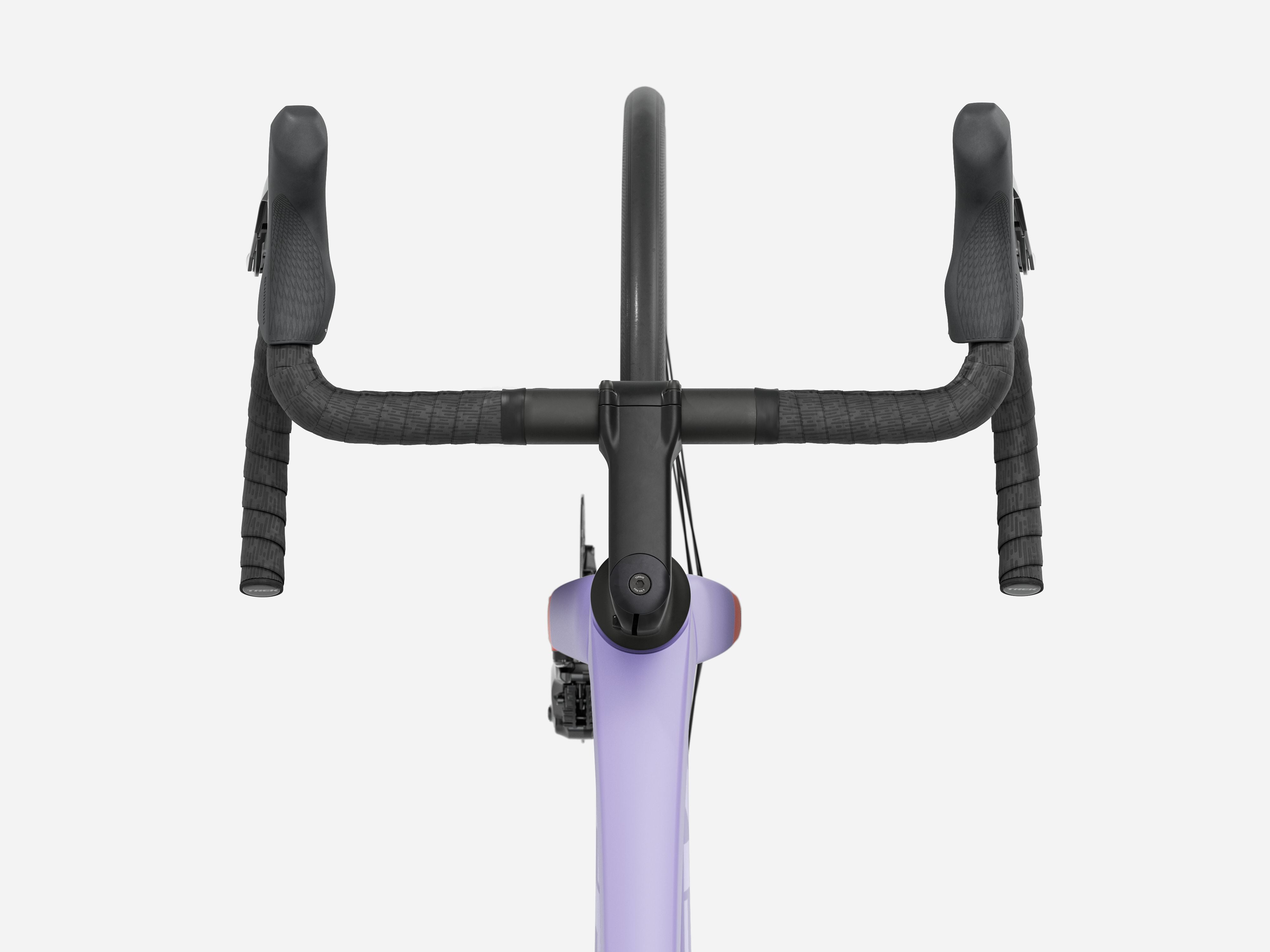

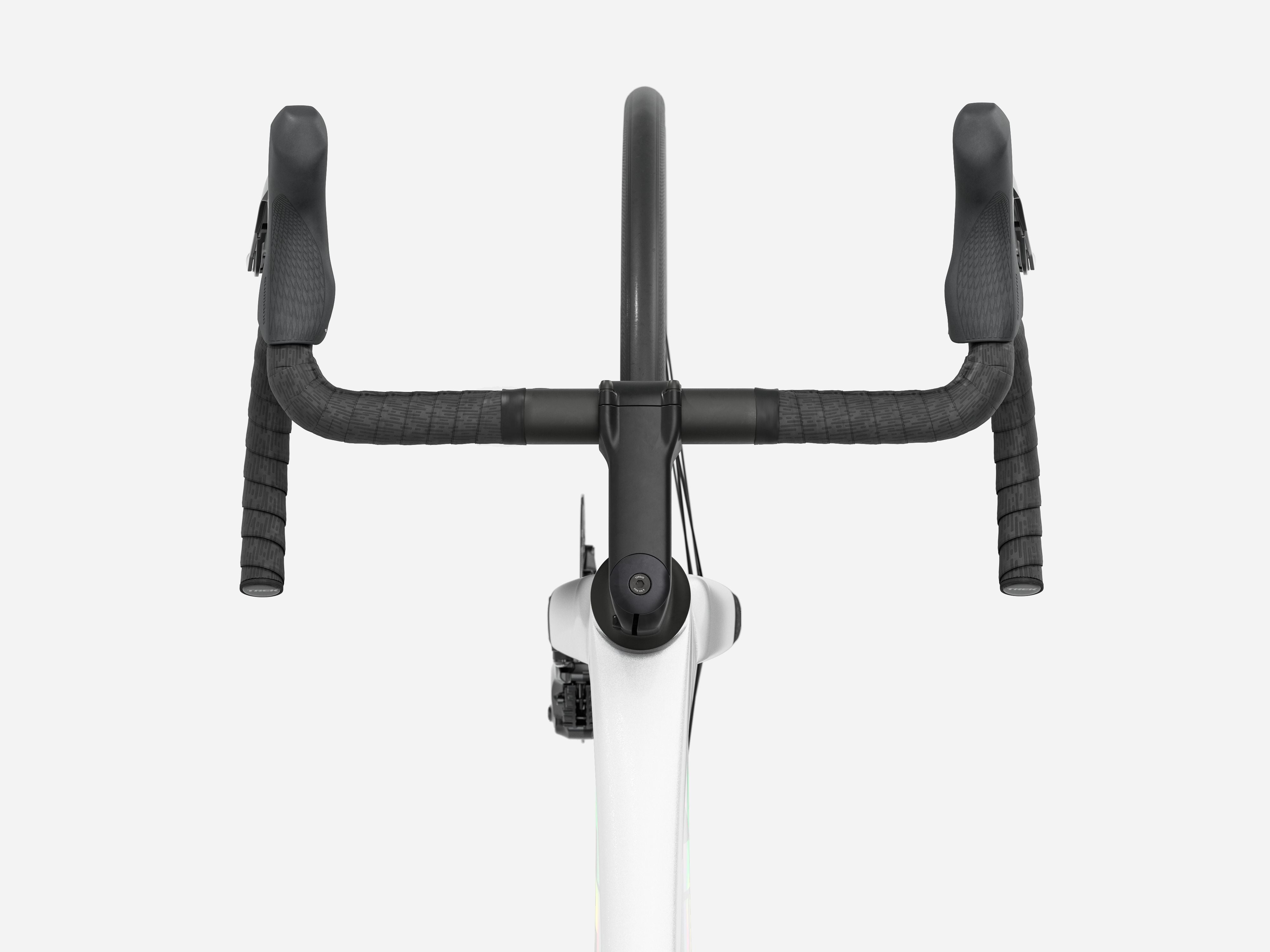

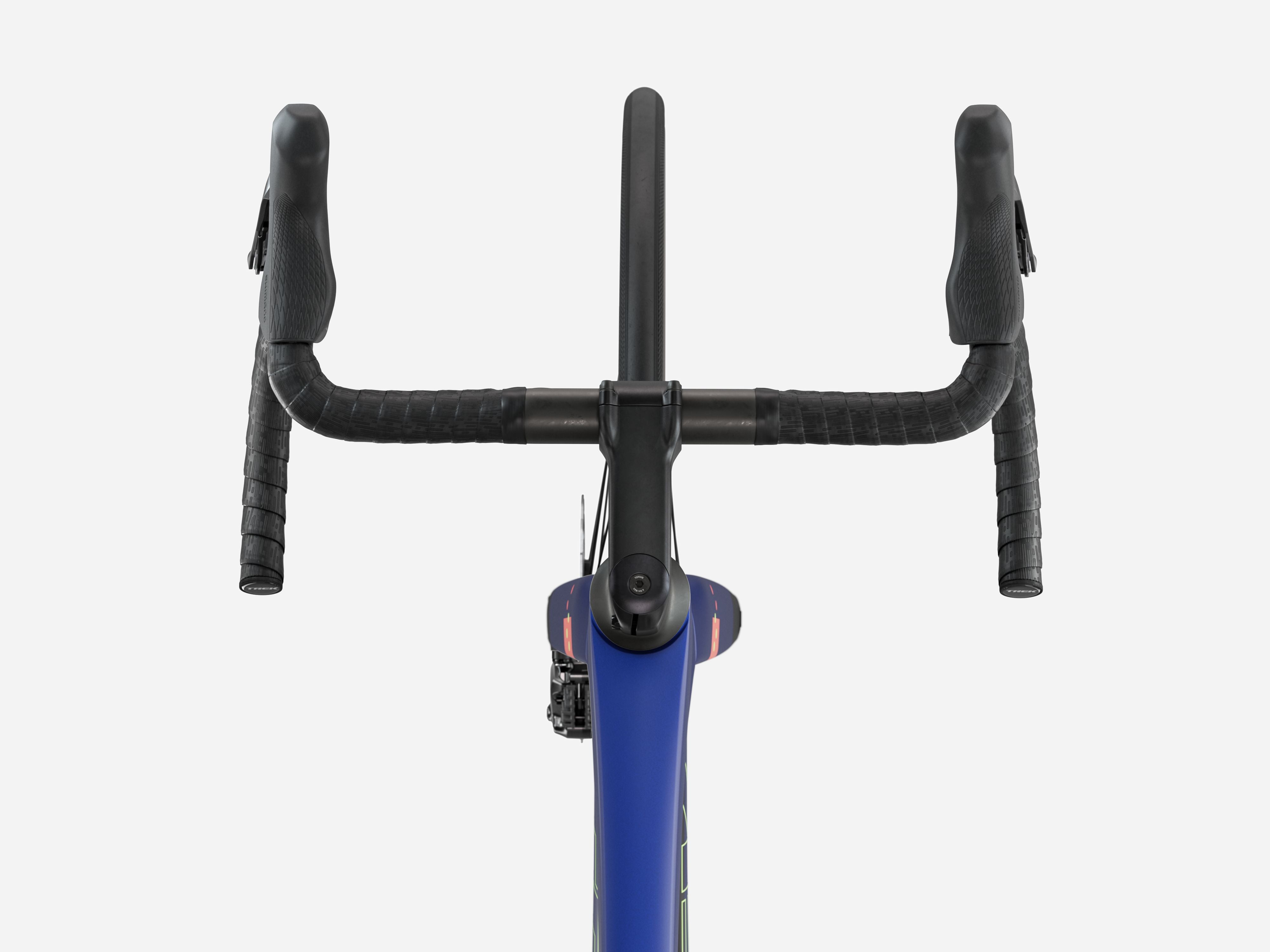

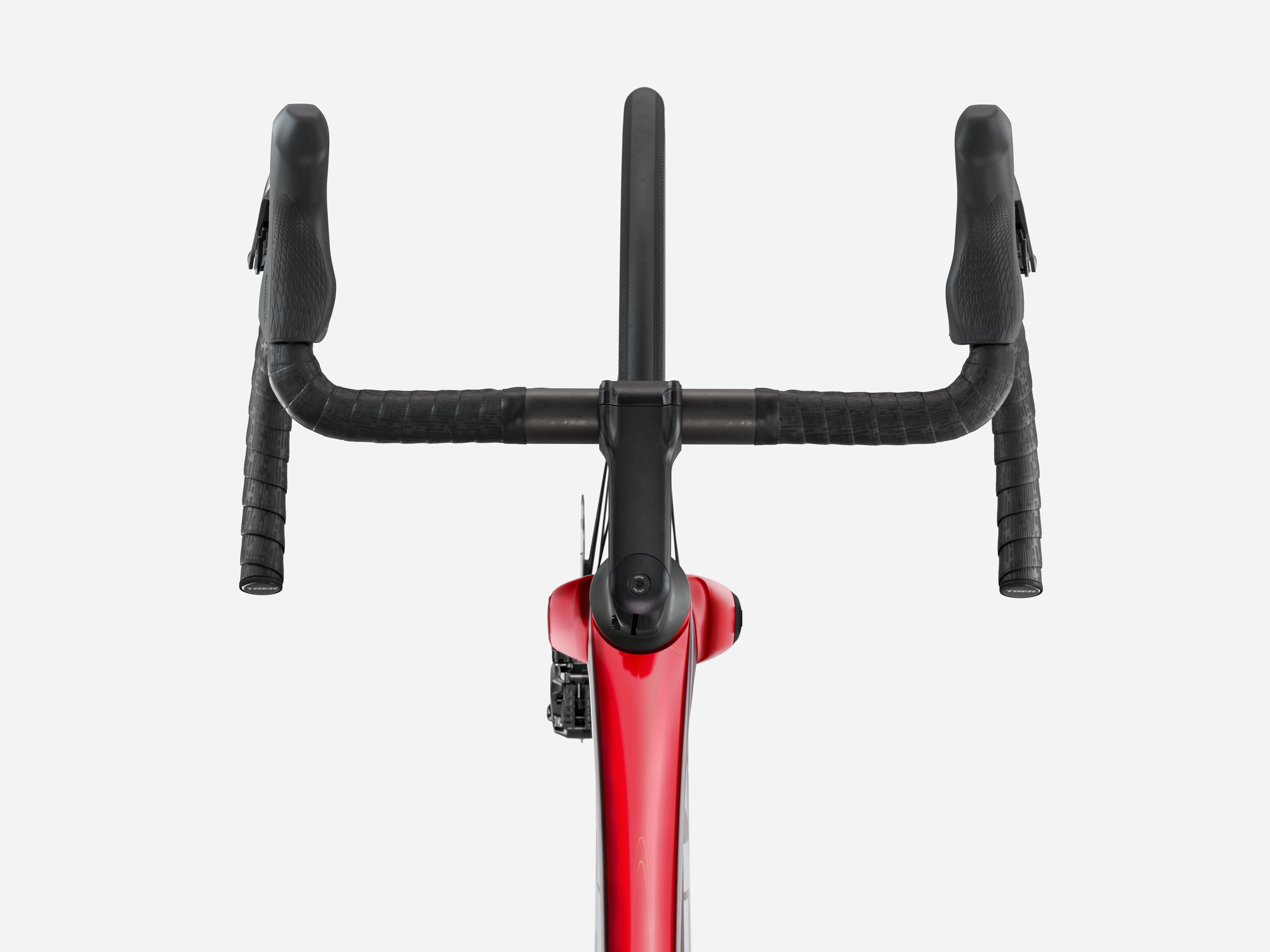

| Handlebar | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
| Stem | Trek RCS Pro, -7-degree, 100 mm length |
| Size Chart Rider Height | Rider Height - 179.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 88.0 |
