FX 1

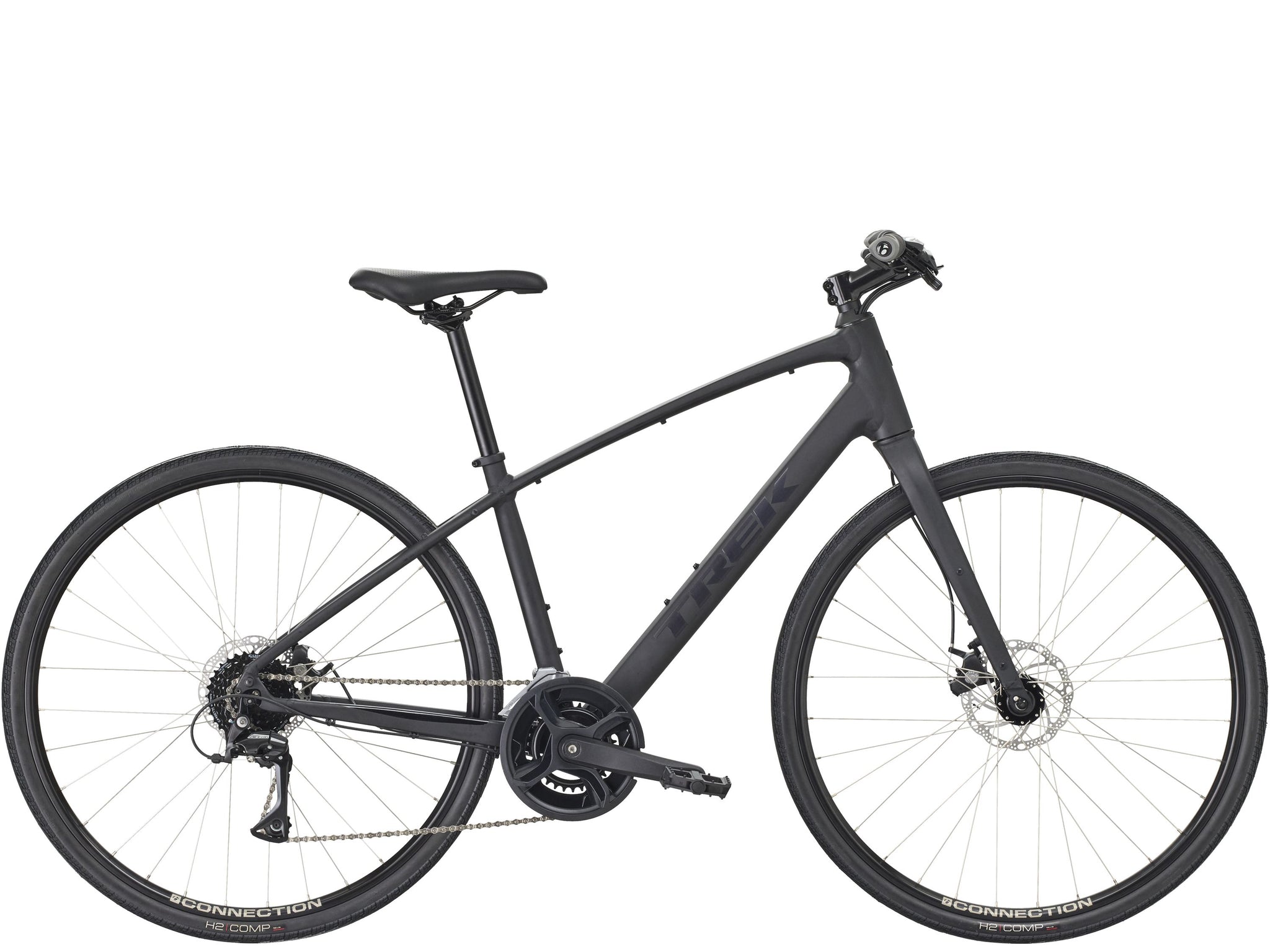

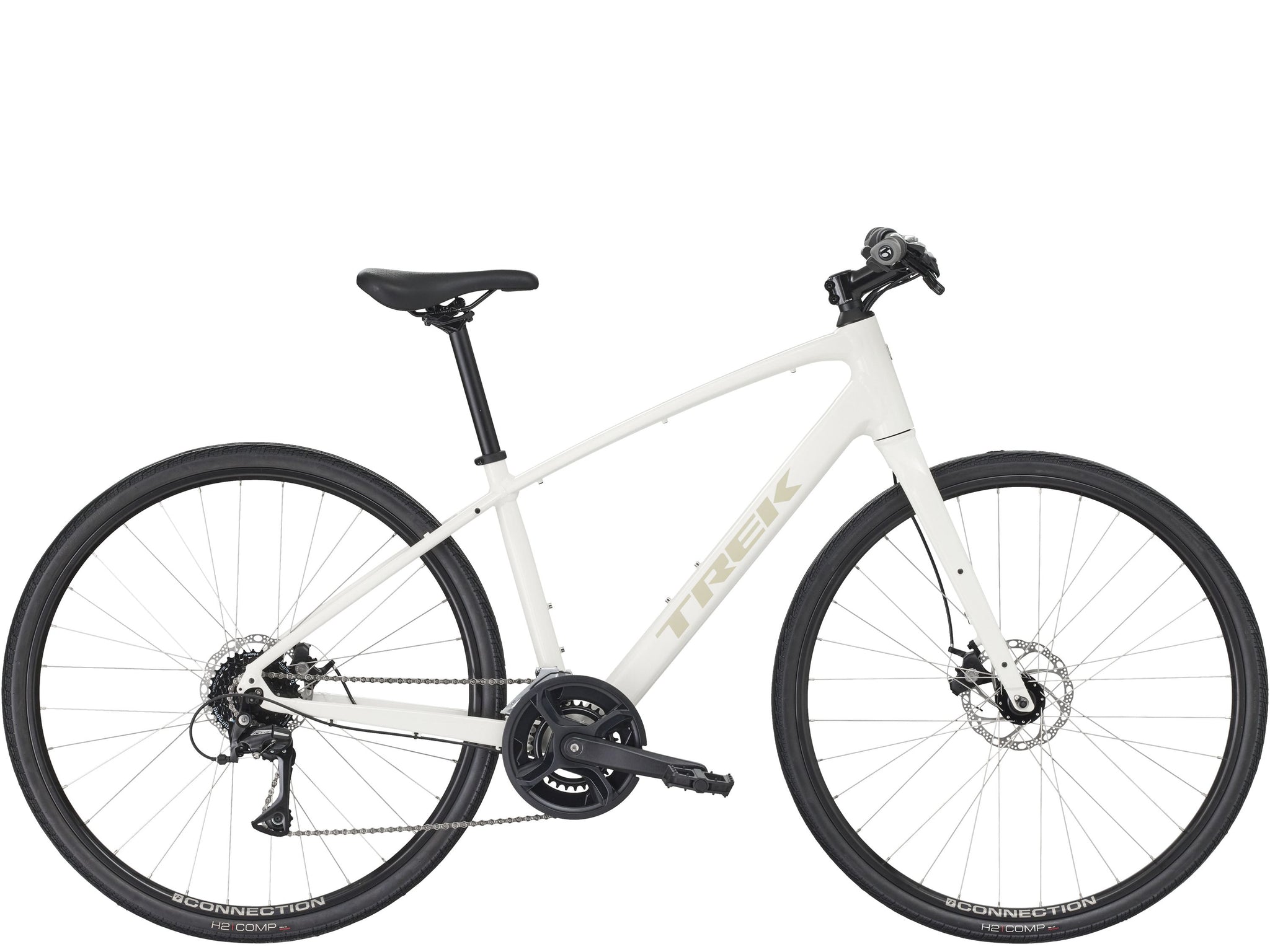

FX 1 is a versatile and sleek hybrid bike built for everyday rides, fitness, and commuting. Its lightweight frame and 8-speed Shimano drivetrain offer a wide, easy-to-use gear range, while mechanical disc brakes provide reliable stopping power. With mounts for racks and accessories, it’s easy to set it up for whatever your day looks like.
Technology
Fast and efficient - Our active geometry puts you in a more comfortable, upright position, so you can ride longer, feel less fatigue, and enjoy every mile.
Specification
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |
| Fork | FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
| Tires | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
| Hub Front | Formula DC-20, alloy, 6-bolt, 100x5 mm |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Shifter | Shimano |

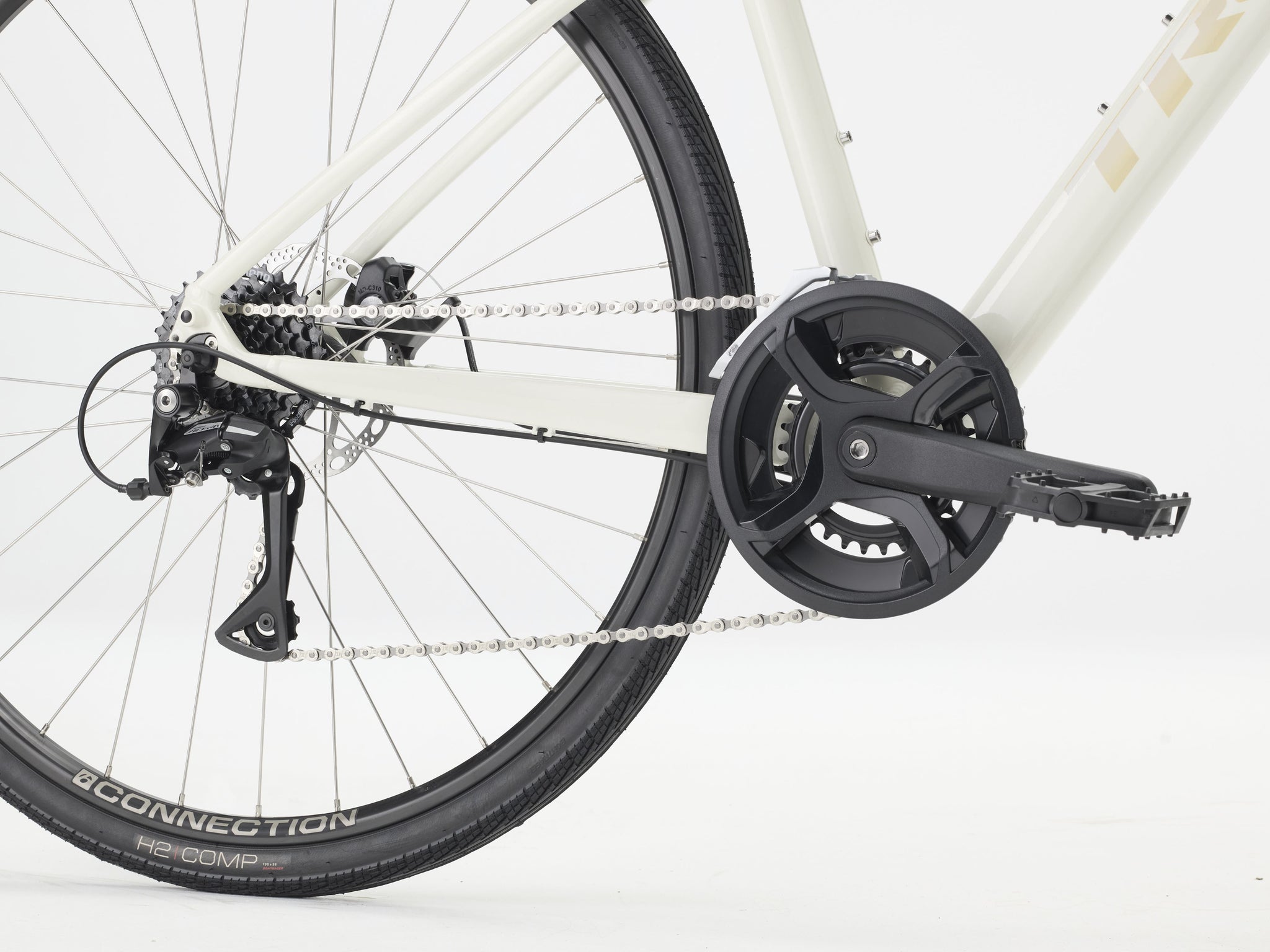

| Derailleur Front | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| Derailleur Rear | Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, 170 mm length |
| Bottom Bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3 |
| Brake | Tektro |
| Brakeset | Tektro MD-U310 mechanical disc // Tektro MD-U310 mechanical disc Tektro MD-U310 mechanical disc // Tektro MD-U310 mechanical disc |
| Brake Rotor | Tektro wave, 6-bolt, 160 mm |
| Pedals | Wellgo nylon platform |
| Saddle | Bontrager Sport |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length |

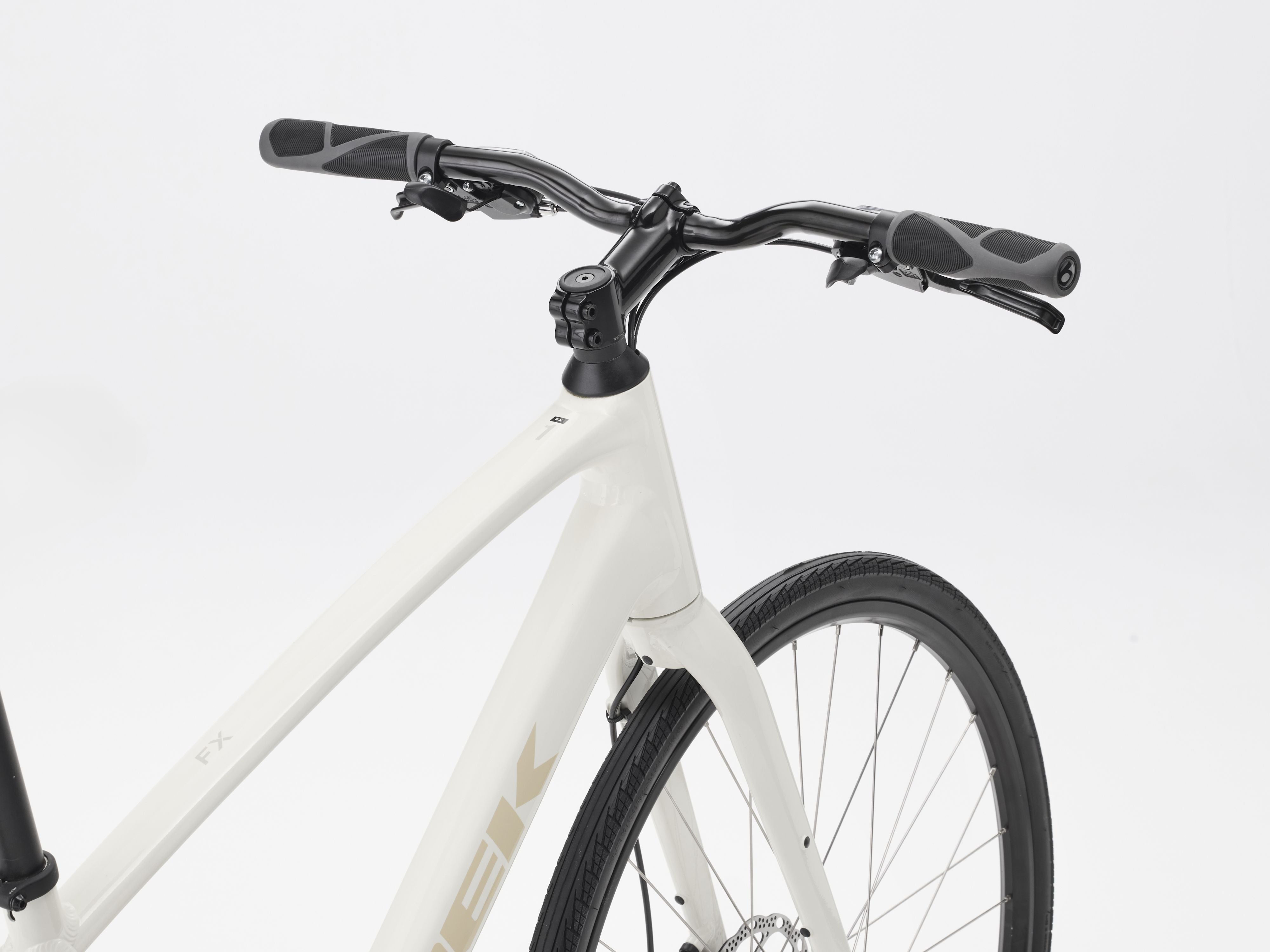

| Handlebar | Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
| Stem | Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
| Grips | Trek Ergonomic Comp, lock-on |
| Size Chart Rider Height | Rider Height - 175.0 - 186.0 |
| Size Chart Rider Inseam | Inseam - 82.0 - 88.0 |
