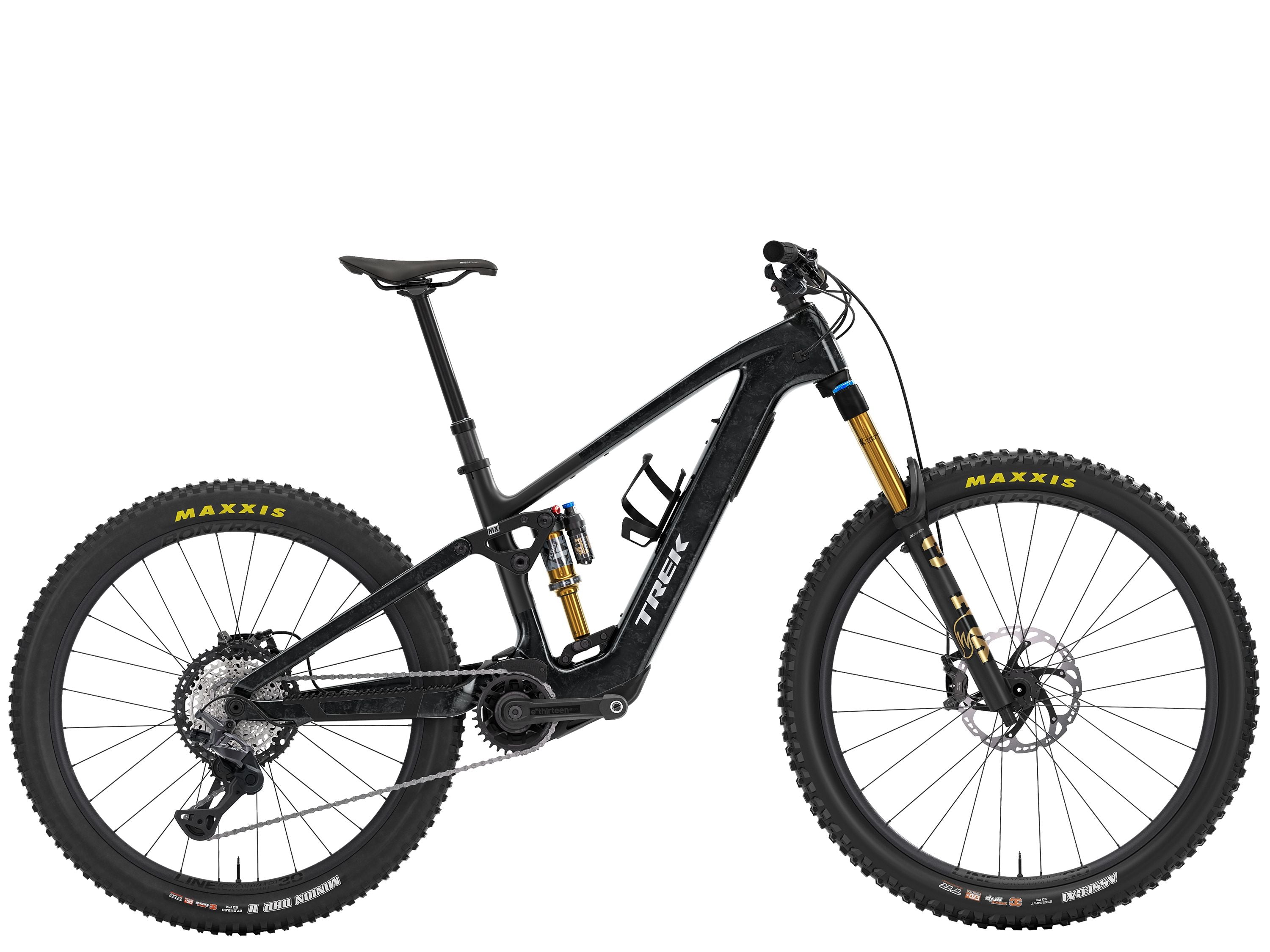

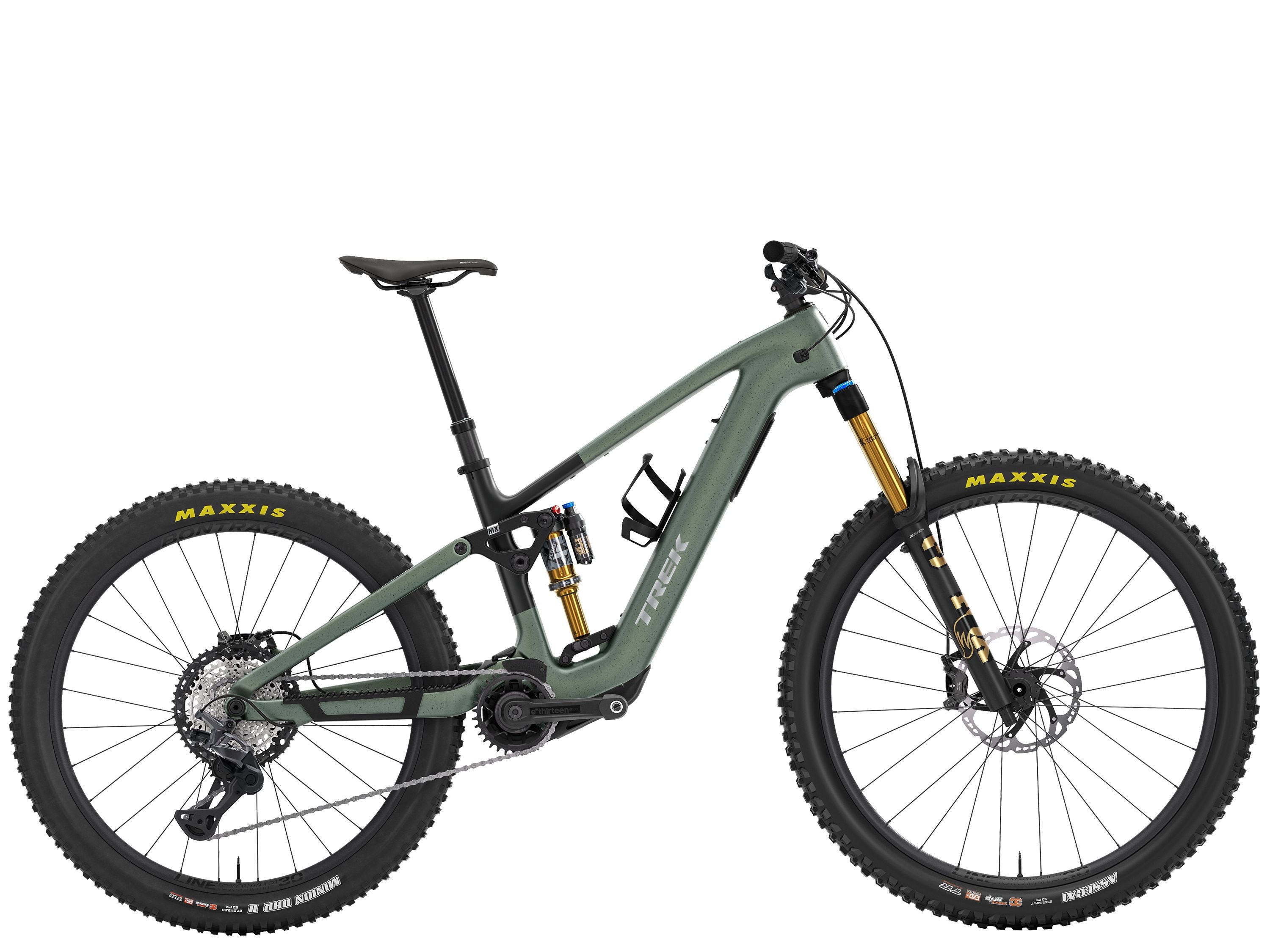

Fuel+ MX 9.8 XT Gen 2
Fuel+ MX 9.8 XT is a chaos-craving carbon e-MTB for chasing side hits, lap after lap. It starts off with an OCLV Mountain Carbon frame with TQ's HPR60 motor, speced with a Fox Factory suspension package (150mm rear, 160mm front), and MX wheels for getting wild on the trail. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm OCLV Mountain Carbon, remo |
|---|---|
| Frame Material | CARBON |
| Rim Size | 27.5 |
| Fork | Fox |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 160 mm travel |
| Rearsuspension | Fox |
| Suspension Rear | Fox Factory Float X, 205mm x 60mm |
| Wheels | Bontrager Line Comp 30 |
| Tires | Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5x2.5" |
| Shifter | Shimano |
| Derailleur Rear | Shimano Deore M8200, long cage |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano Ultegra/XT M8100 |
| Brake | Shimano |
| Brakeset | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc |
| Brake Rotor | Shimano RT-6B750, 6-bolt, 200 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | TQ 580Wh TQ 580Wh |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
