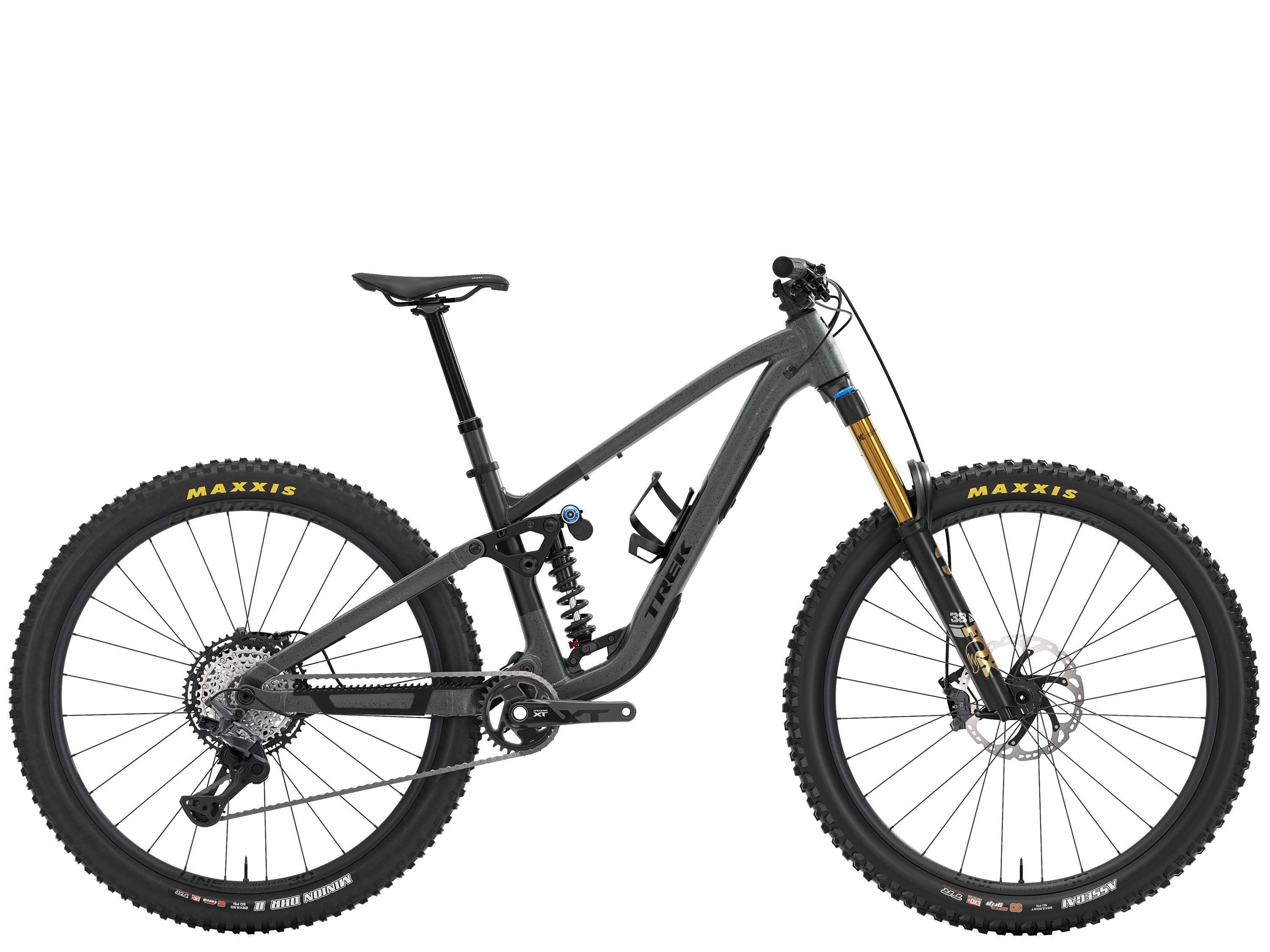

Fuel LX 9 XT
Fuel LX 9 XT is a hard-charging trail bike built for rowdy laps and hair-raising descents. It pairs an adaptable Alpha NEXT Platinum aluminum frame with a Fox Factory 38 fork and DHX2 coil shock (160mm rear, 170mm front) for rolling into steeper than steep lines packed with wheel-eating terrain. A mechanical Shimano XT M8200 12-speed drivetrain gives you clean, reliable shifting, and 4-piston Shimano XT M8220 brakes provide excellent modulation and stop-on-a-dime power.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT P |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | Fox |
| Fork | Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1 |
| Rearsuspension | Fox |
| Suspension Rear | Fox DHX2, 205 mm x 65 mm |
| Wheels | Bontrager Line Comp 30 |
| Tires | Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" |
| Shifter | Shimano |
| Derailleur Rear | Shimano Deore M8200, long cage |
| Crank | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length // Shimano XT M8200, 30T, 55mm chainline, 165mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc |
| Brake Rotor | Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Trek Line Elite, lock-on |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
