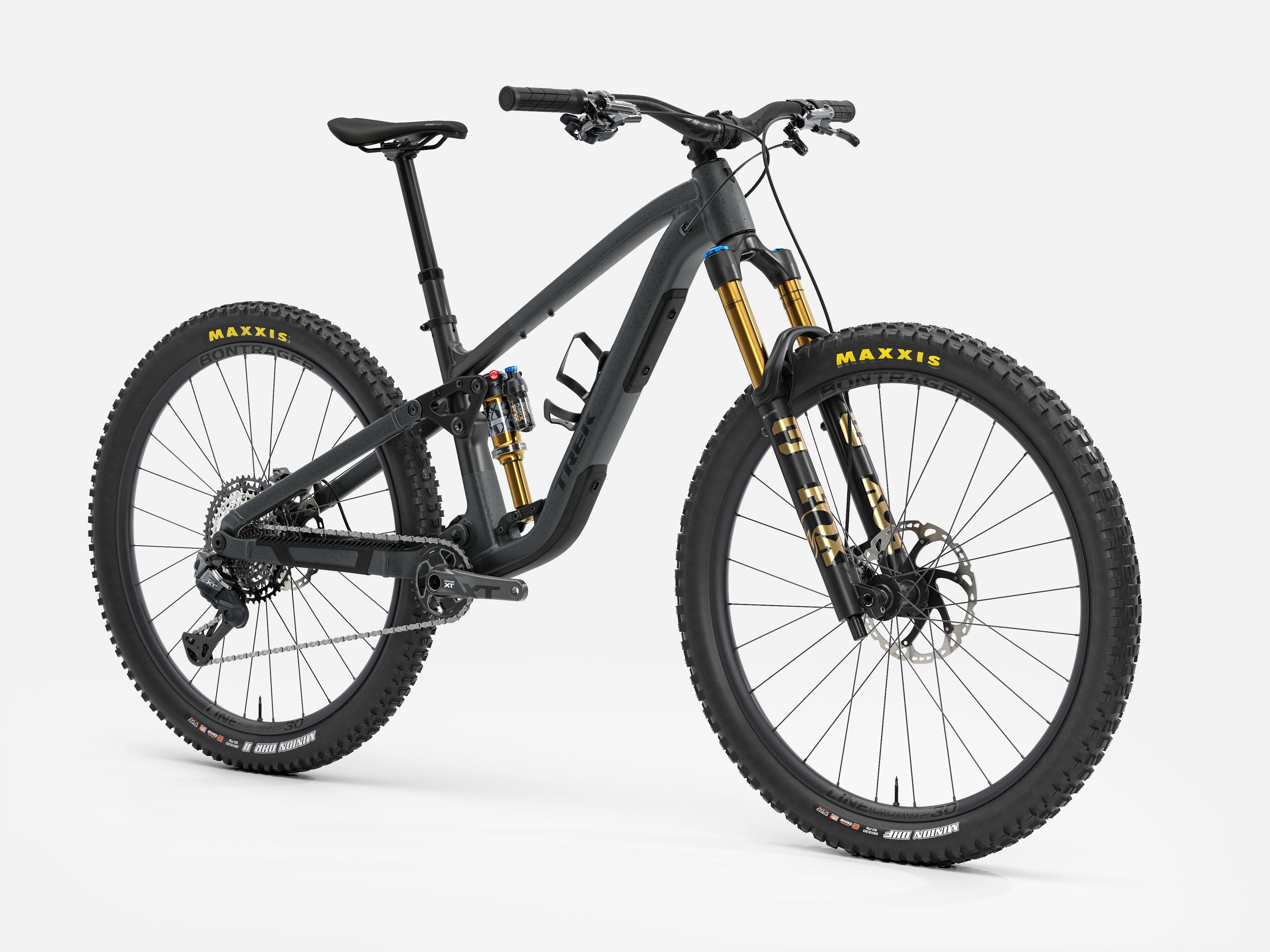

Fuel EX 9 XT Di2
Fuel EX 9 XT is a confident trail bike made to rip into just about anything. It starts with an Alpha NEXT Platinum aluminum frame with a Fox Factory suspension package (145mm rear, 150mm front) that makes quick work of tech and flow alike. A Shimano XT M8200 drivetrain delivers reliable mechanical shifting, while 4-piston Shimano XT M8220 brakes give you the modulation and stopping power you need when things get hairy.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT P |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | Fox |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel |
| Rearsuspension | Fox |
| Suspension Rear | Fox Factory Float X, 205mm x 60mm |
| Wheels | Bontrager Line Comp 30 |
| Tires | Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" |
| Shifter | Shimano |
| Derailleur Rear | Shimano XT M8250, long cage |
| Crank | Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length // Shimano XT M8200, 30T, 55mm chainline, 165mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc |
| Brake Rotor | Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Trek Line Elite, lock-on |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
