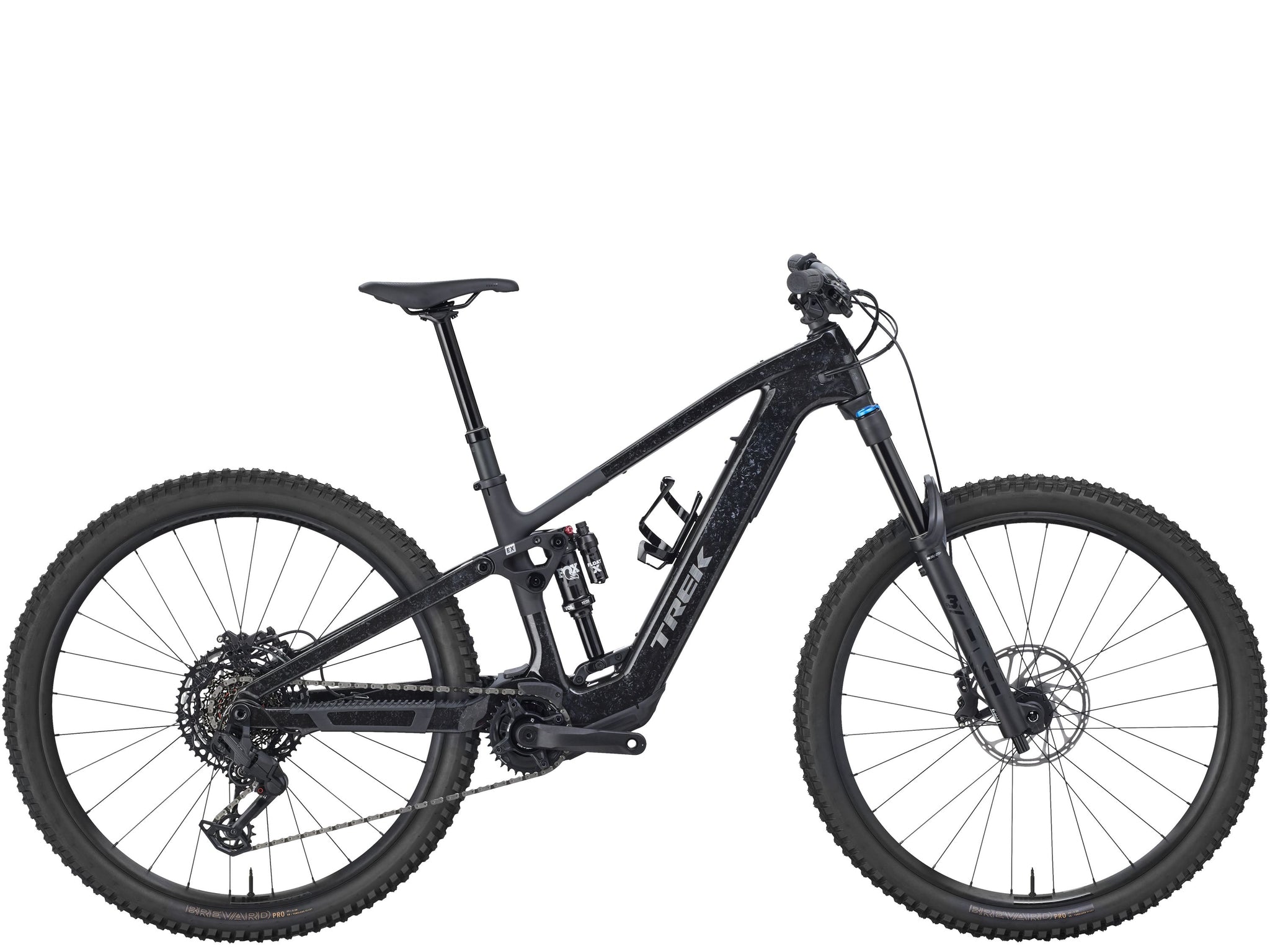

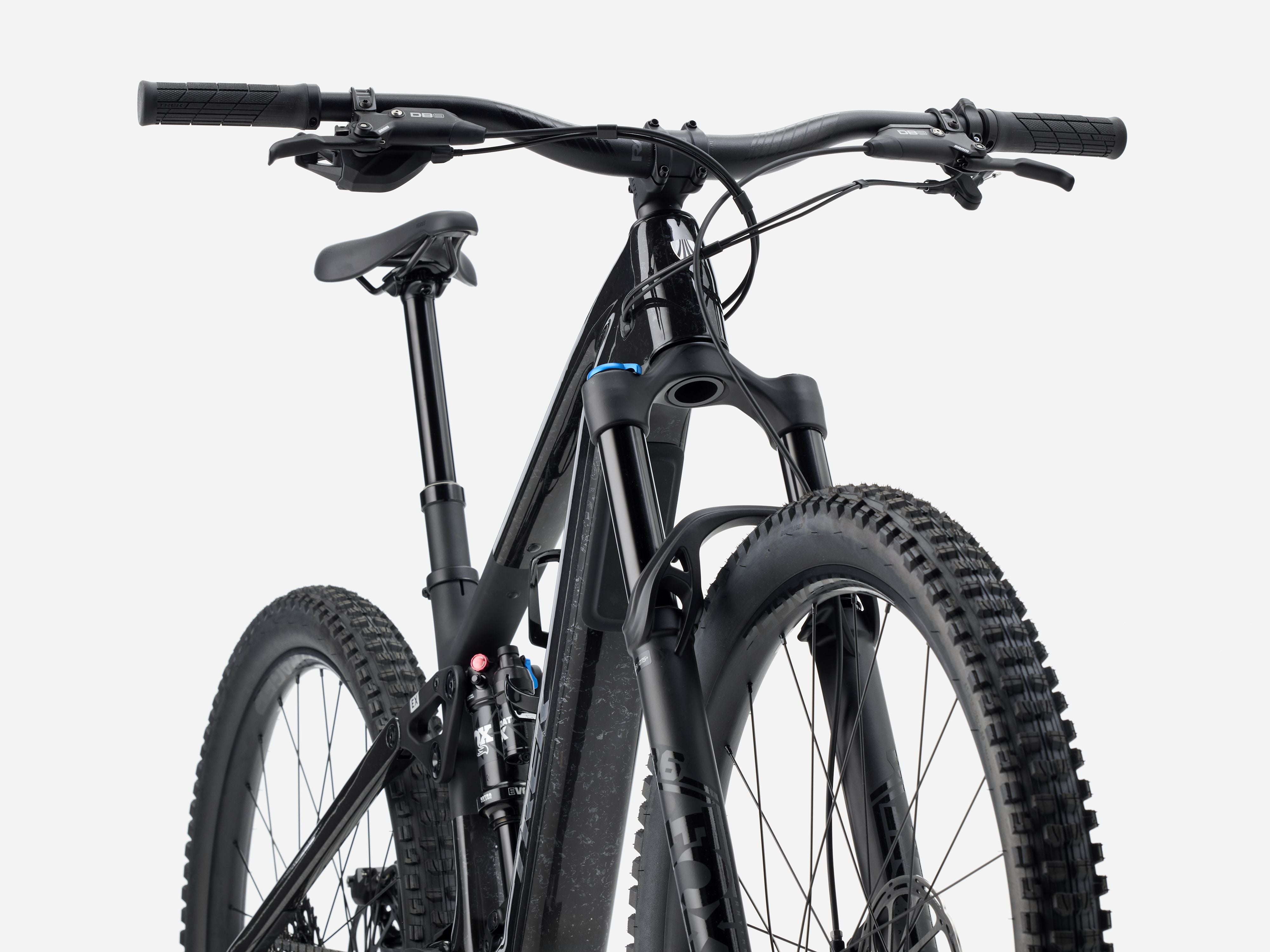

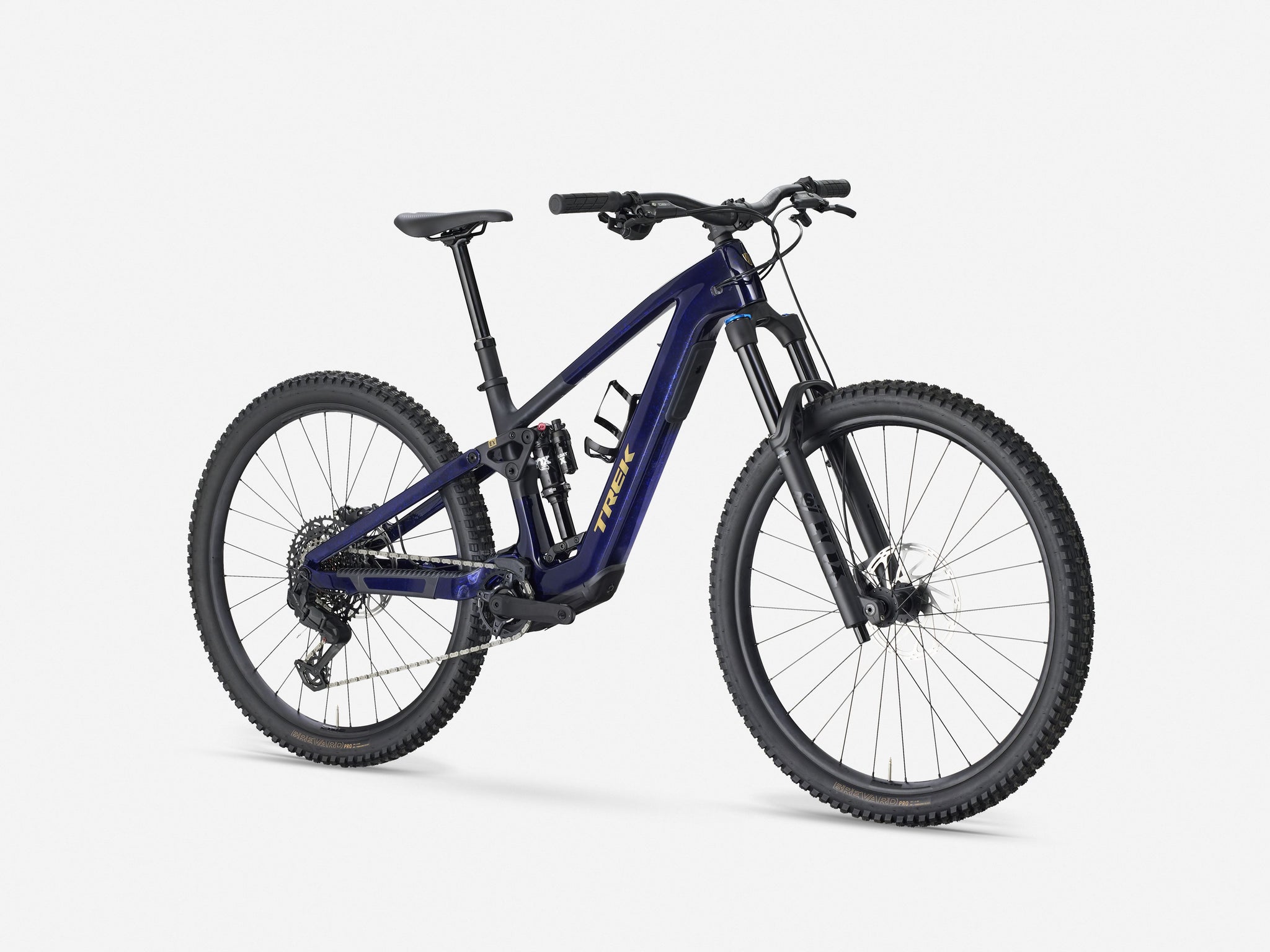

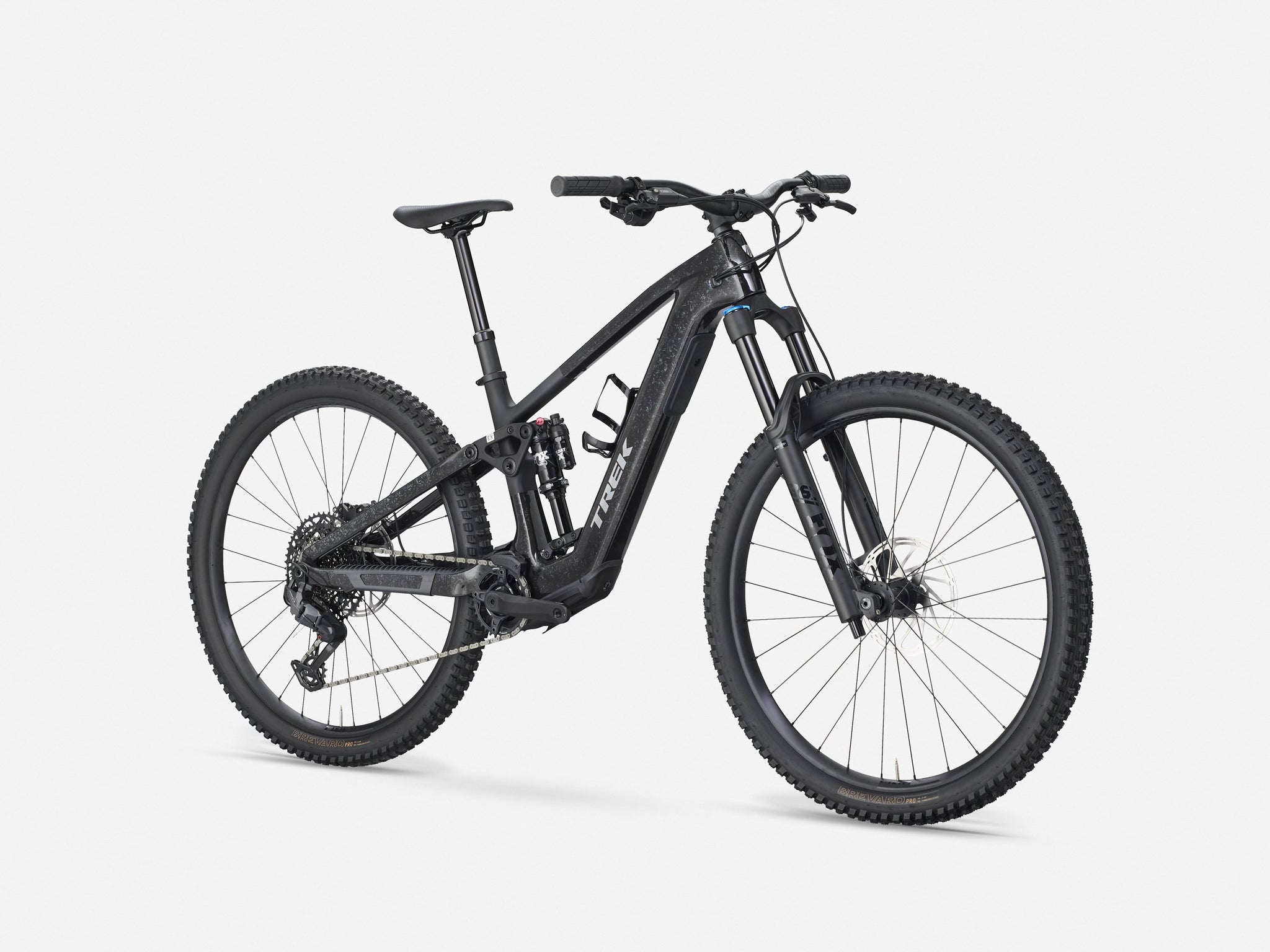

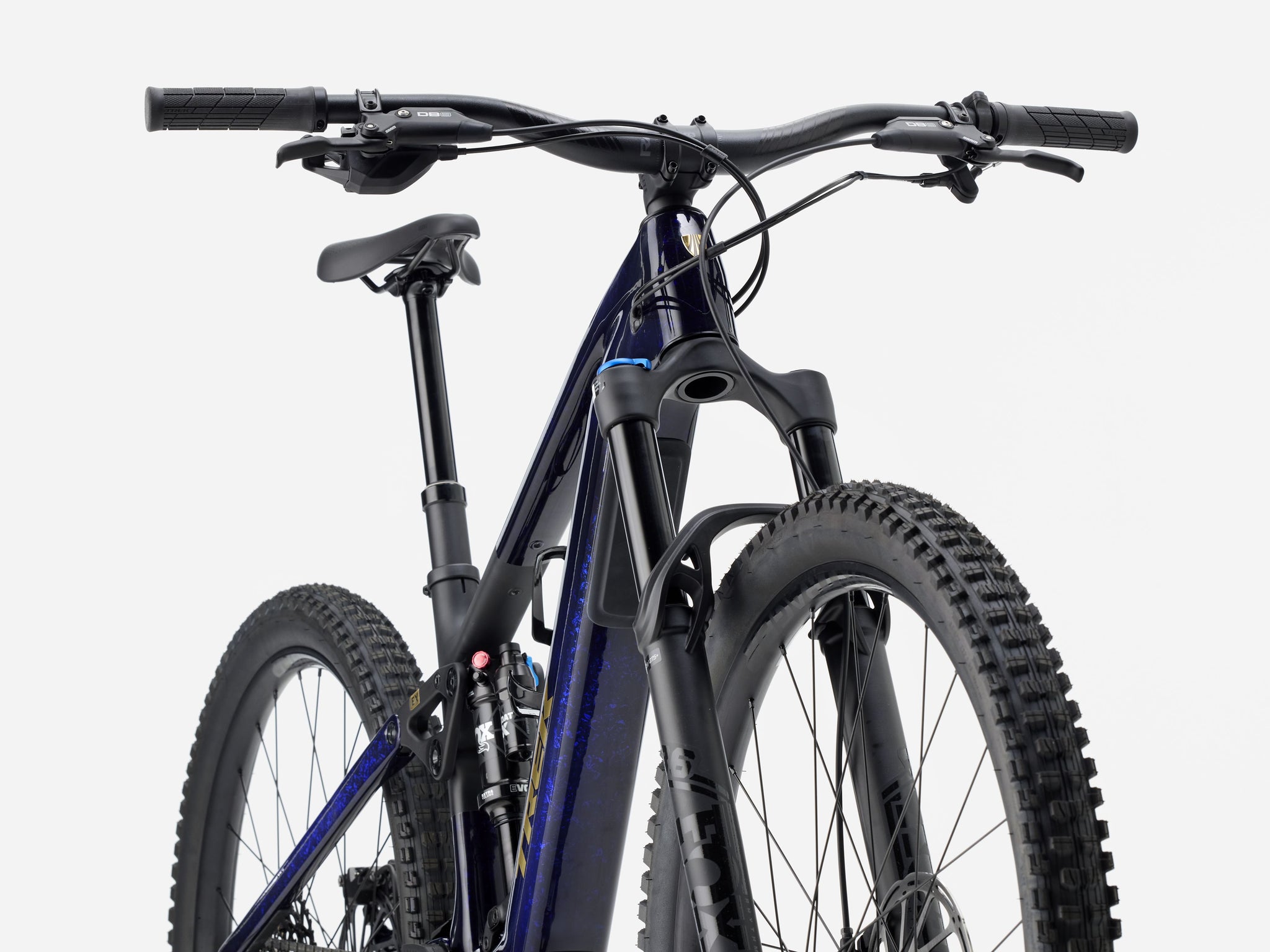

Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.

Technology

Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.Lithuania (EUR€)

Specification

Luxembourg (EUR€) Madagascar (GBP£) Malawi (MWKMK) Mali (XOFFr) Malta (EUR€) Mauritania (GBP£) Mauritius (MUR₨) Mayotte (EUR€) Moldova (MDLL) Monaco (EUR€) Montenegro (EUR€) Morocco (MADد.م.) Mozambique (GBP£) Namibia (GBP£) Netherlands (EUR€) Niger (XOFFr) Nigeria (NGN₦) North Macedonia (MKDден) Norway (GBP£) Poland (PLNzł) Portugal (EUR€) Réunion (EUR€) Romania (RONLei) Rwanda (RWFFRw) San Marino (EUR€) São Tomé & Príncipe (STDDb) Senegal (XOFFr) Serbia (RSDРСД) Seychelles (GBP£) Sierra Leone (SLLLe) Slovakia (EUR€) Slovenia (EUR€) Somalia (GBP£) South Africa (GBP£) South Sudan (GBP£) Spain (EUR€) St. Helena (SHP£) Sudan (GBP£) Svalbard & Jan Mayen (GBP£) Sweden (SEKkr) Switzerland (CHFCHF) Tanzania (TZSSh) Togo (XOFFr) Tristan da Cunha (GBP£) Tunisia (GBP£)

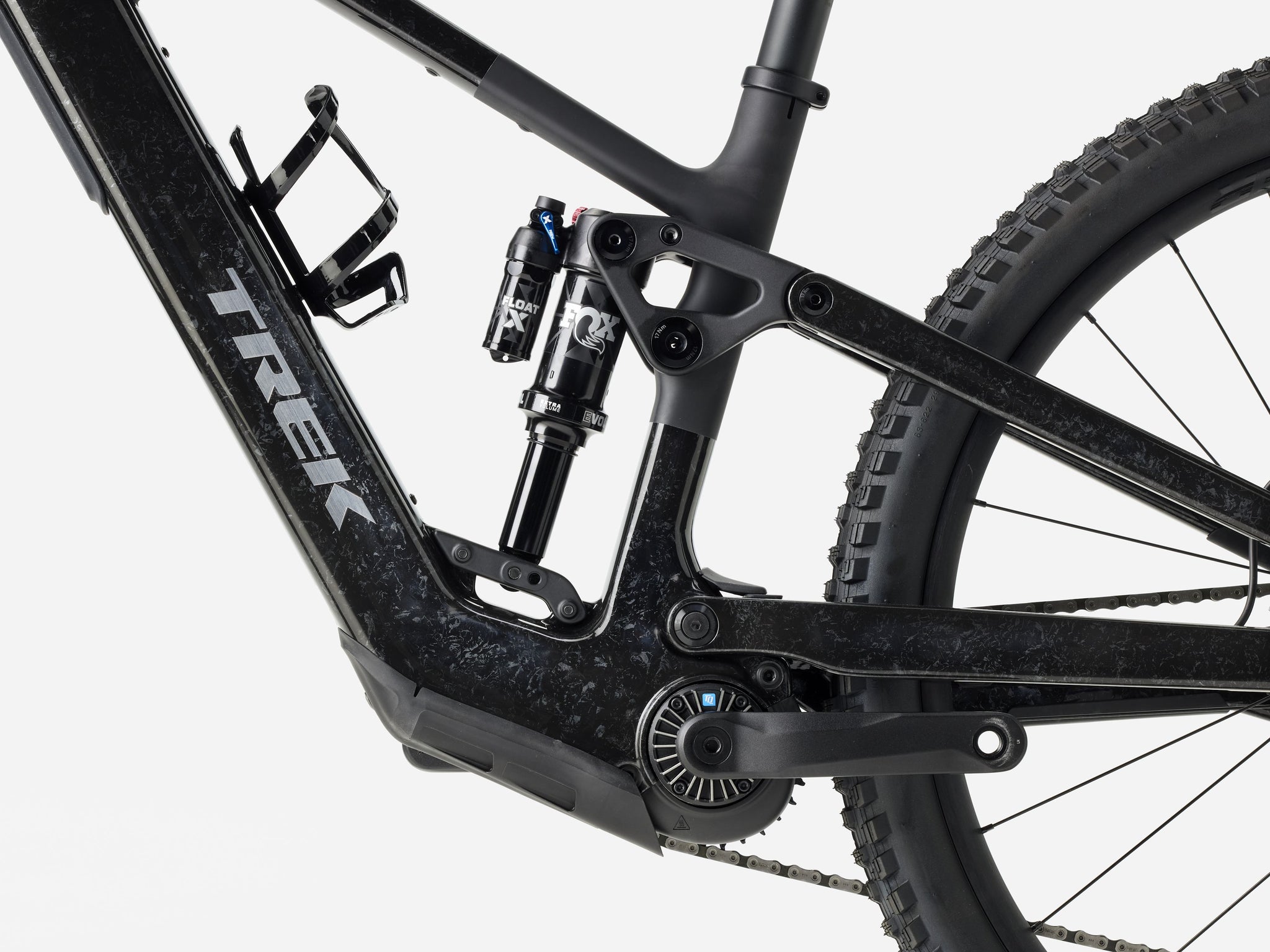

Frame	OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm OCLV Mountain Carbon, remo
Frame Material	CARBON
Rim Size	29
Fork	Fox
Fork	Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110,
Rearsuspension	Fox

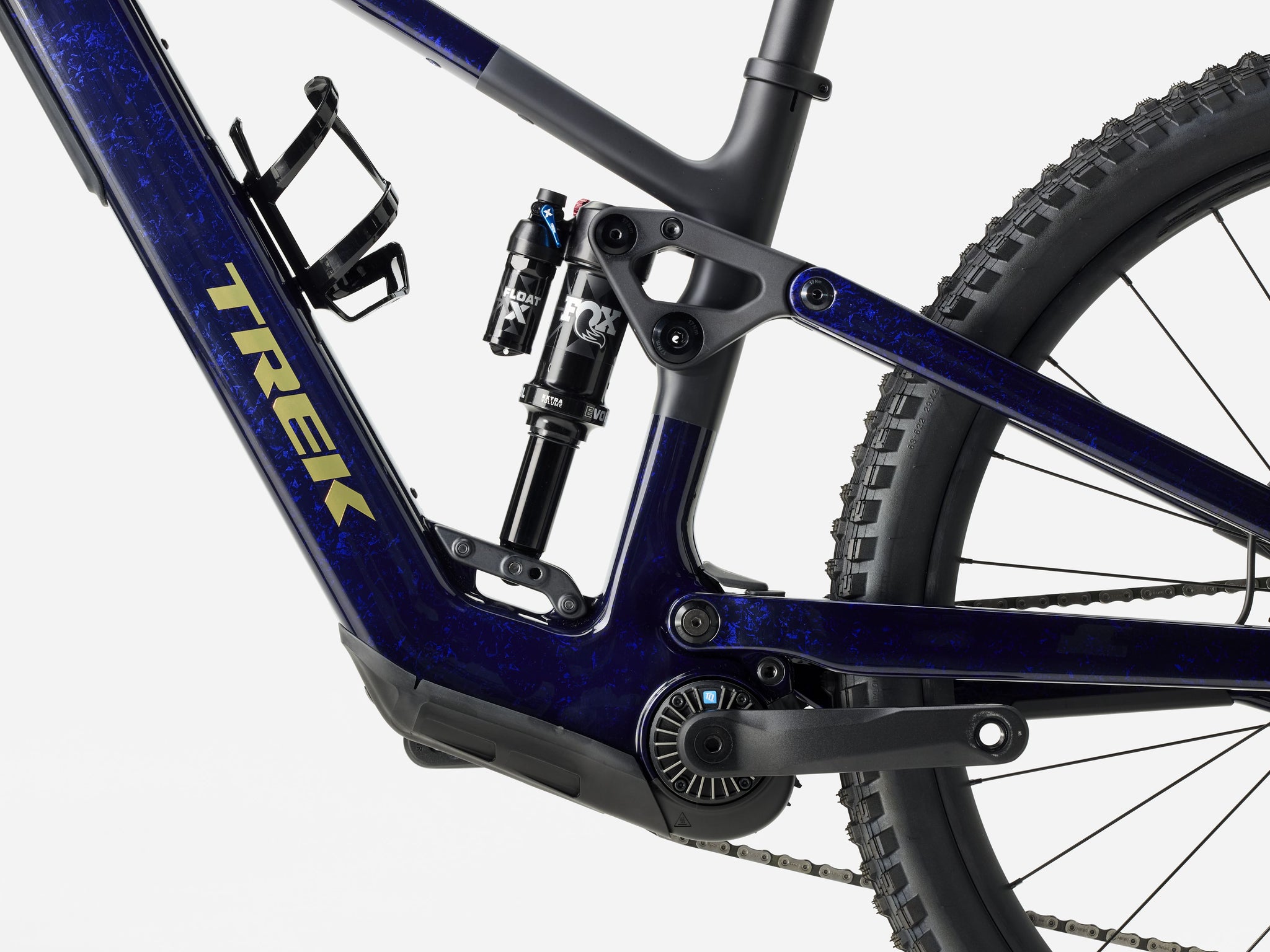

Suspension Rear	Fox Float X, 205mm x 60mm
Tires	Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
Hub Front	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub Rear	Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
Rims	Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Shifter	SRAM

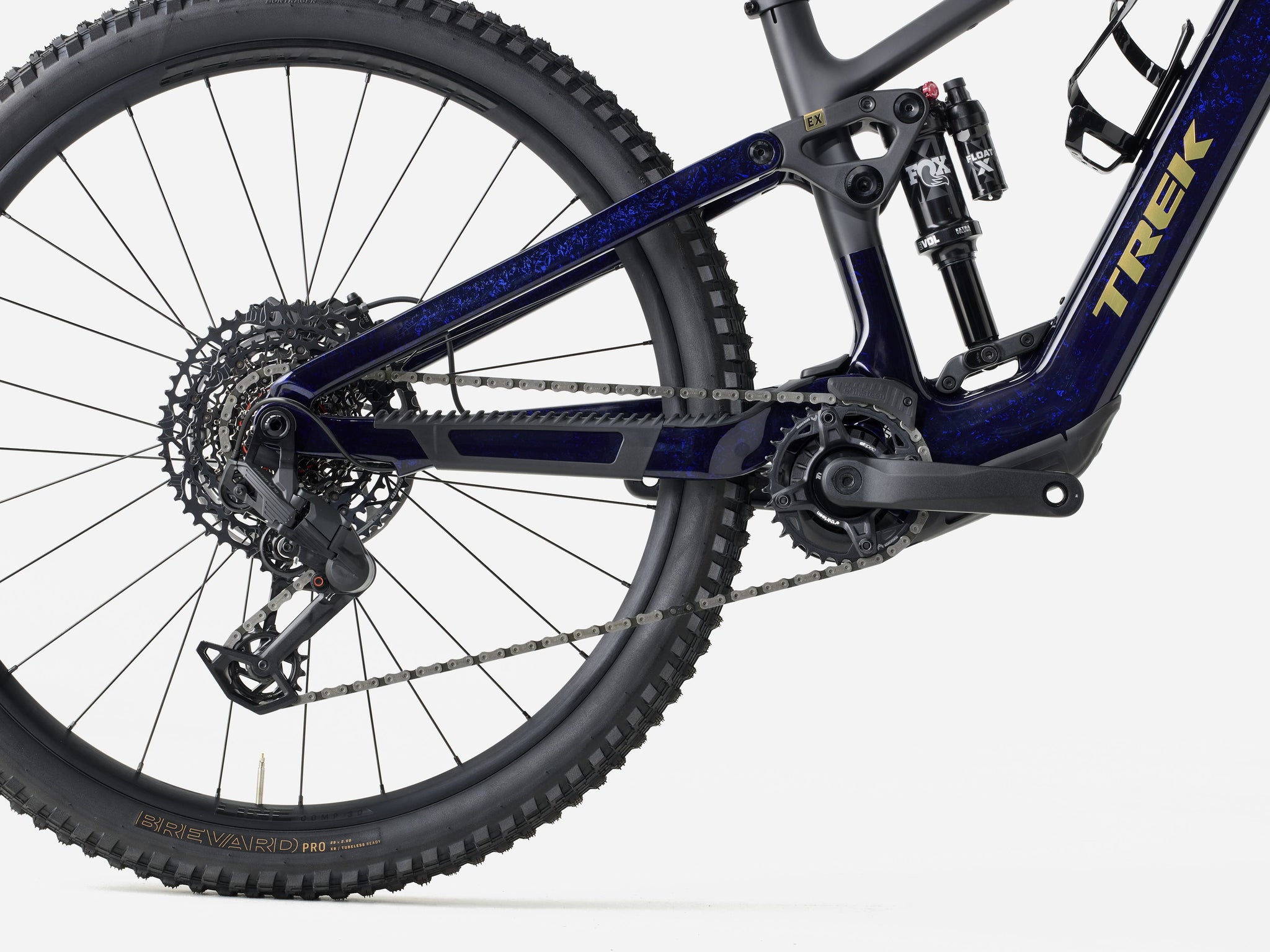

Derailleur Rear	SRAM Eagle 70, T-Type
Crank	FSA alloy, 160 mm length
Cassette	SRAM Eagle XS-1270, T-Type,10-52, 12-speed
Chain	SRAM Eagle 70, T-Type, 12-speed
Brake	SRAM
Brakeset	SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic disc
Brake Rotor	SRAM CenterLine 2.0, 6-bolt, 200 mm // SRAM CentreLine, 6-bolt, round-edge, 200 mm
Saddle	Bontrager Verse Short, stainless steel rails
Seatpost	Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length

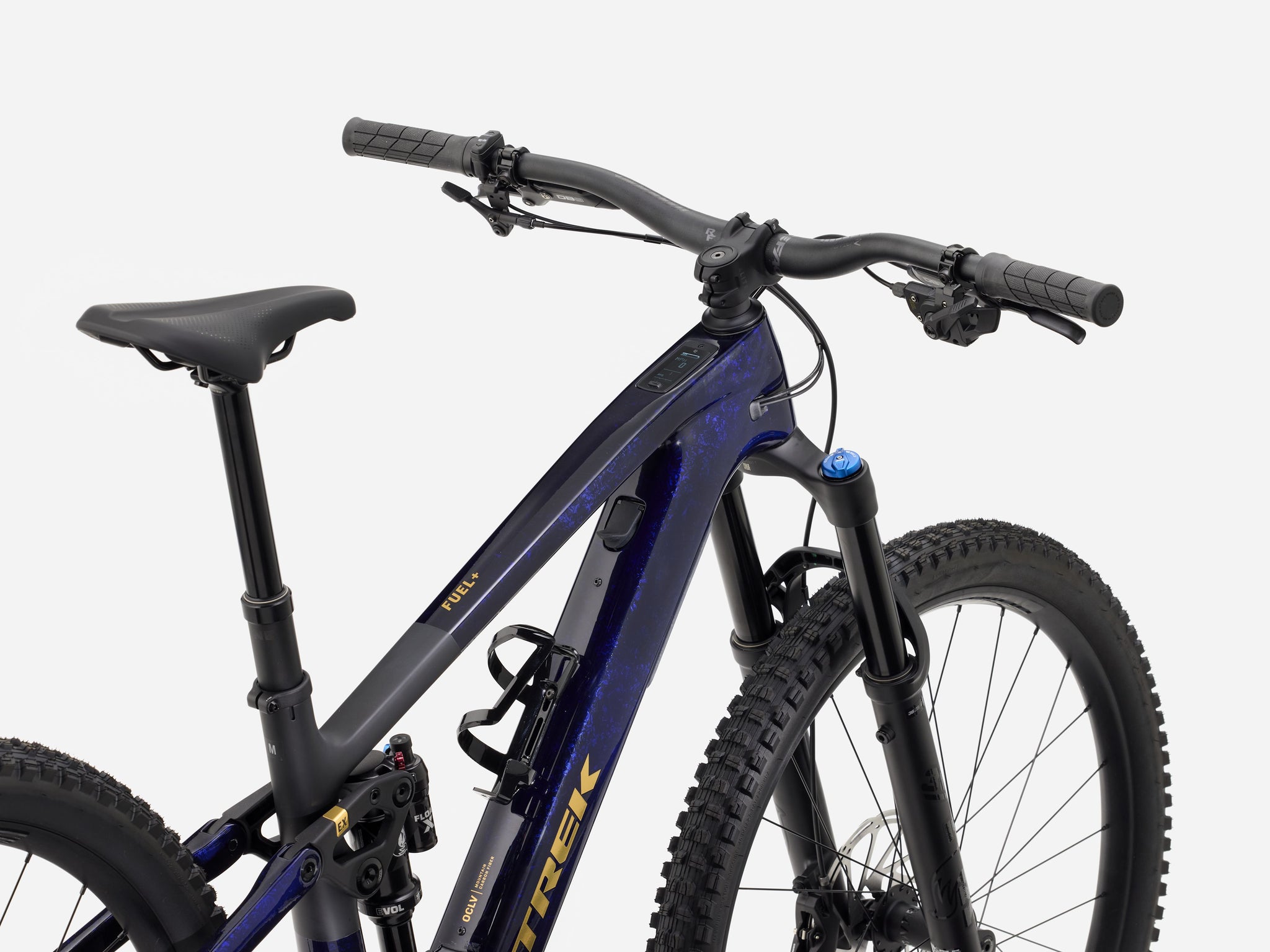

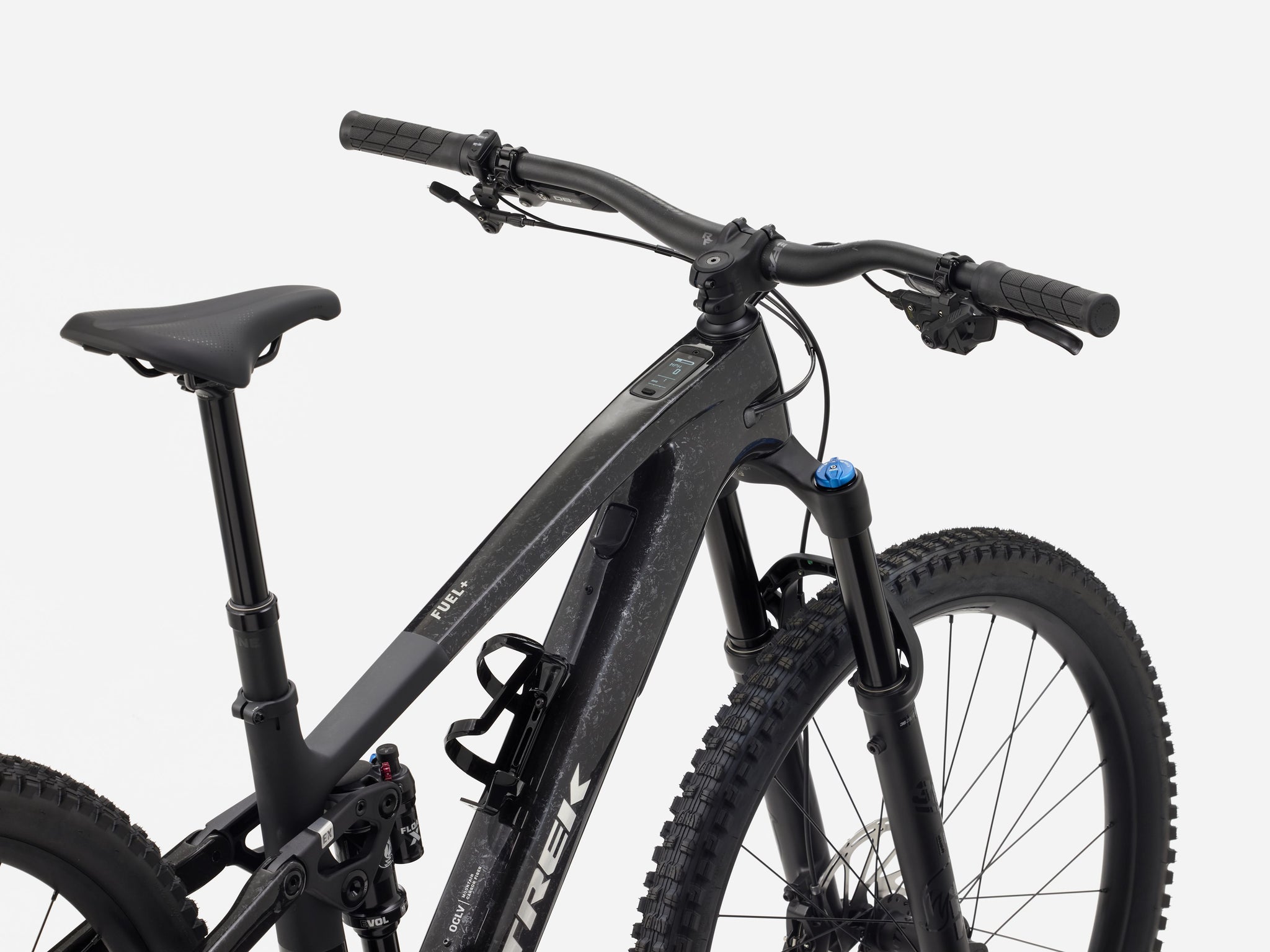

Handlebar	Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Grips	Trek Line Elite, lock-on
Battery	TQ 580Wh TQ 580Wh
Controller	TQ LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power
Size Chart Rider Height	Rider Height - 177.0 - 188.0
Size Chart Rider Inseam	Inseam - 84.0 - 89.0
