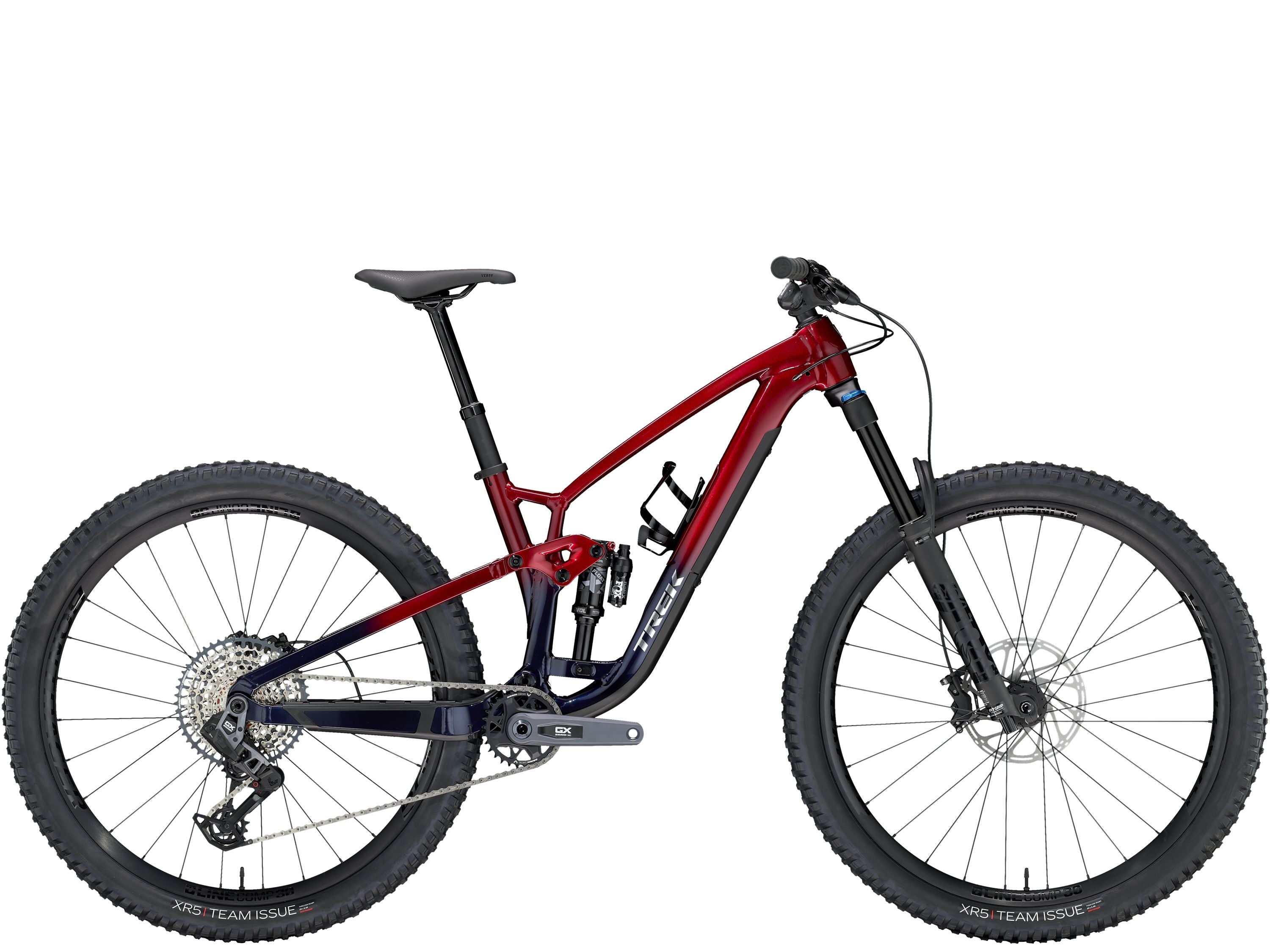

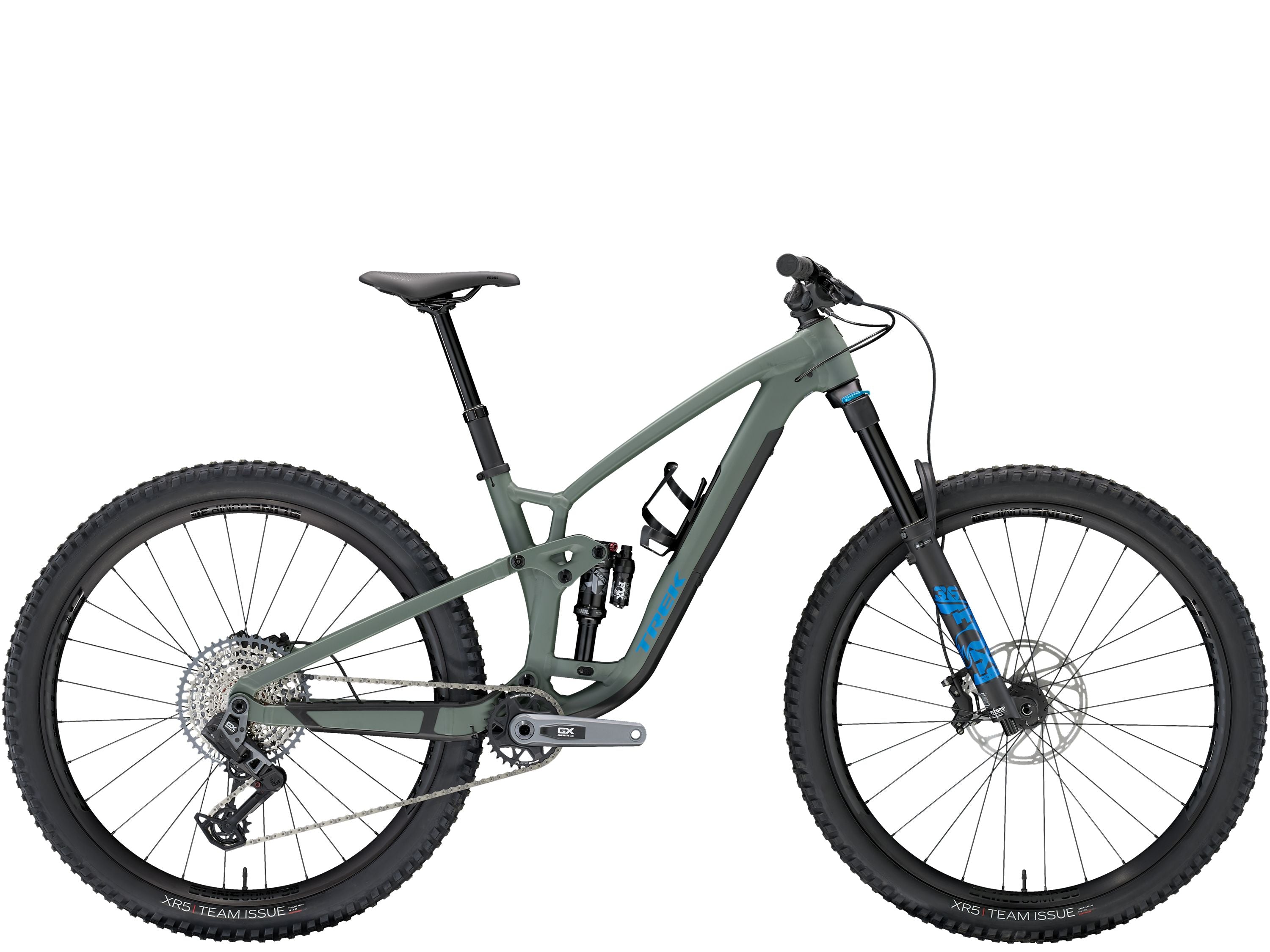

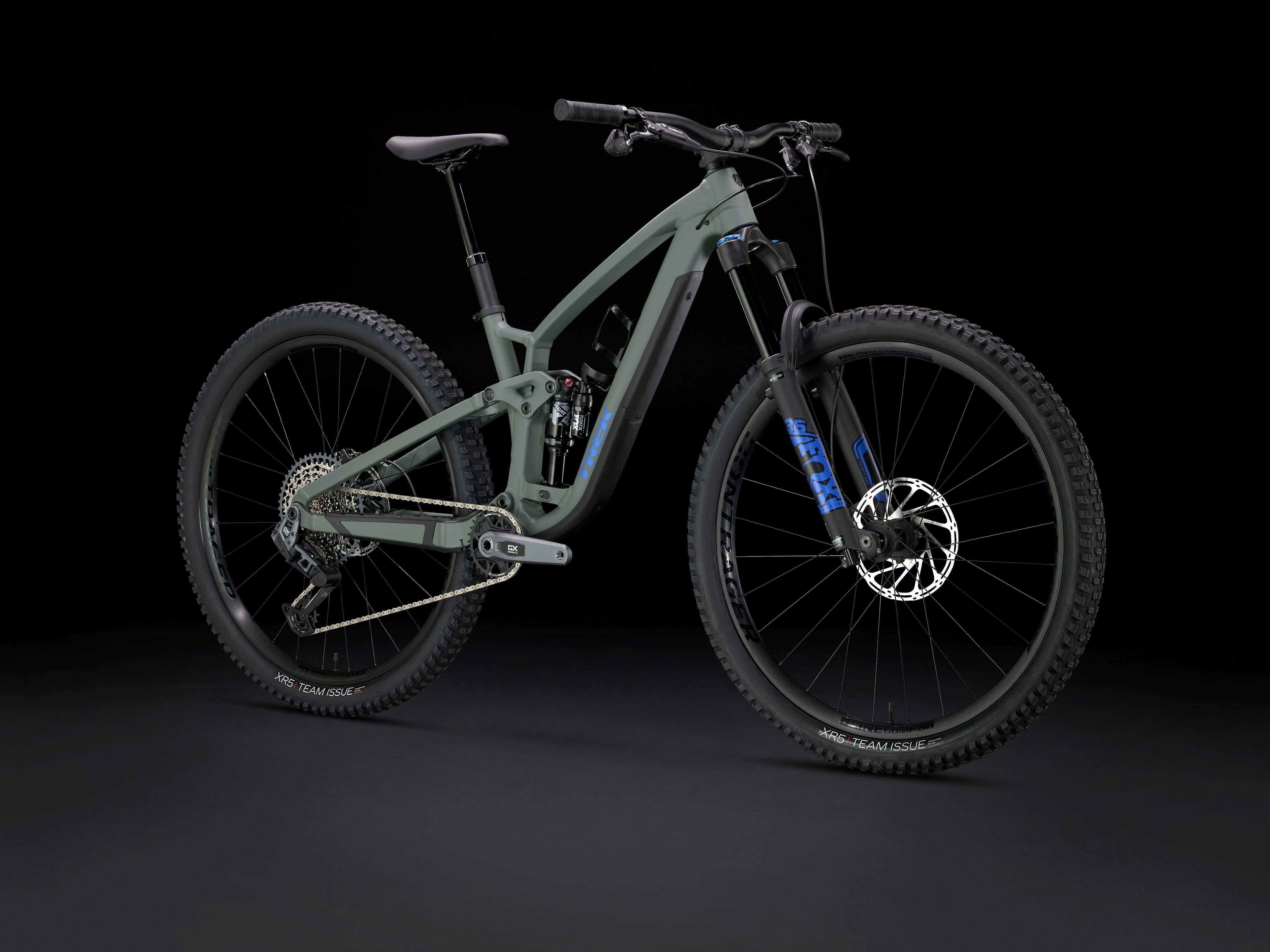

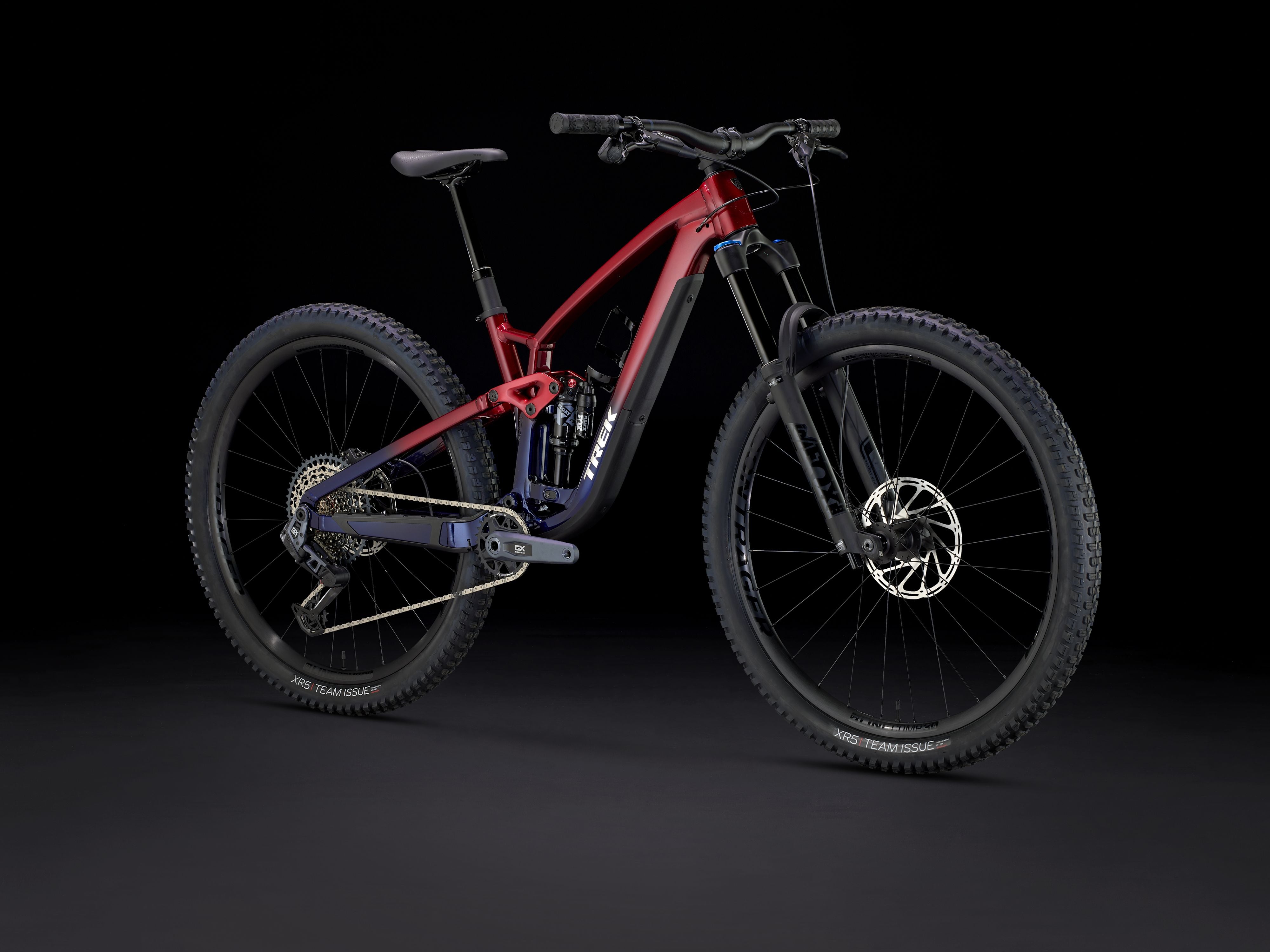

Fuel EX 8 GX AXS T-Type Gen 6
The Fuel EX 8 GX AXS is an evolved trail bike, dialled for riders who chase down rowdy descents and want a bike that's happy to pedal back to the top and do it again. The lightweight alloy frame pairs with a upgraded electronic wireless 12-speed SRAM GX Eagle transmission, while a 150 mm FOX Rhythm fork cushions the blow from rocks and roots. In-frame storage and adjustable geometry give you all the perks that the come with the carbon model, but without the lofty price tag.
Technology

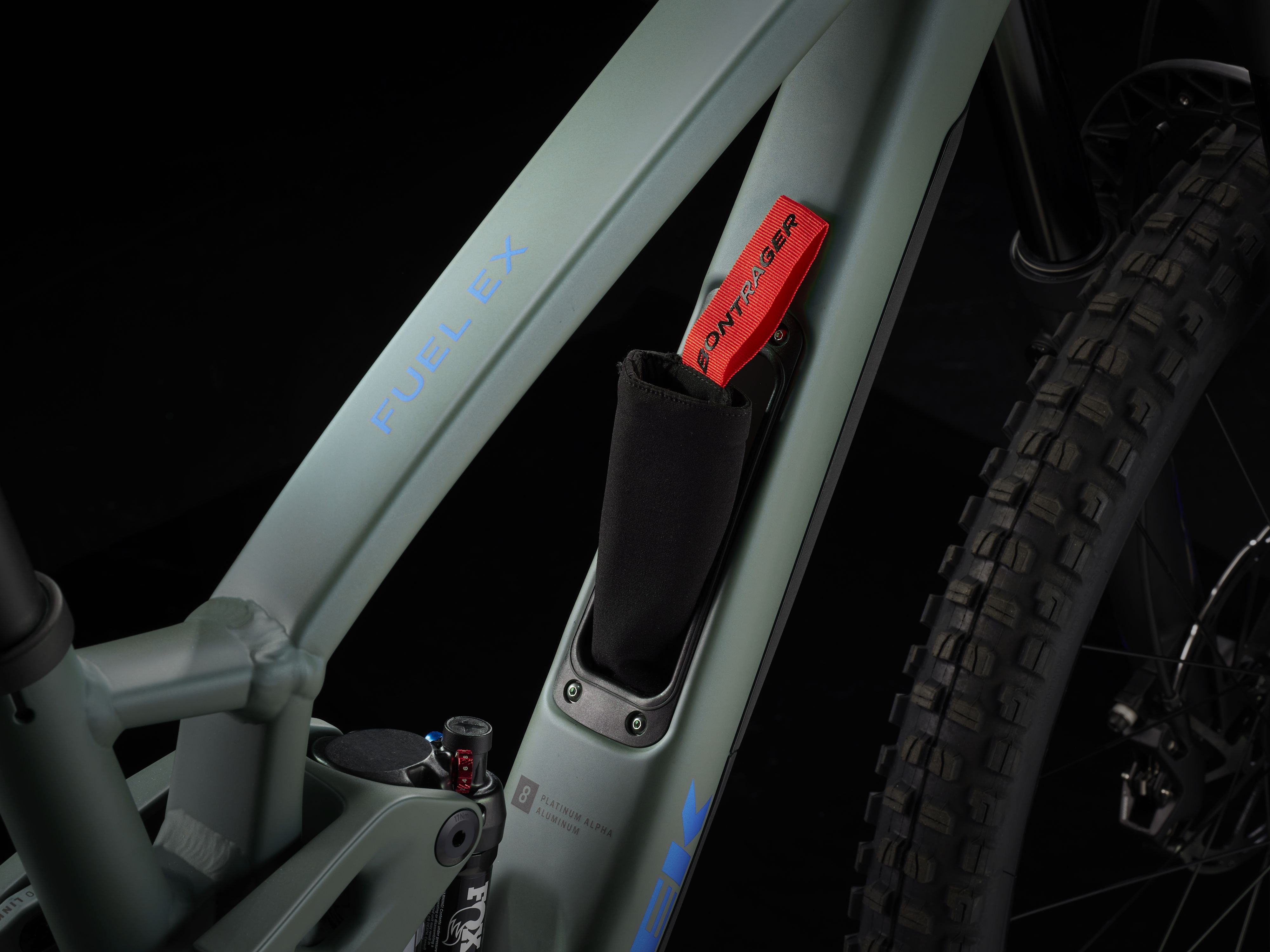

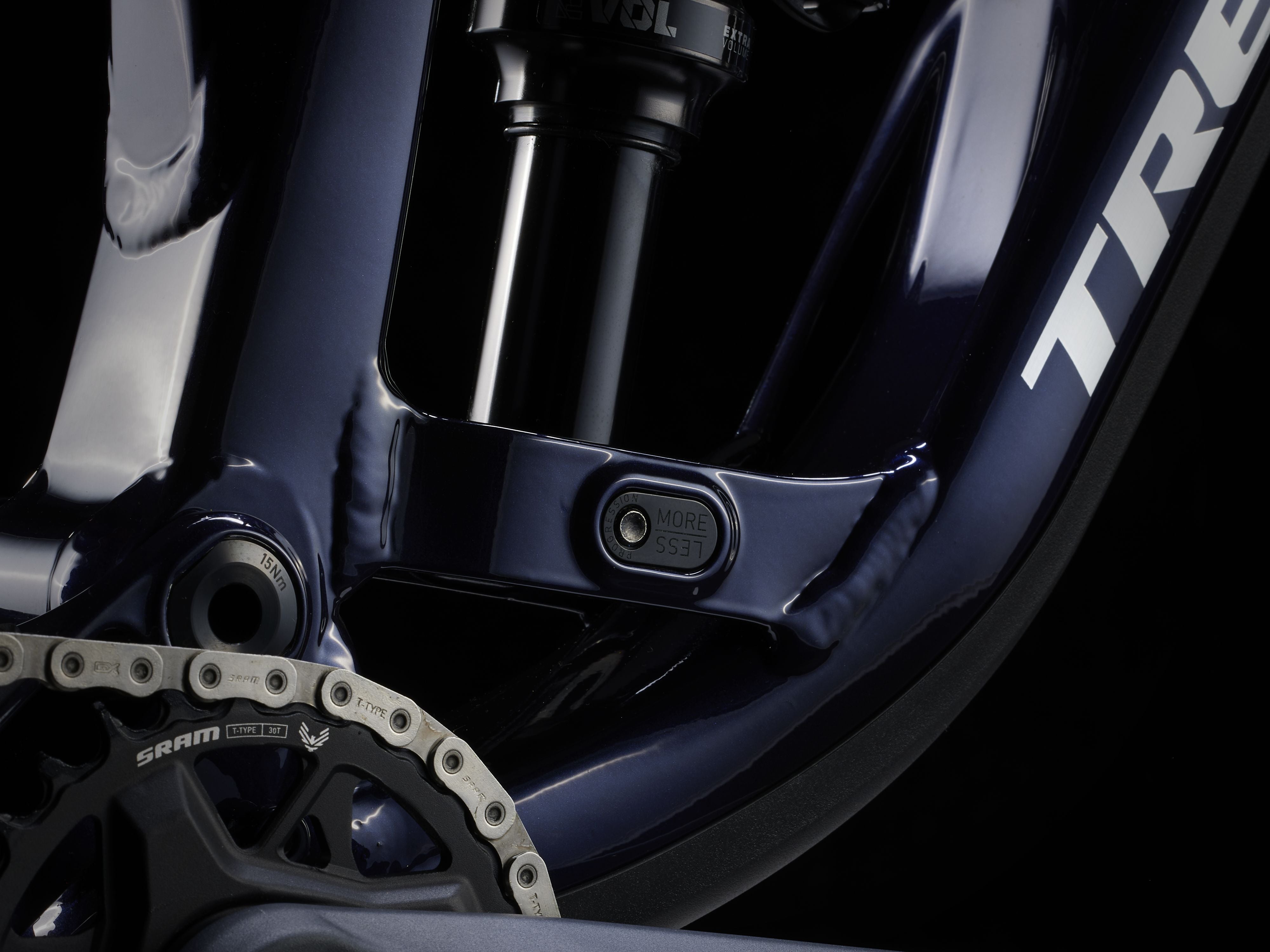

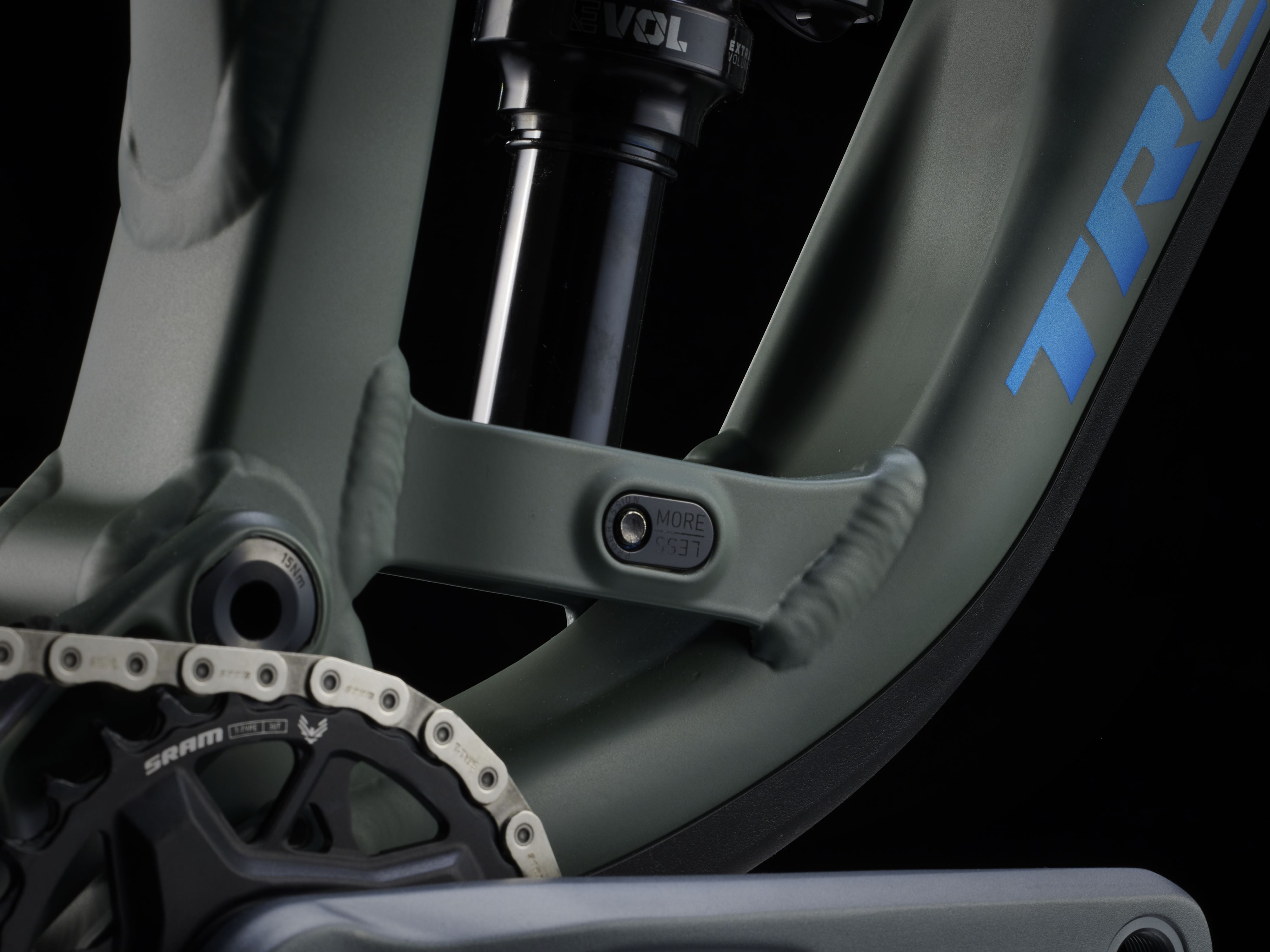

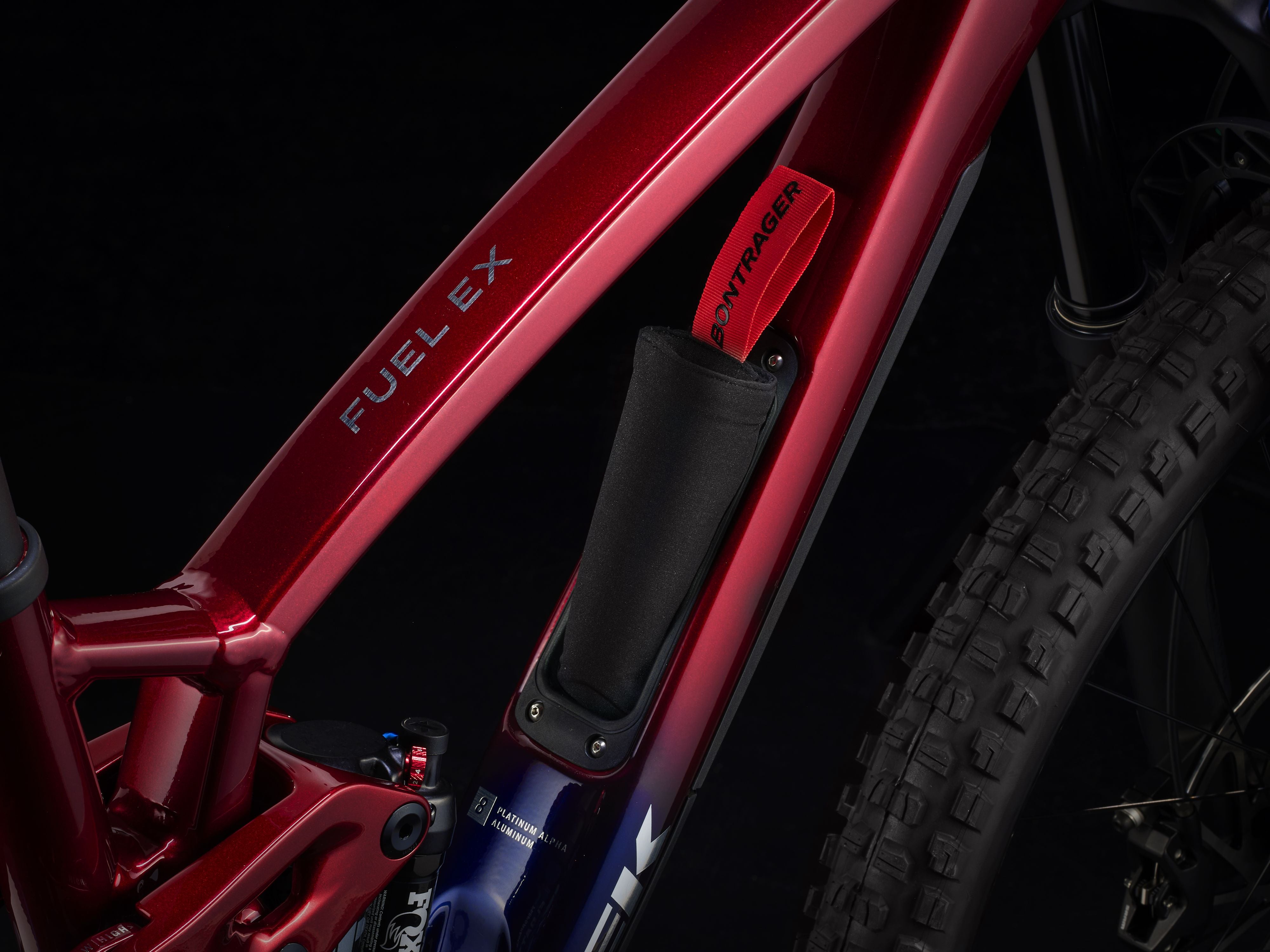

Internal Storage - Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
Specification

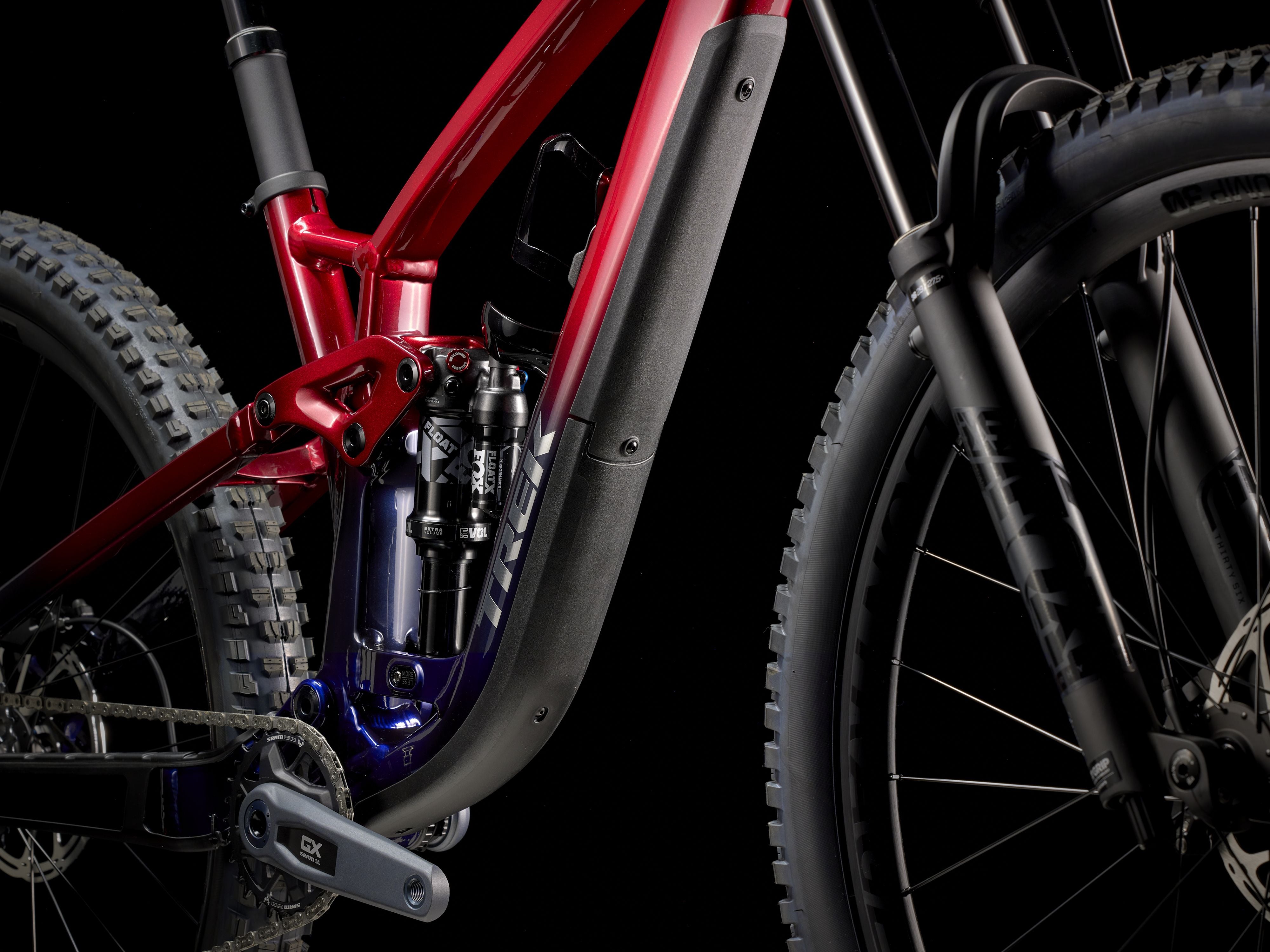

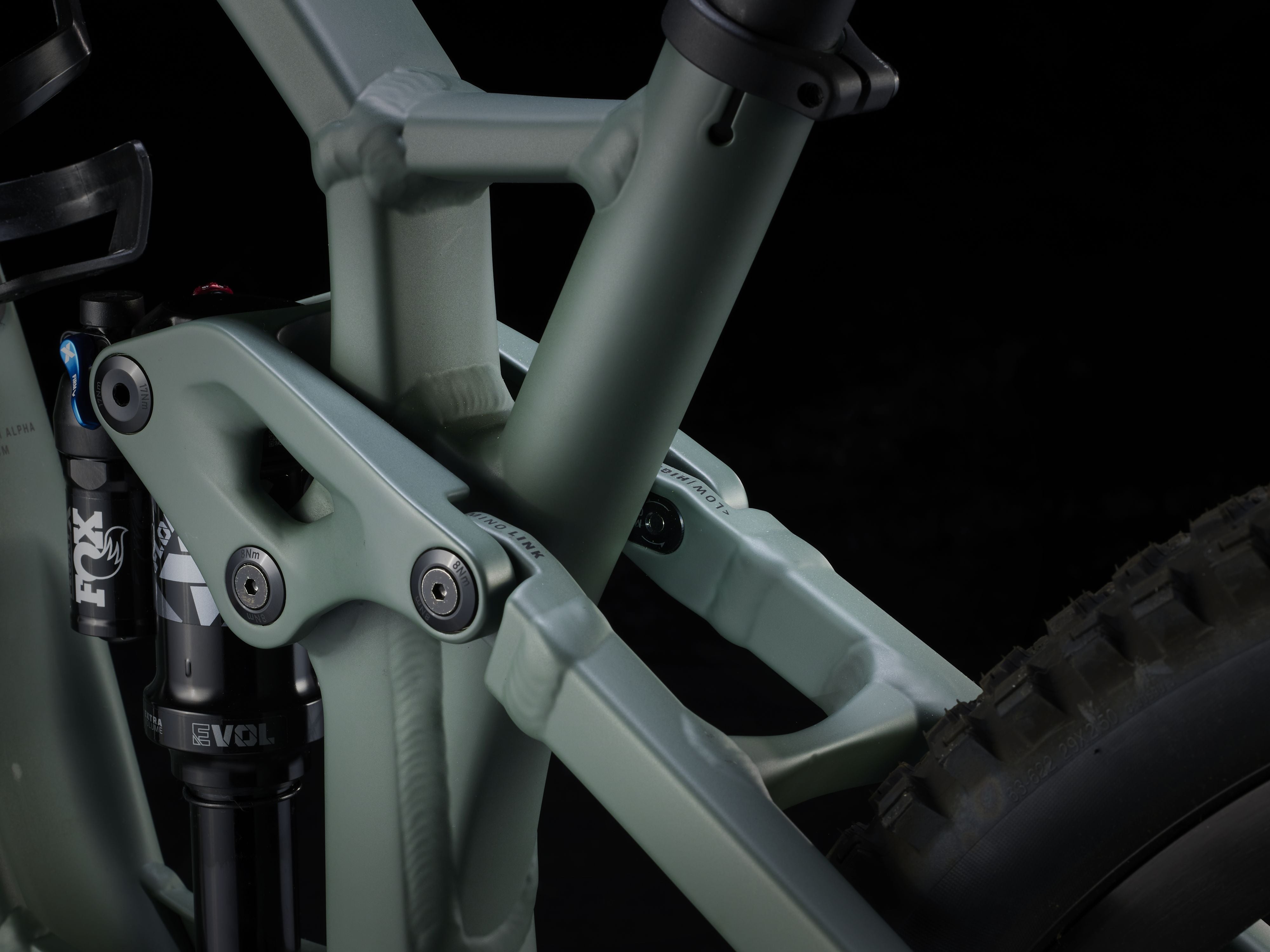

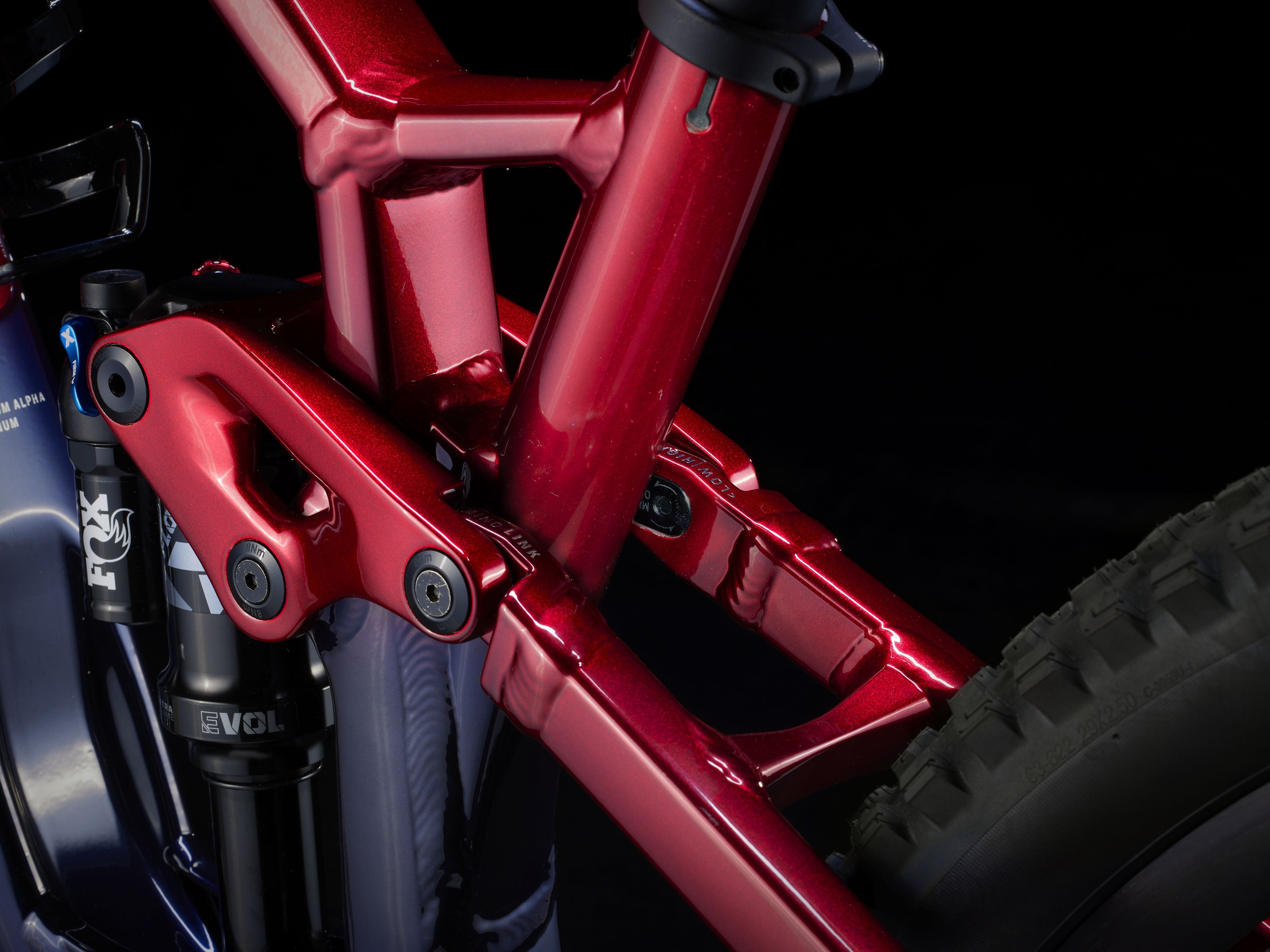

| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel Alp |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | Fox |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, |
| Rearsuspension | Fox |

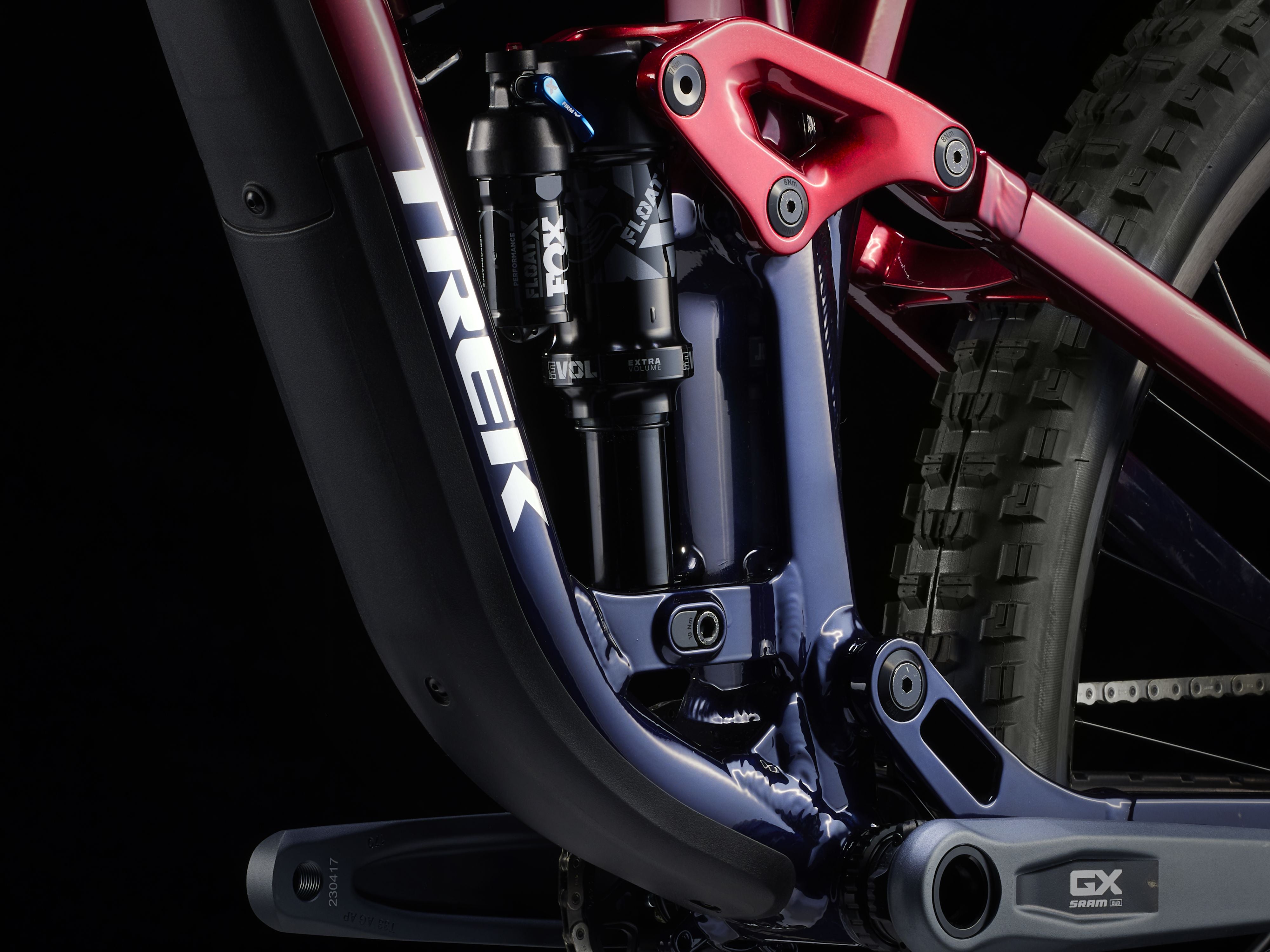

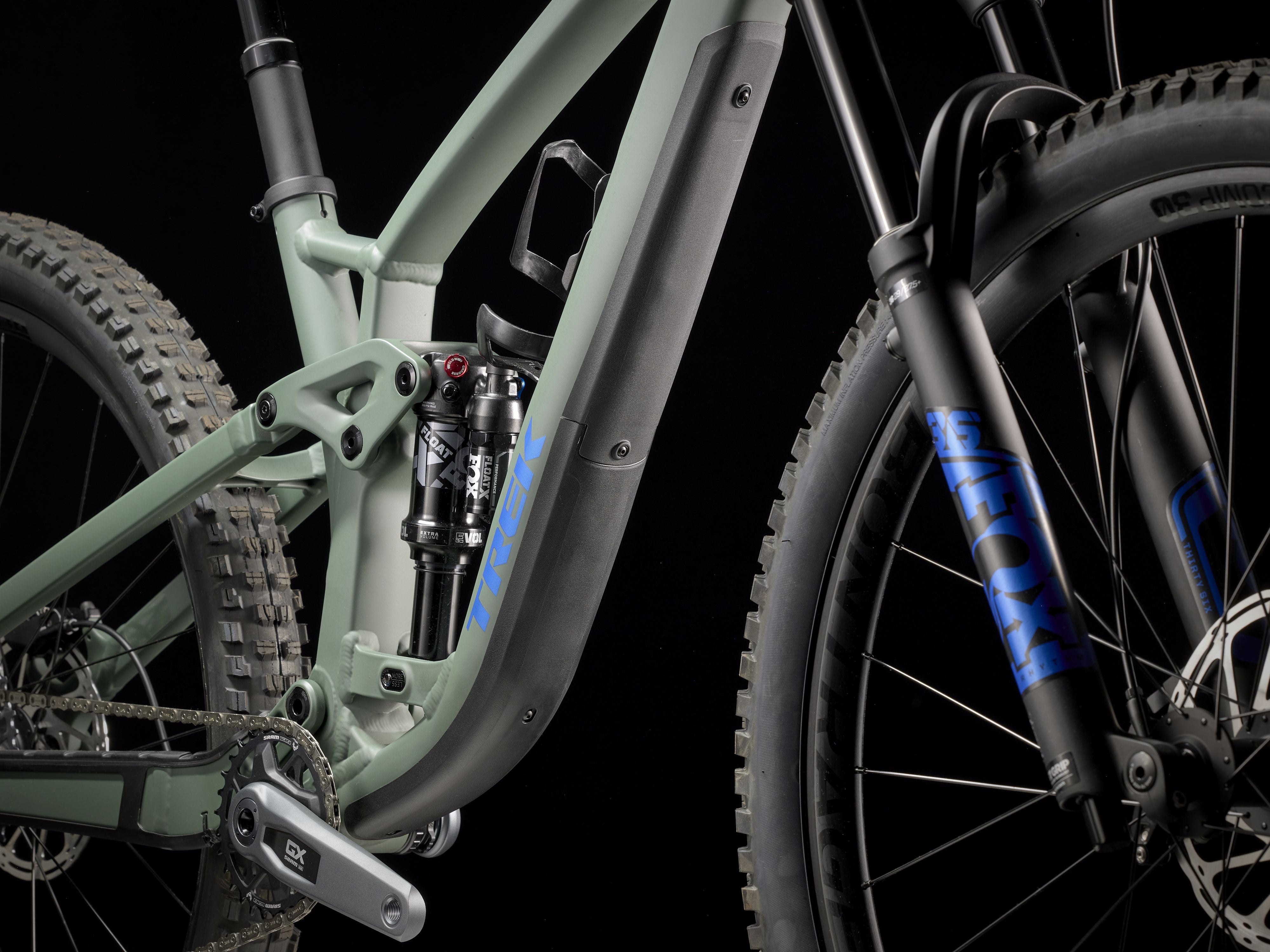

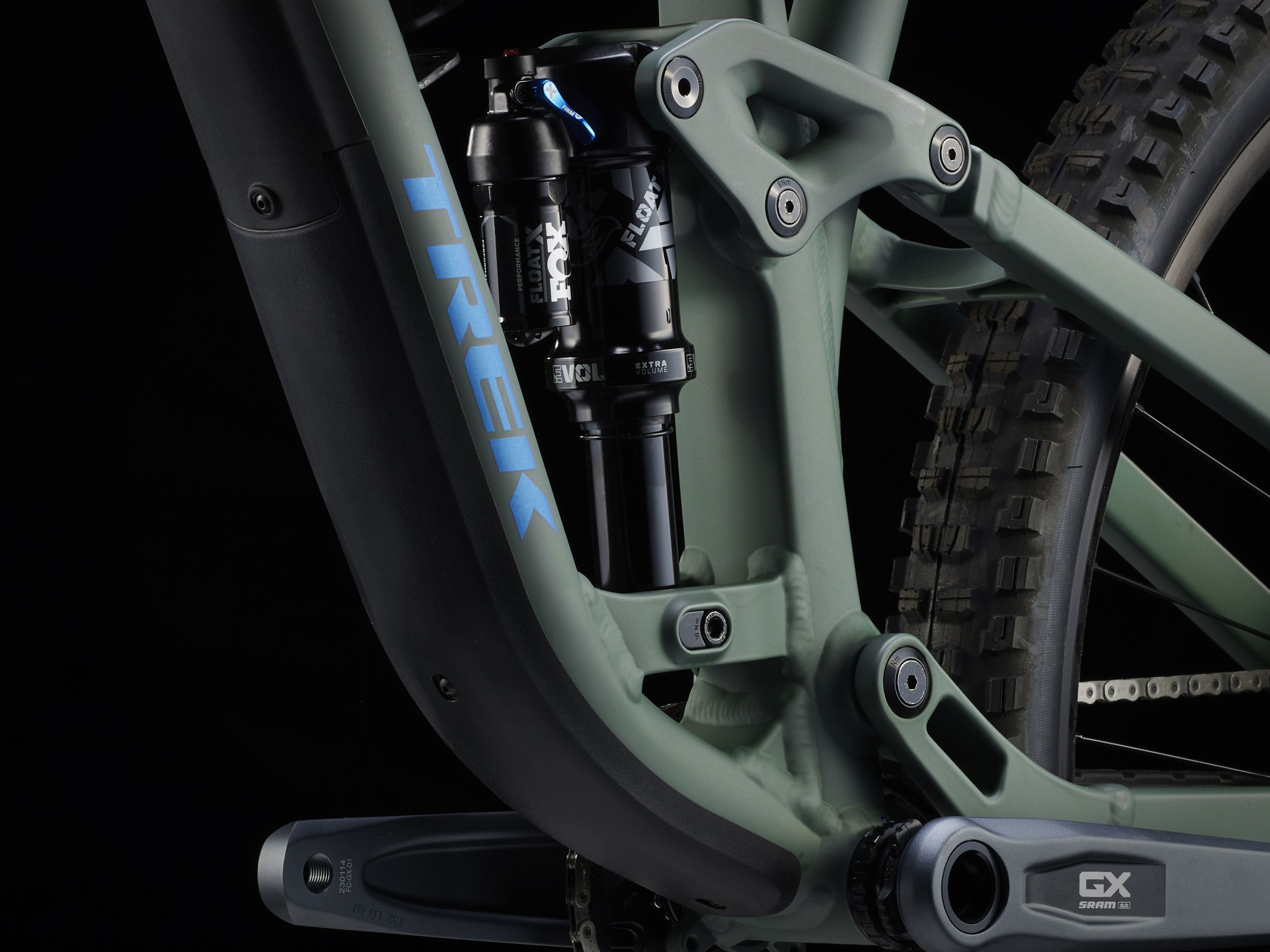

| Suspension Rear | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |

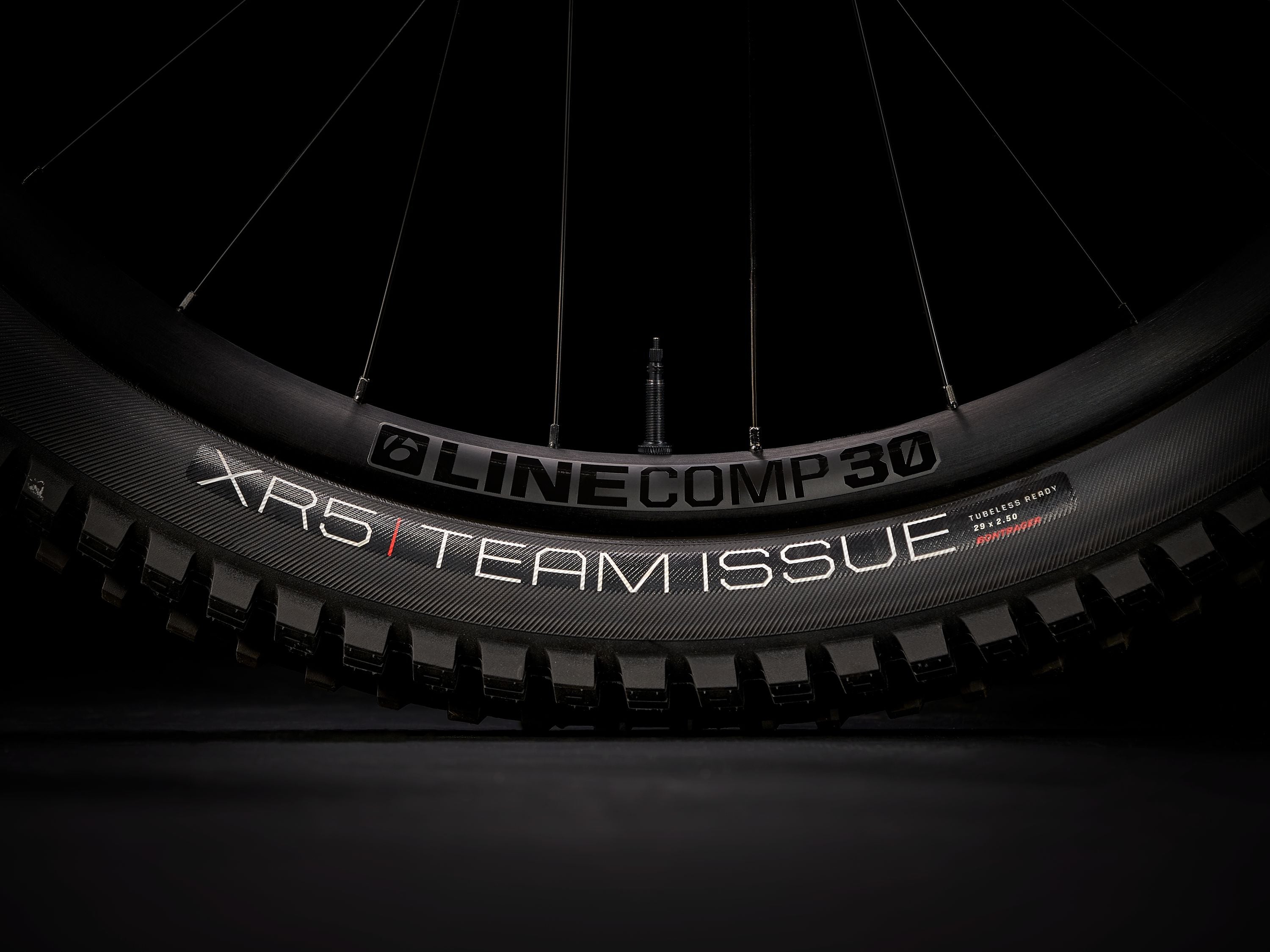

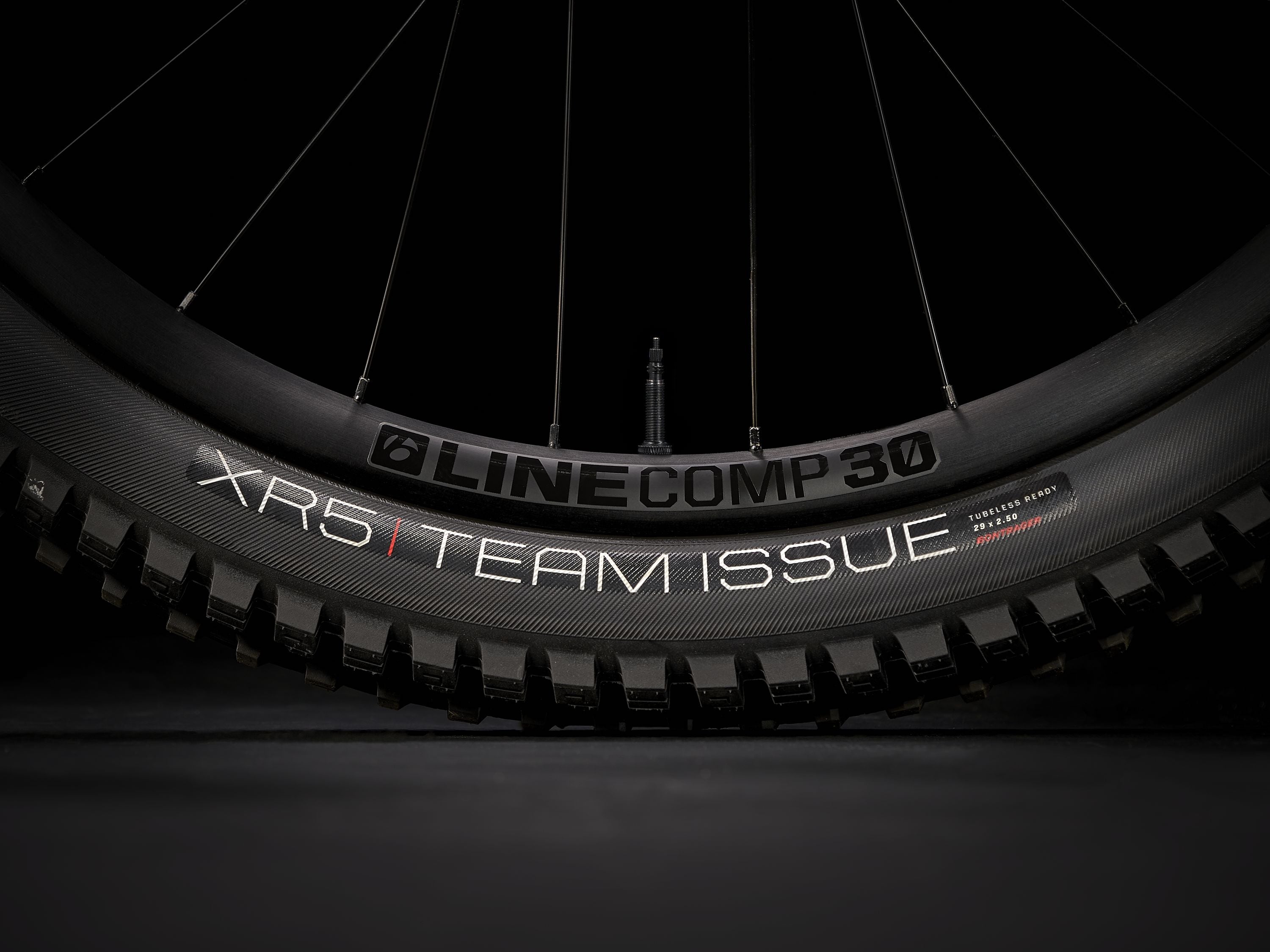

| Wheels | Bontrager Line Comp 30 |
| Tires | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Shifter | SRAM |

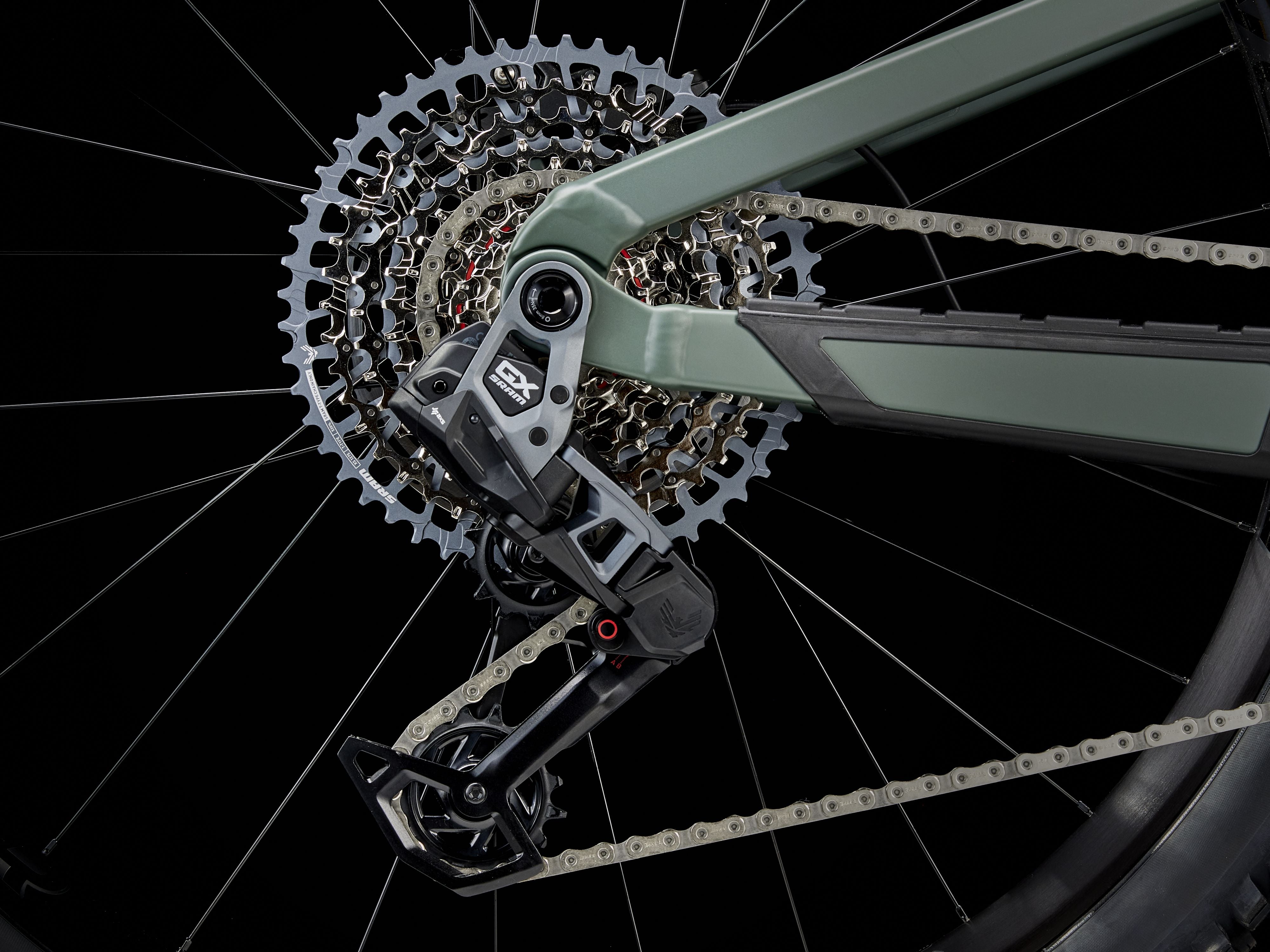

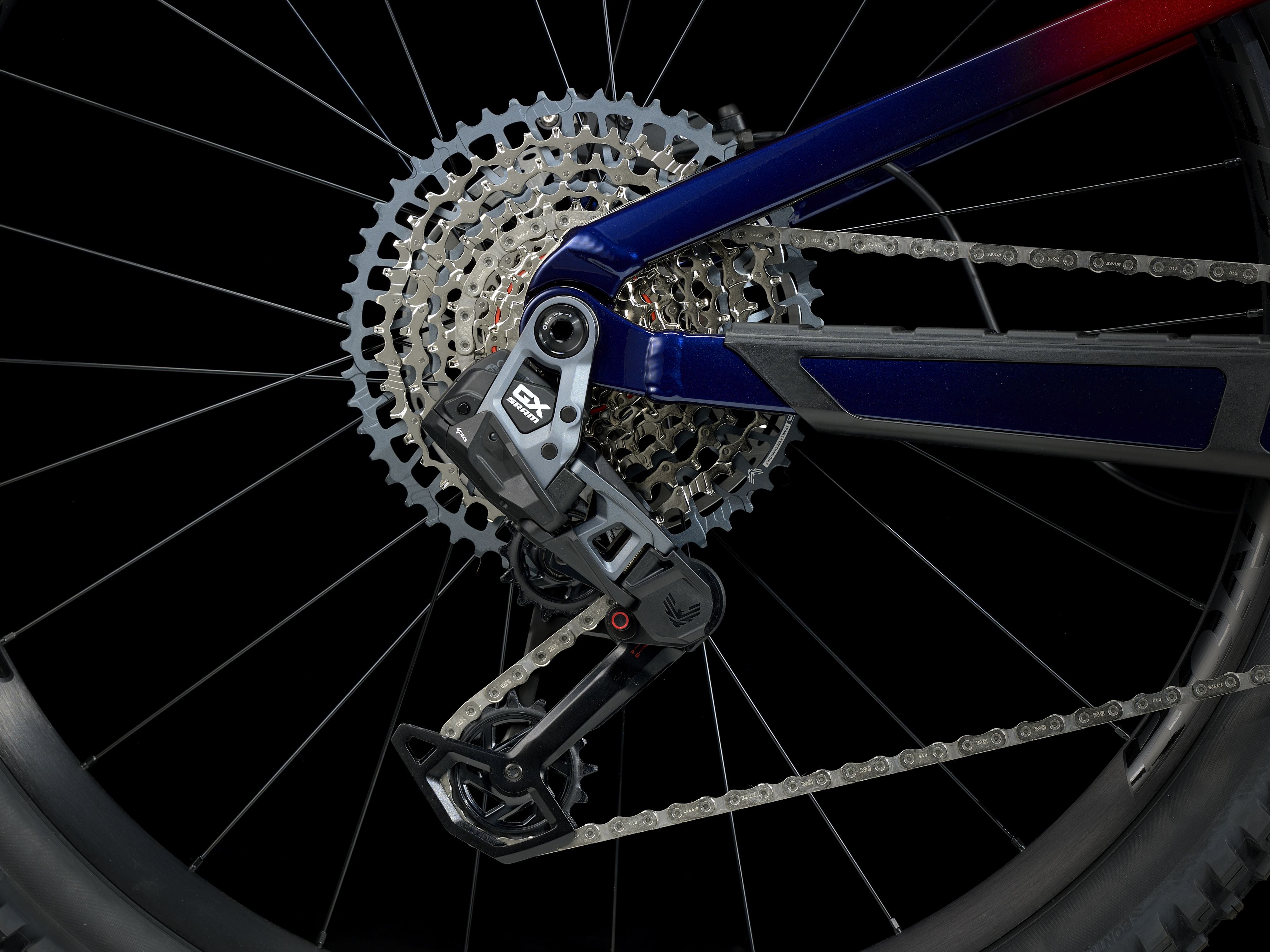

| Derailleur Rear | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Brake | SRAM |

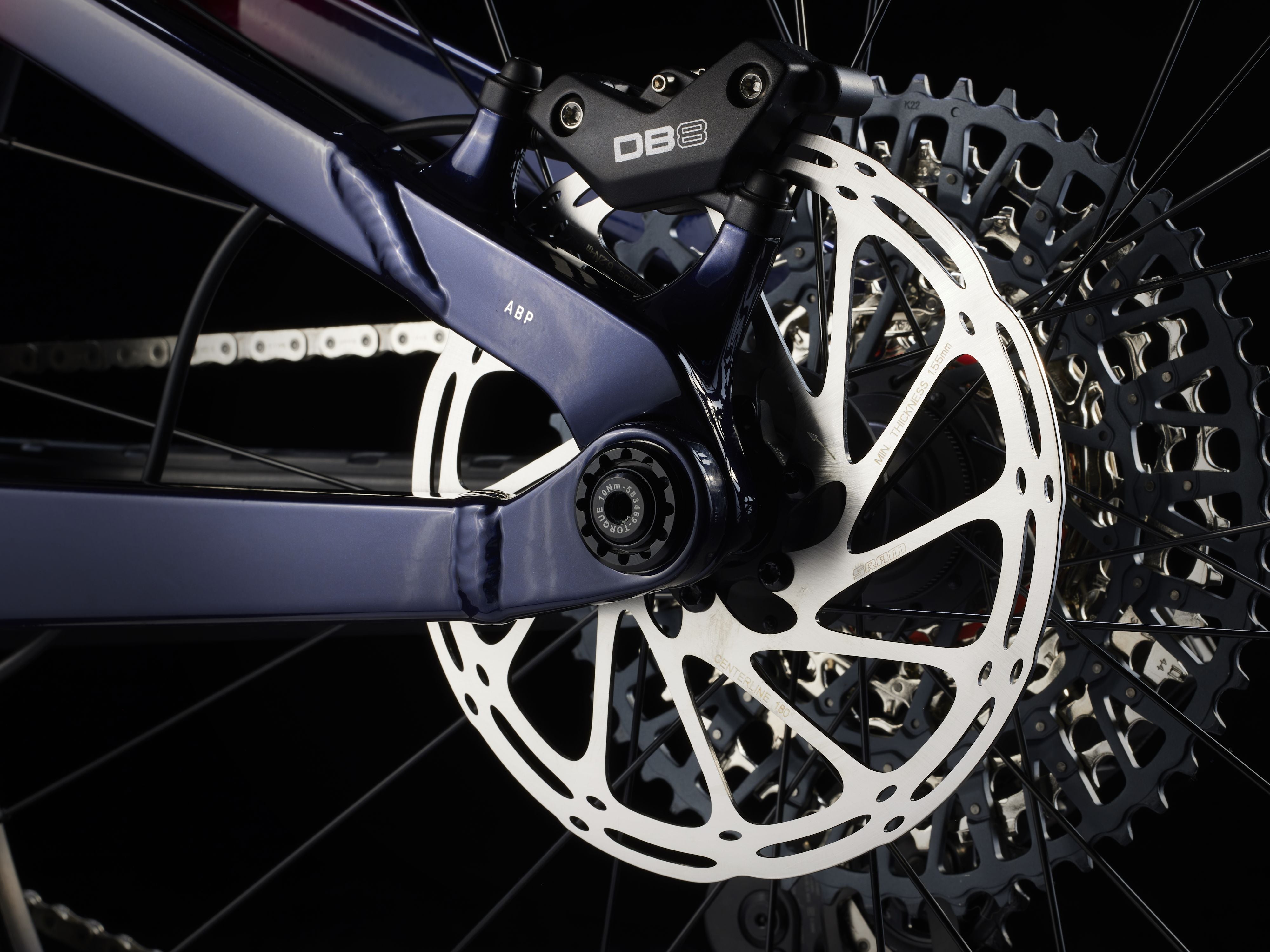

| Brakeset | SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc |

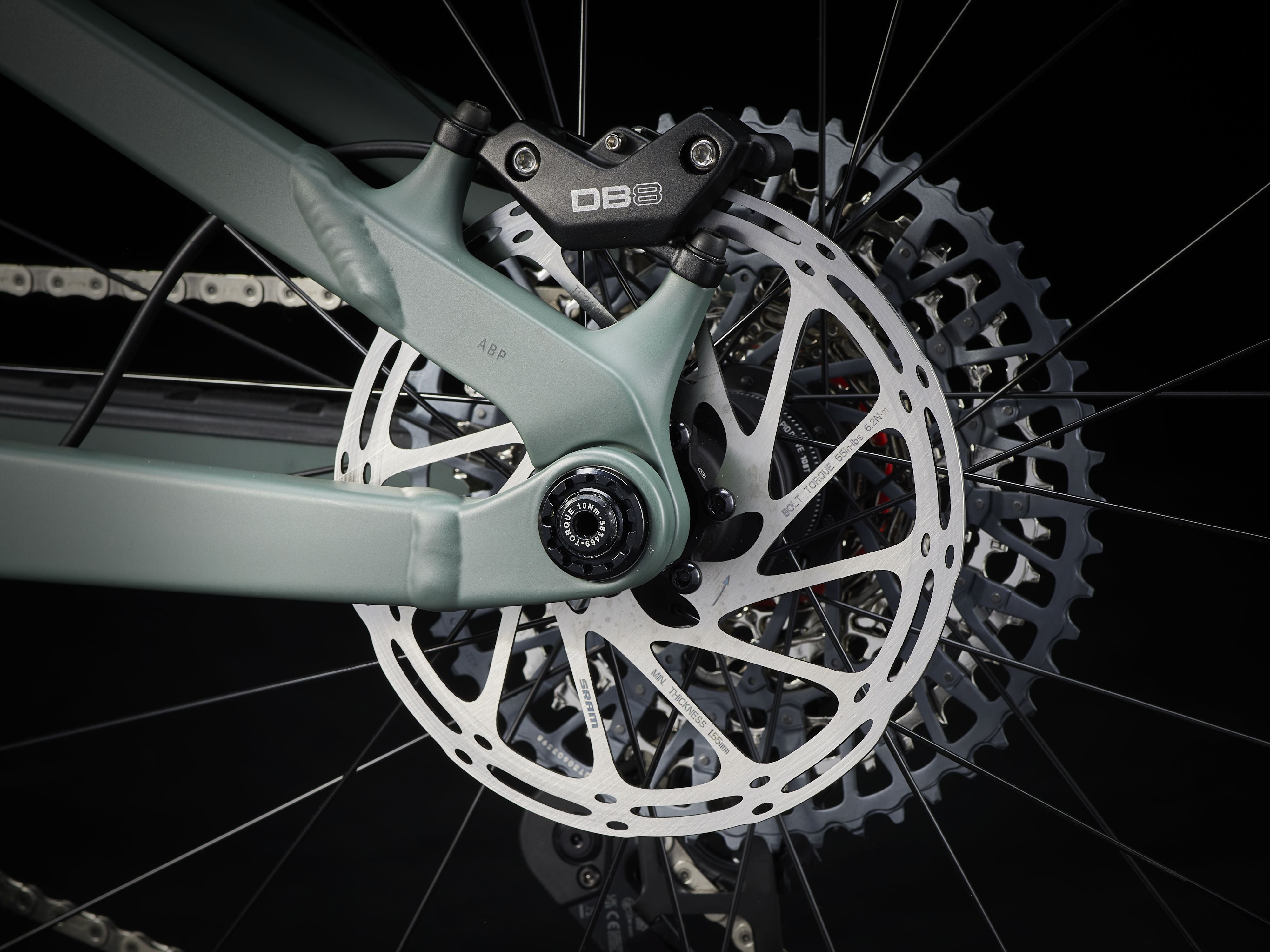

| Brake Rotor | SRAM CentreLine, 6-bolt, round-edge, 180 mm // SRAM CentreLine, 6-bolt, round-edge, 200 mm |
| Saddle | Bontrager Verse P3, chromoly rails // Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm |
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Battery | SRAM AXS battery pack (with charger) SRAM AXS battery pack (with charger) |
| Size Chart Rider Height | Rider Height - 188.0 - 195.0 |
| Size Chart Rider Inseam | Inseam - 89.0 - 91.0 |
