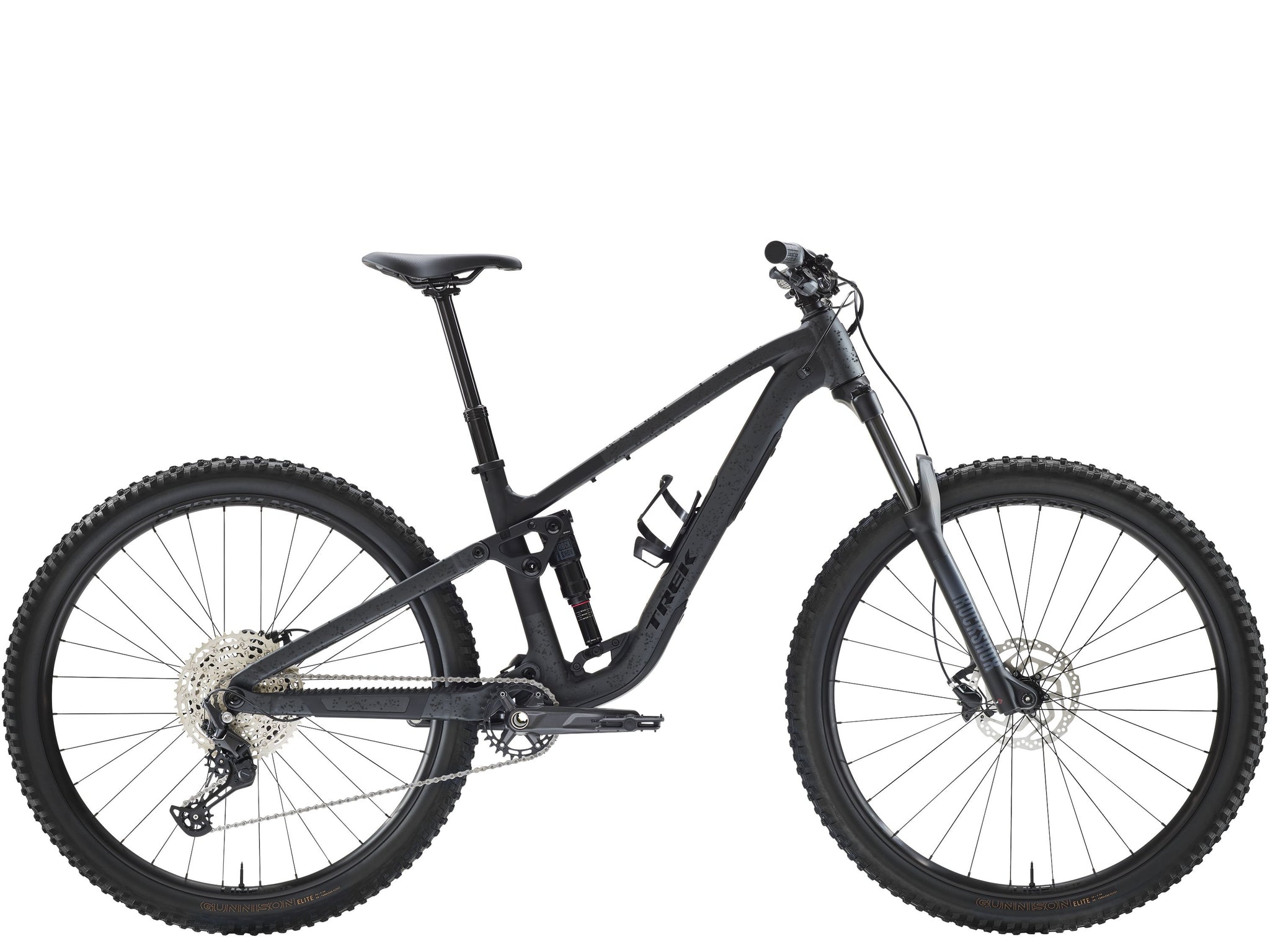

Fuel EX 5
The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and RockShox Deluxe Select suspension, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT P |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 29 |
| Fork | RockShox |
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tap |
| Rearsuspension | RockShox |
| Suspension Rear | RockShox Deluxe Select, 205mm x 60mm |
| Tires | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Hub Front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Hub Rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Shifter | Shimano |
| Derailleur Rear | Shimano Deore M6200, long cage |
| Crank | Shimano MT520 Deore, 30T ring, 55mm chainline, 165mm length // Shimano XT M8120, 30T, 55 mm chain line, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano M6200, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Brake | Shimano |
| Brakeset | Shimano hydraulic disc, MT201 lever, MT200 calliper Shimano hydraulic disc, MT201 lever, MT200 caliper |
| Brake Rotor | Shimano RT10, CenterLock, 180 mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Grips | Trek Line Comp, nylon lock-on |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
