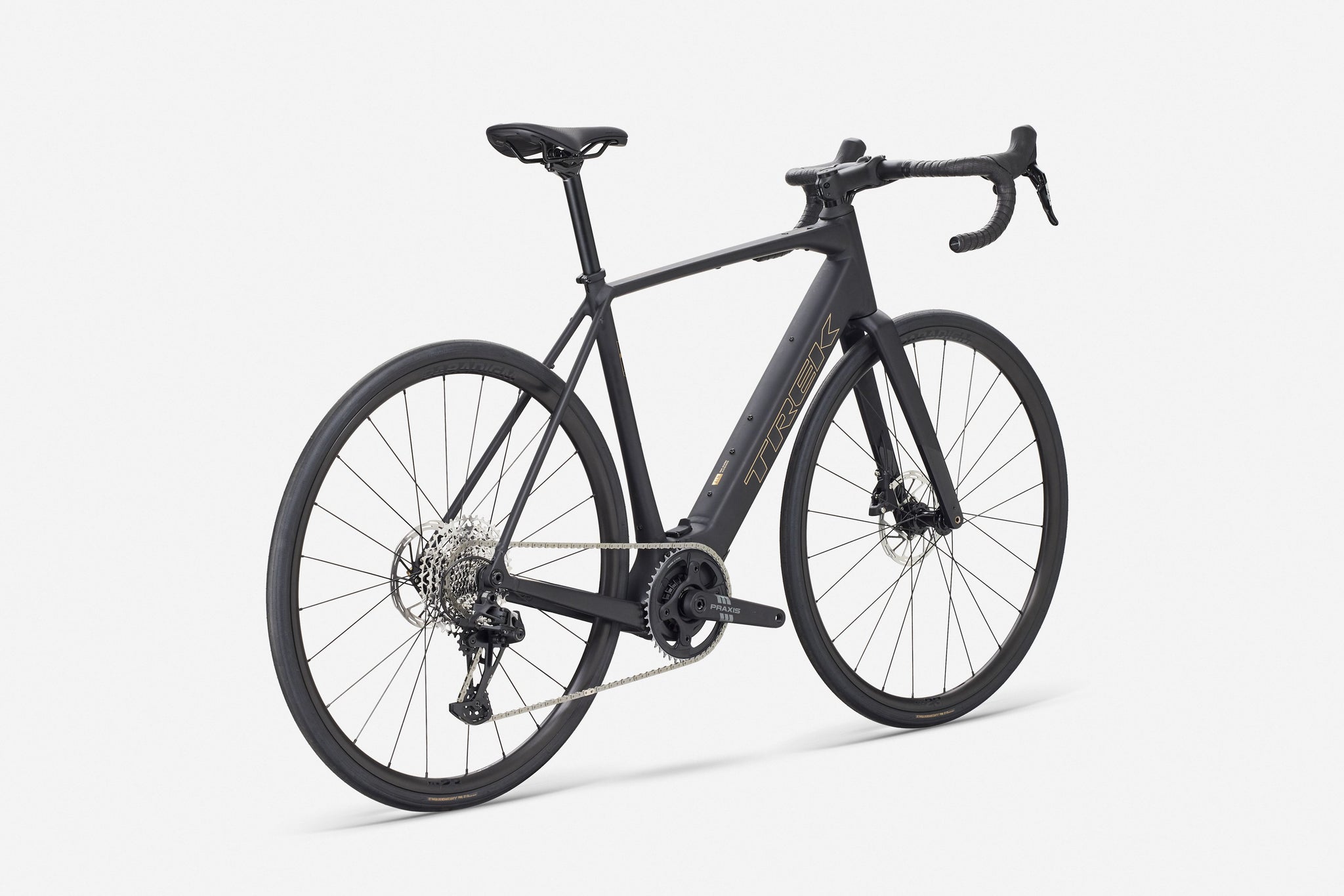

Domane+ ALR 5
The Domane+ ALR 5 is an aluminium electric road bike with a smooth, quiet and natural-feeling boost. Its TQ HPR60 motor gives you plenty of support for long rides and big climbs, and pairs with a SRAM Apex 12-speed drivetrain for clean, consistent shifts.
Technology
A light and mighty e-system - The industry-leading TQ HPR60 motor is ultra-compact, whisper-quiet and offers a natural-feeling assist up to 28 mph (25 km/h in Europe) with three assist mode options.
Specification
| Frame | 300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |
| Fork | Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle |
| Tires | Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32 mm |
| Hub Front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Shifter | SRAM |
| Shifters | SRAM Apex, 12 speed |

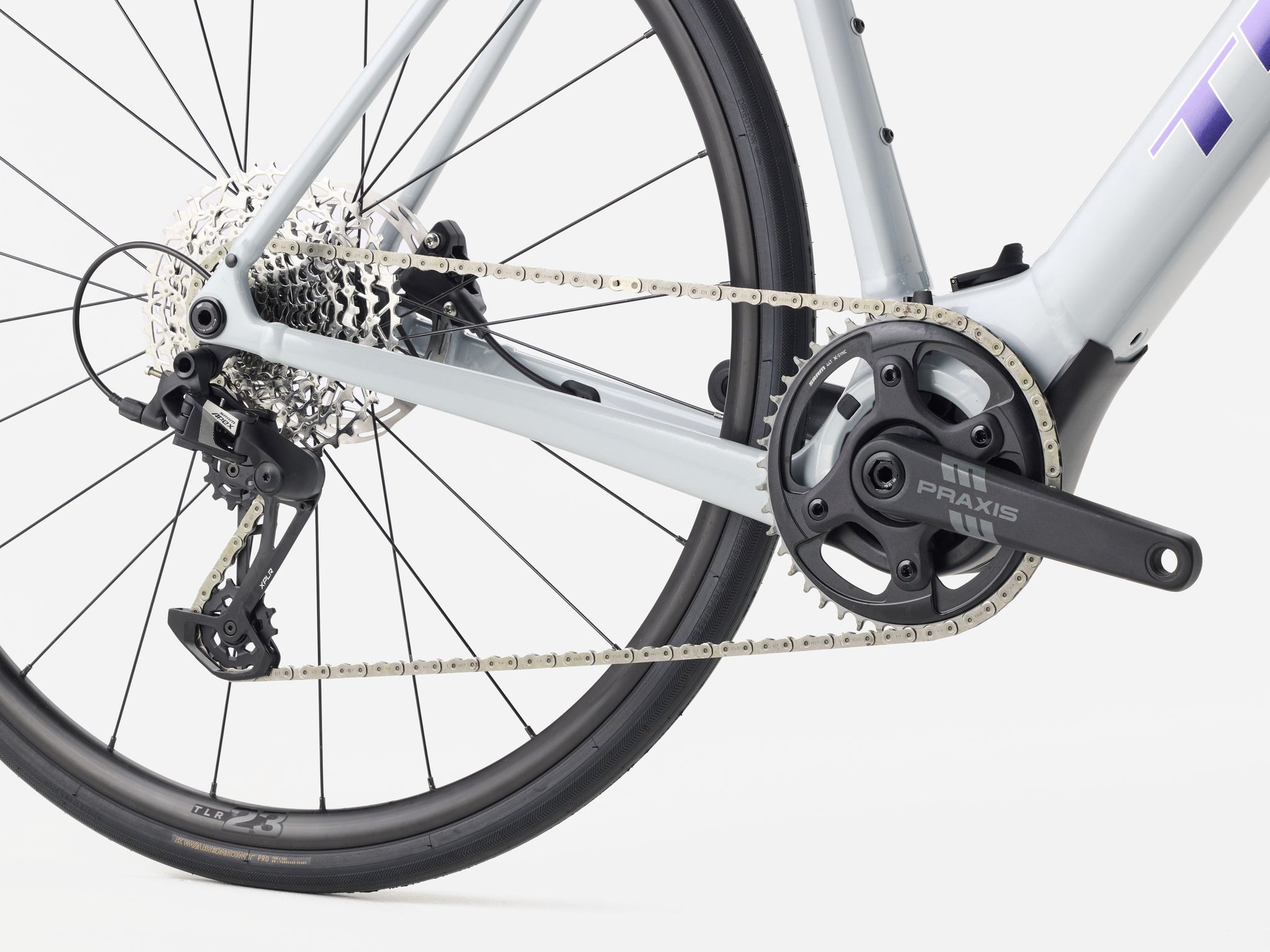

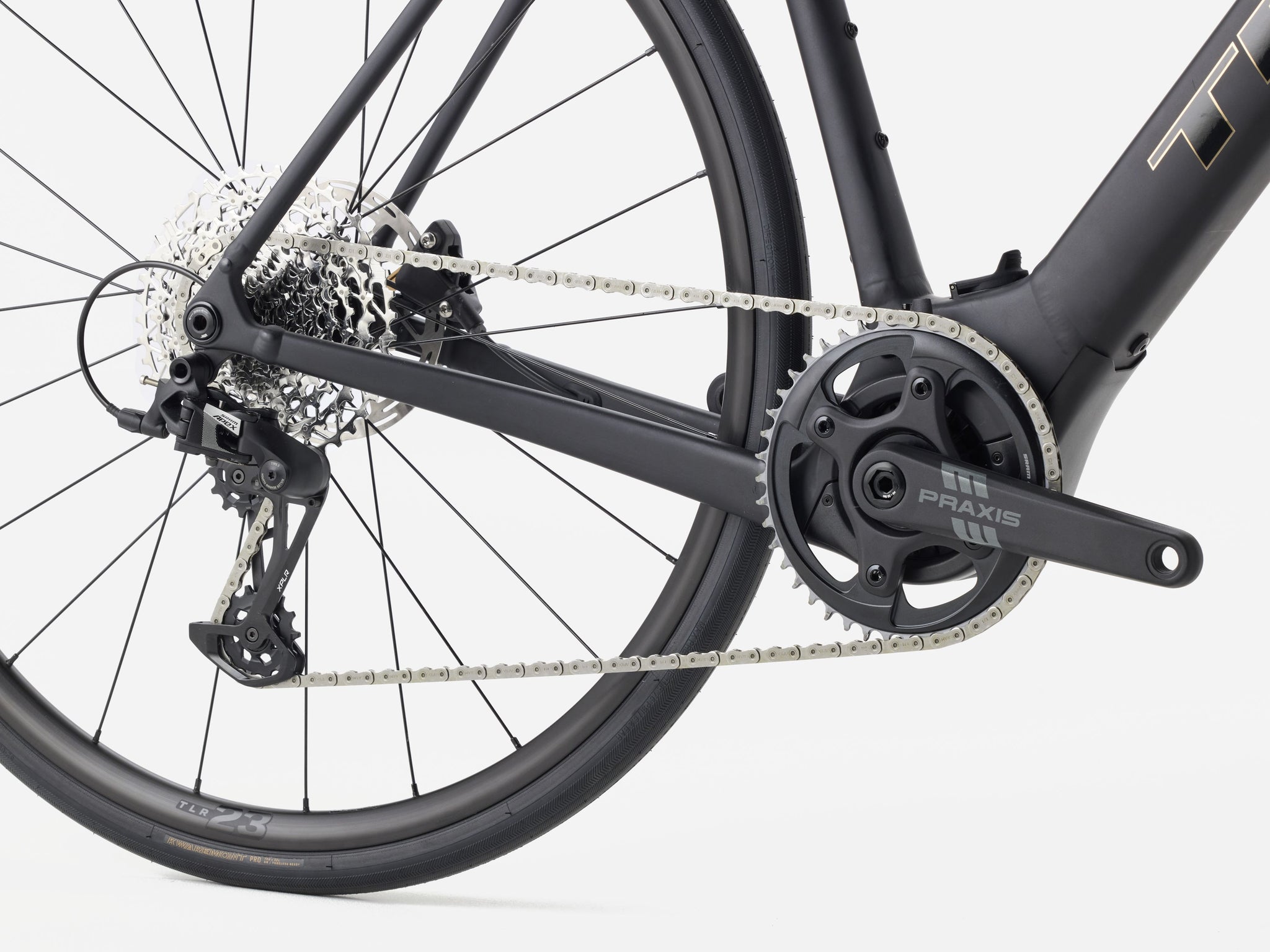

| Derailleur Rear | SRAM Apex XPLR, 44T max cog |
| Crank | Praxis Alloy, 172.5 mm length |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Apex D1 hydraulic disc, flat mount // SRAM Apex D1 hydraulic disc, flat mount SRAM Apex D1 hydraulic disc, flat mount // SRAM Apex D1 hydraulic disc, flat mount |
| Brake Rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

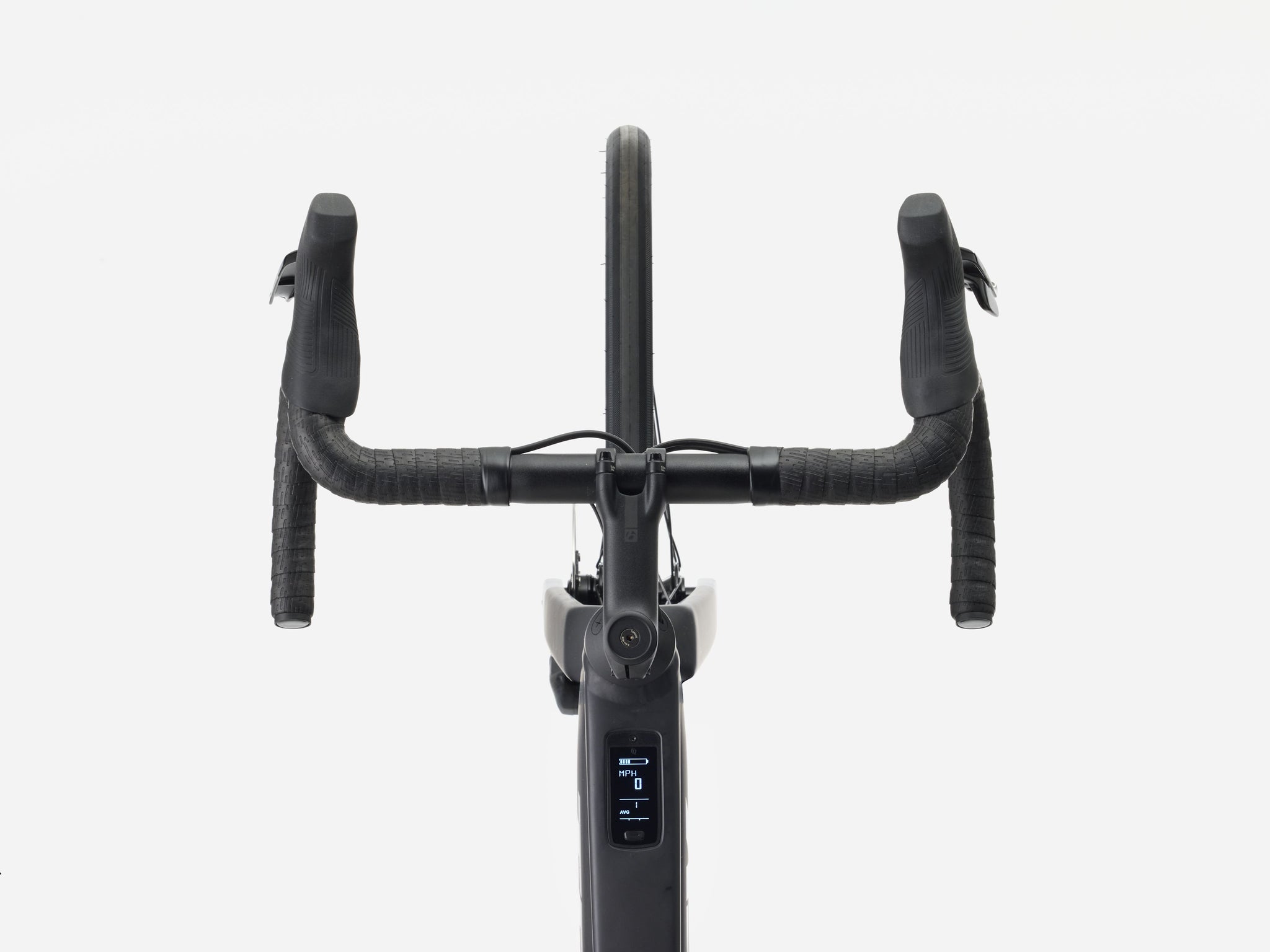

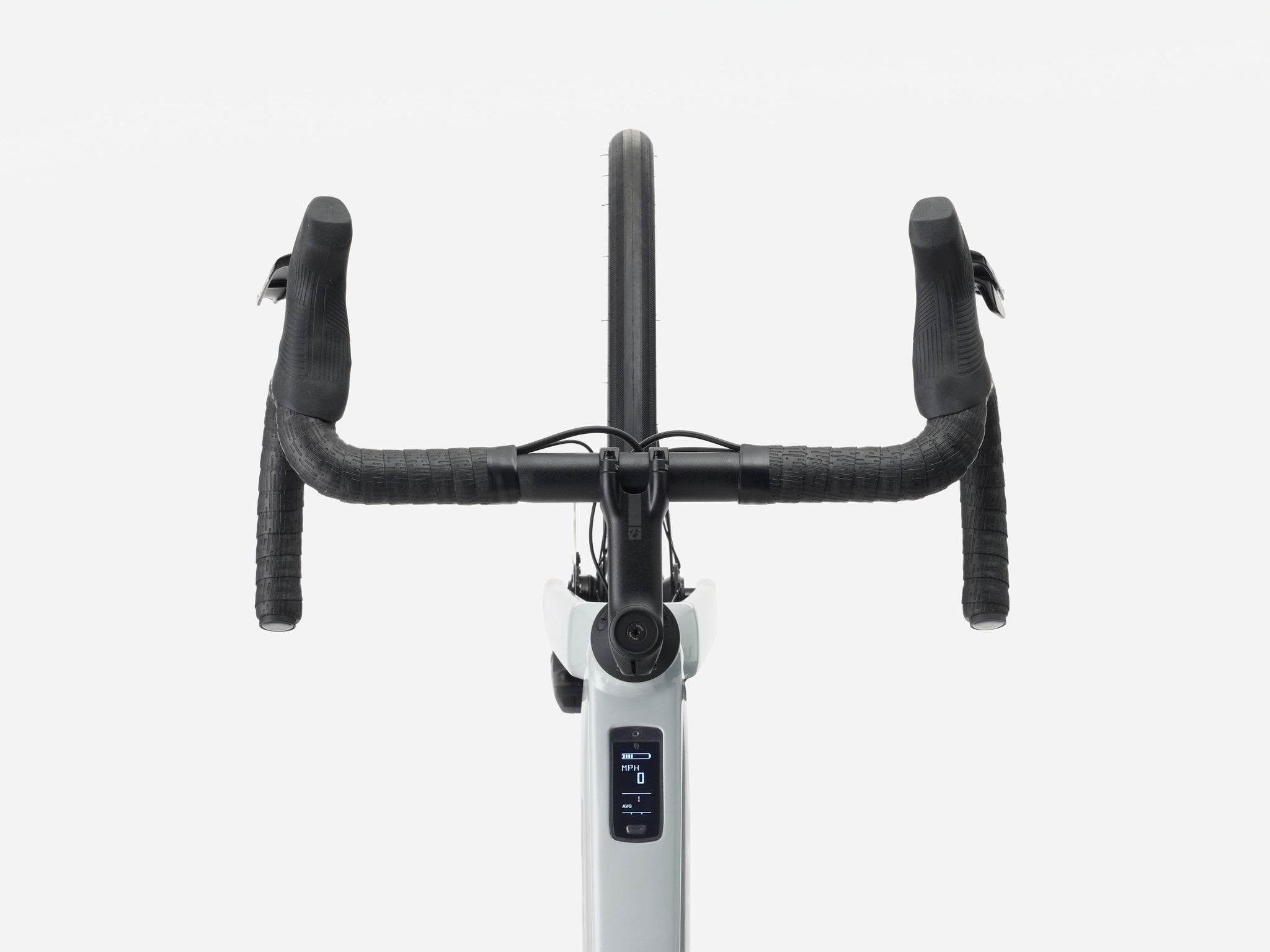

| Handlebar | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
| Battery | TQ 360Wh |
| Controller | TQ LED display with Bluetooth & ANT+ connectivity |

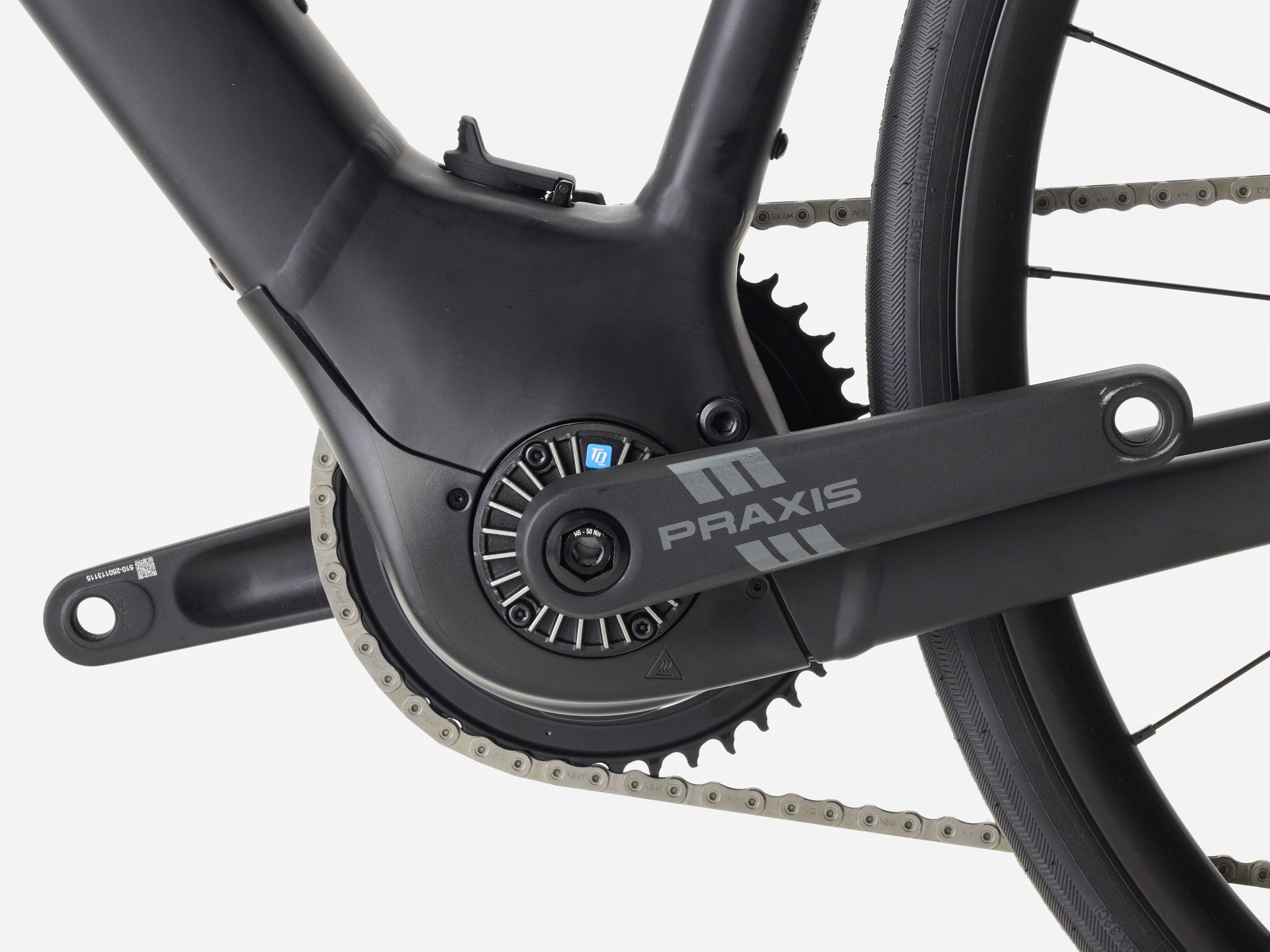

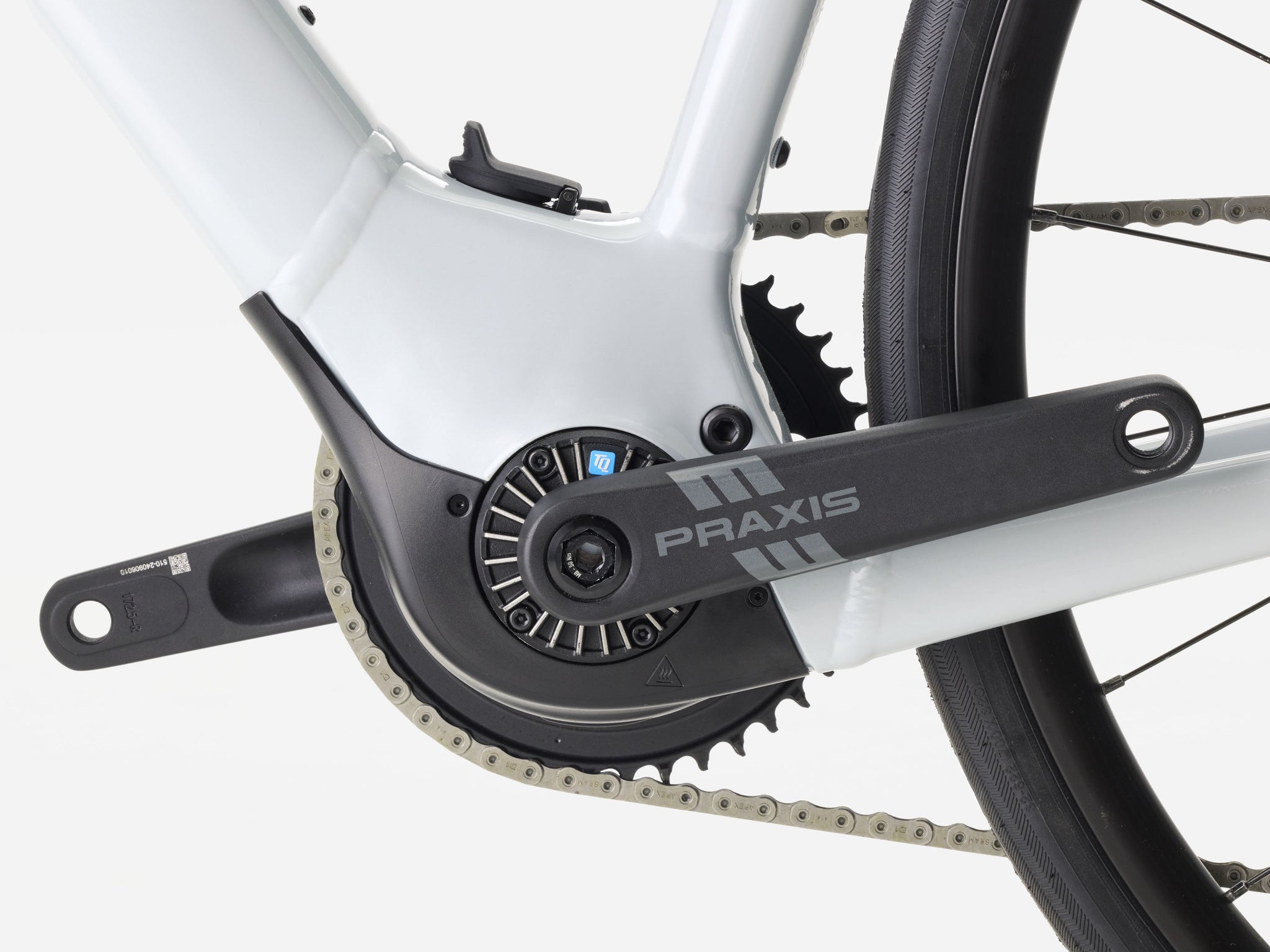

| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 179.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 88.0 |
