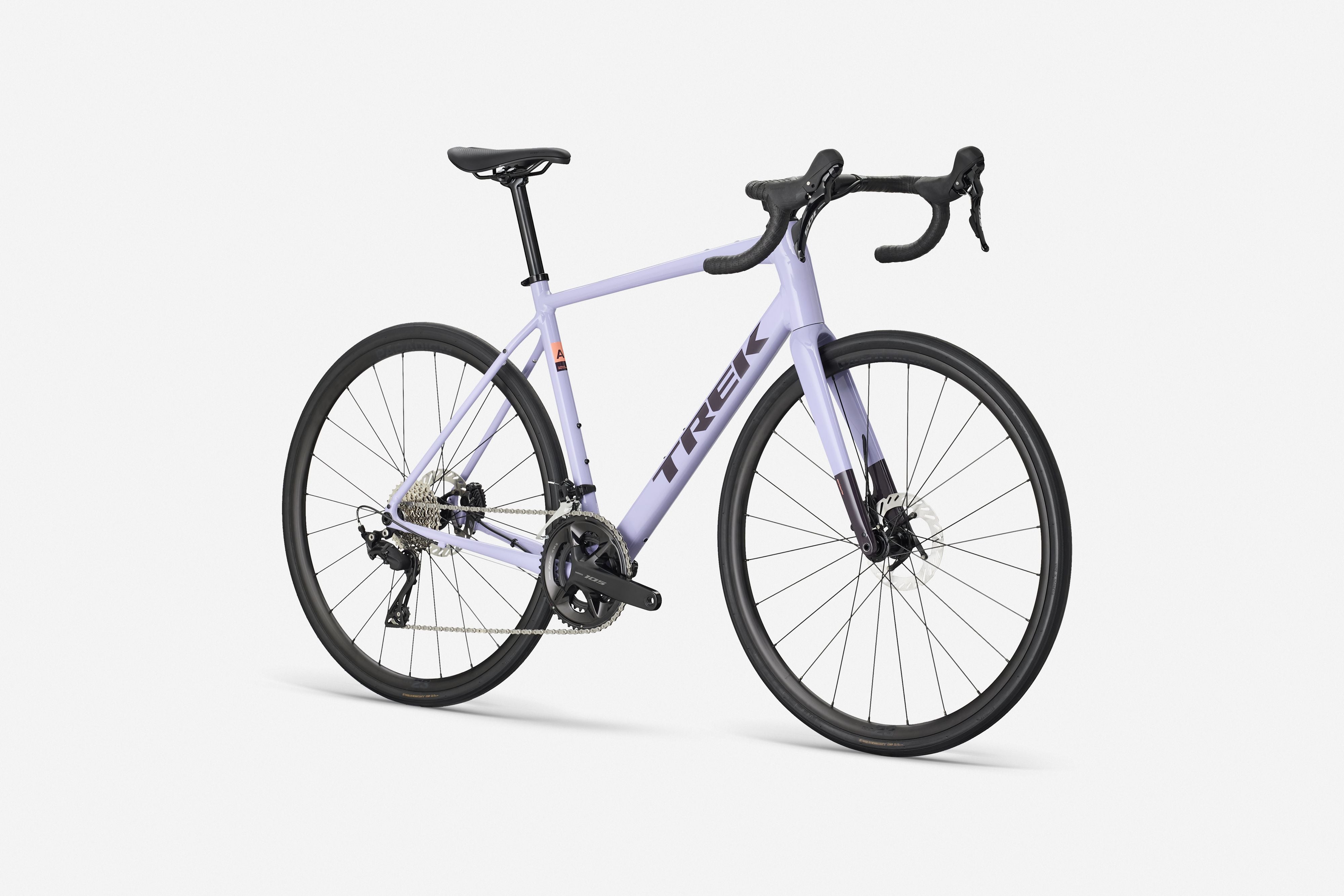

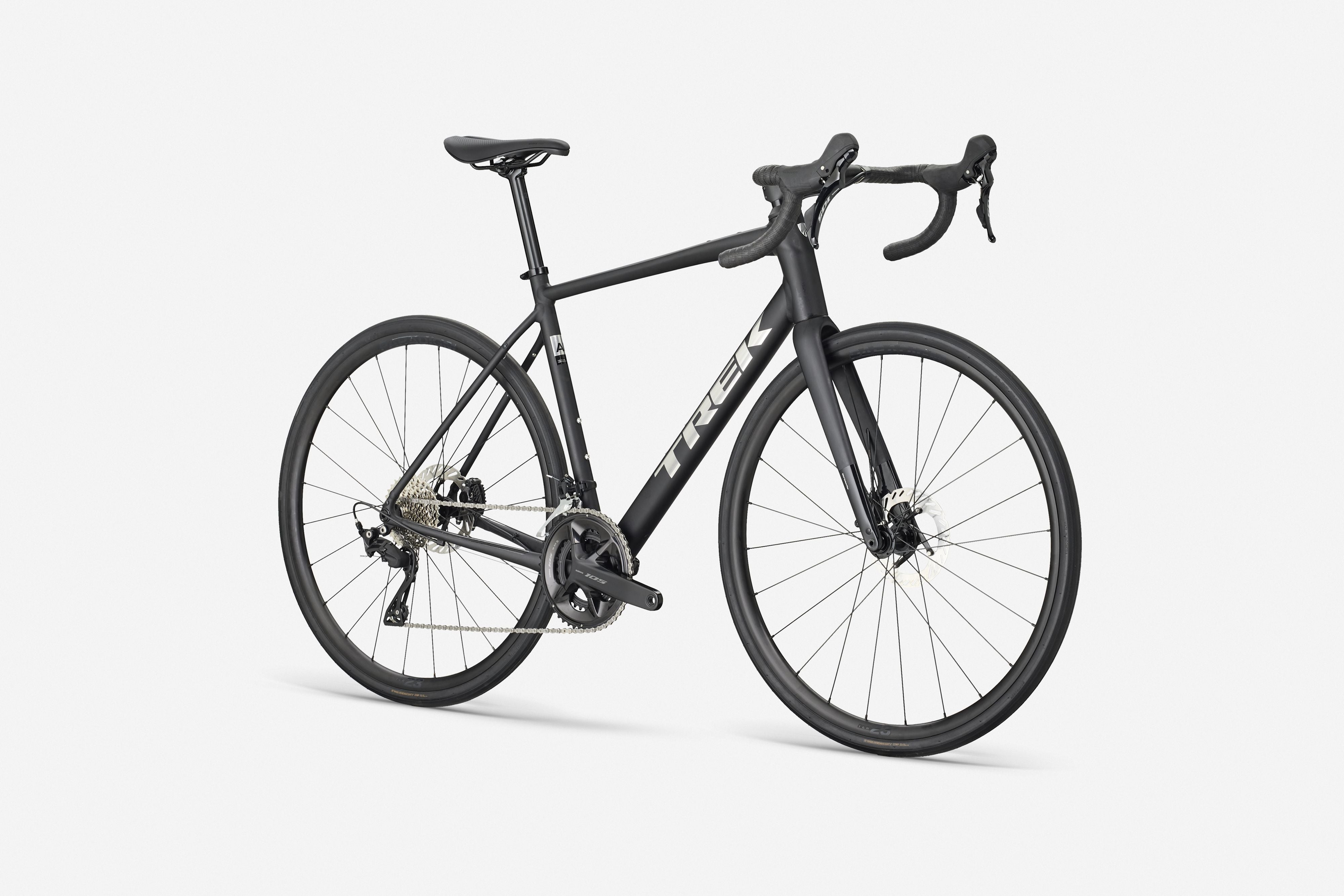

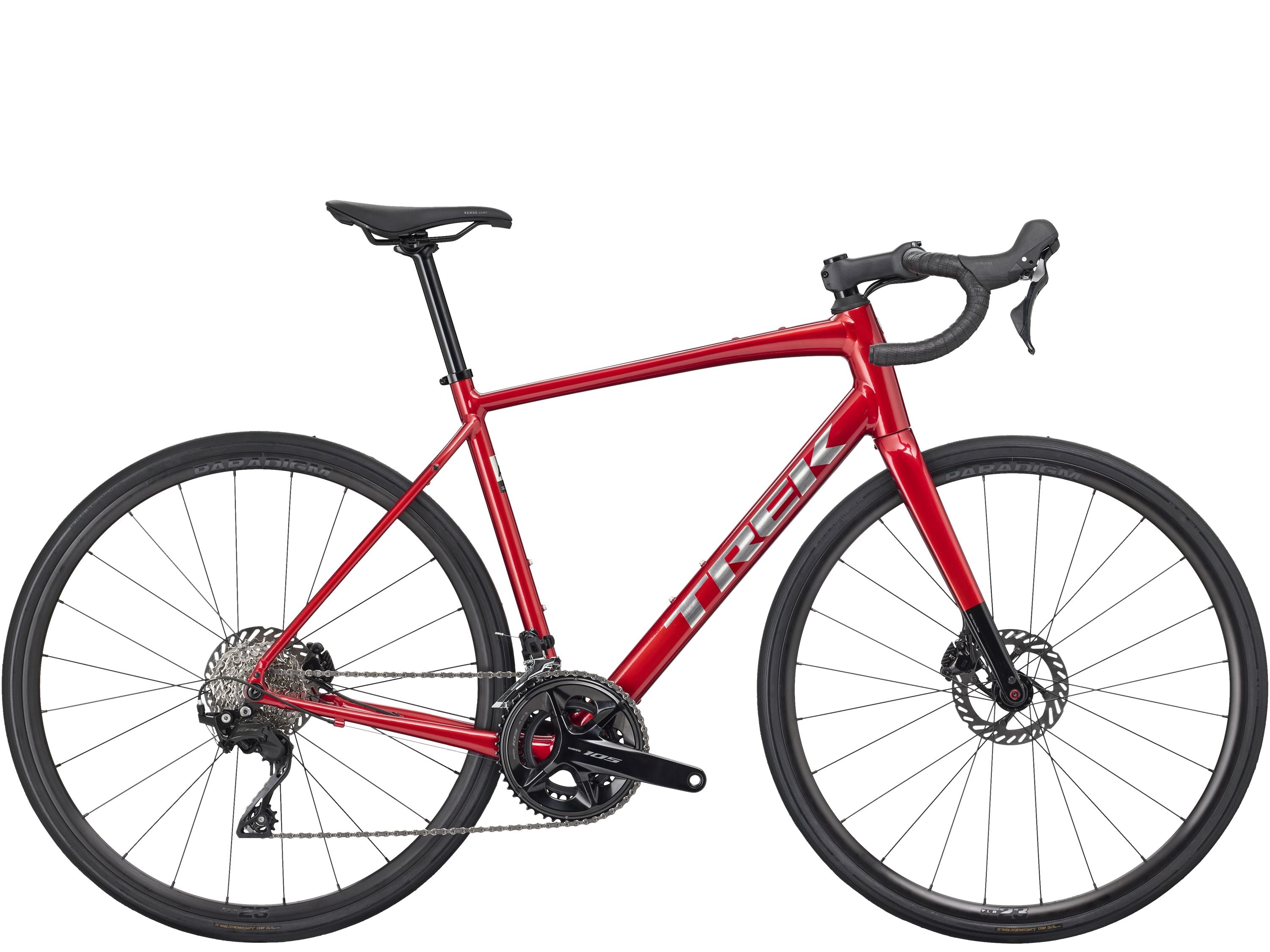

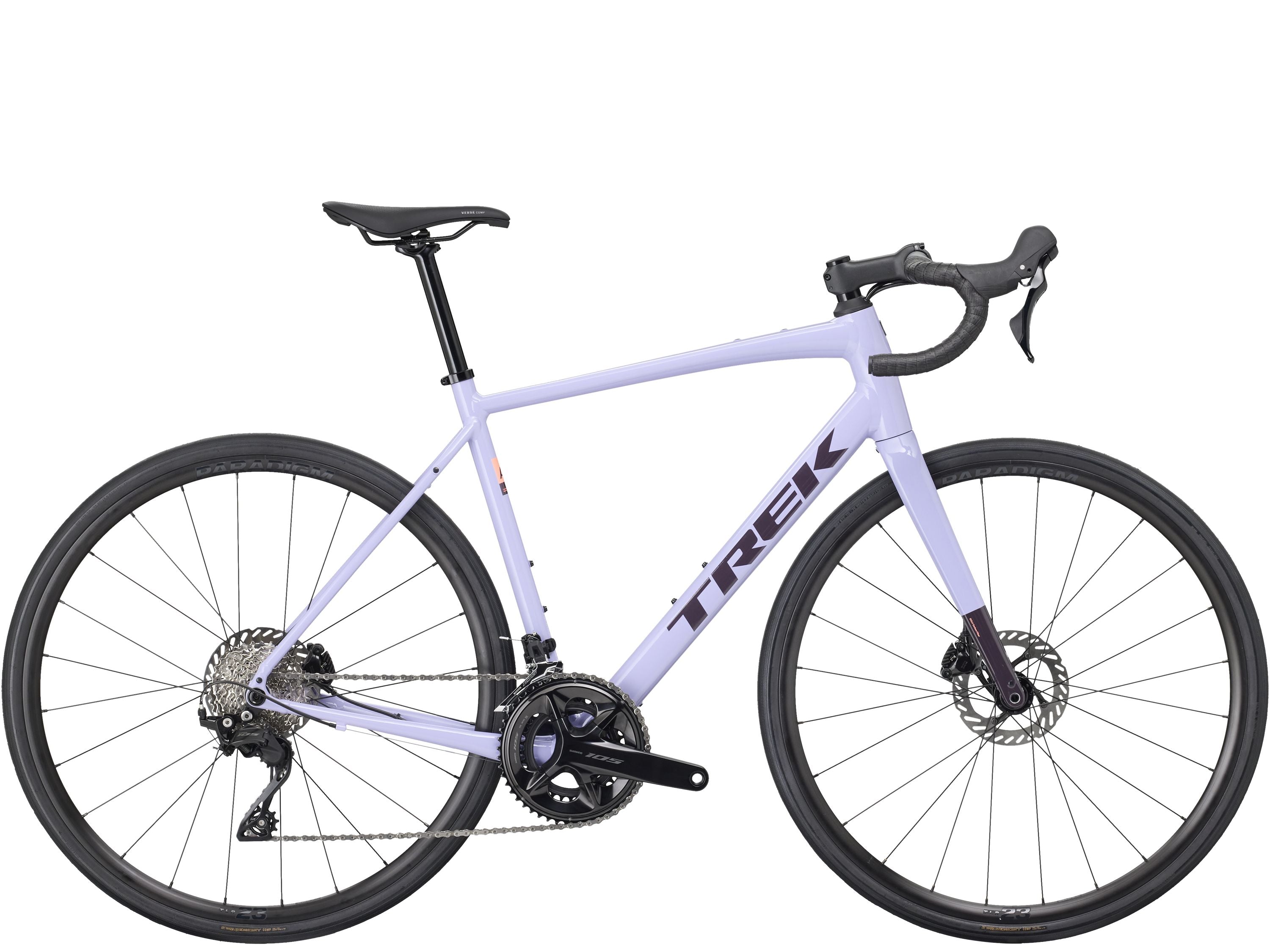

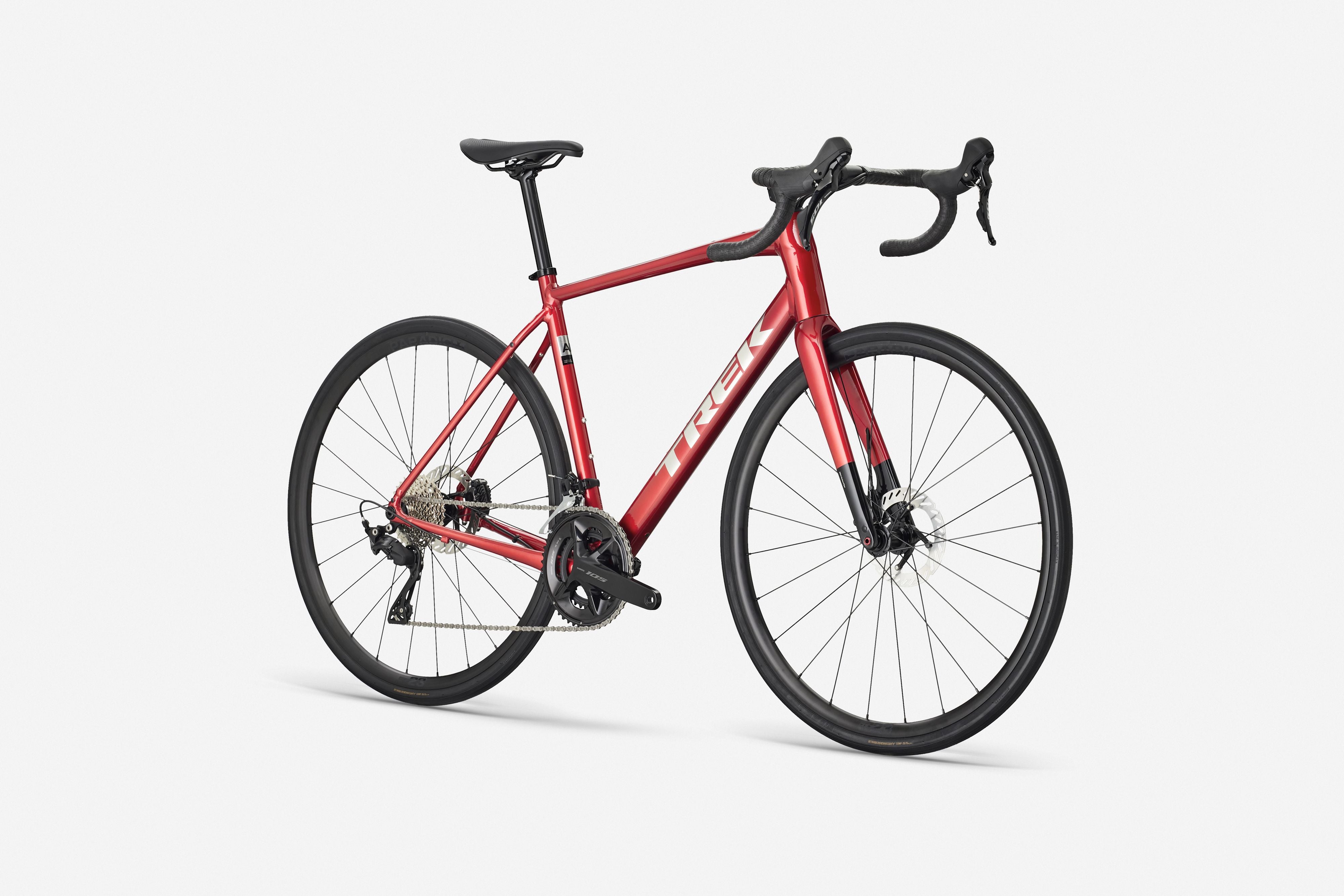

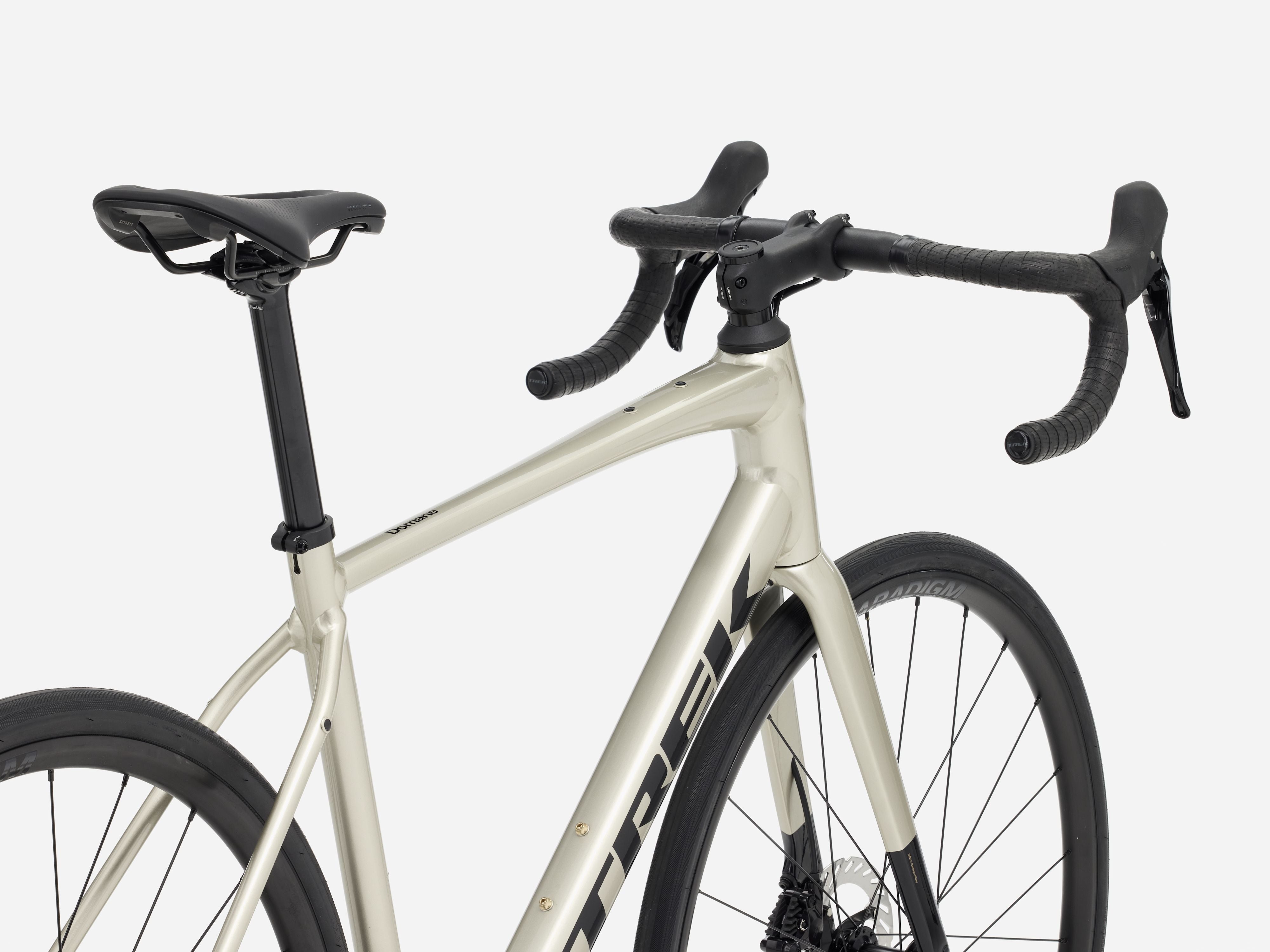

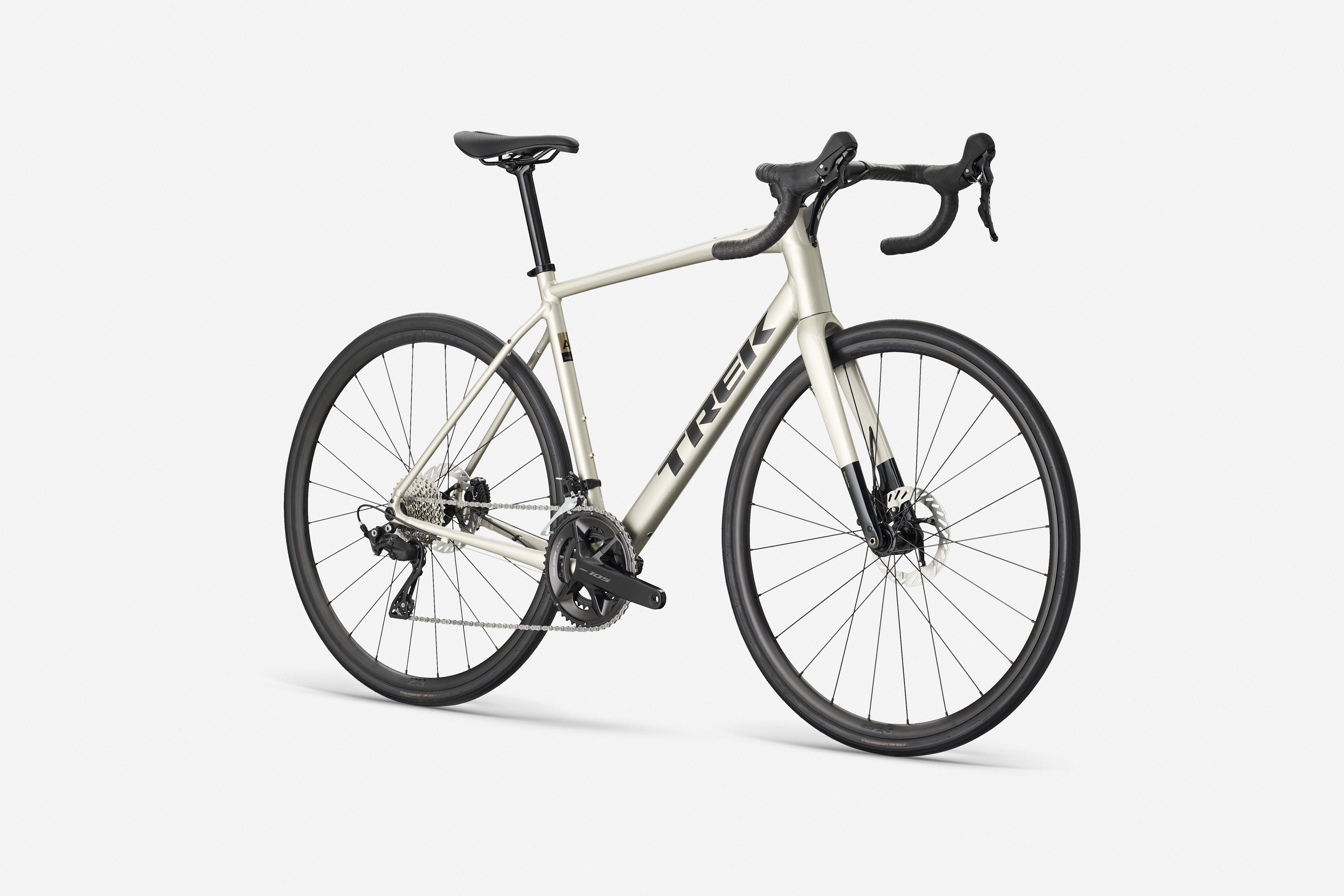

Domane AL 5 Gen 4

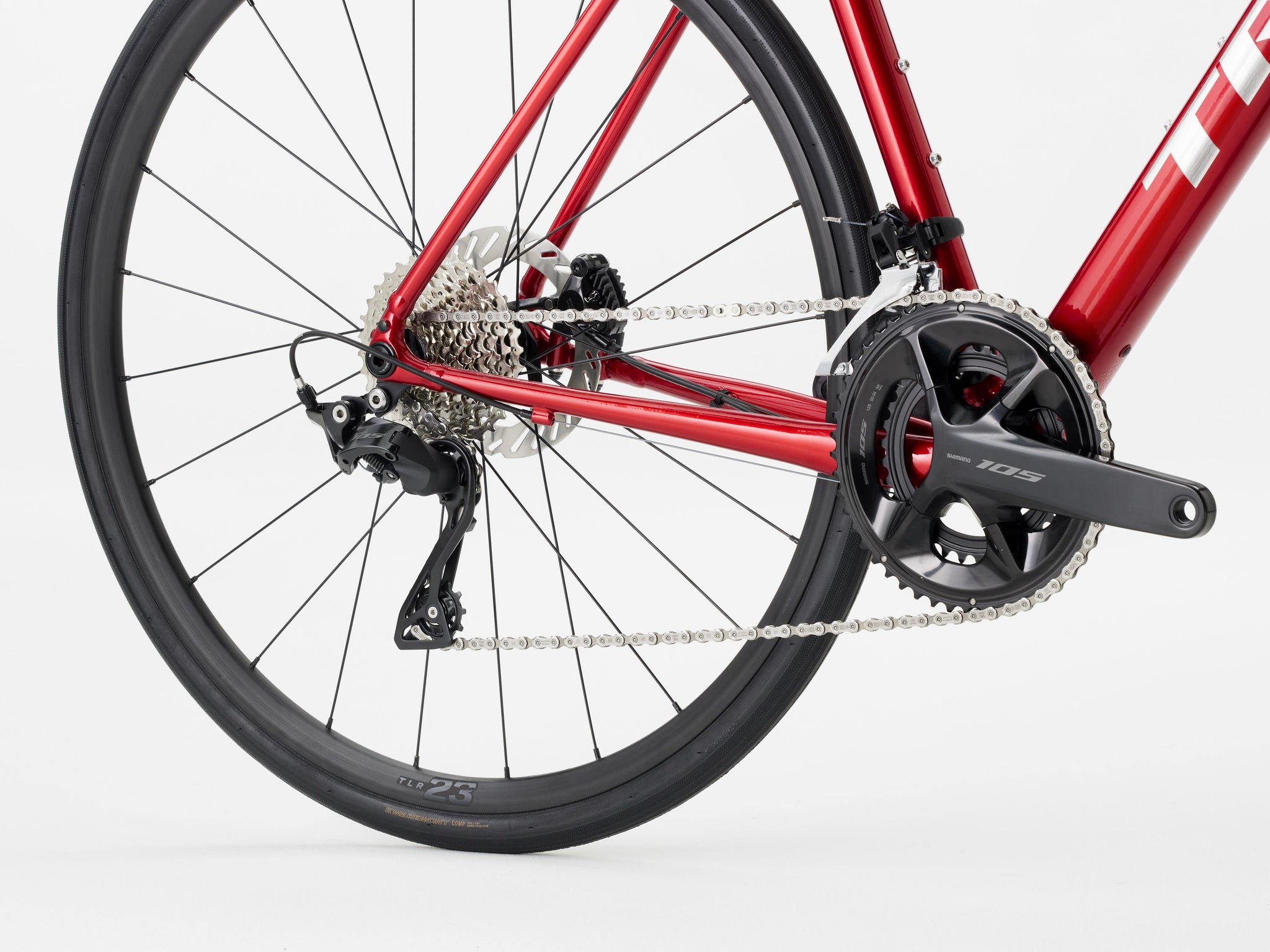

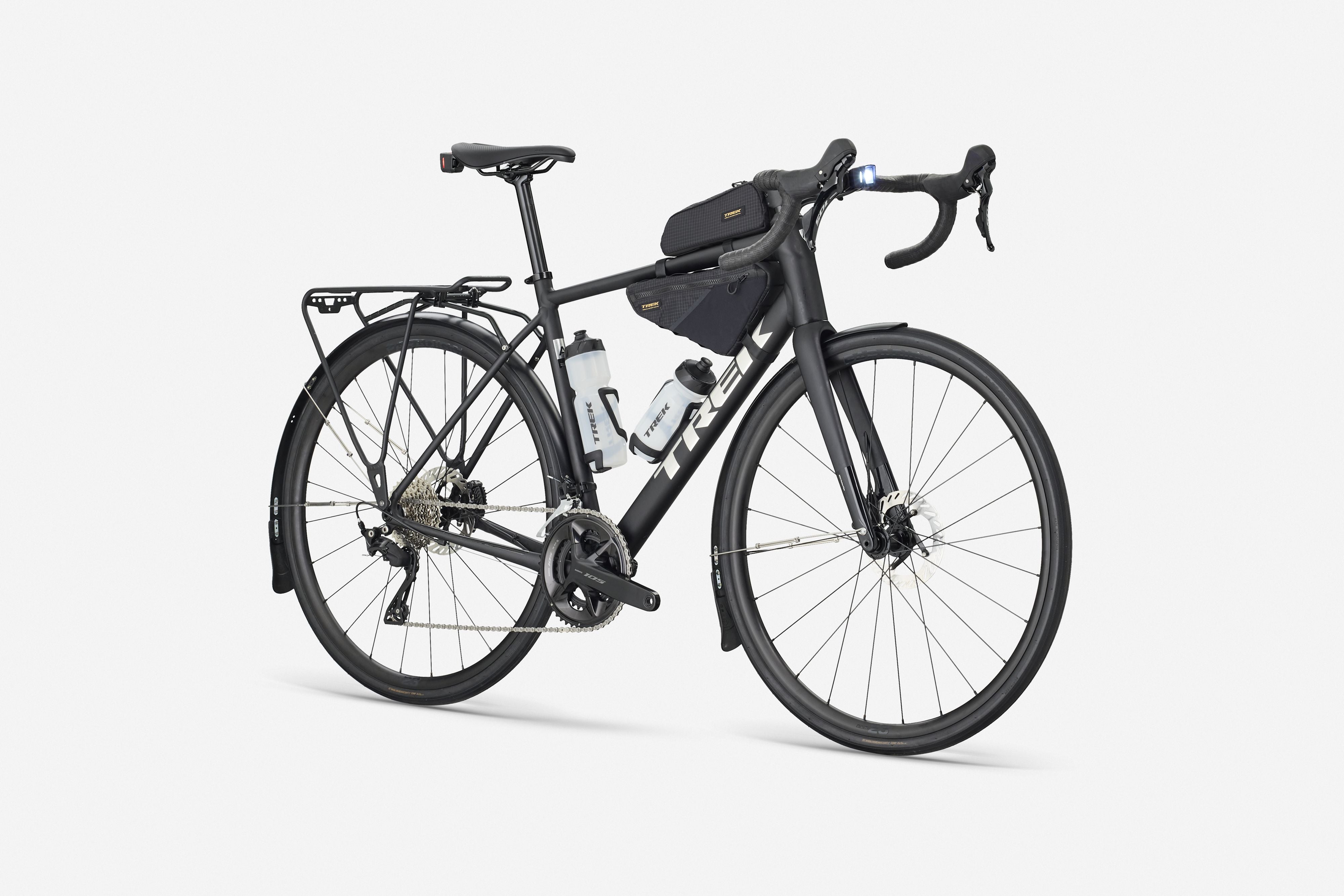

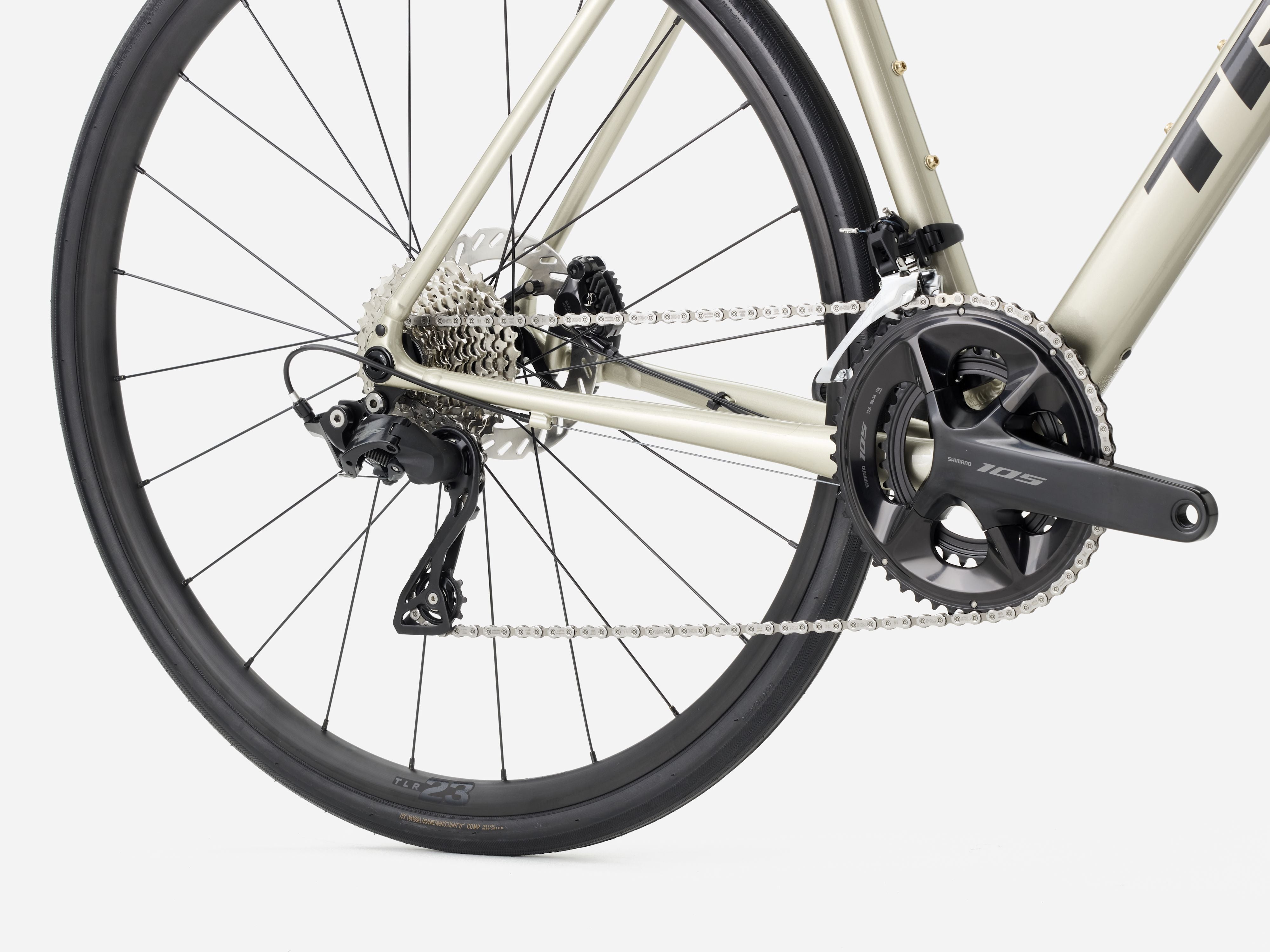

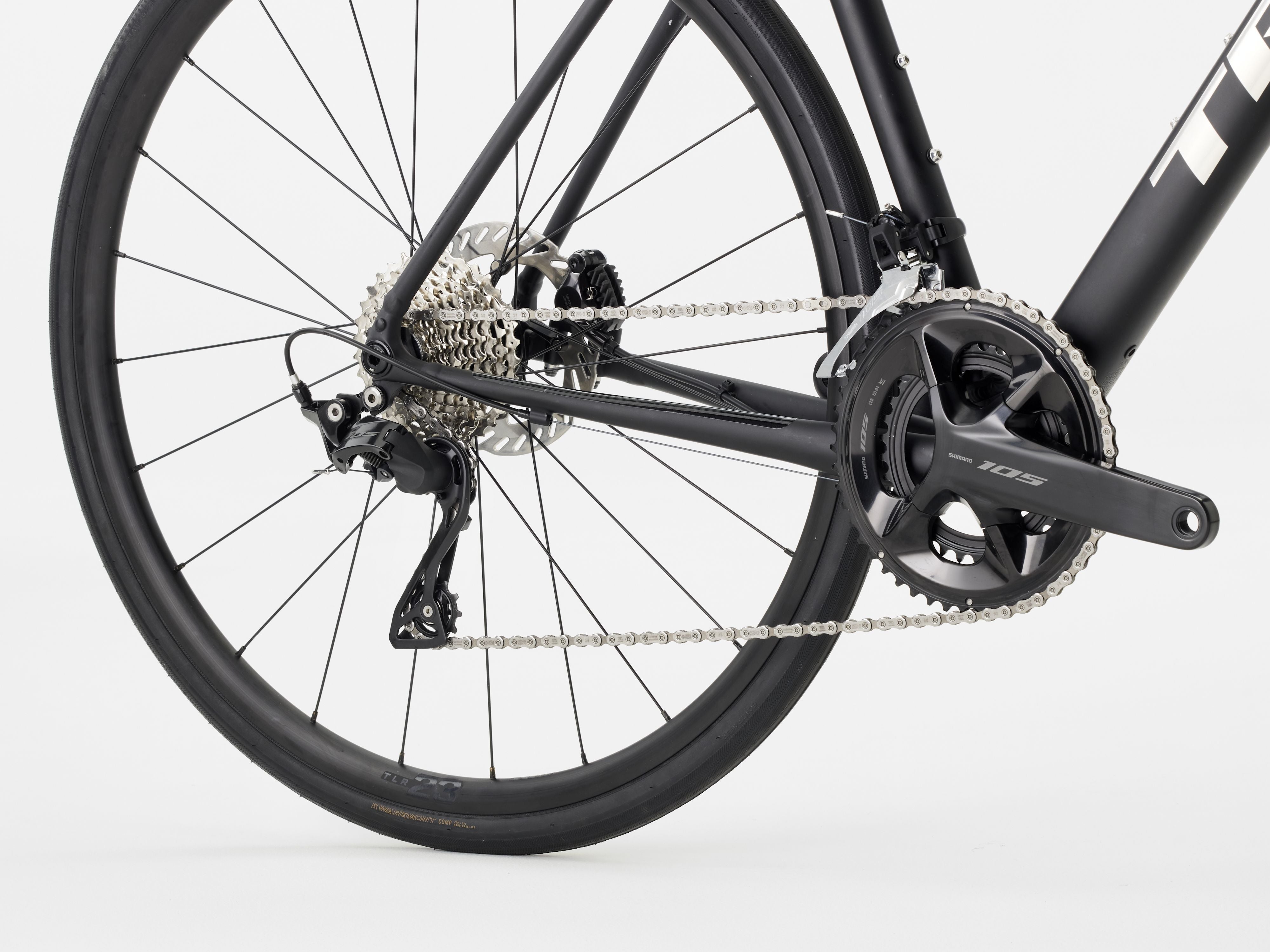

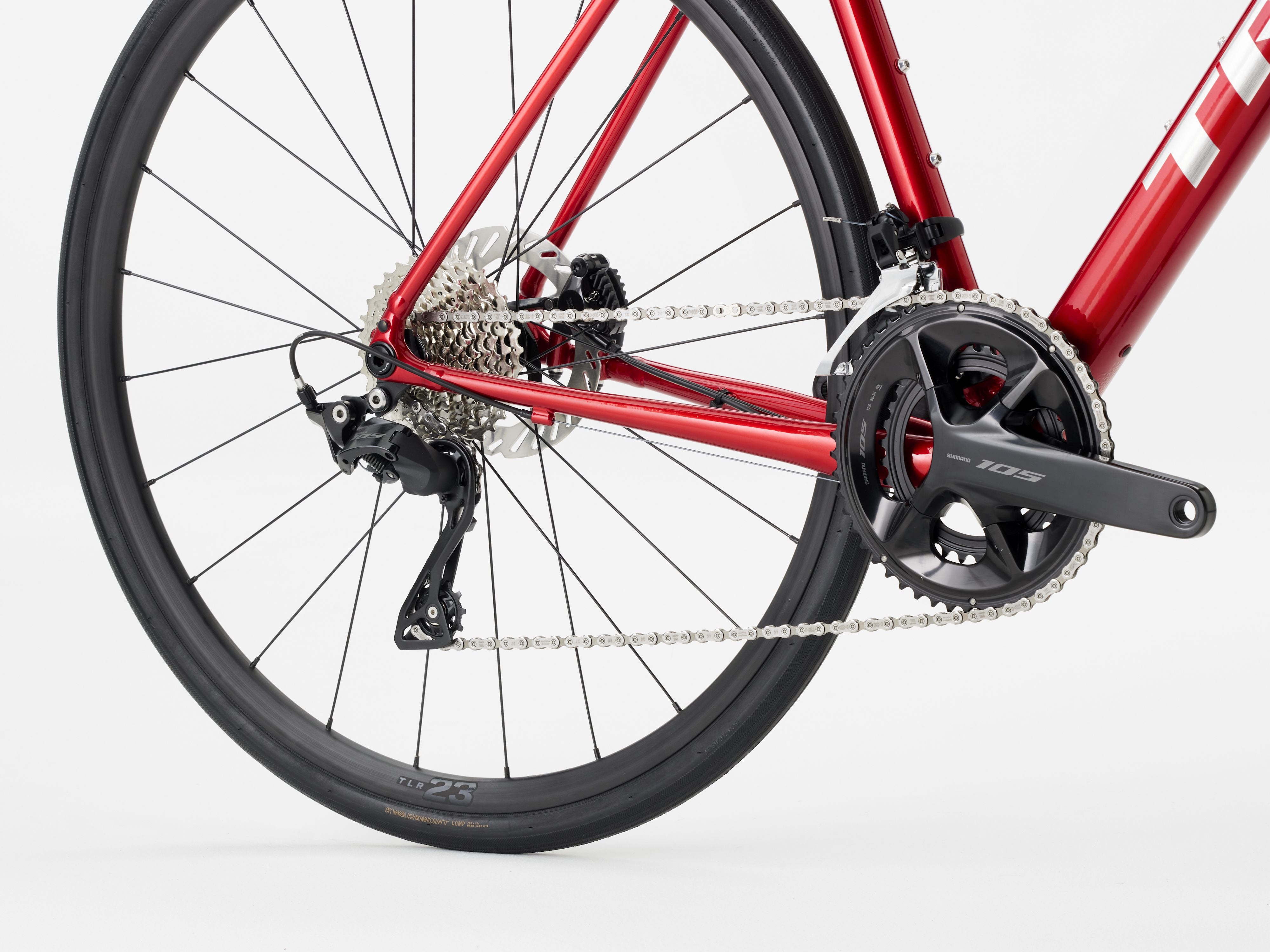

Domane AL 5 is a smooth, capable road bike built for riders who want performance without sacrificing comfort. Its Alpha Aluminum frame pairs with a 12-speed Shimano 105 drivetrain for precise shifting and a wide gear range. All-day geometry keeps you comfortable on longer rides, while bigger tire clearance and top tube mounts add versatility for light gravel, gear, or daily commutes.
Technology
Lightweight design - A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.
Specification
| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount dis |
| Tires | Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Hub Front | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Shifter | Shimano |
| Derailleur Front | Shimano 105 R7100, 31.8 mm clamp, down swing |
| Derailleur Rear | Shimano 105 R7100, 36T max cog |
| Crank | Shimano 105 R7100, 50/34, 160mm length |
| Bottom Bracket | Shimano RS501 BSA |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Brake Rotor | Shimano CL700, CentreLock, 160 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |

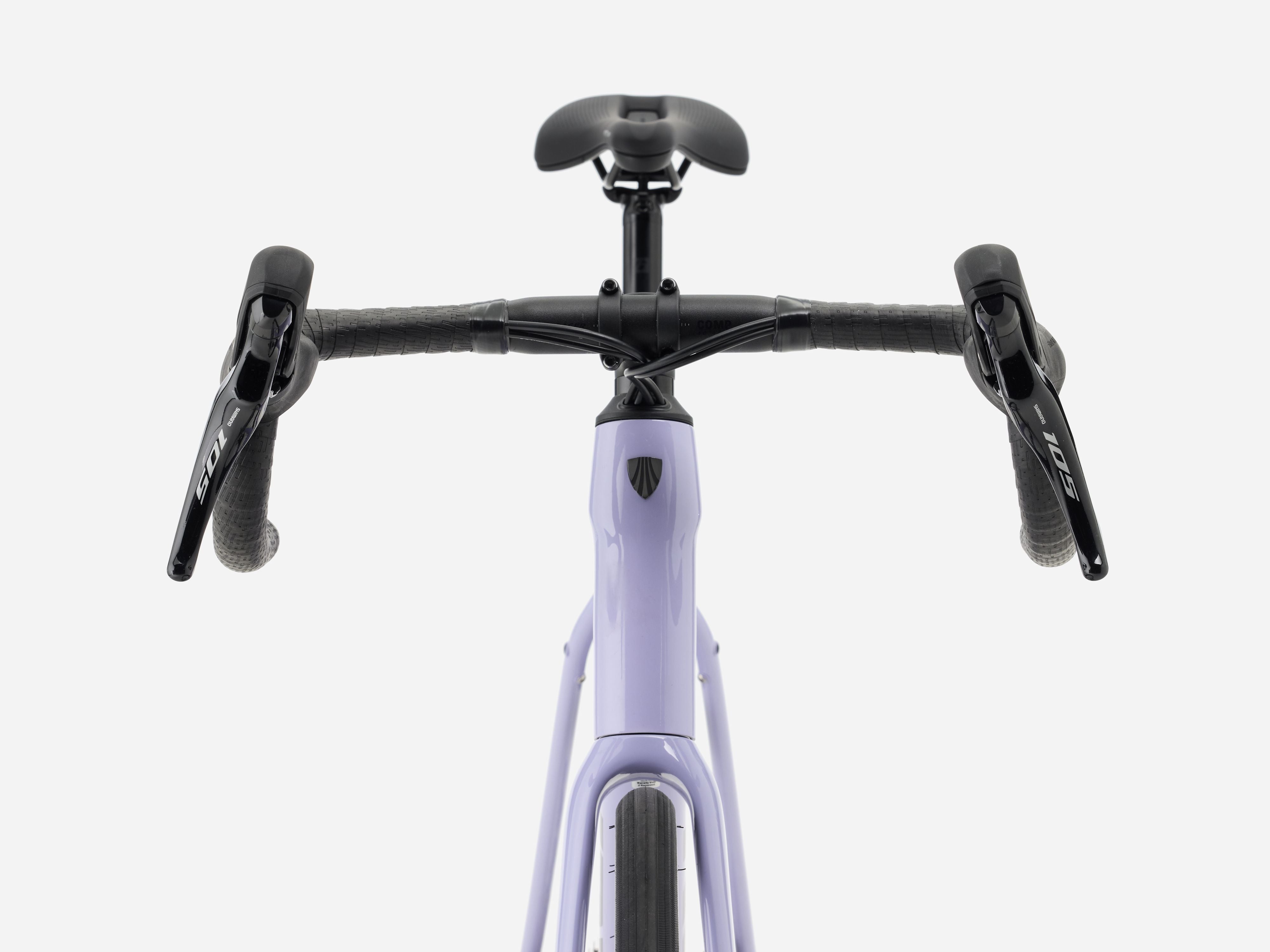

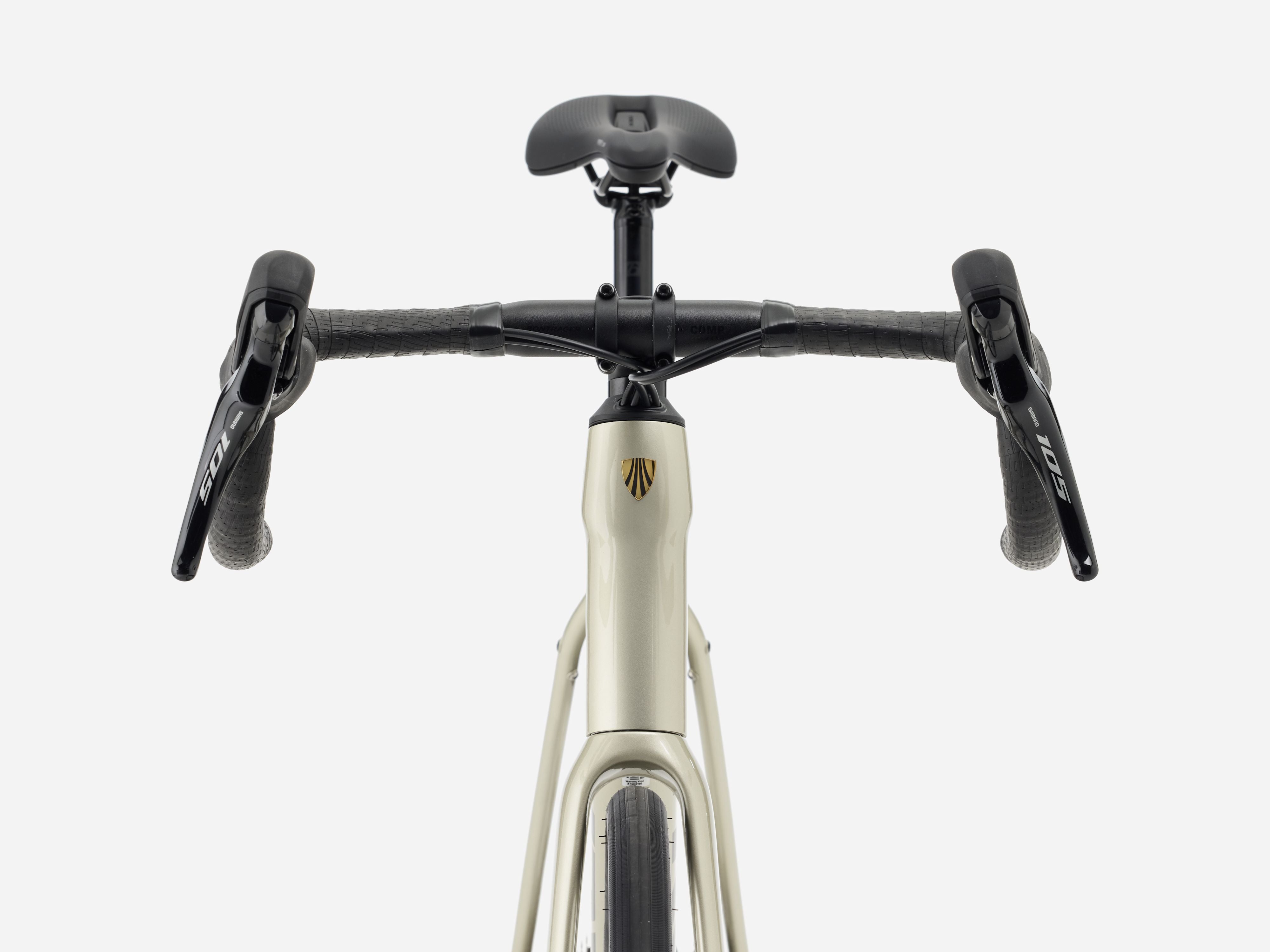

| Handlebar | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size Chart Rider Height | Rider Height - 150.0 - 153.0 |
| Size Chart Rider Inseam | Inseam - 71.0 - 73.0 |
