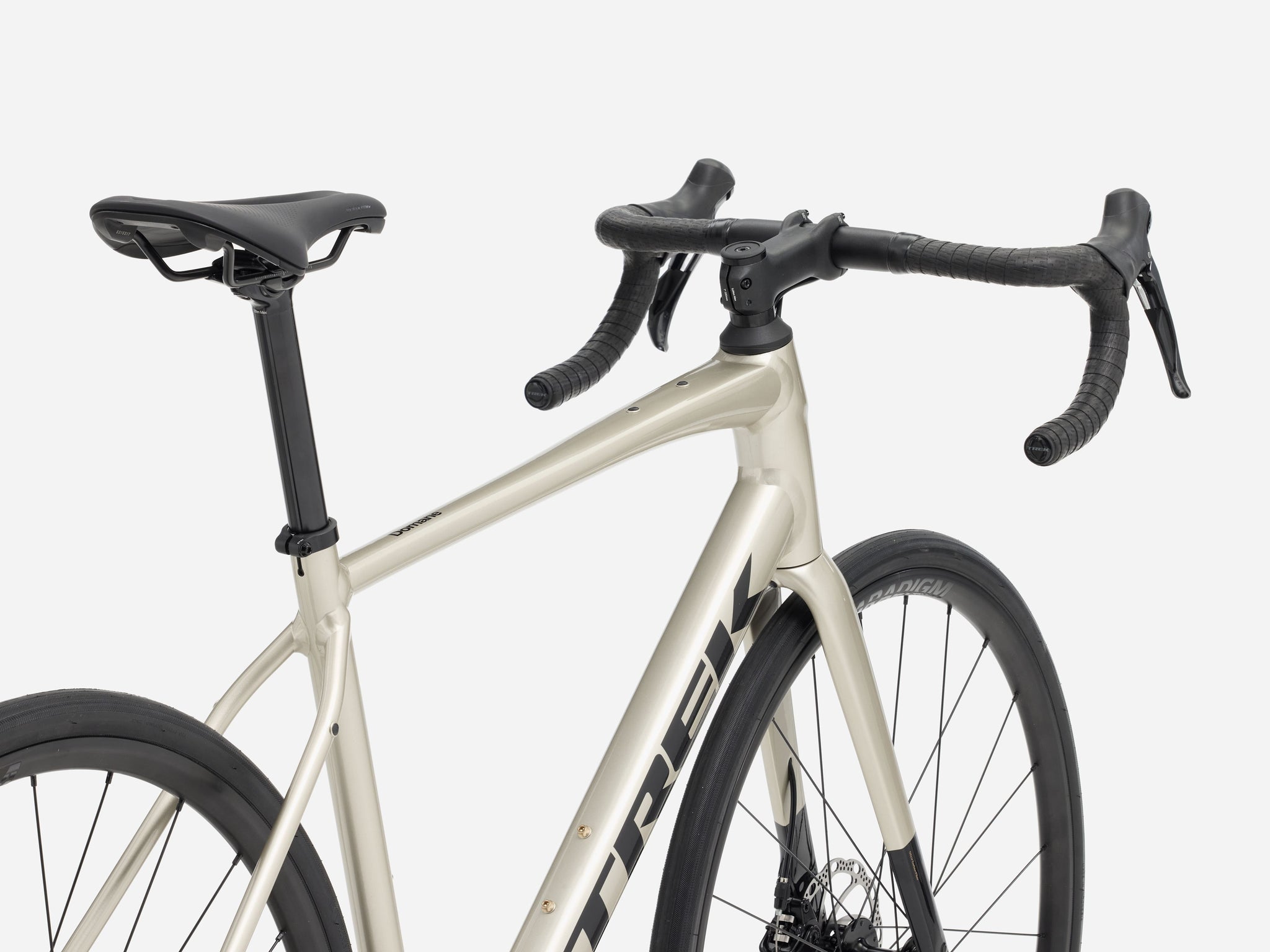

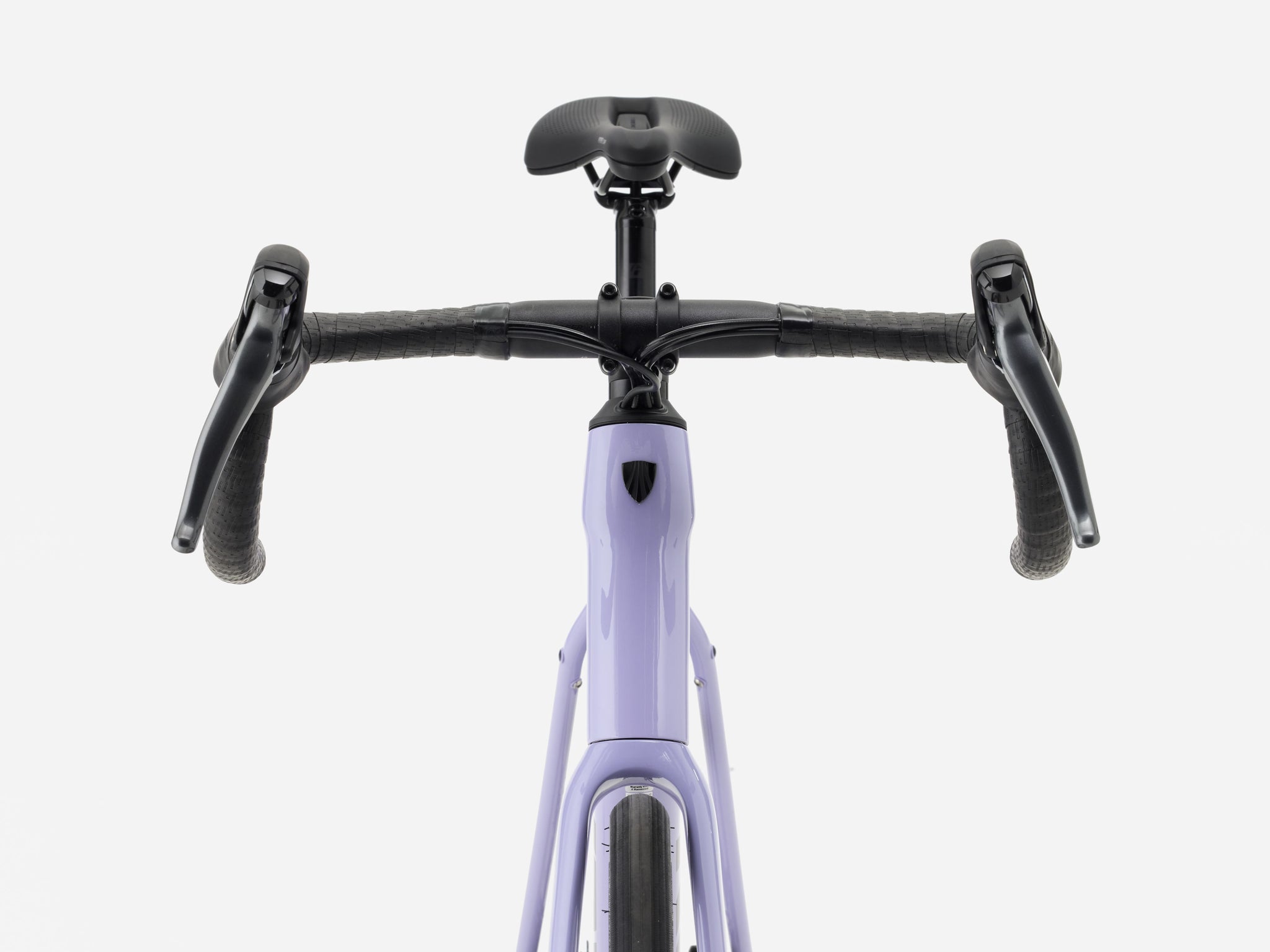

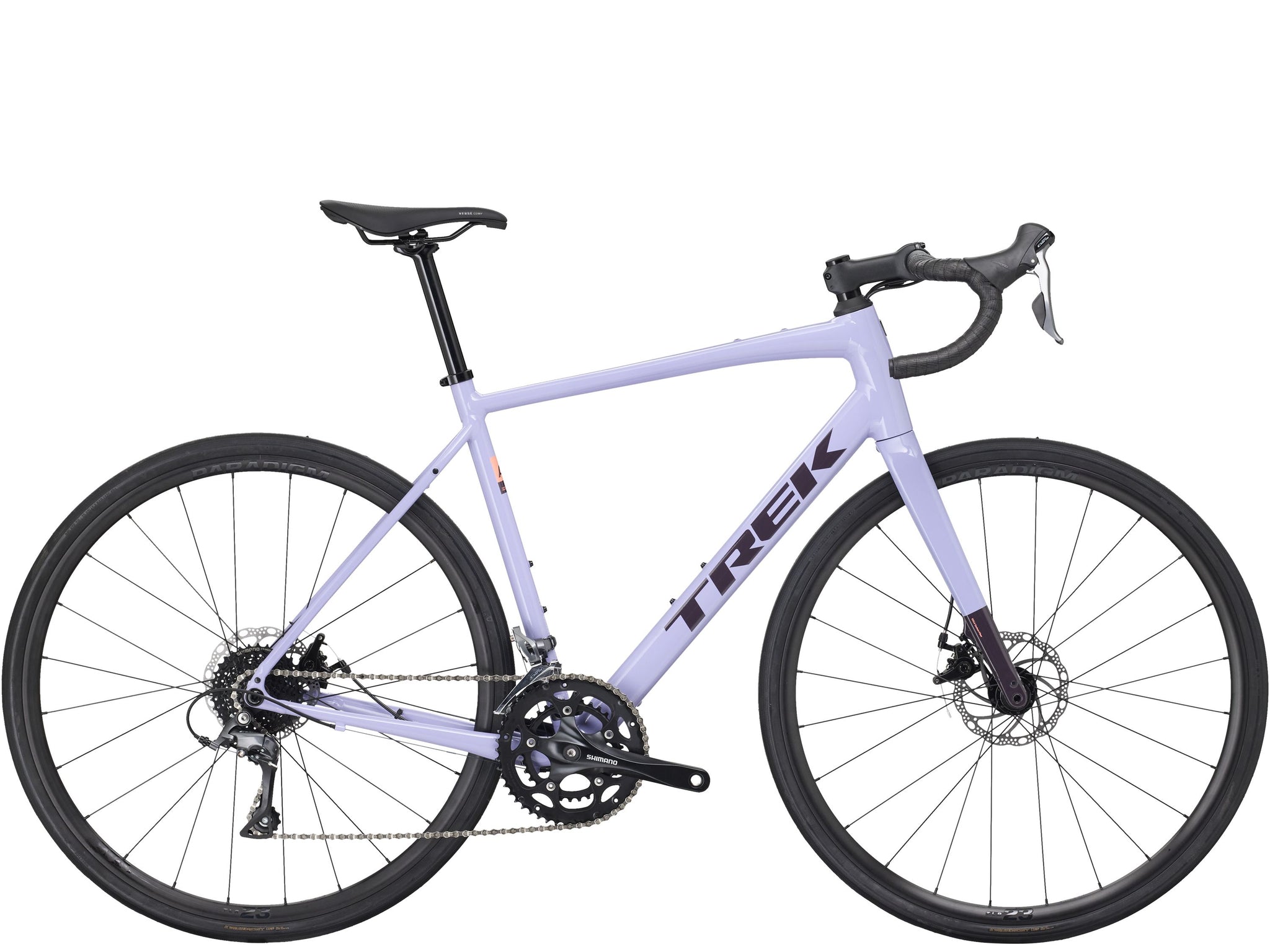

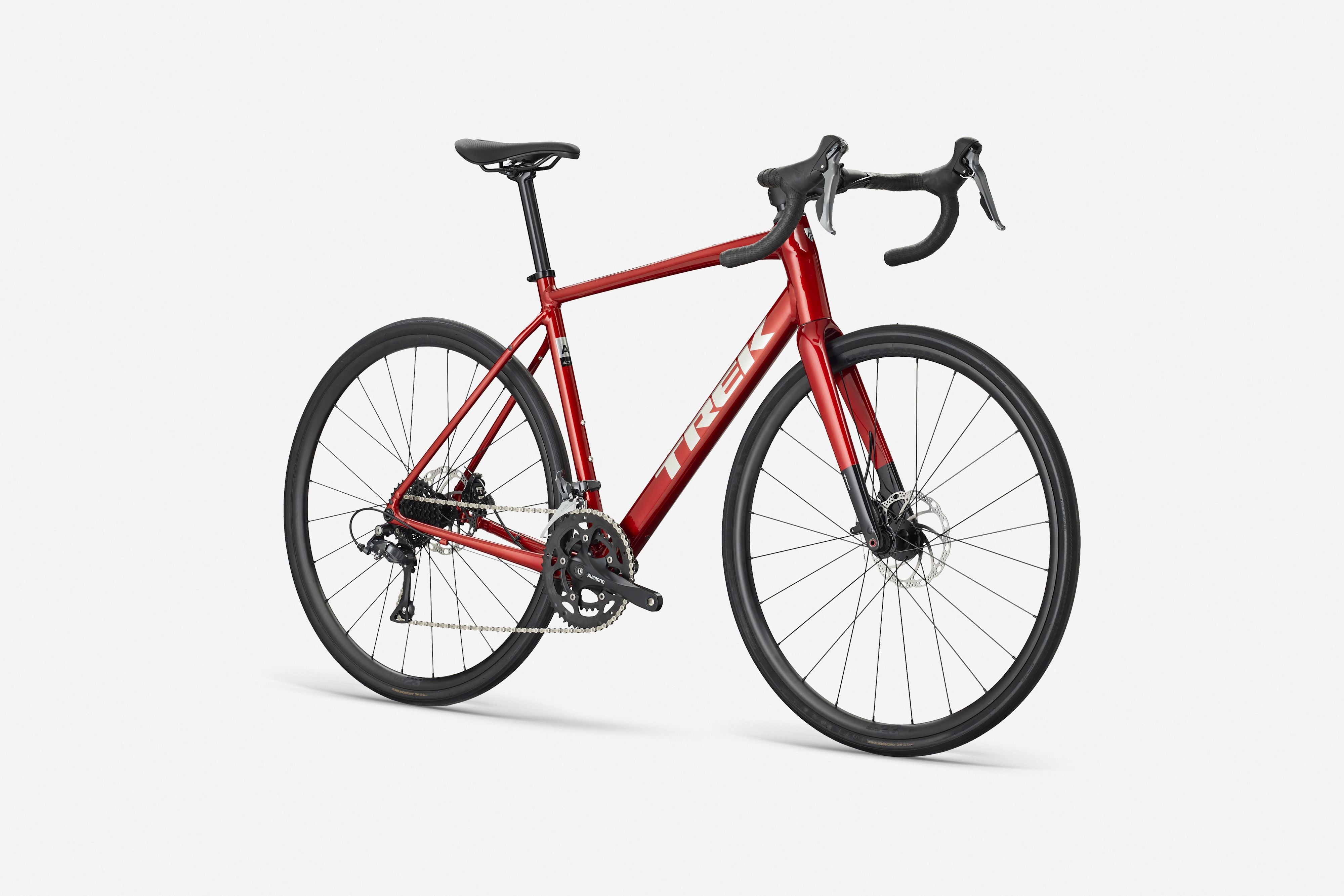

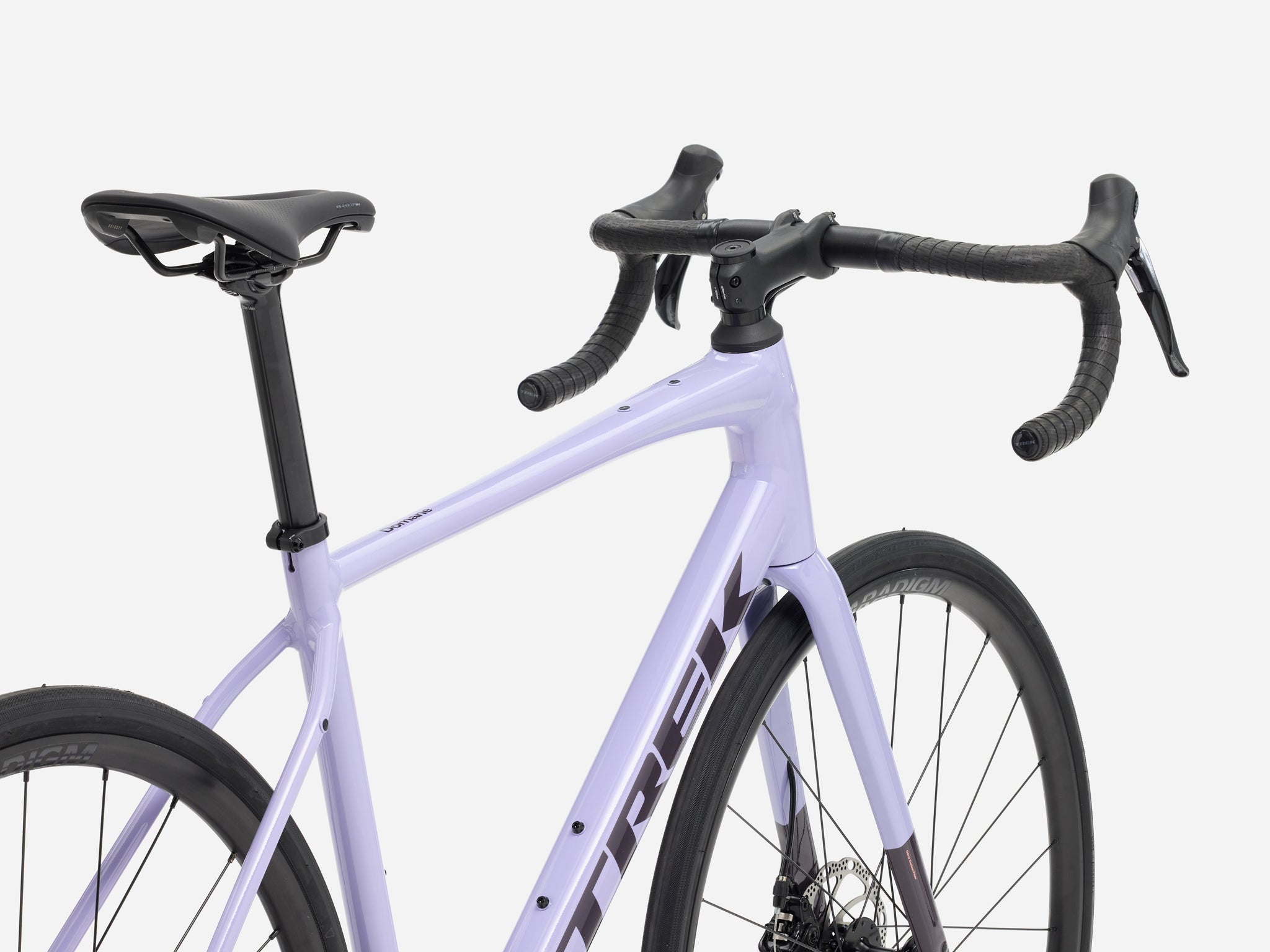

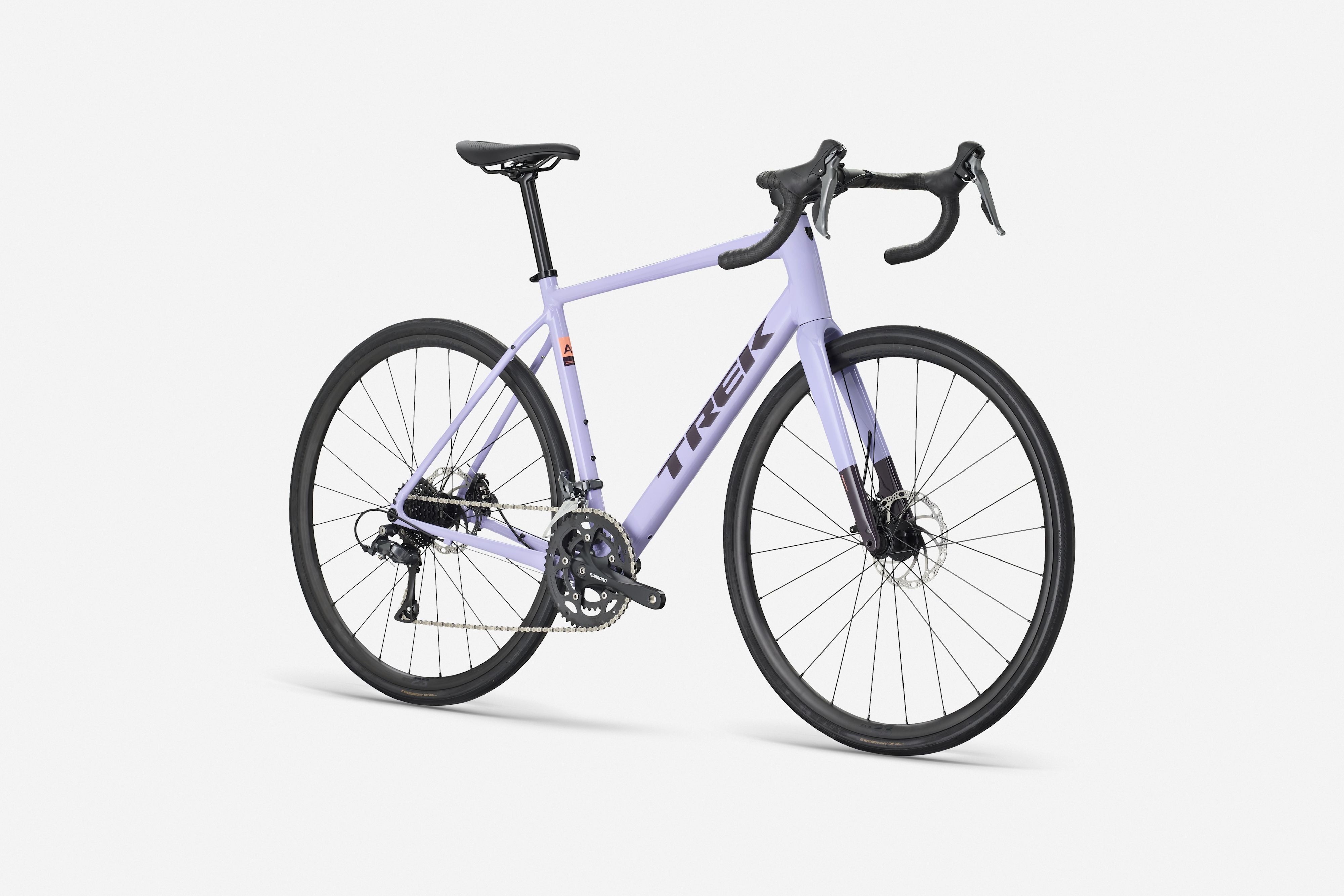

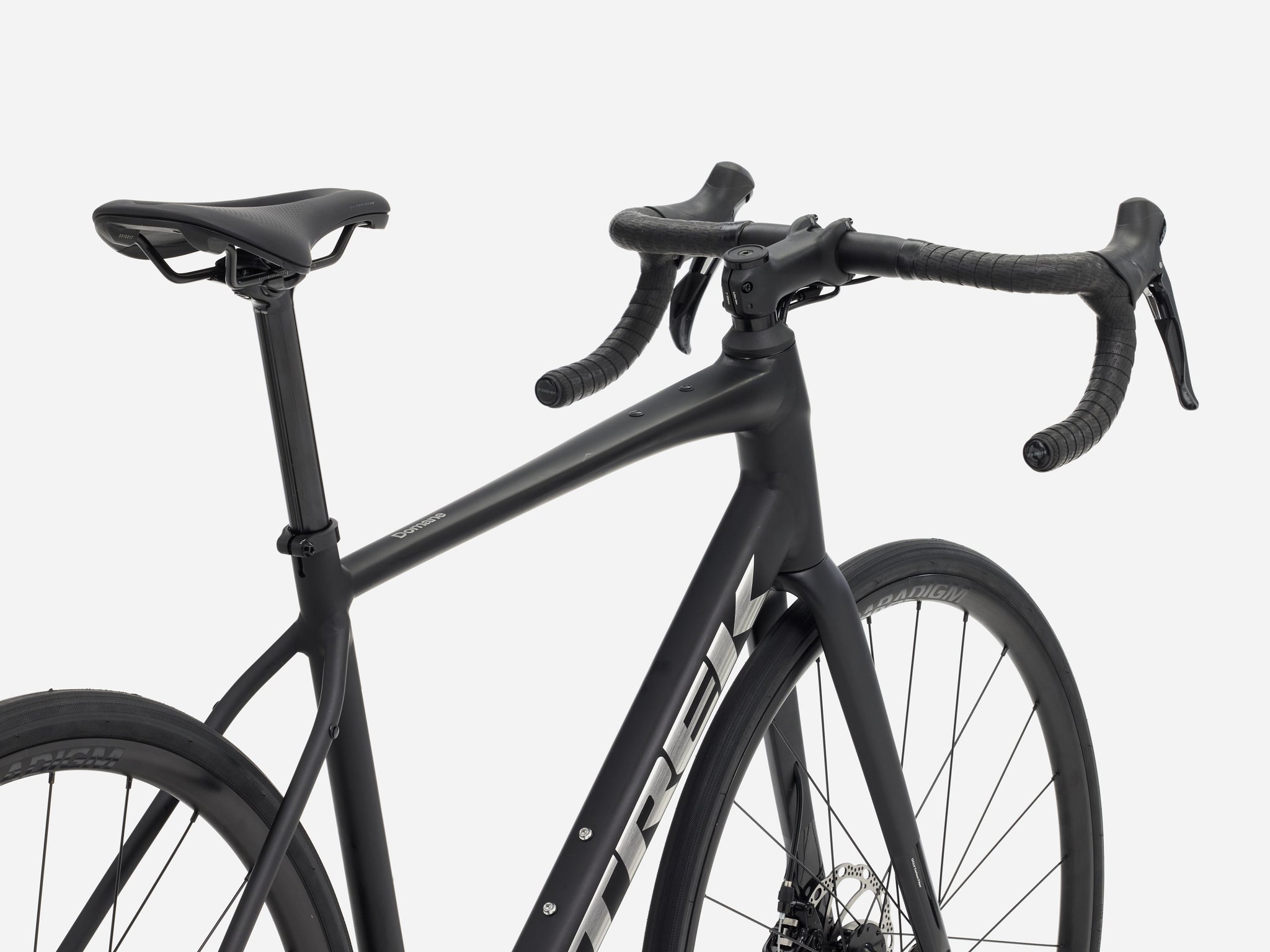

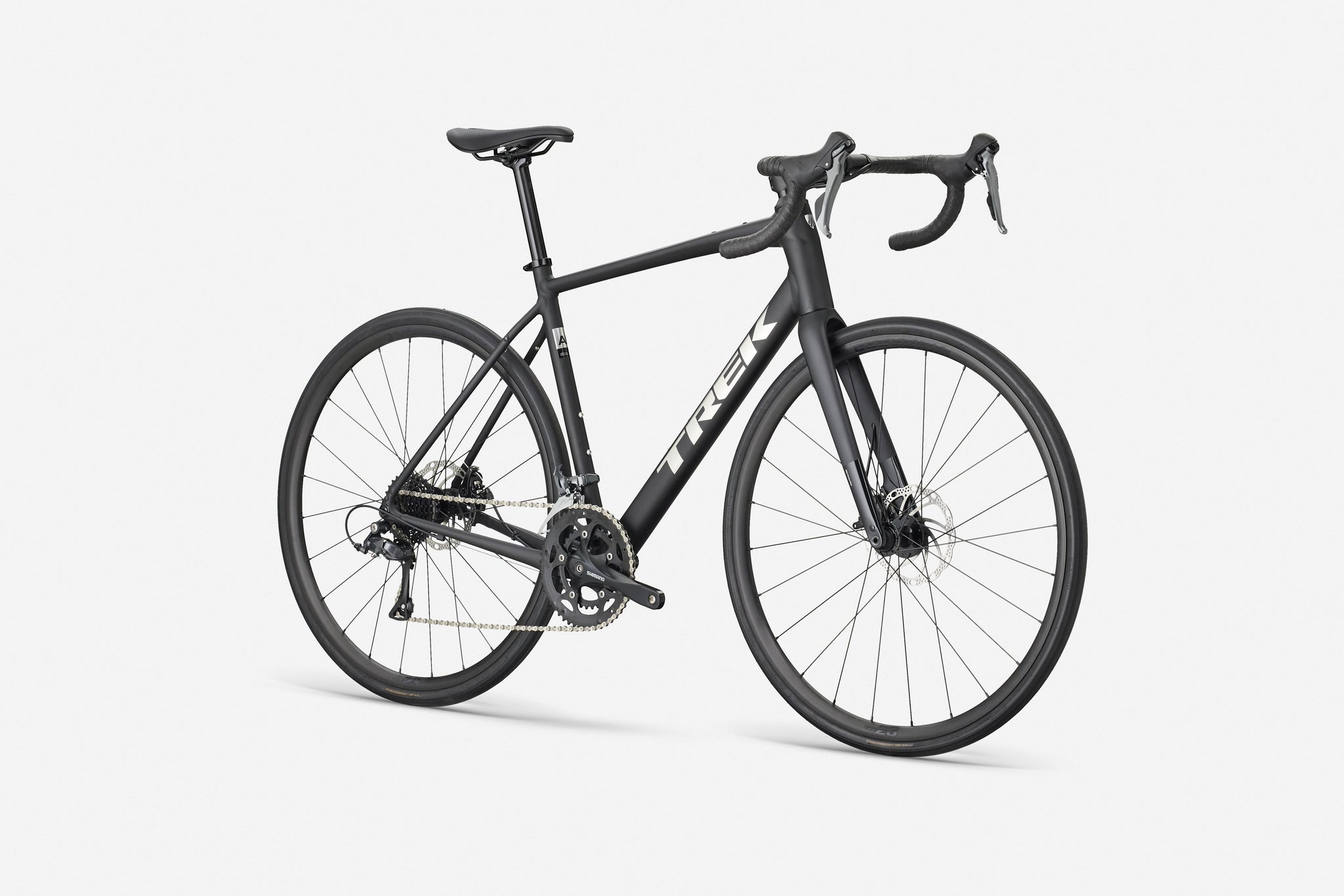

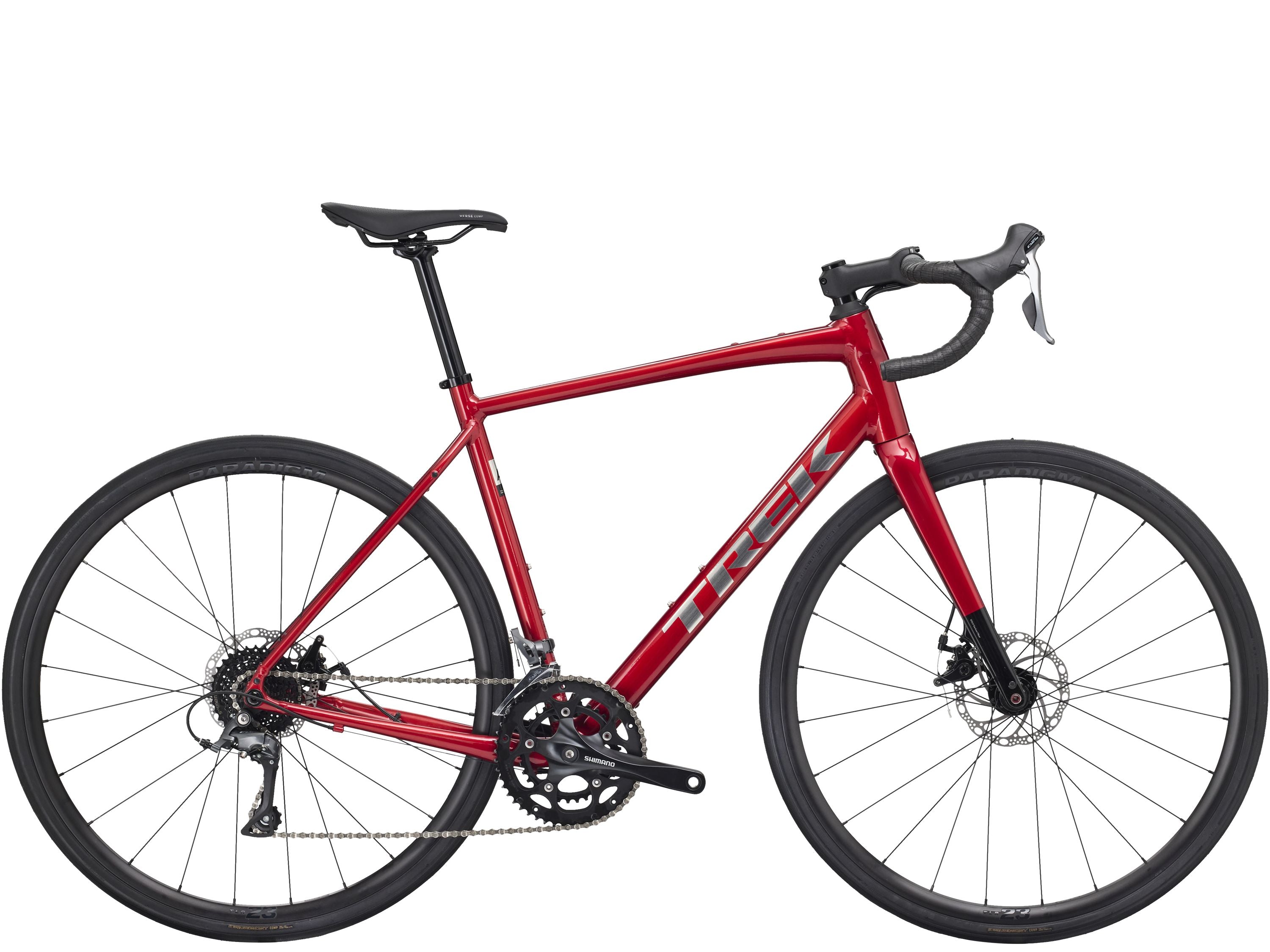

Domane AL 2 Gen 4

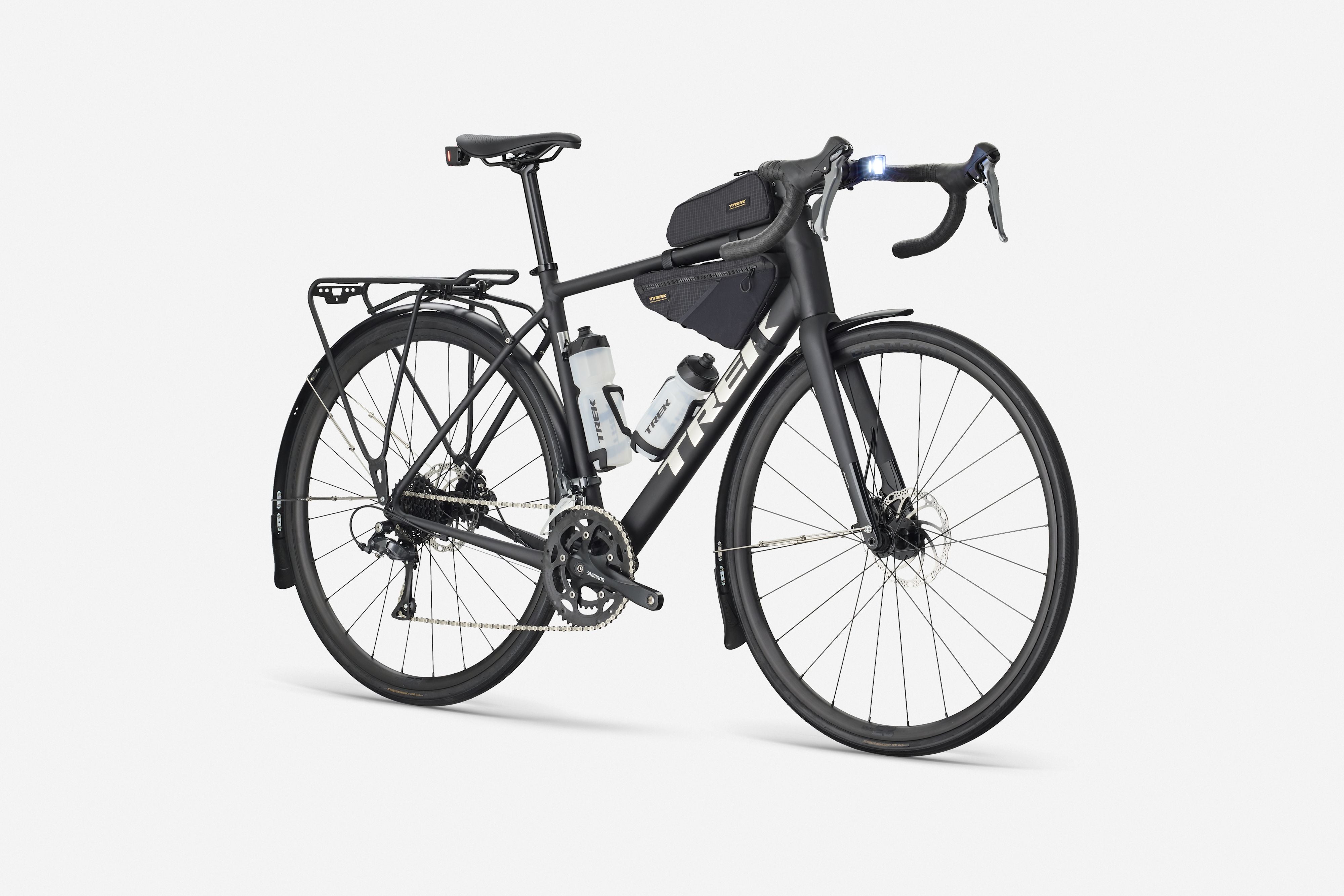

Domane AL 2 is a lightweight road bike built for new riders who want speed, versatility, and confidence on the road. It features an Alpha Aluminum frame, an 8-speed Shimano Claris drivetrain, and a comfortable all-day geometry that’s great for group rides, fitness riding, or fast commutes. Rack, fender, and top tube mounts add everyday utility, and clearance for larger tires means you can venture off the pavement onto light gravel.
Technology
Lightweight design - A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.
Specification
| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Tires | Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Hub Front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
| Hub Rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Shifter | Shimano |

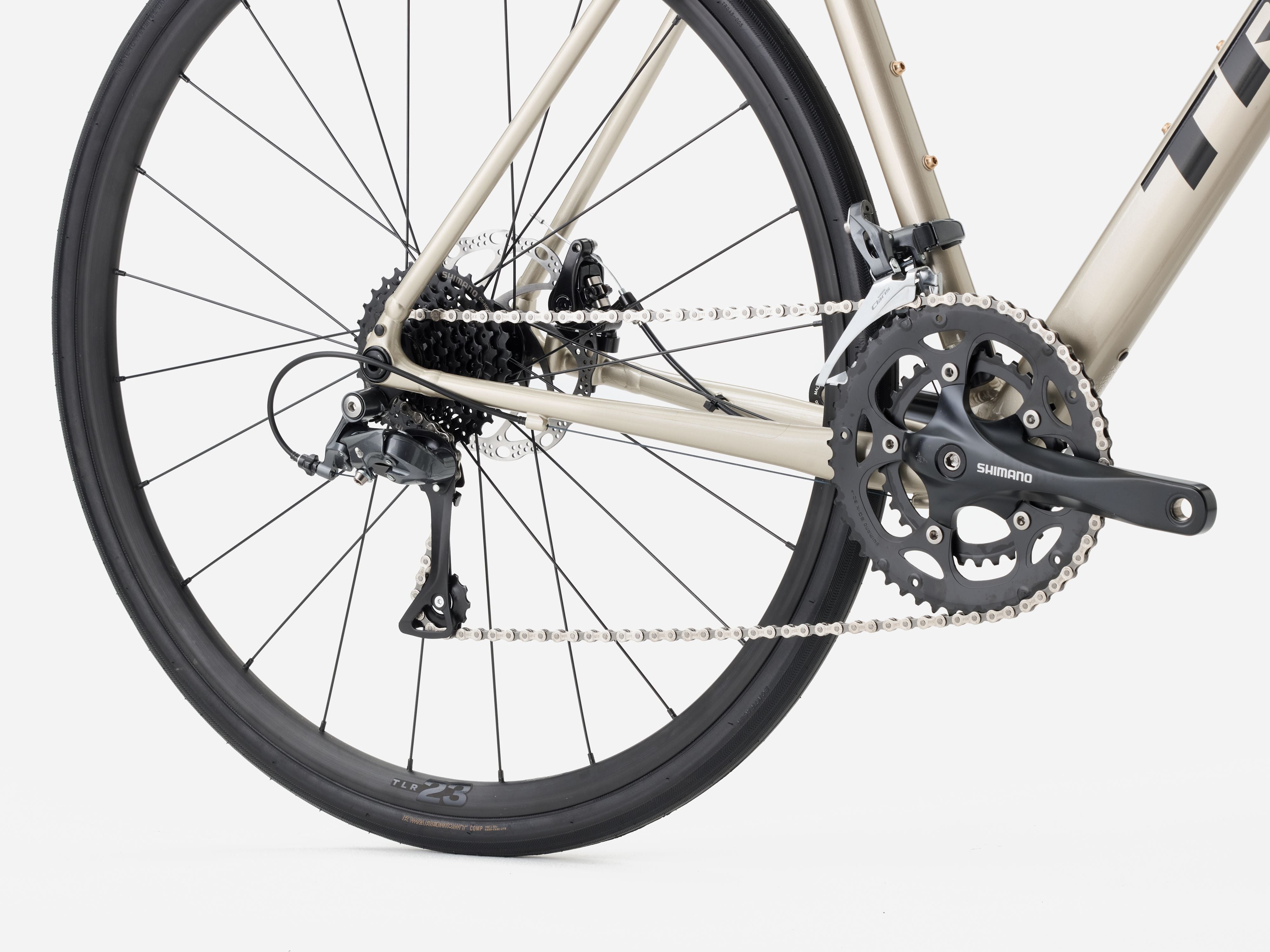

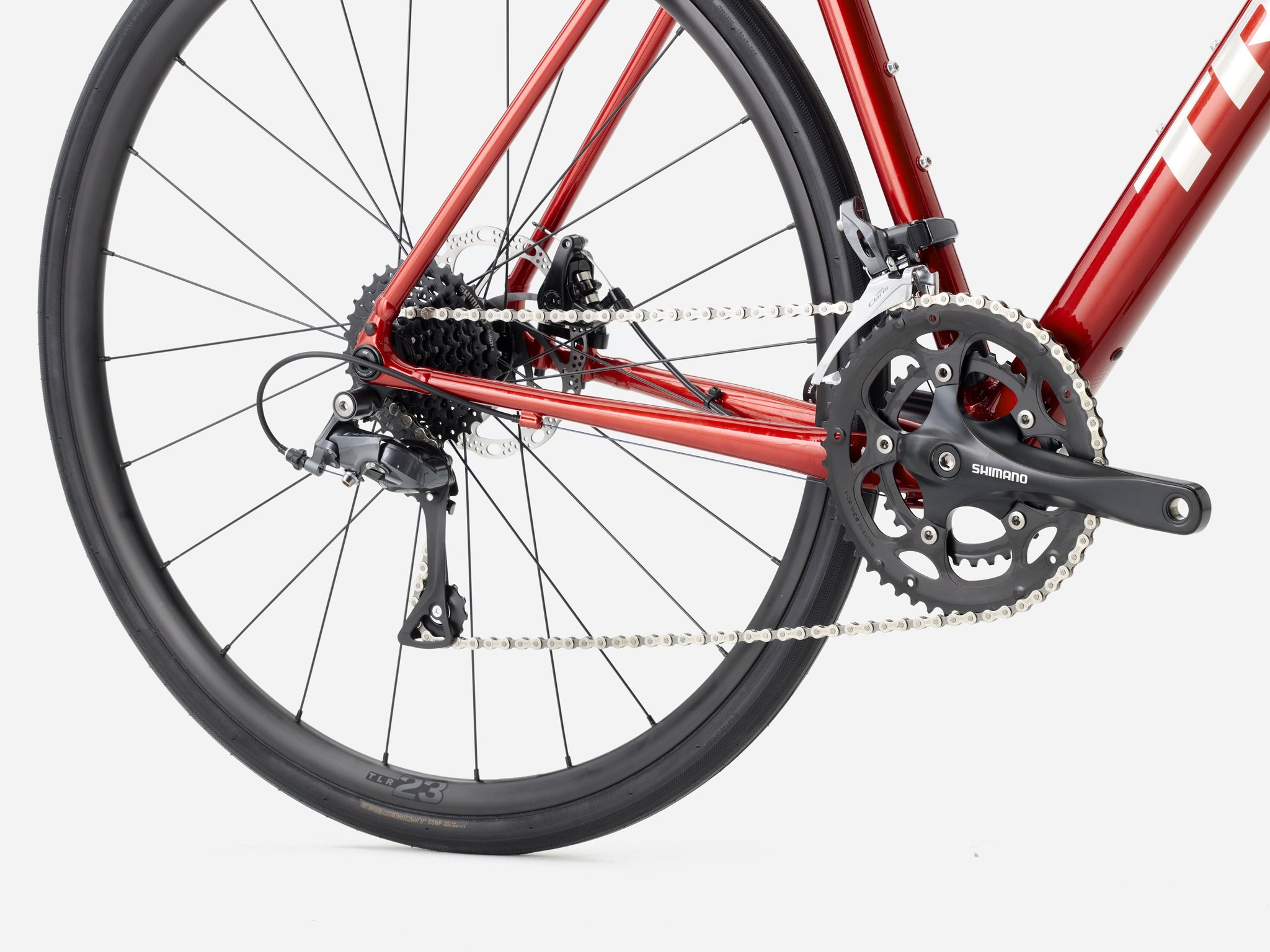

| Derailleur Front | Shimano Claris R2000, 31.8 mm clamp |
| Derailleur Rear | Shimano Claris R2000, medium cage, 34T max cog |
| Crank | Shimano RS200, 50/34 (compact), 165 mm length |
| Bottom Bracket | Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle |
| Cassette | Shimano HG31, 11-32, 8-speed |
| Chain | Shimano Sora HG71, 8 speed |
| Brake | Tektro |
| Brakeset | Tektro C550 mechanical disc brake, dual piston, flat mount // Tektro C550 mechanical disc brake, dual piston, flat mount Tektro C550 mechanical disc brake, dual piston, flat mount // Tektro C550 mechanical disc brake, dual piston, flat mount |
| Brake Rotor | Tektro wave, 6-bolt, 160 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size Chart Rider Height | Rider Height - 150.0 - 153.0 |
| Size Chart Rider Inseam | Inseam - 71.0 - 73.0 |
