Checkpoint+ SL 6 AXS

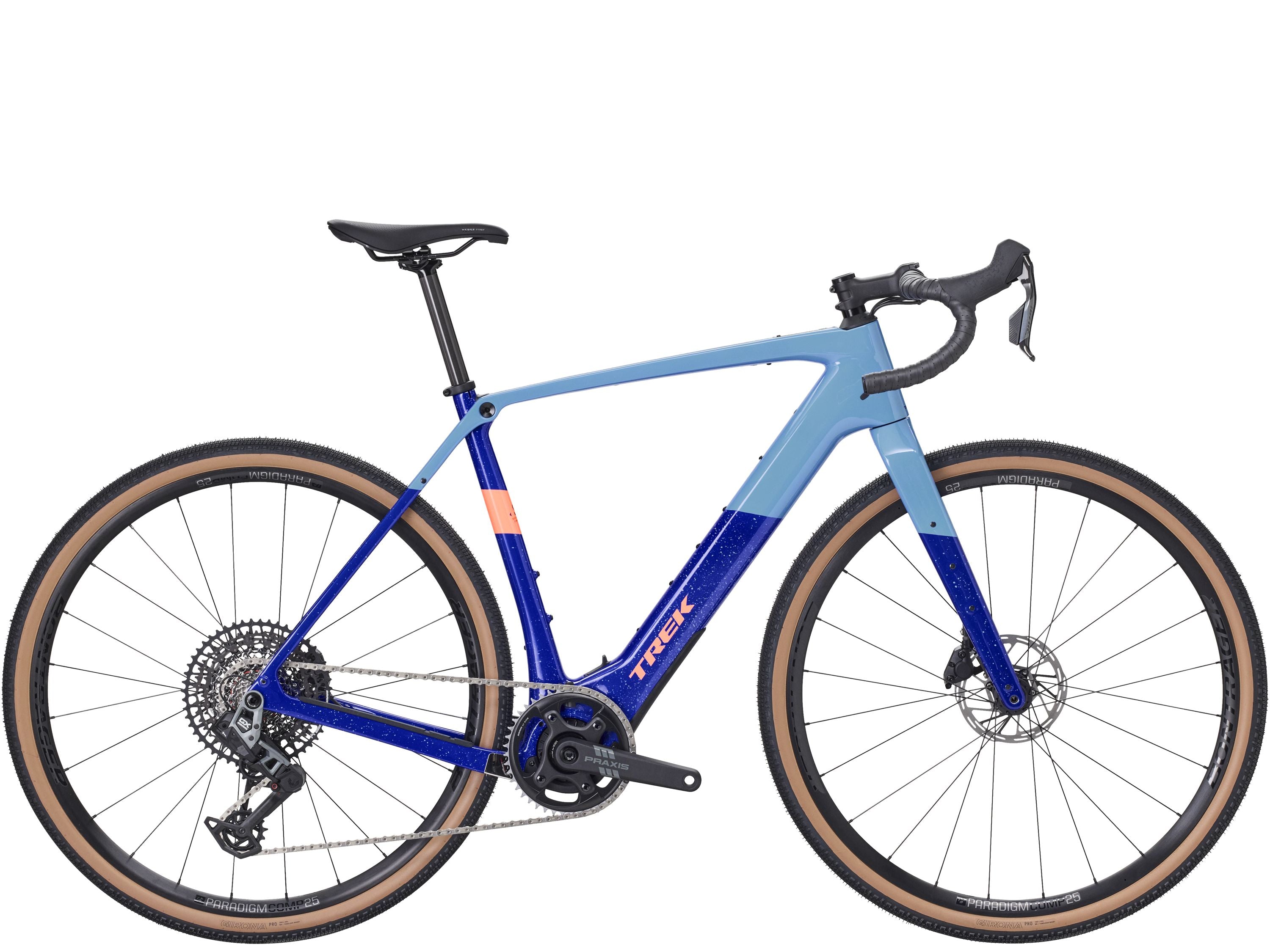

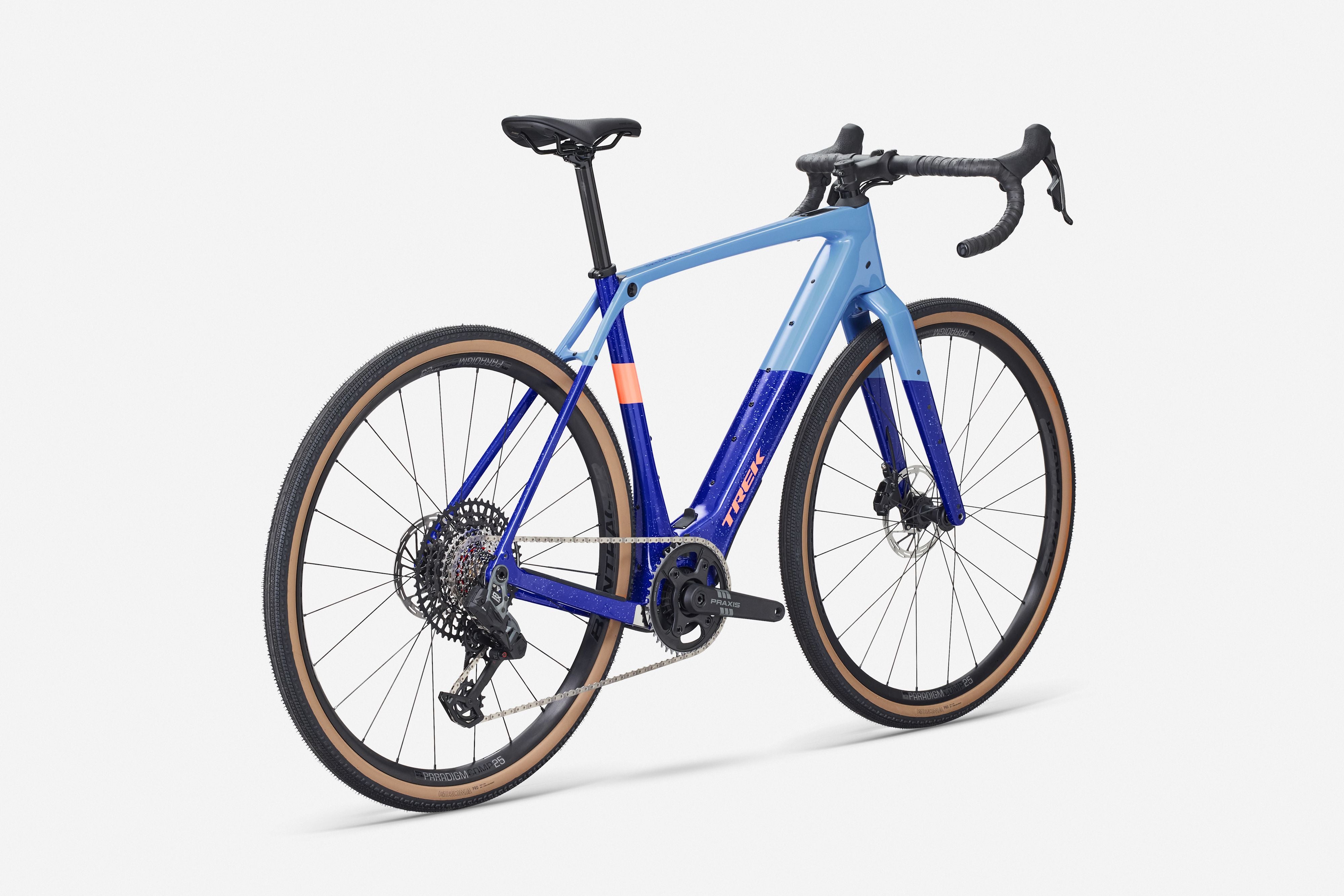

Checkpoint+ SL 6 AXS is a carbon electric gravel bike built to extend your adventures. It's ready to explore anywhere, with a smooth and quiet TQ HPR60 motor, SRAM GX AXS wireless 12-speed drivetrain, durable alloy wheels, clearance for 50 mm tyres and loads of mounts for gear.
Technology

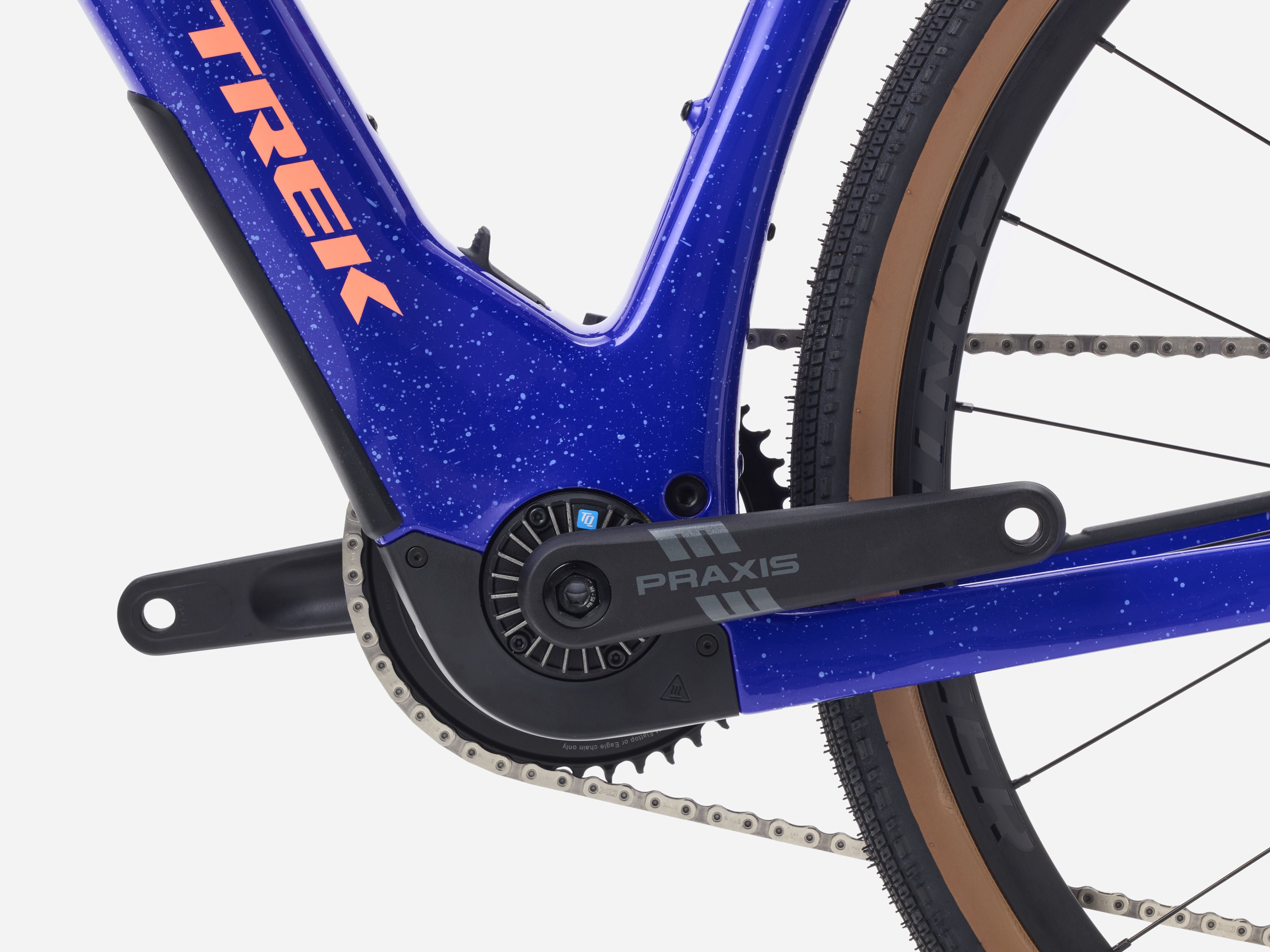

Powerful and discreet e-system - The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet and offers a natural-feeling assist up to 28 mph (25 kph in Europe) with 50 miles of range (in Eco mode). Plus, choose how much boost you get and when you get it with three assist modes.
Specification
| Frame | 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
|---|---|
| Frame Material | CARBON |
| Rim Size | 28 |
| Fork | Trek |

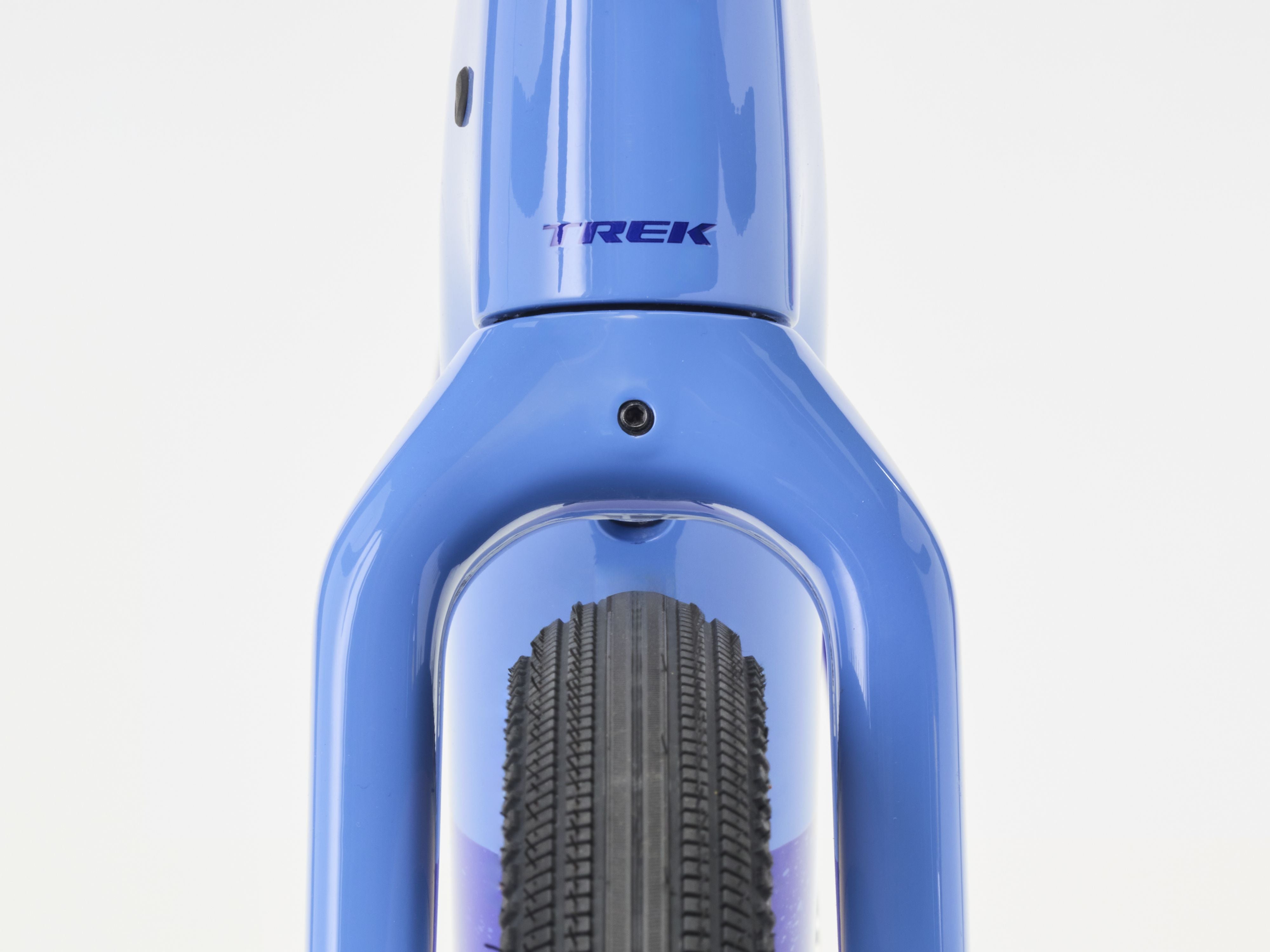

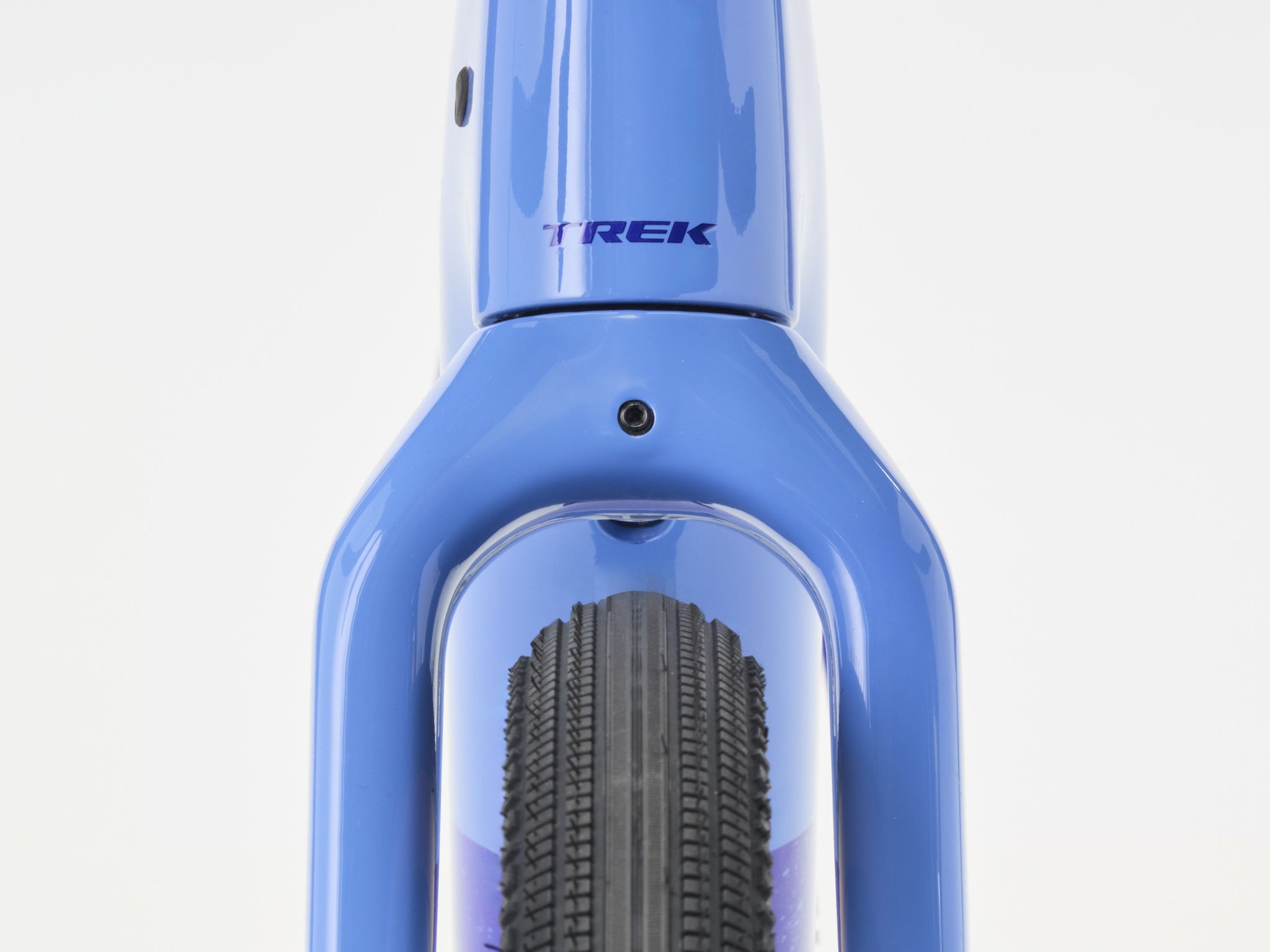

| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheels | Bontrager Paradigm Comp 25 |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Shifter | SRAM |
| Derailleur Rear | SRAM GX Eagle AXS, T-Type |
| Crank | Praxis Alloy, 172.5 mm length |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Brake Rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

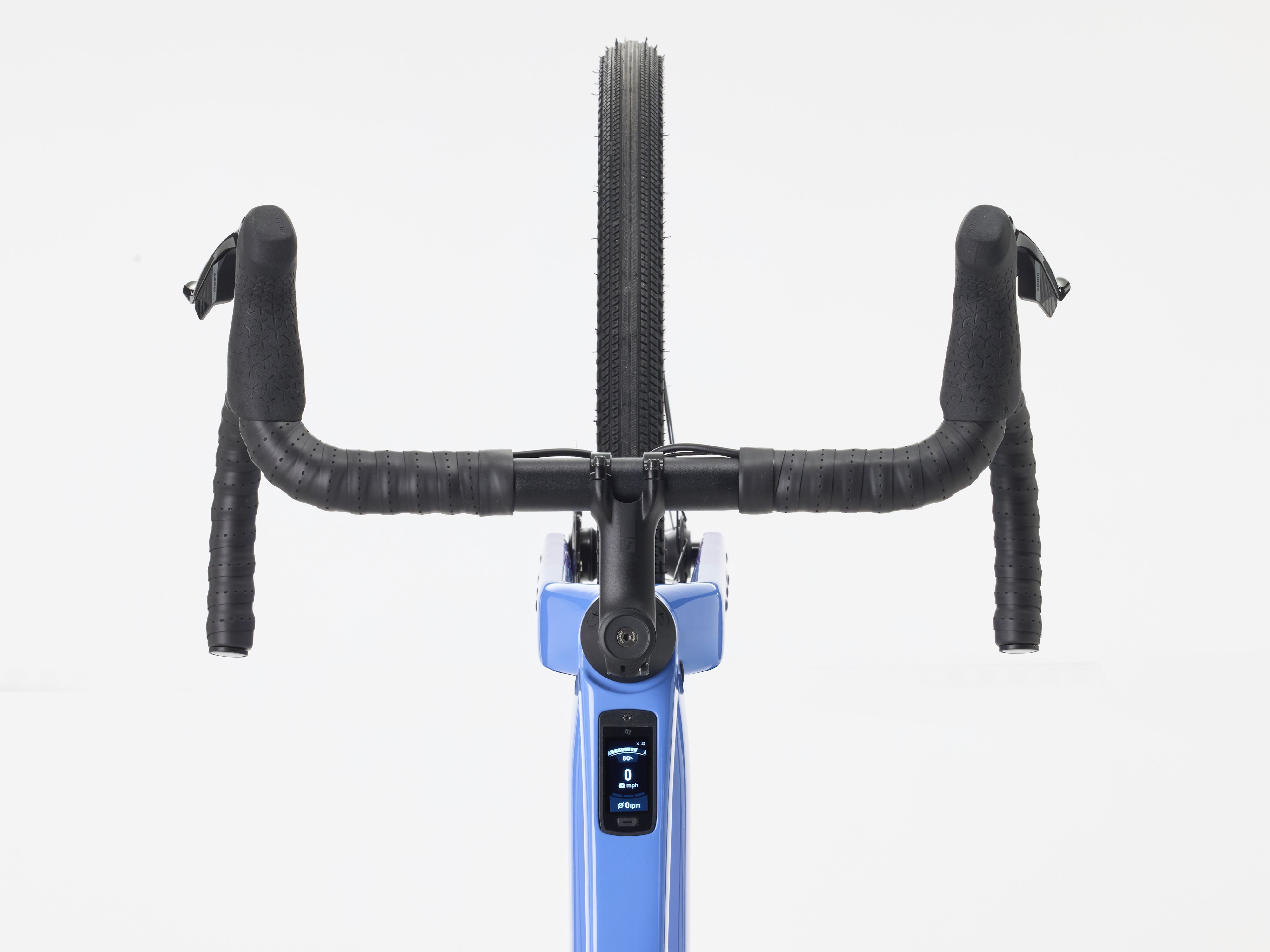

| Handlebar | Bontrager Elite Gravel, alloy, 44 cm width |
| Stem | Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length |
| Battery | TQ 360Wh TQ 360Wh |
| Controller | TQ LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 188.0 - 194.0 |
| Size Chart Rider Inseam | Inseam - 88.0 - 91.0 |
