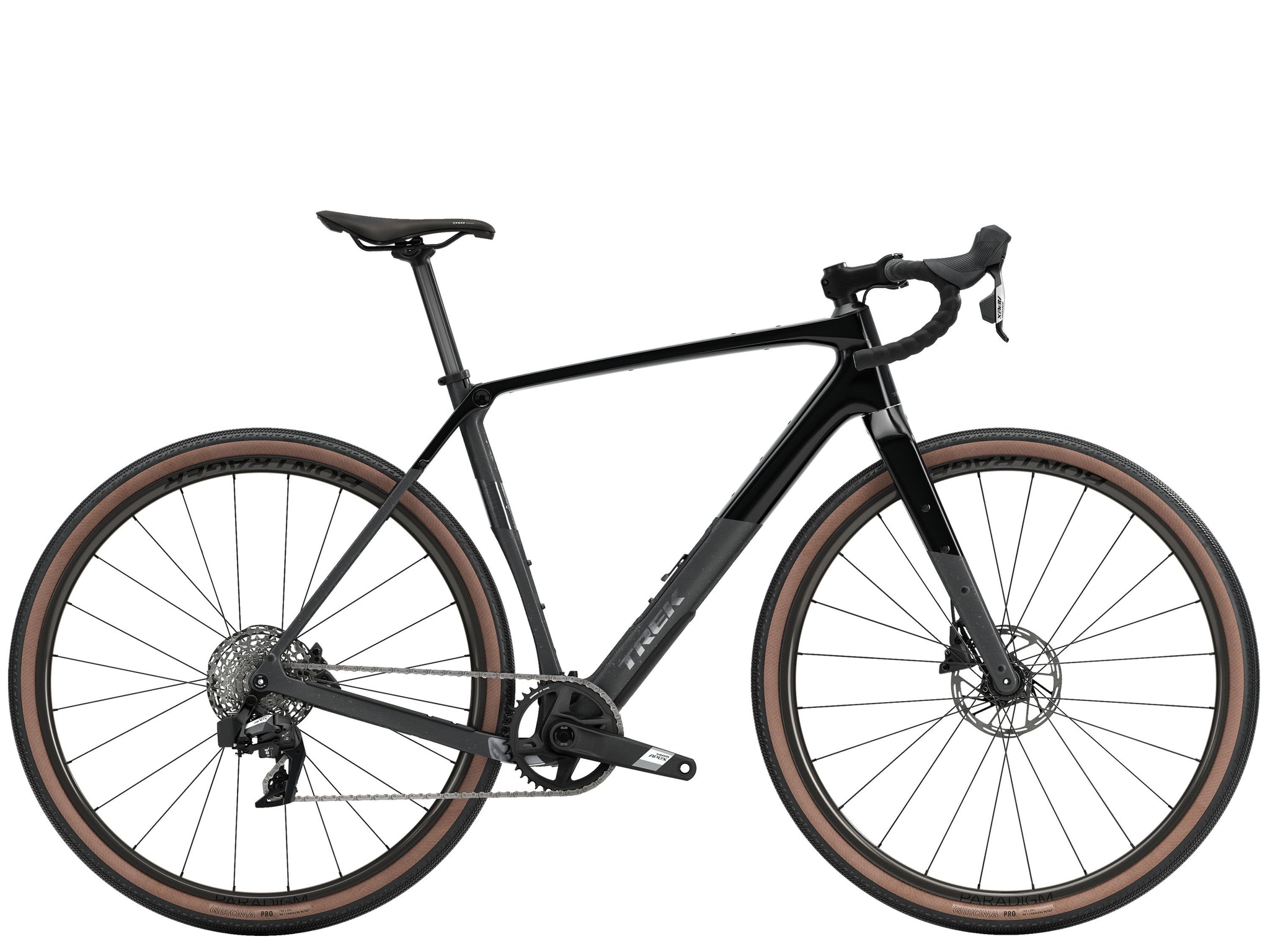

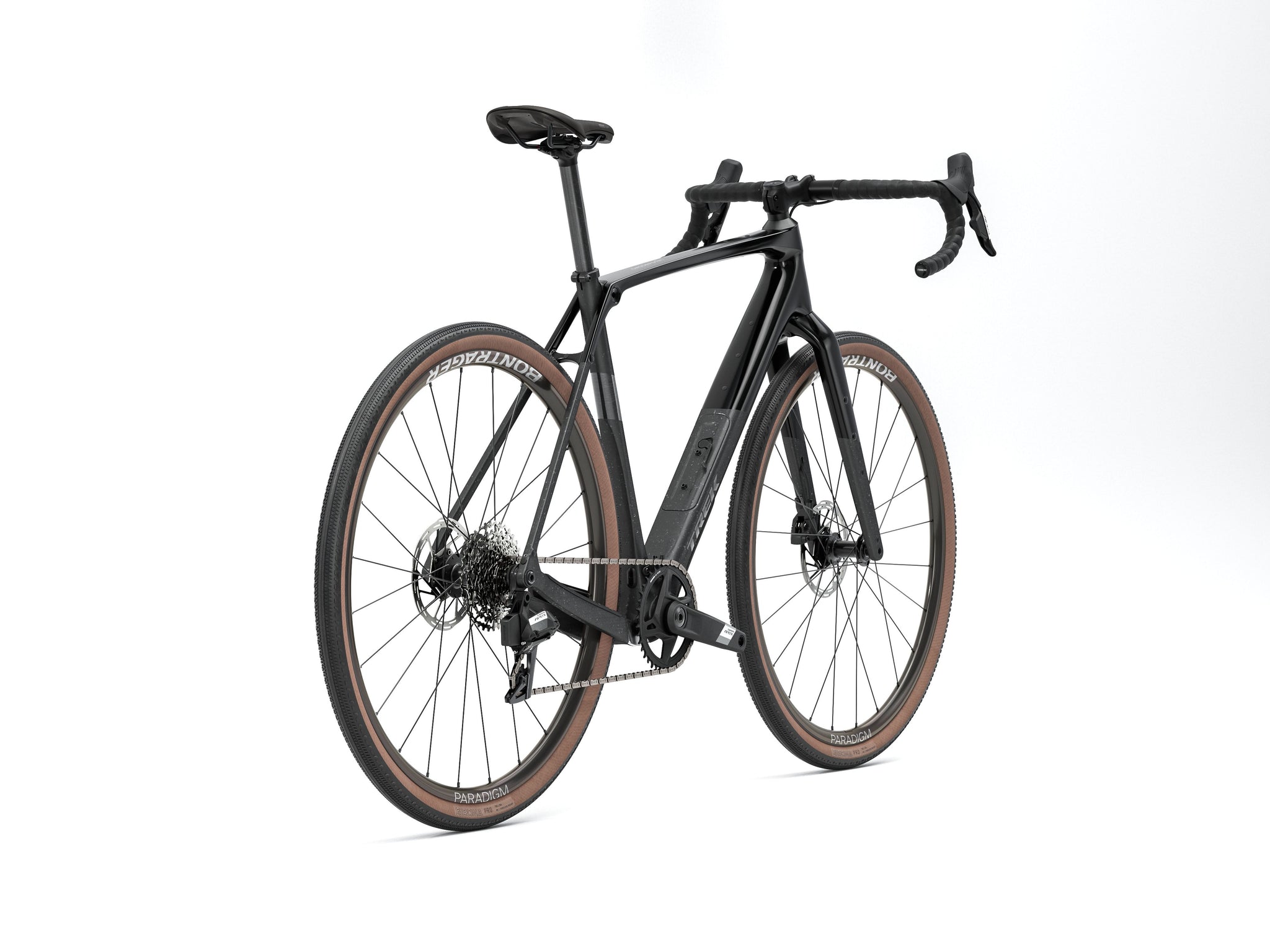

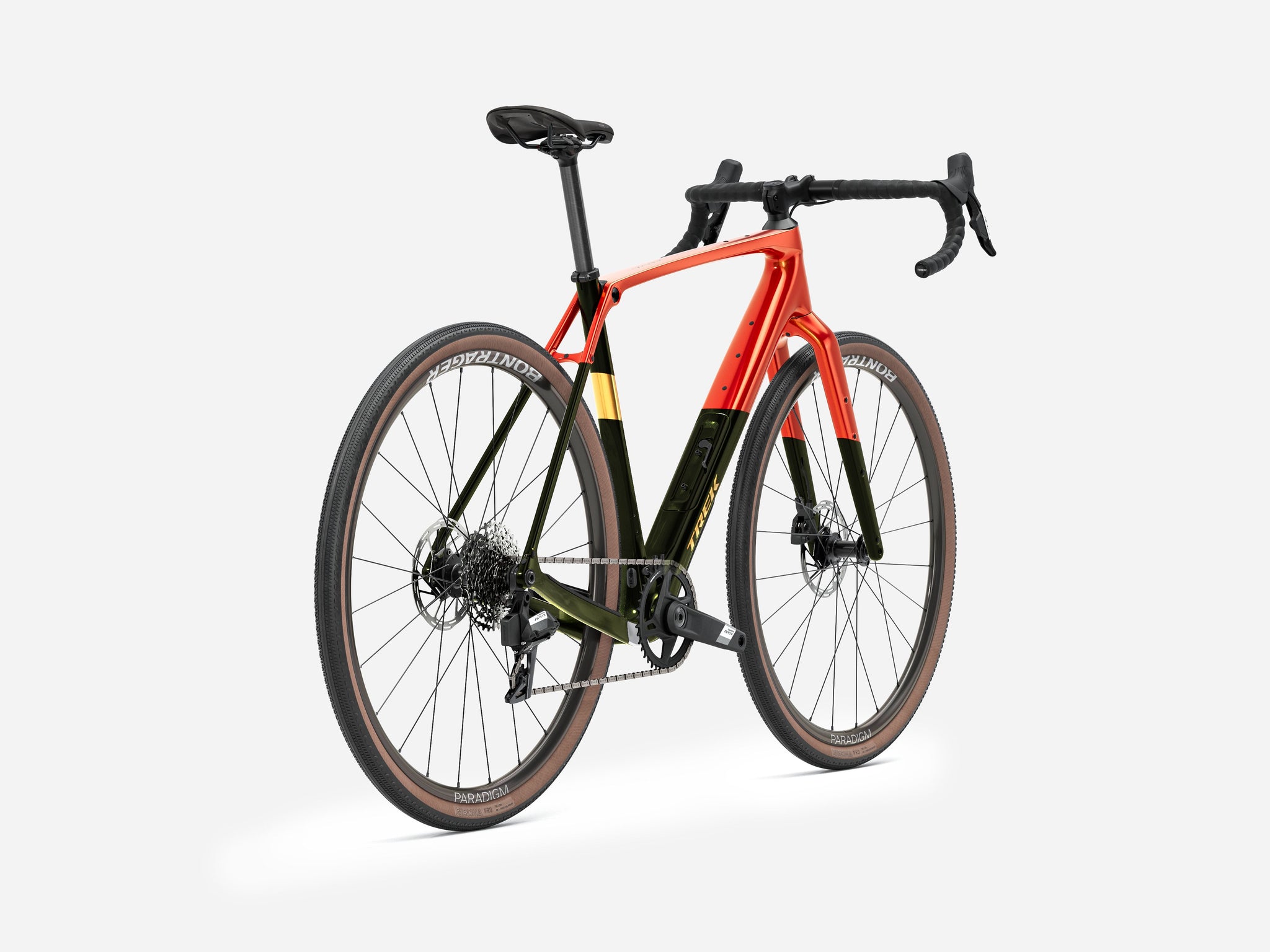

Checkpoint SL 5 AXS Gen 3
The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, so you can you float over chatter and potholes. It comes equipped with a wireless SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.
Technology
IsoSpeed comfort tech - IsoSpeed comfort tech smooths pot holes and fatiguing bumps in the road so you can ride stronger for longer.
Specification
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
|---|---|
| Frame Material | CARBON |
| Rim Size | 28 |
| Fork | Trek |

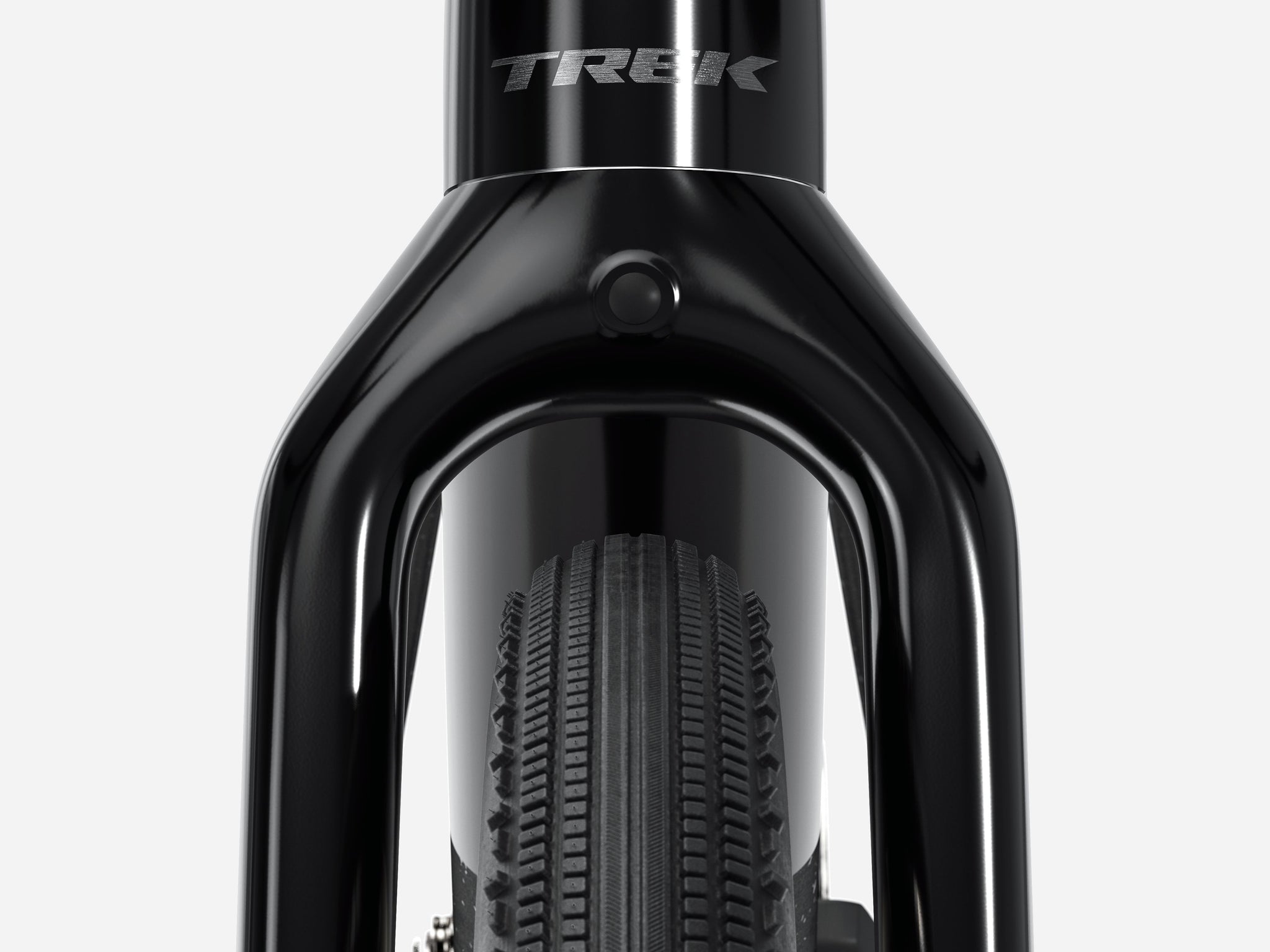

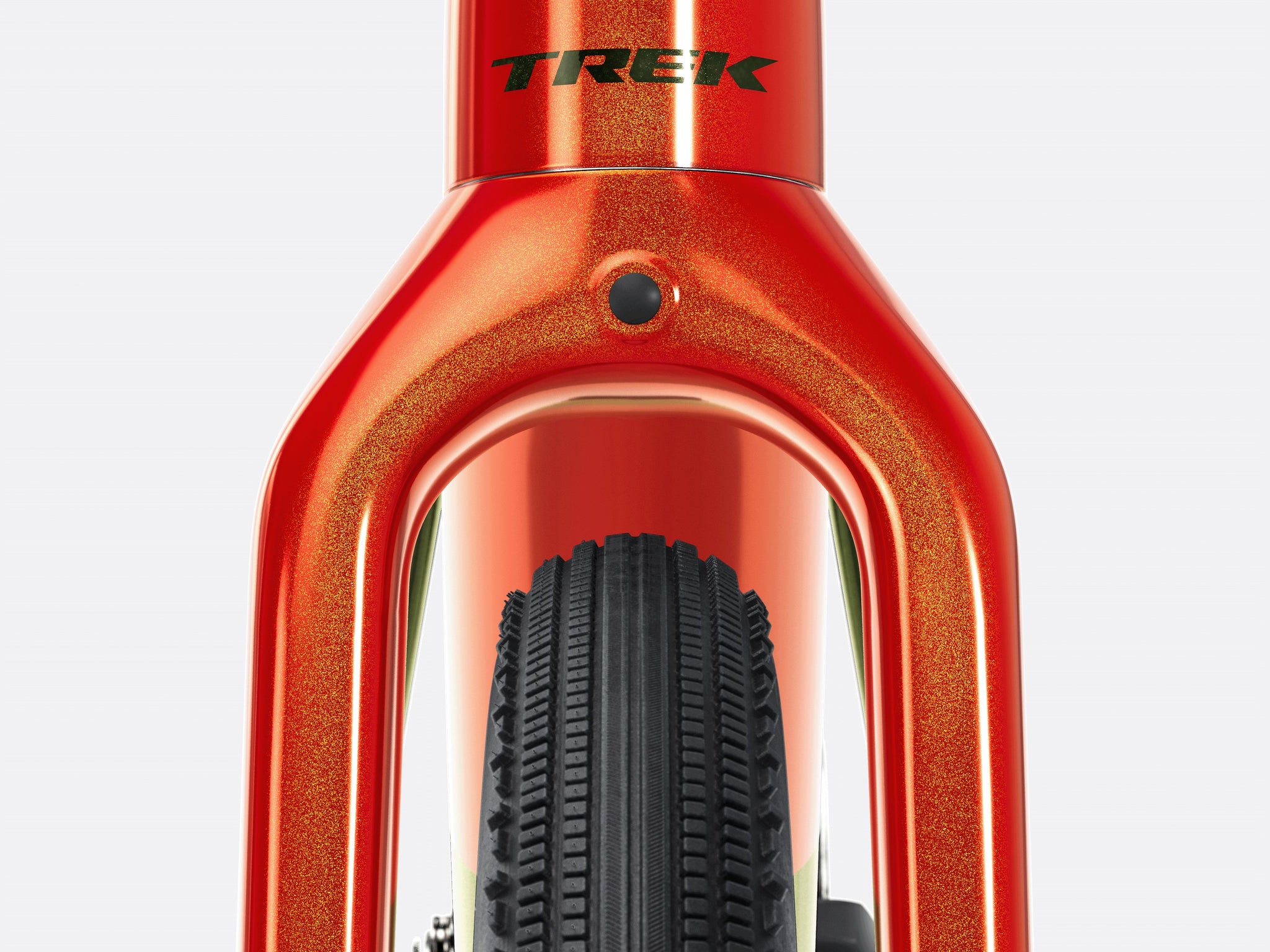

| Fork | Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, |
| Wheels | Bontrager Paradigm SL |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Hub Front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve // Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Shifter | SRAM |

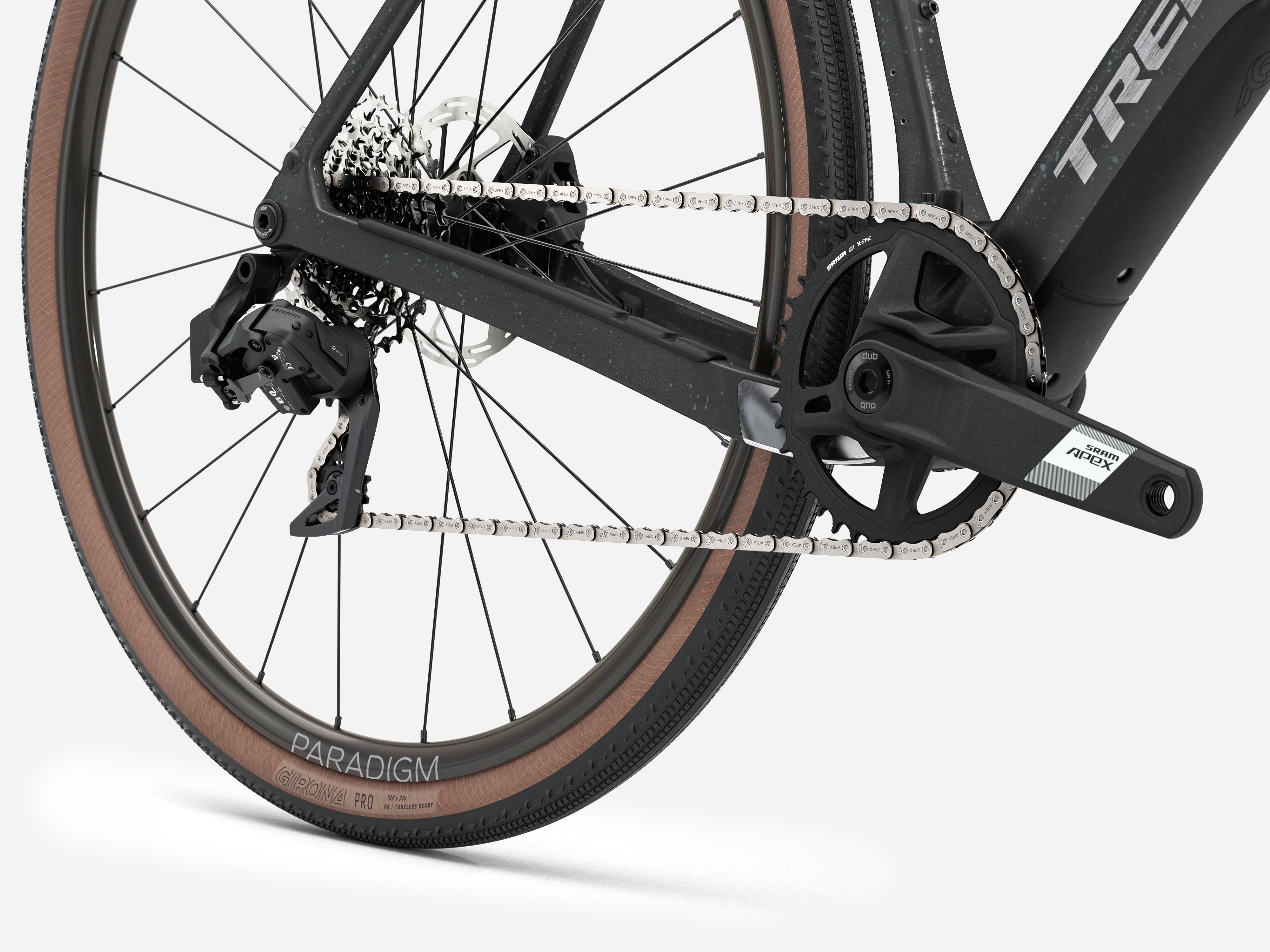

| Derailleur Rear | SRAM Apex XPLR eTap AXS, 44T max cog |
| Crank | SRAM Apex 1, 40T, DUB Wide, 172.5 mm length |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Brake Rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

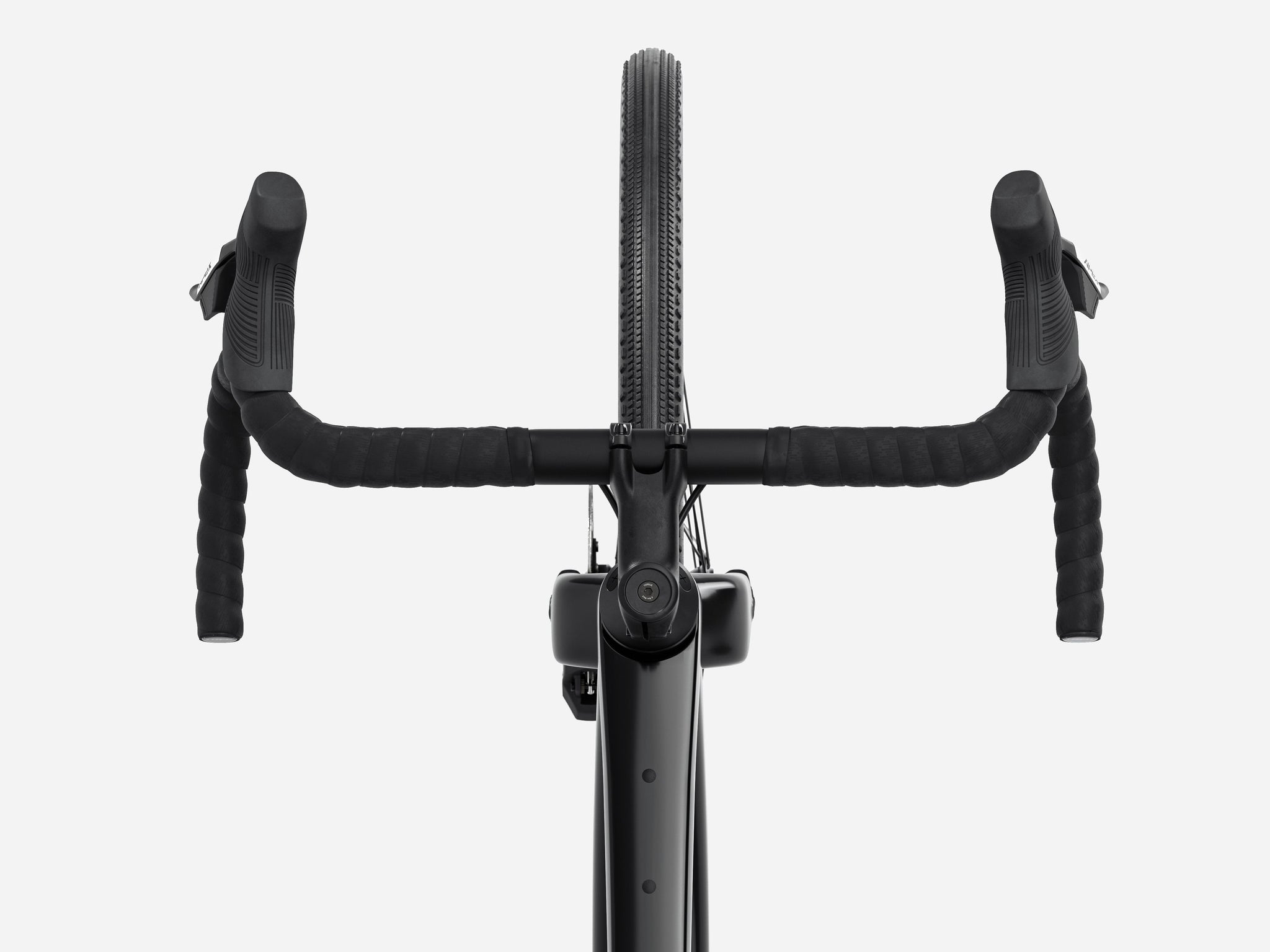

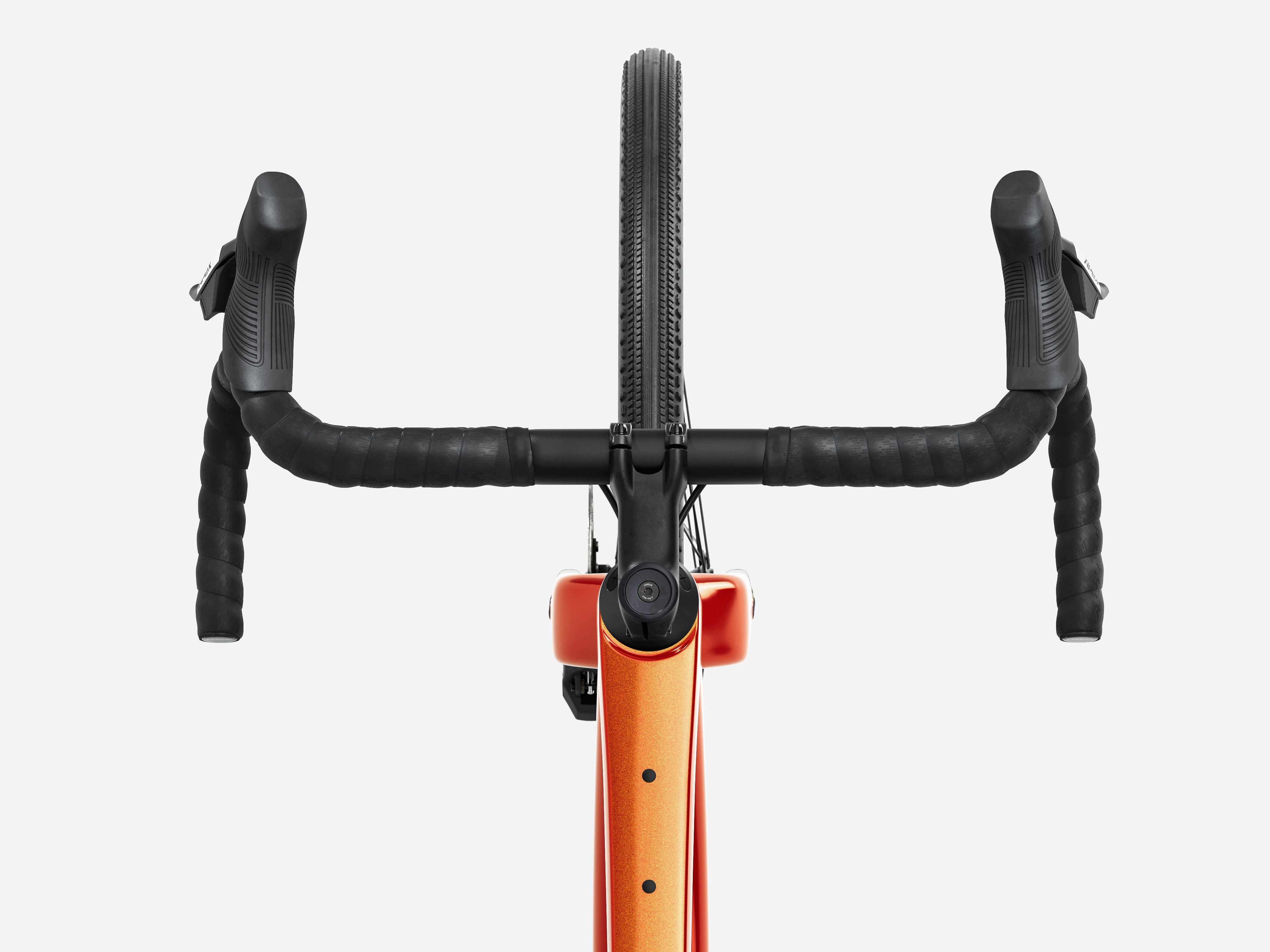

| Handlebar | Bontrager Elite Gravel, alloy, 44 cm width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Battery | SRAM AXS battery pack (with charger) SRAM AXS battery pack (with charger) |
| Size Chart Rider Height | Rider Height - 188.0 - 194.0 |
| Size Chart Rider Inseam | Inseam - 88.0 - 91.0 |
