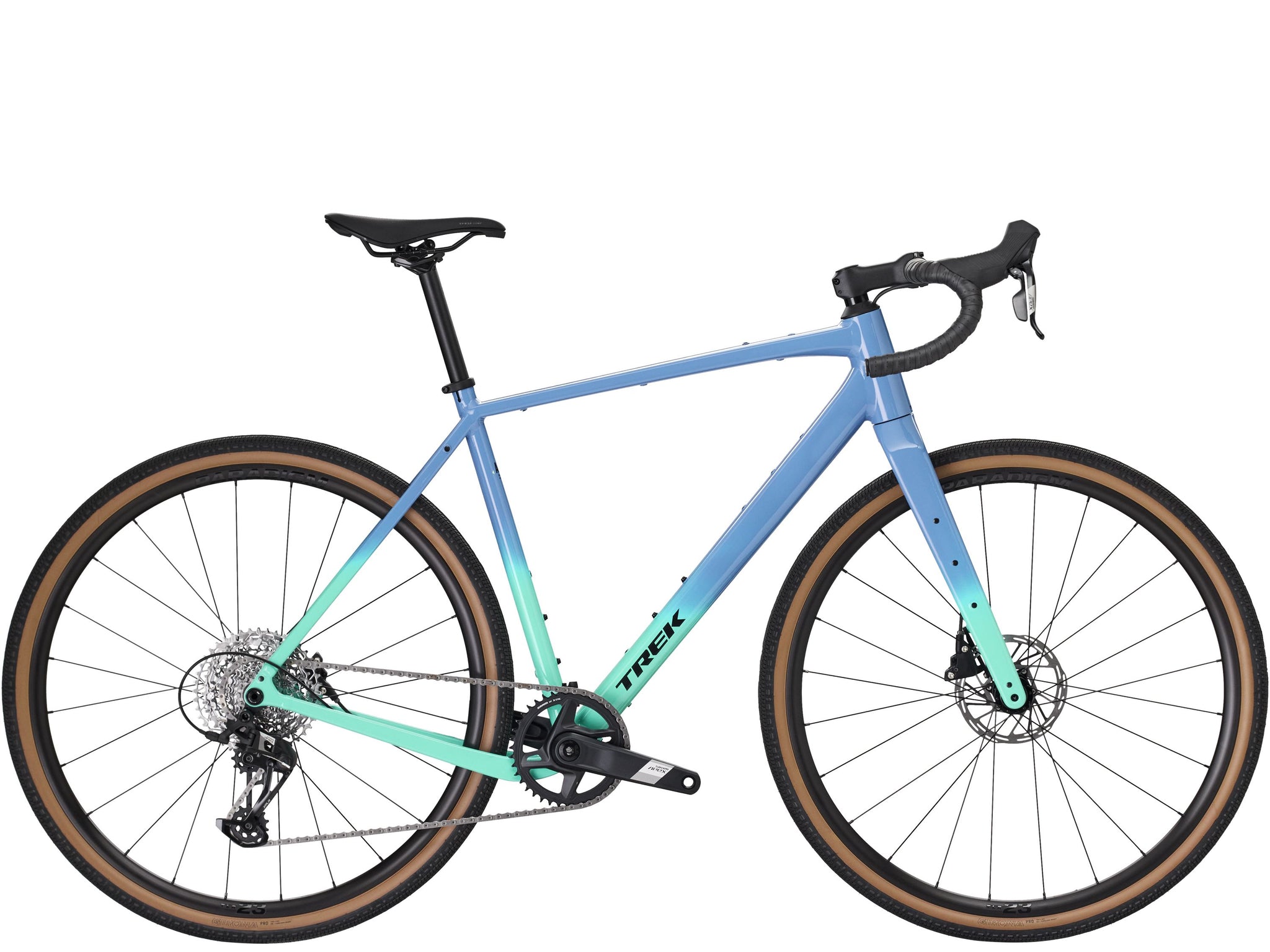

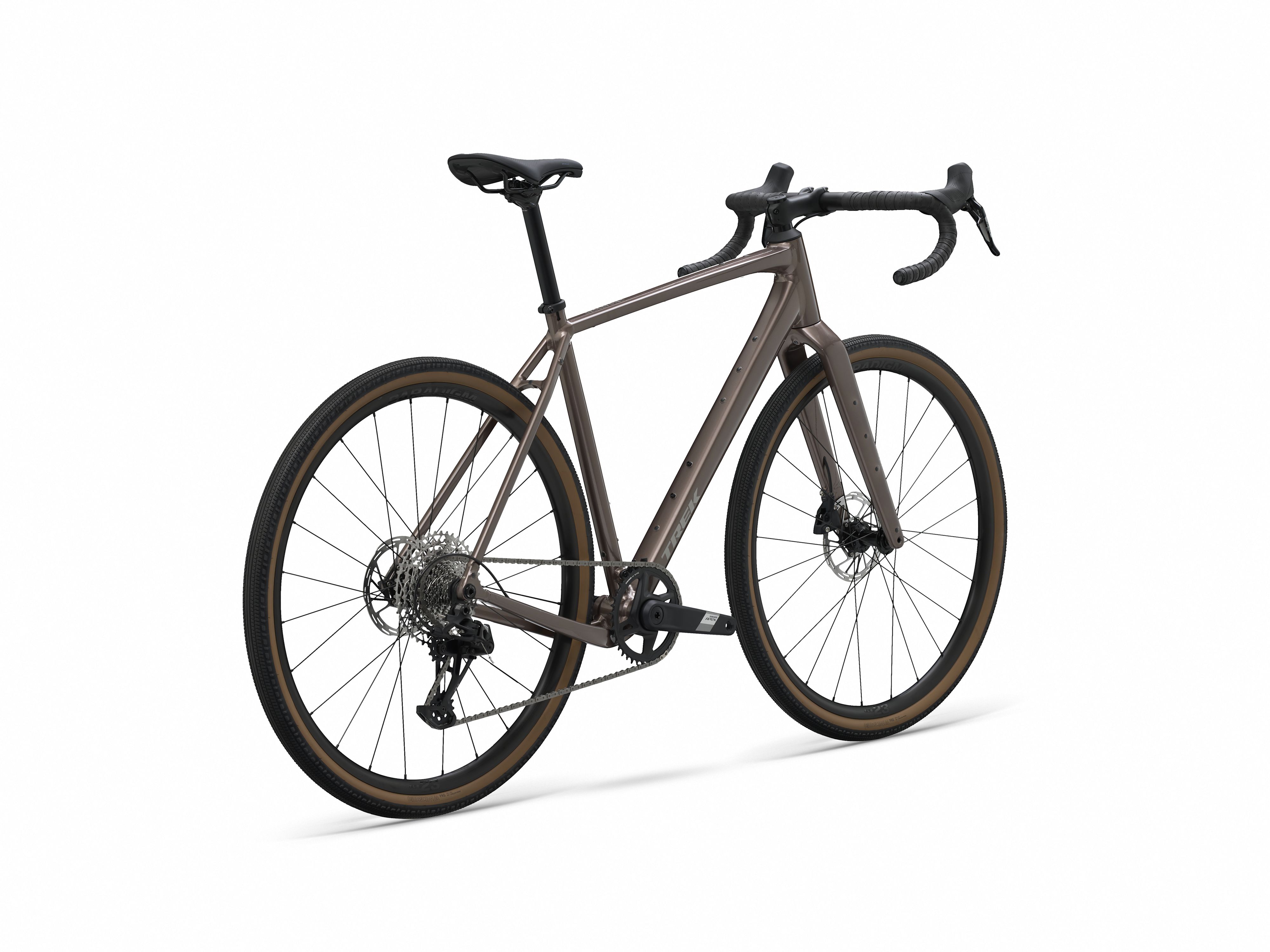

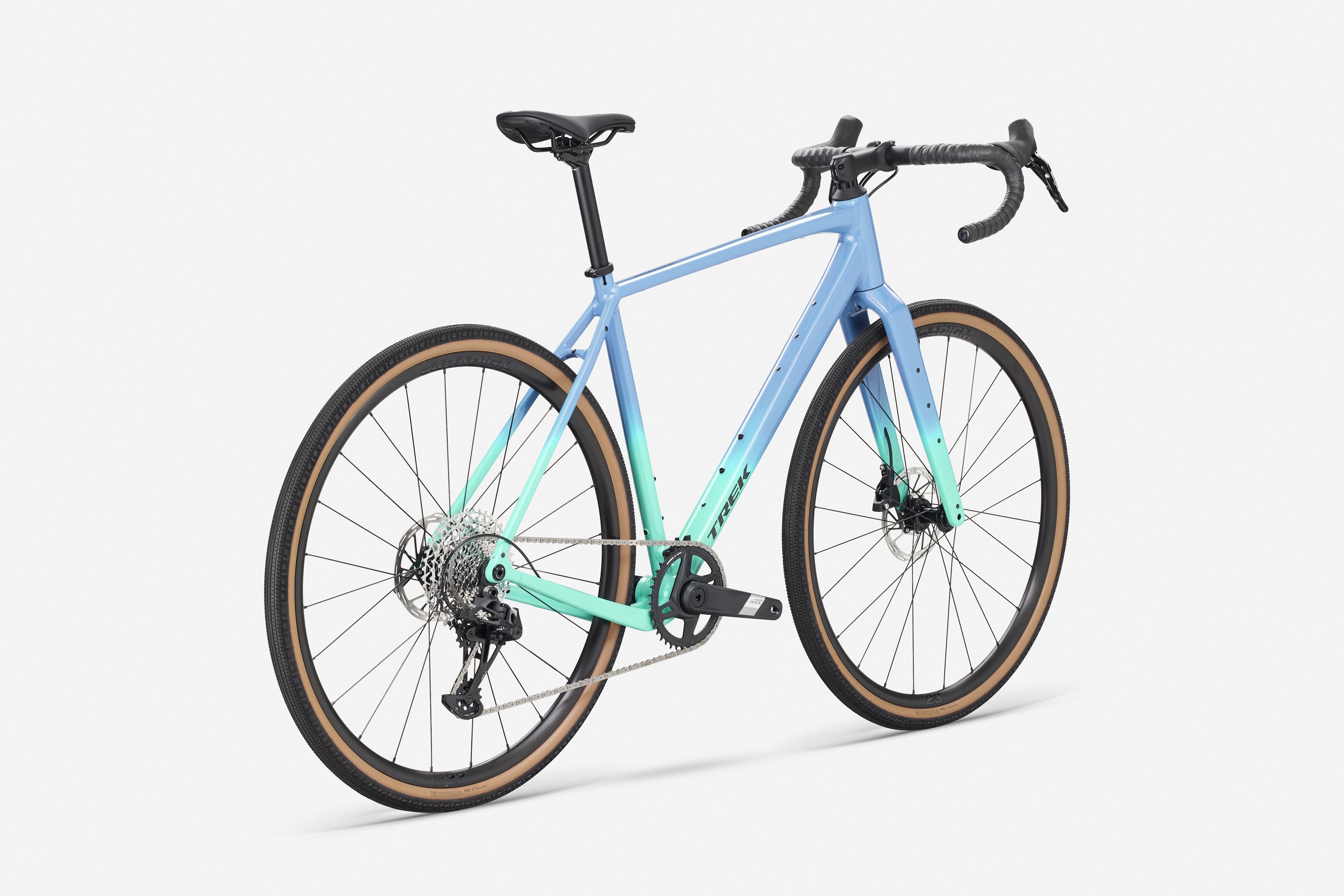

Checkpoint ALR 5 Gen 3
Checkpoint ALR 5 is an aluminum gravel bike built for riders who want to go farther, faster. Its modern endurance geometry pairs with a carbon fork for road-smoothing comfort, while clearance for up to 50mm tires adds traction and confidence on rough terrain. A SRAM Apex XPLR 12-speed drivetrain, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels, and plenty of mounts for bags and gear make it ready for big adventures.
Technology
Mounts galore - The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, mudguards and Adventure Top Tube, Frame and Triangle Bags. Plus, the new frame has been optimised to fit extra hydration in addition to all your bags.
Specification
| Frame | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |

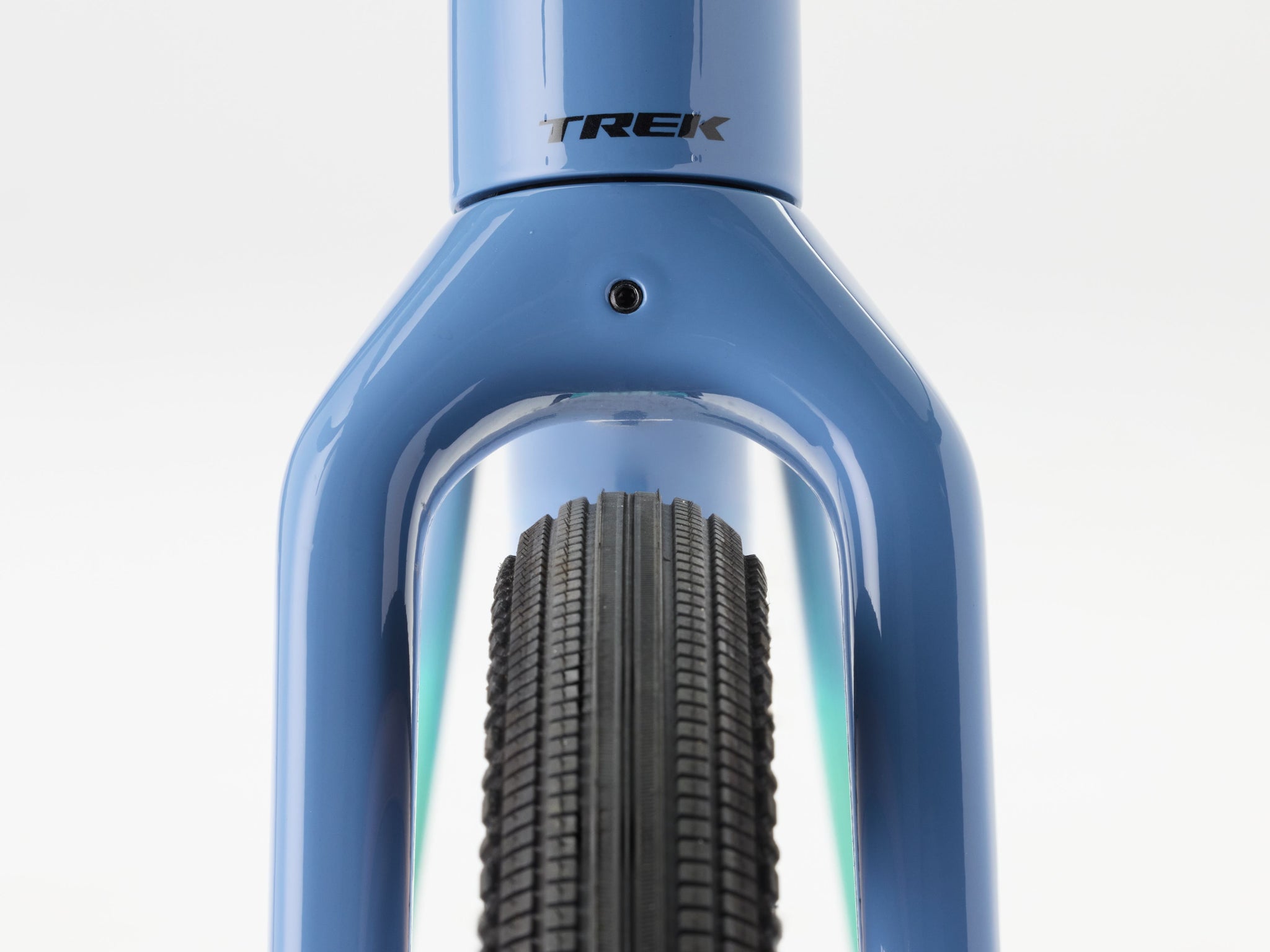

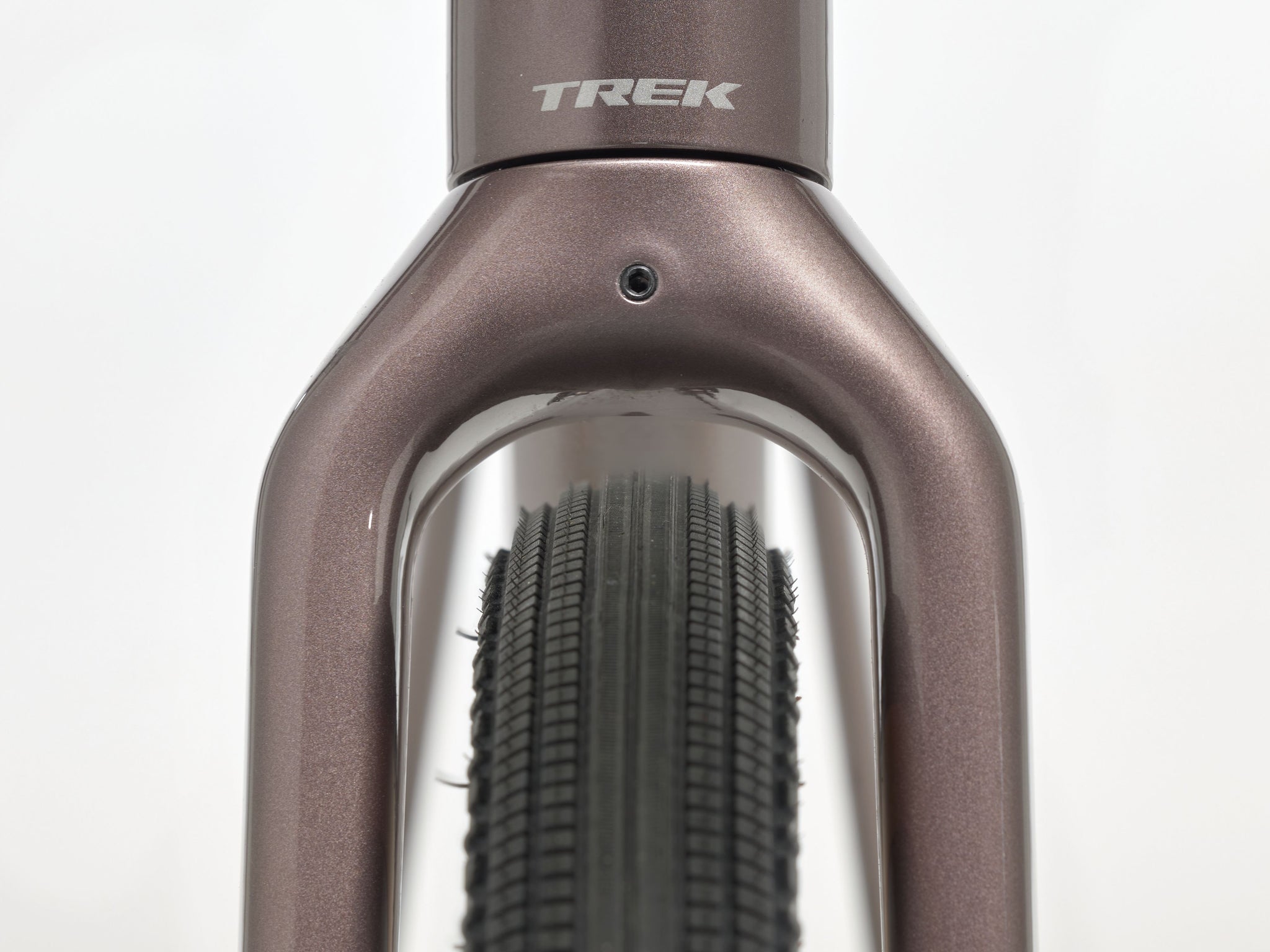

| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thr |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Hub Front | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Shifter | SRAM |
| Derailleur Rear | SRAM Apex XPLR, 44T max cog |
| Crank | SRAM Apex 1, 40T, DUB Wide, 172.5 mm length |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Apex D1 hydraulic disc, flat mount // SRAM Apex D1 hydraulic disc, flat mount SRAM Apex D1 hydraulic disc, flat mount // SRAM Apex D1 hydraulic disc, flat mount |
| Brake Rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Handlebar | Bontrager Elite Gravel, alloy, 44 cm width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Size Chart Rider Height | Rider Height - 188.0 - 194.0 |
| Size Chart Rider Inseam | Inseam - 88.0 - 91.0 |
