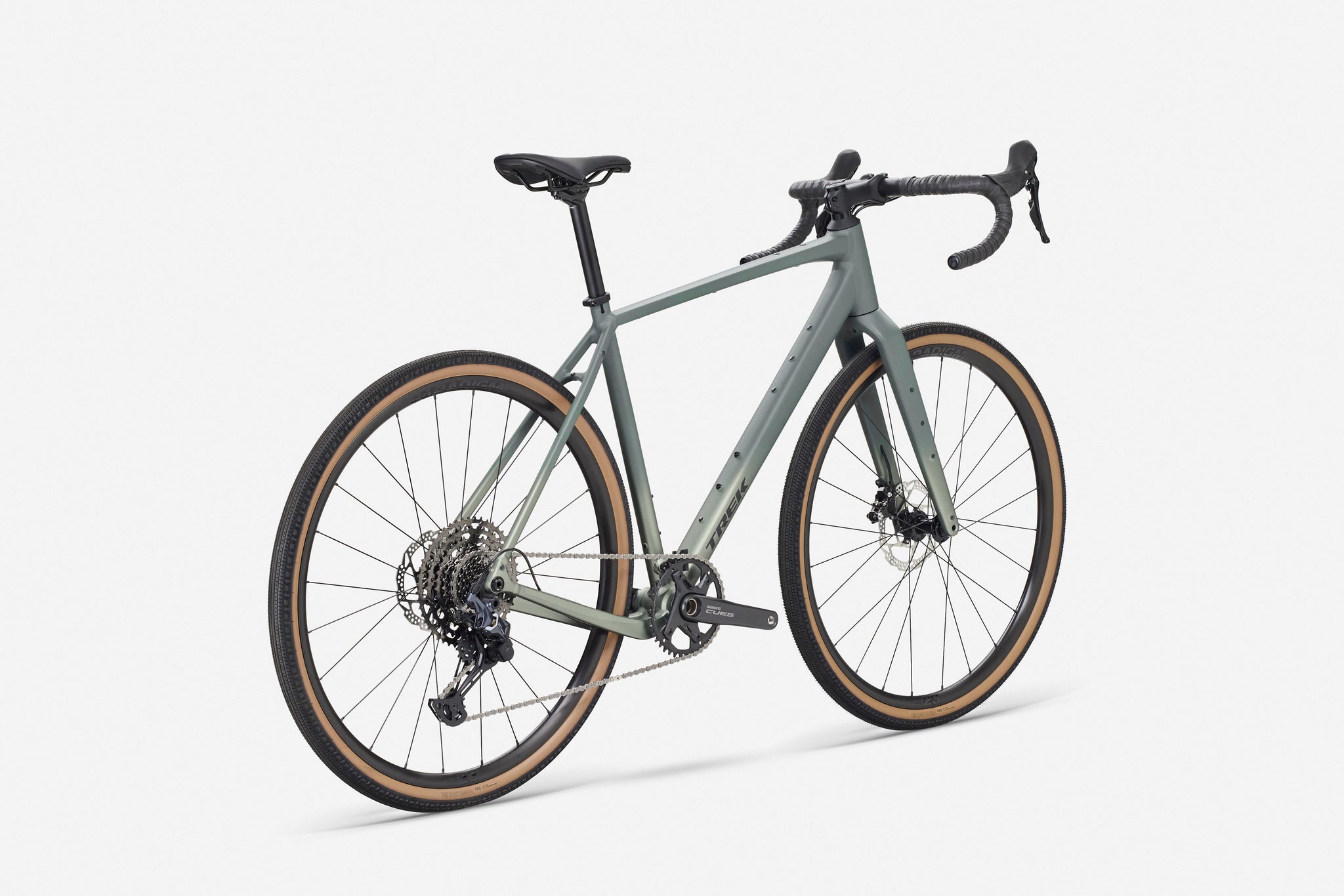

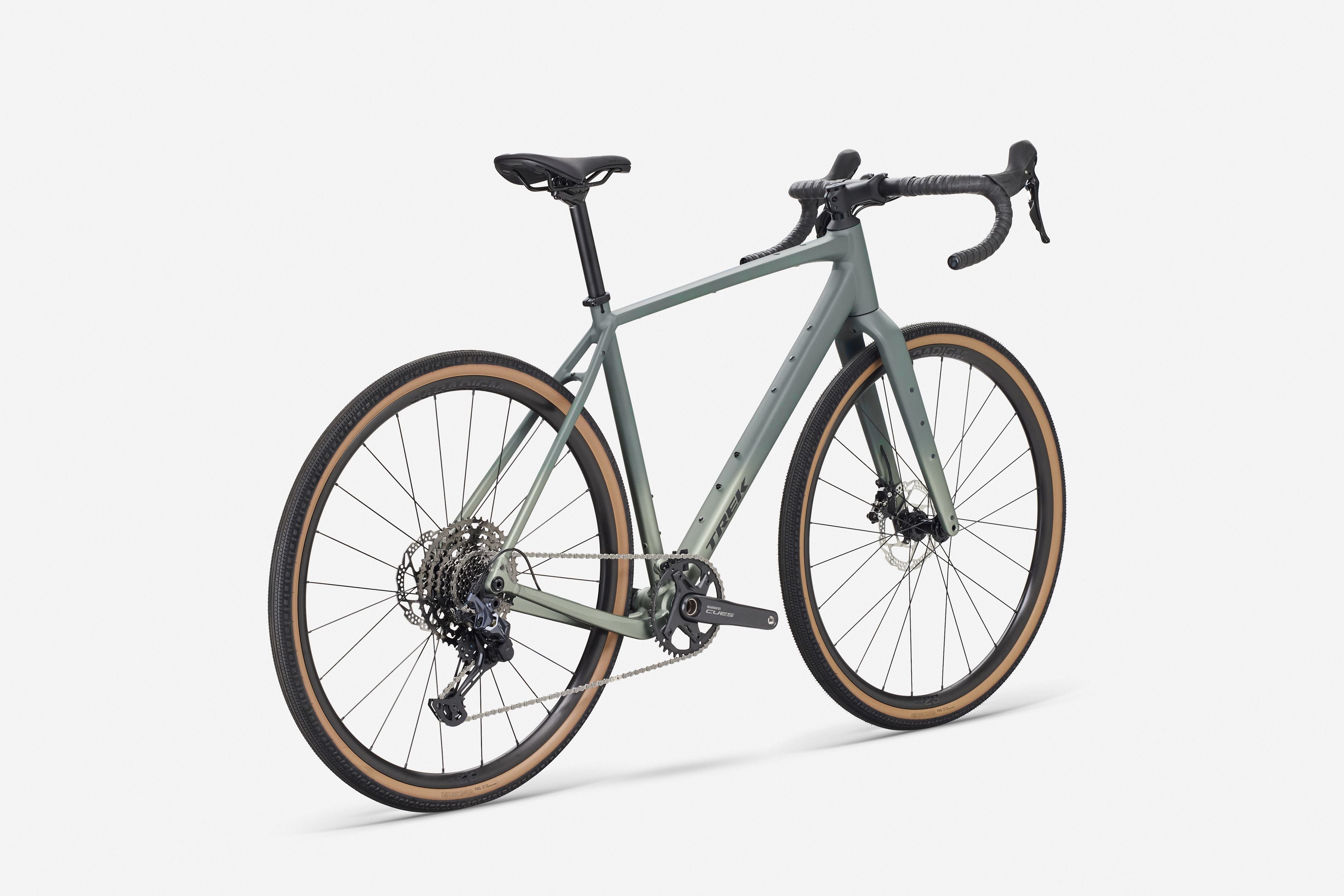

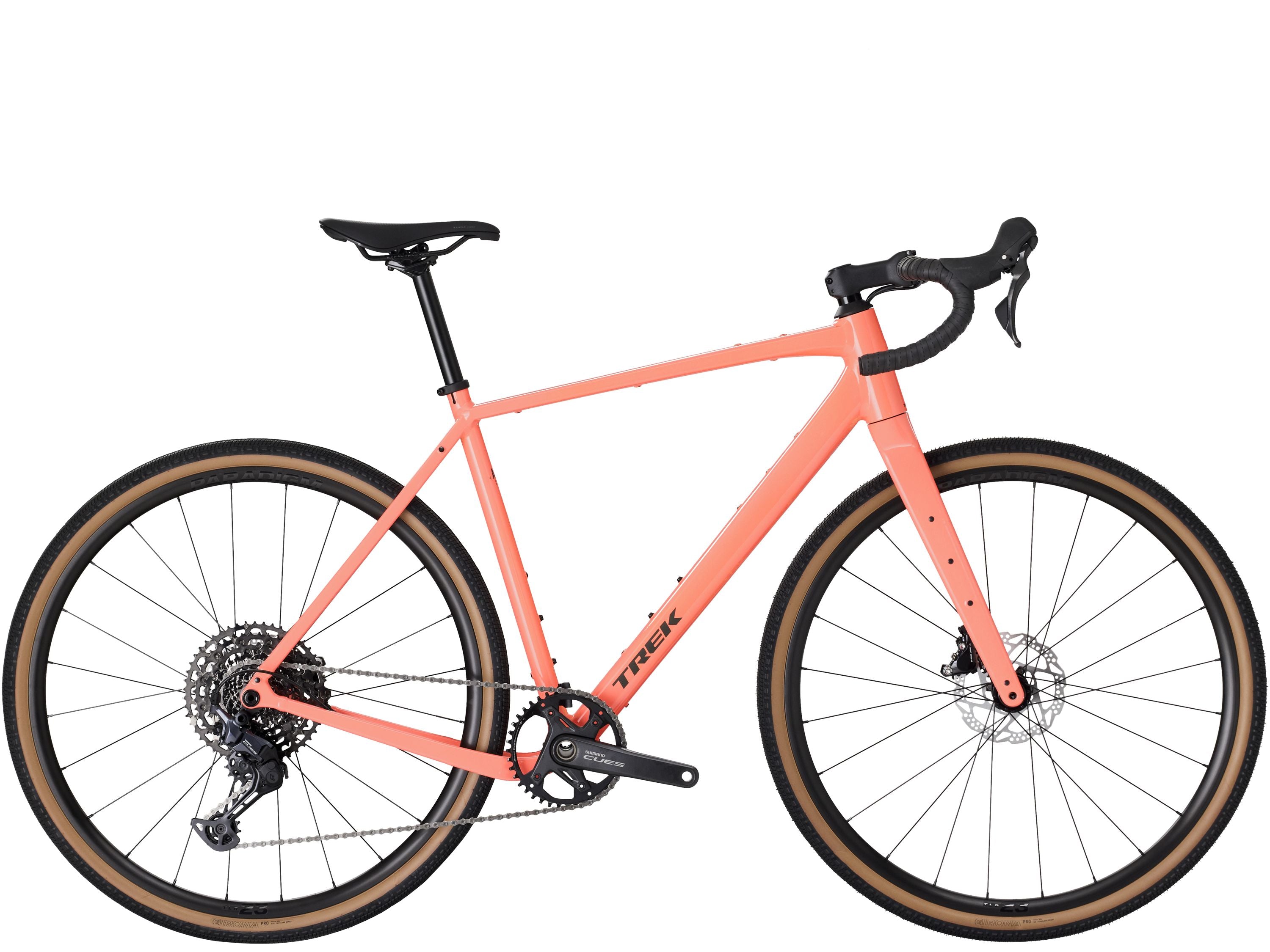

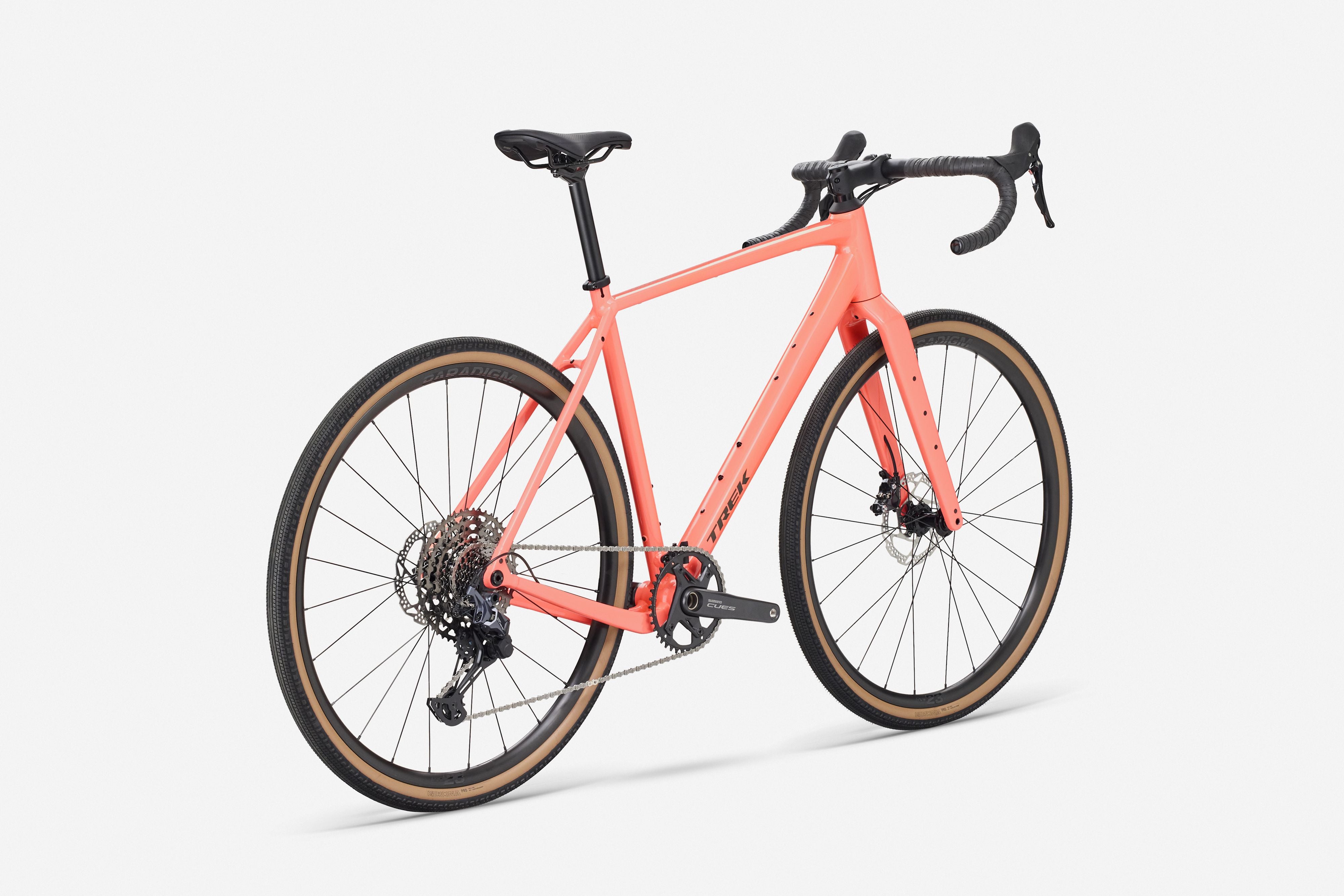

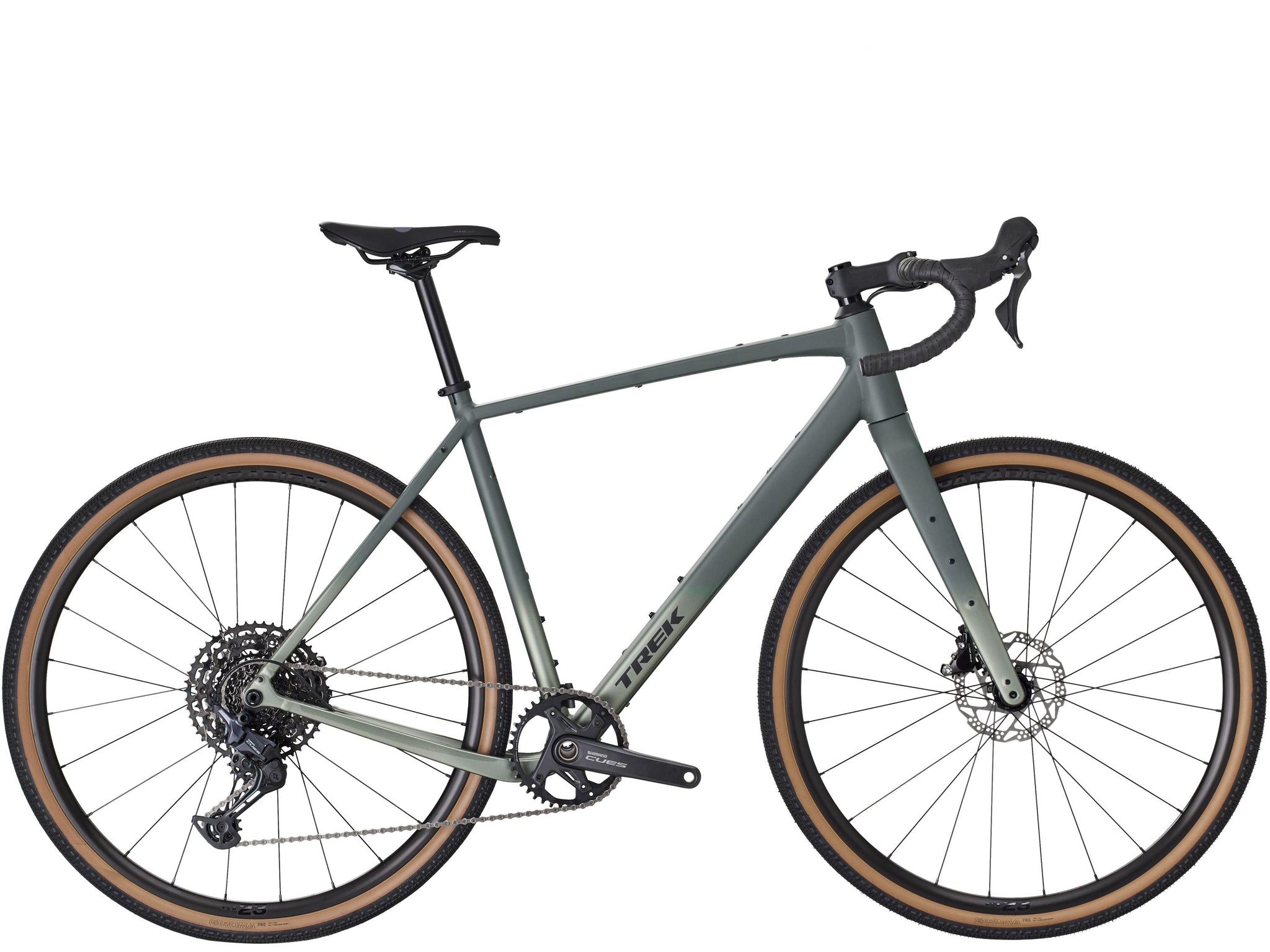

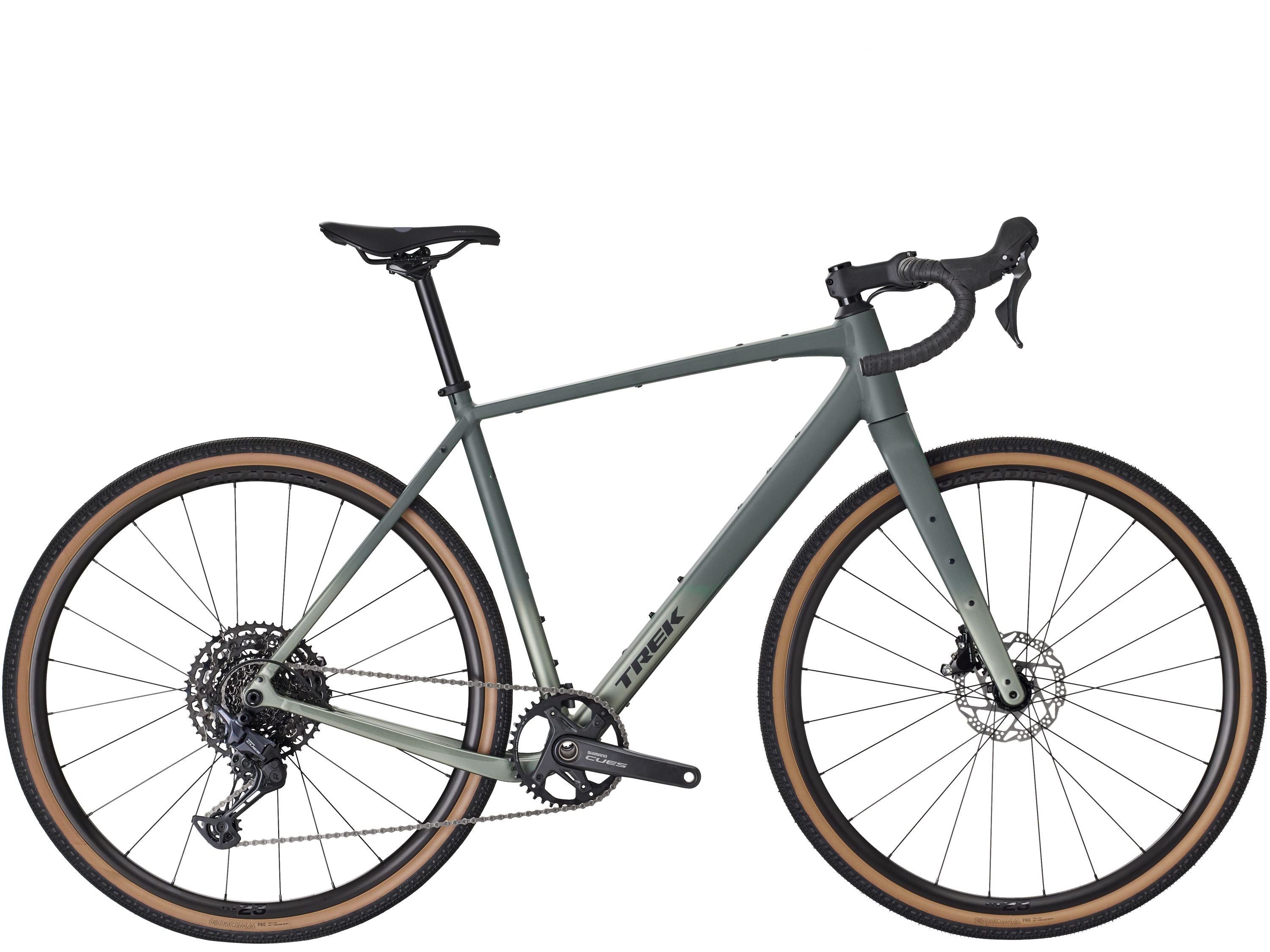

Checkpoint ALR 4 Gen 3
Checkpoint ALR 4 is a versatile aluminum gravel bike built for riders who want to wander a little farther from the beaten path. Its modern endurance geometry and carbon fork help smooth rough roads, while clearance for up to 50mm tires adds confidence and grip on loose terrain. An 11-speed Shimano CUES drivetrain, hydraulic disc brakes, and plenty of mounts for bags and gear make it ready for big rides and everyday adventures alike.
Technology
Mounts galore - The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, mudguards and Adventure Top Tube, Frame and Triangle Bags. Plus, the new frame has been optimised to fit extra hydration in addition to all your bags.
Specification
| Frame | 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |

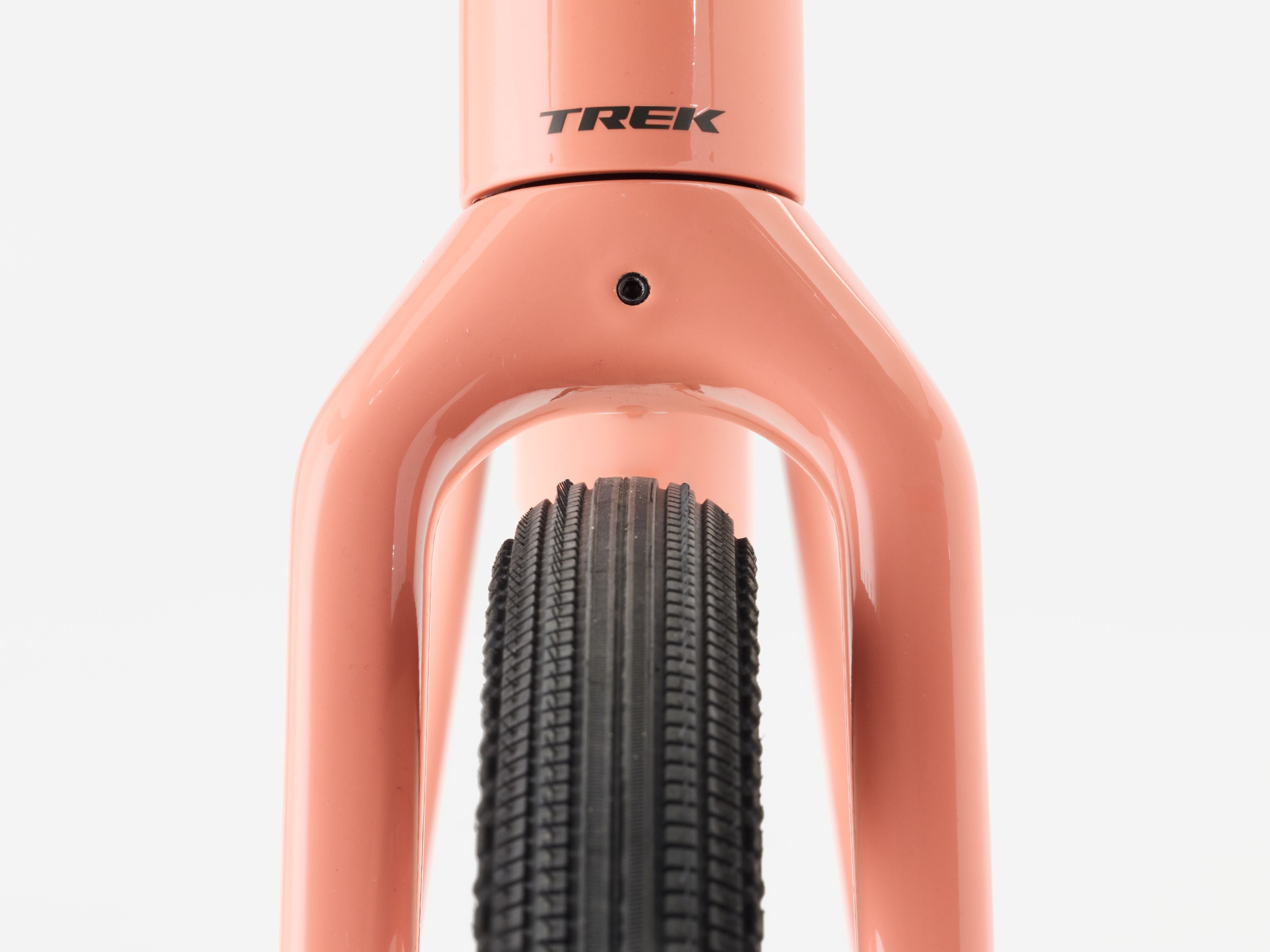

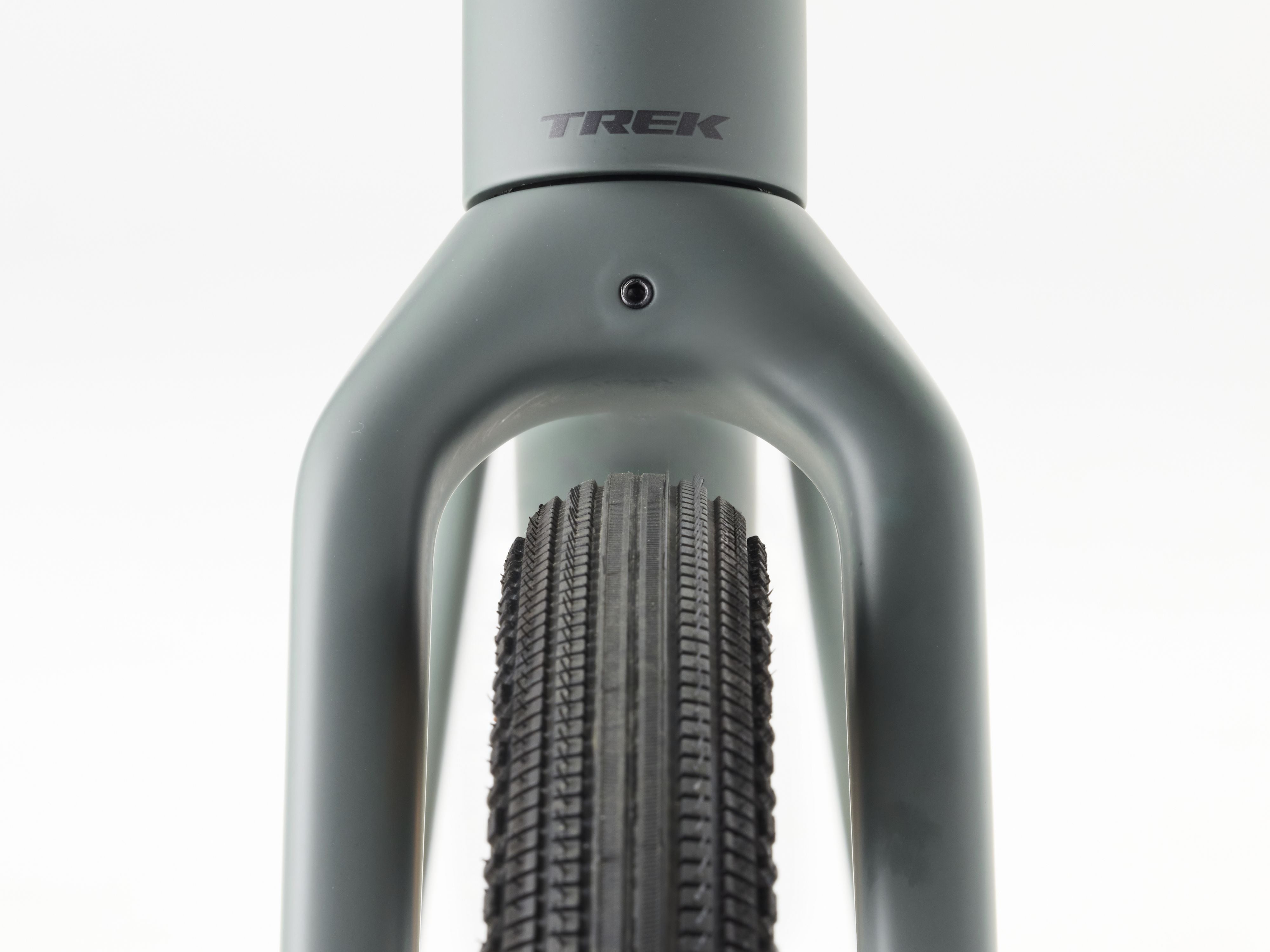

| Fork | Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thr |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Hub Front | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Shifter | Shimano |

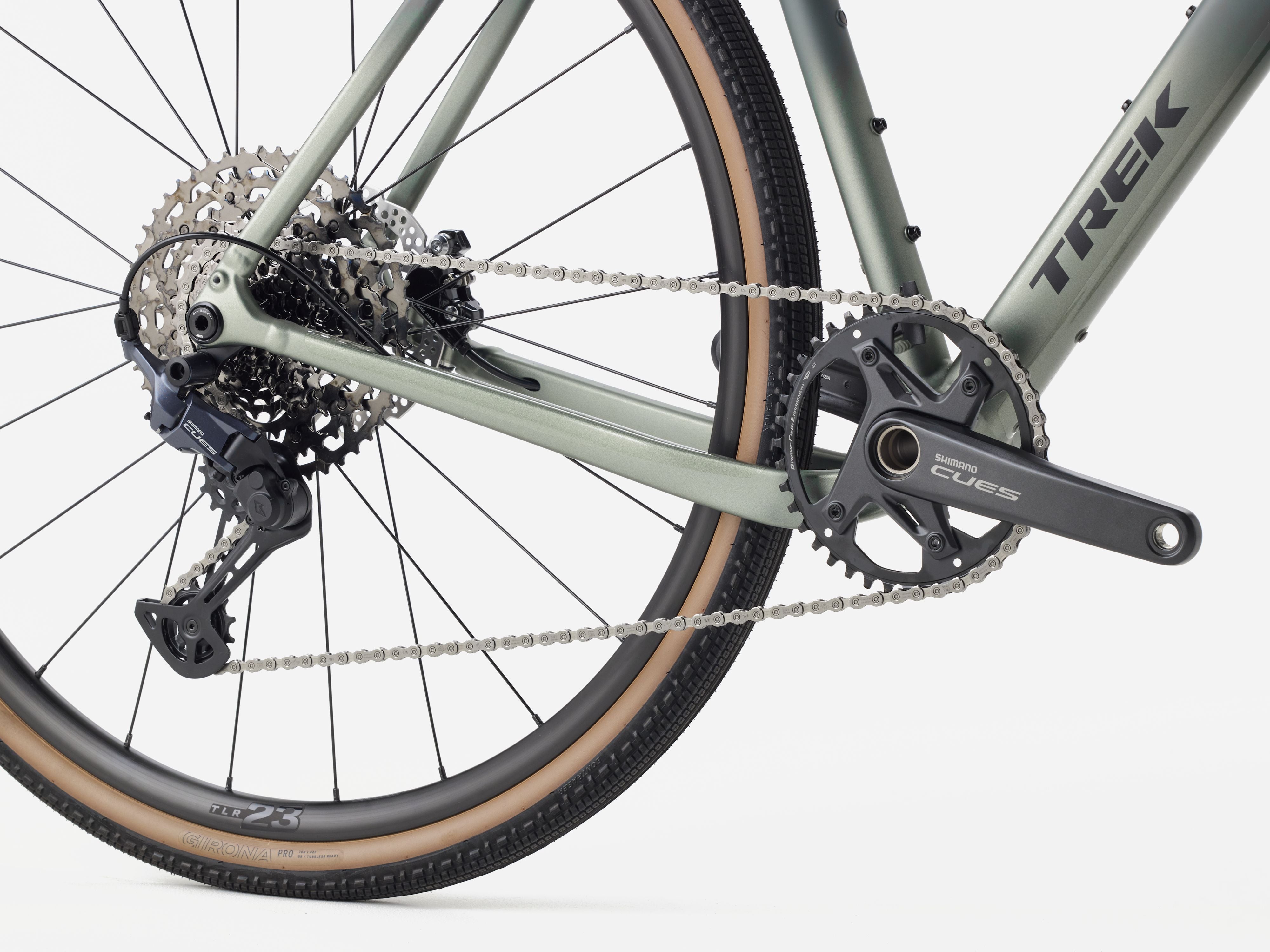

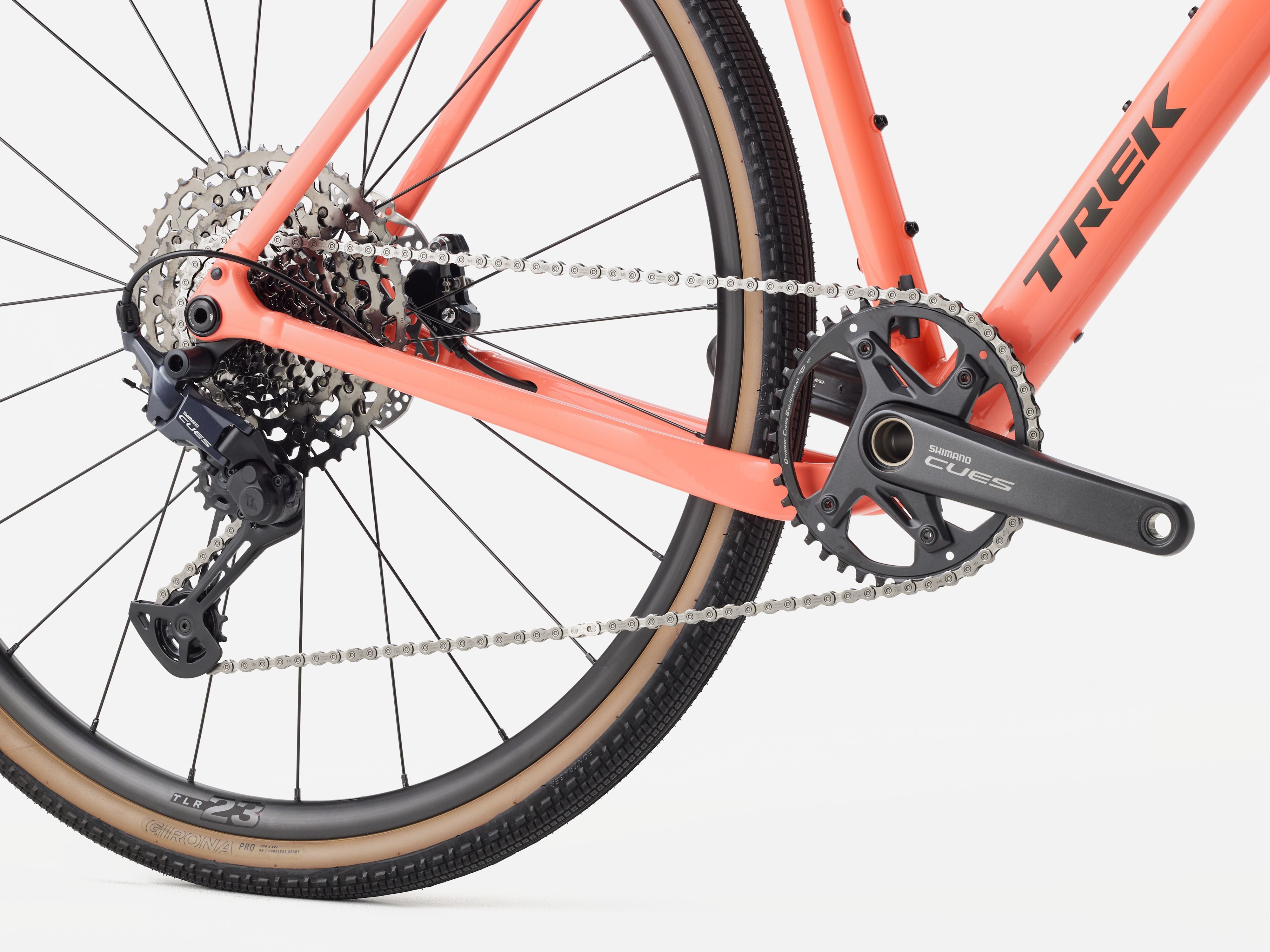

| Derailleur Rear | Shimano CUES U8000 GS |
| Crank | Shimano CUES FCU60301, 40T ring, 172.5 mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano CUES LG700, LINKGLIDE, 11-50, 11-speed |
| Chain | Shimano LG500 |
| Brake | Shimano |
| Brakeset | Shimano CUES hydraulic disc, flat mount // Shimano CUES U6030 Shimano CUES hydraulic disc, flat mount // Shimano CUES U6030 |
| Brake Rotor | Shimano RT54, CentreLock, 160 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

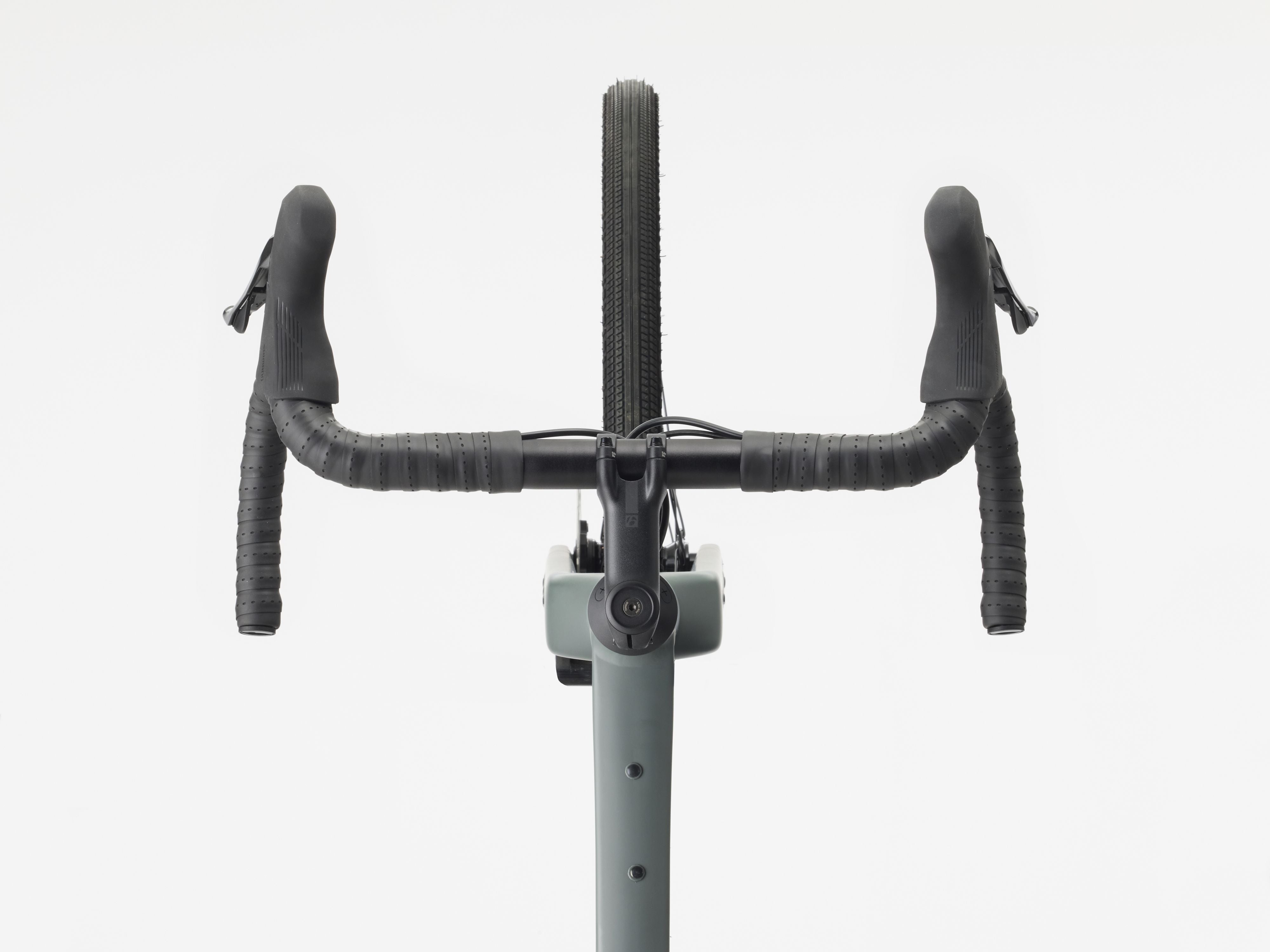

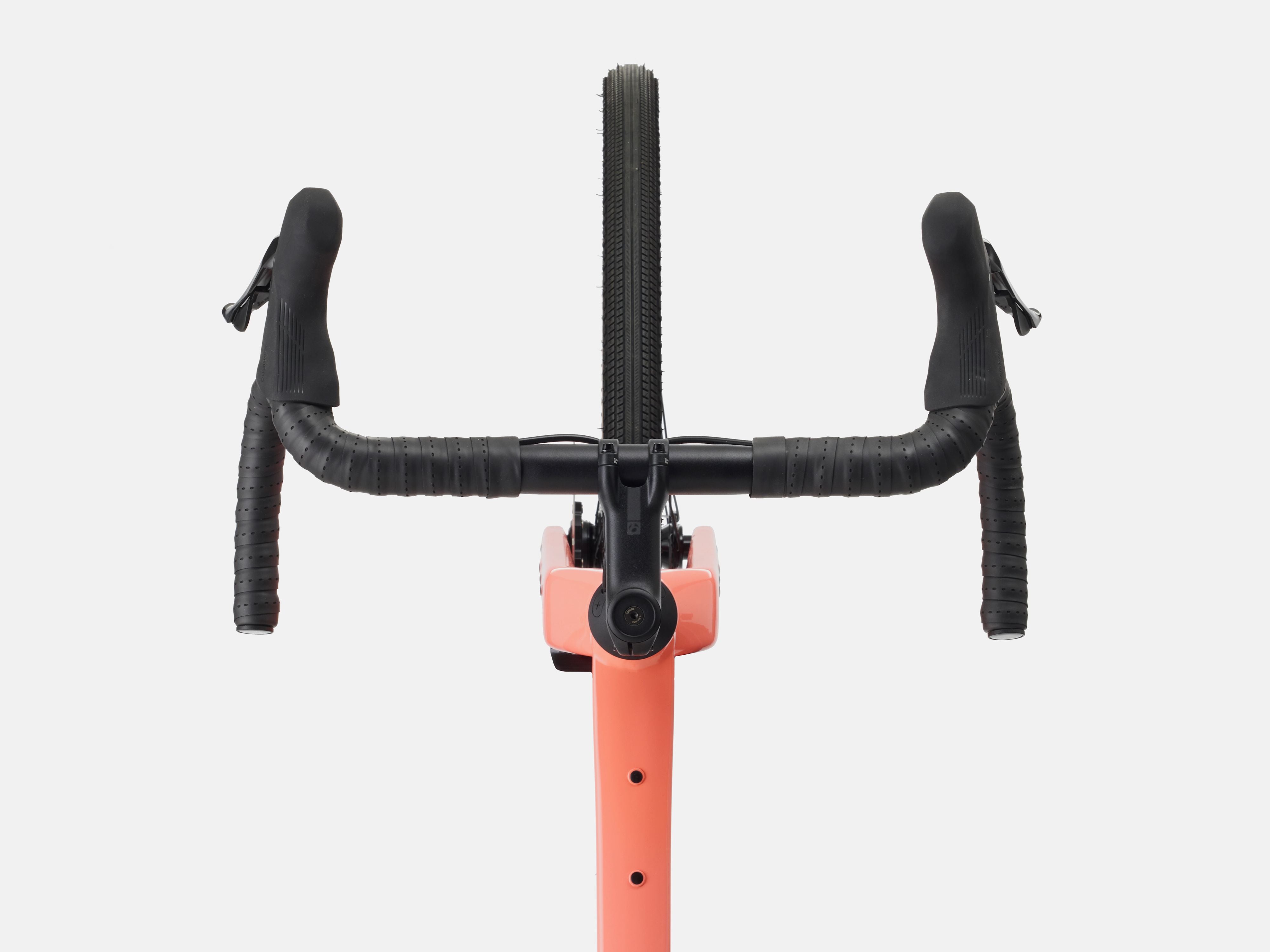

| Handlebar | Bontrager Elite Gravel, alloy, 44 cm width |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Size Chart Rider Height | Rider Height - 188.0 - 194.0 |
| Size Chart Rider Inseam | Inseam - 88.0 - 91.0 |
