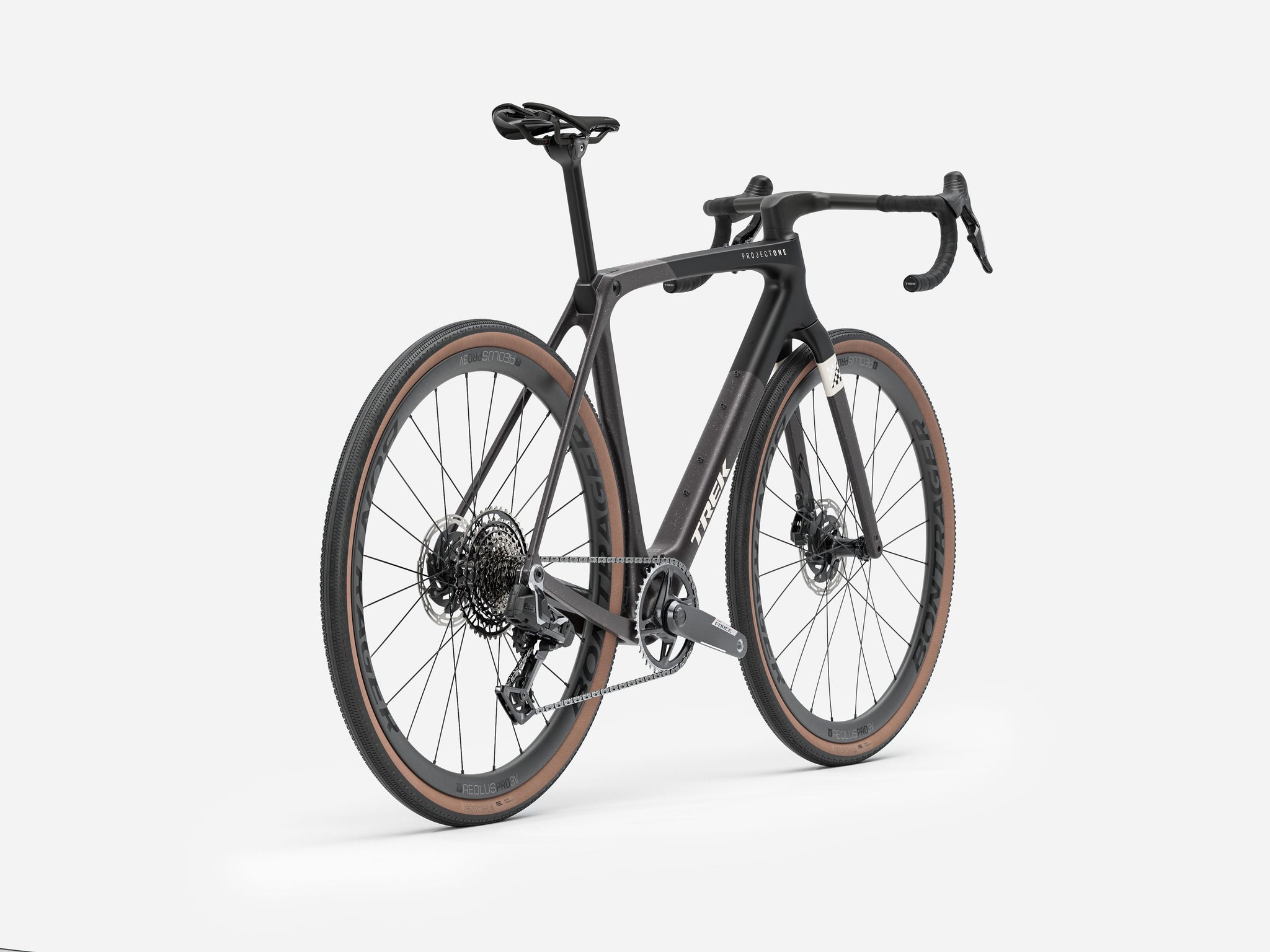

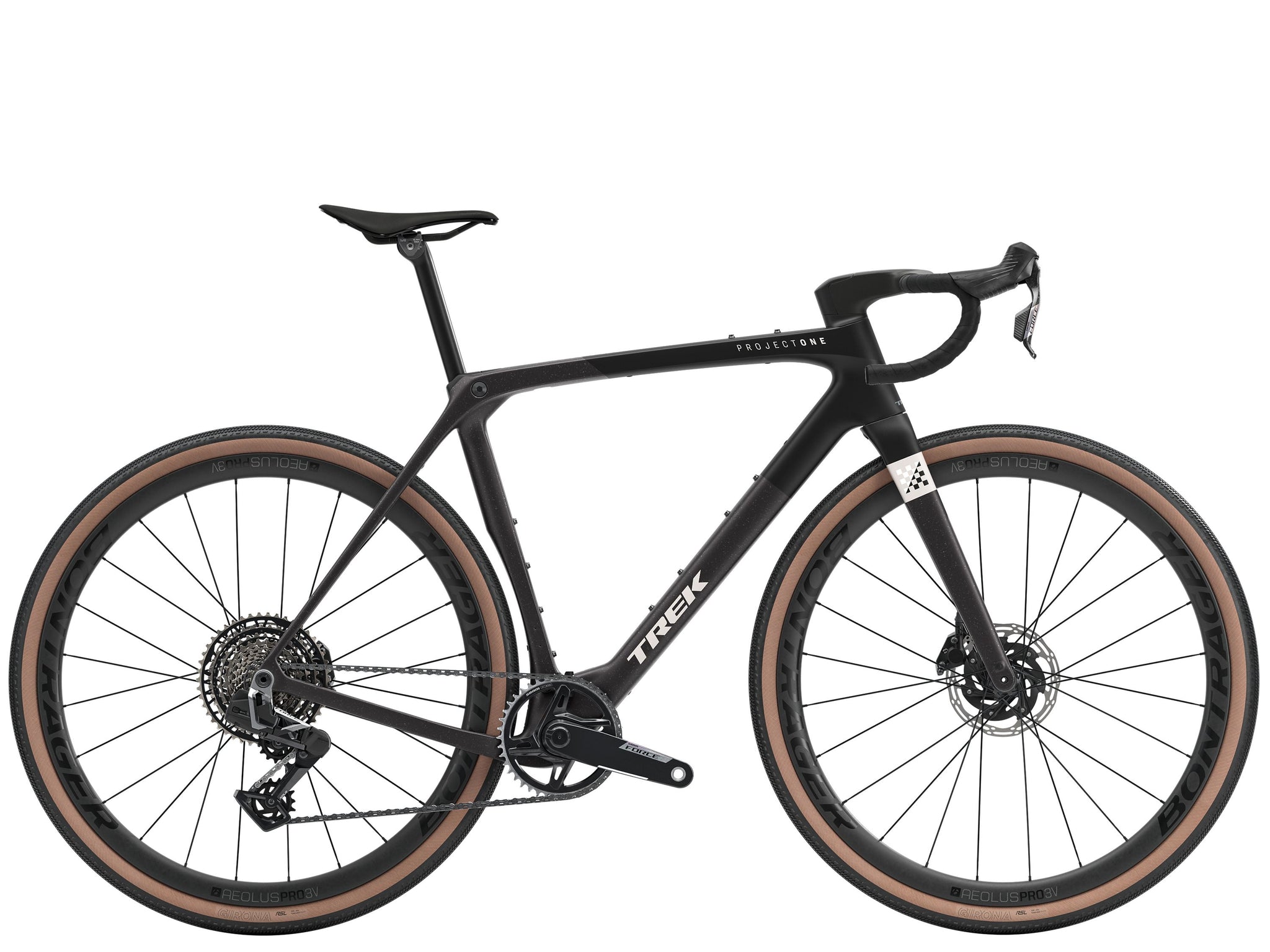

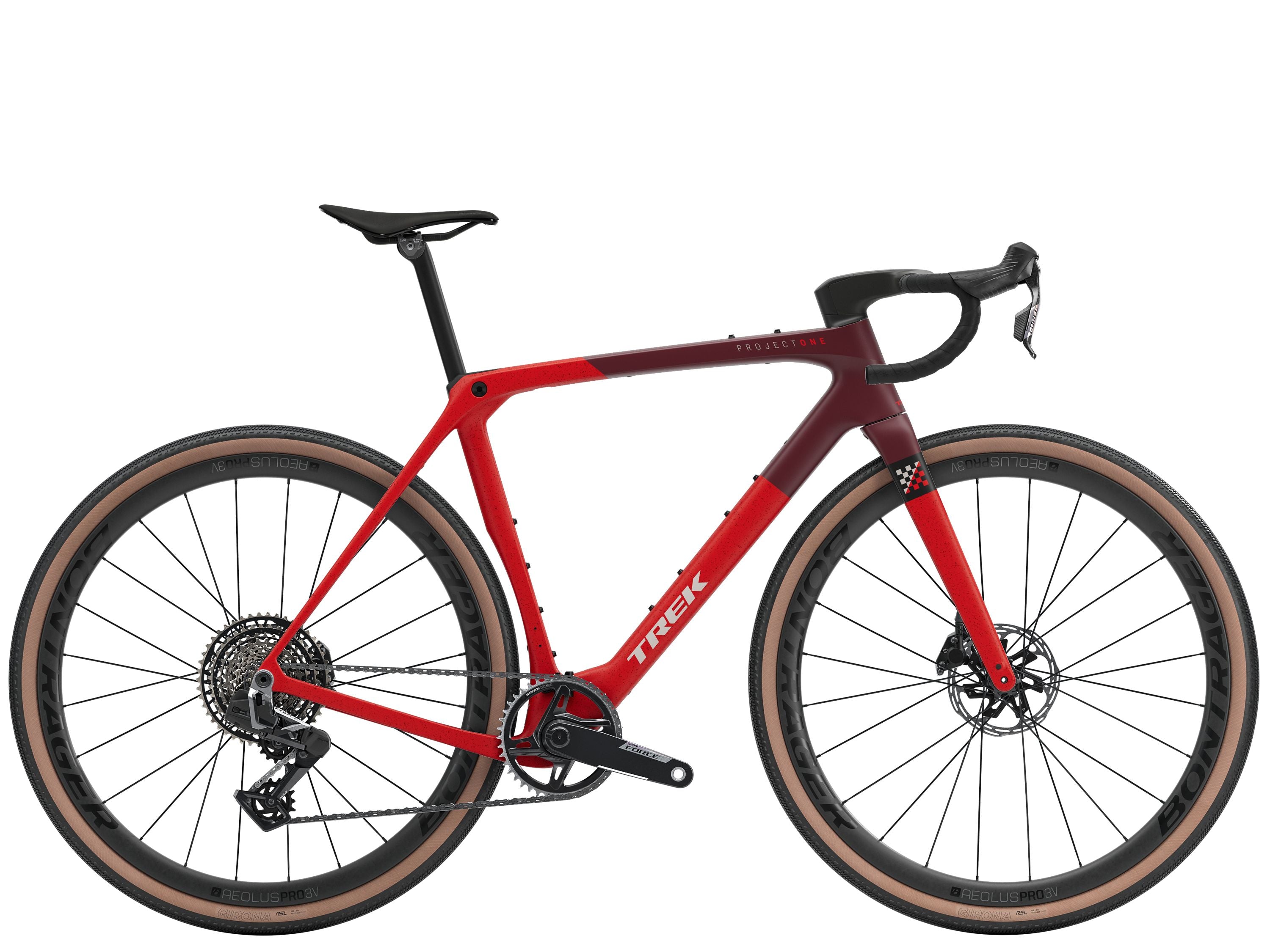

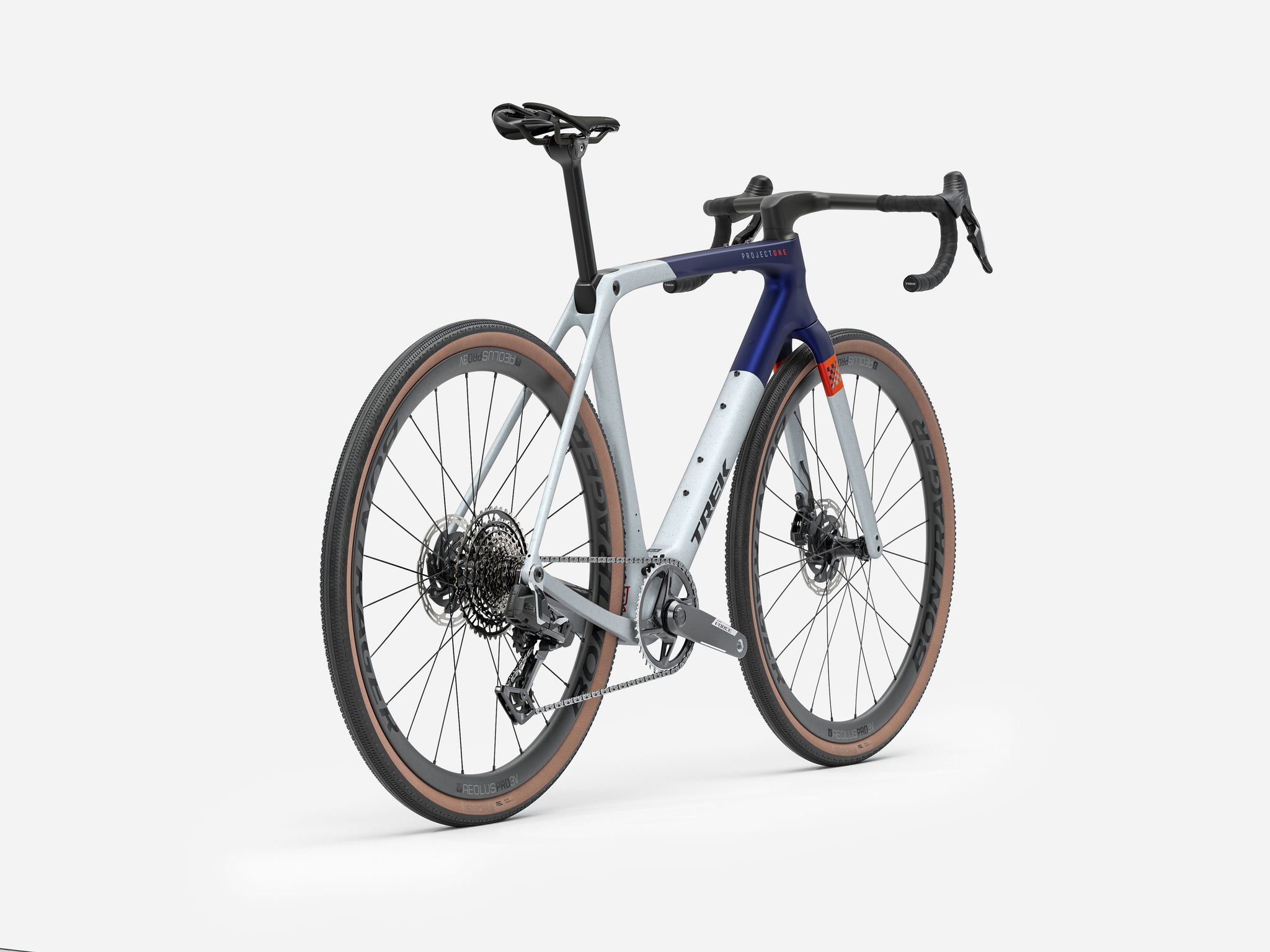

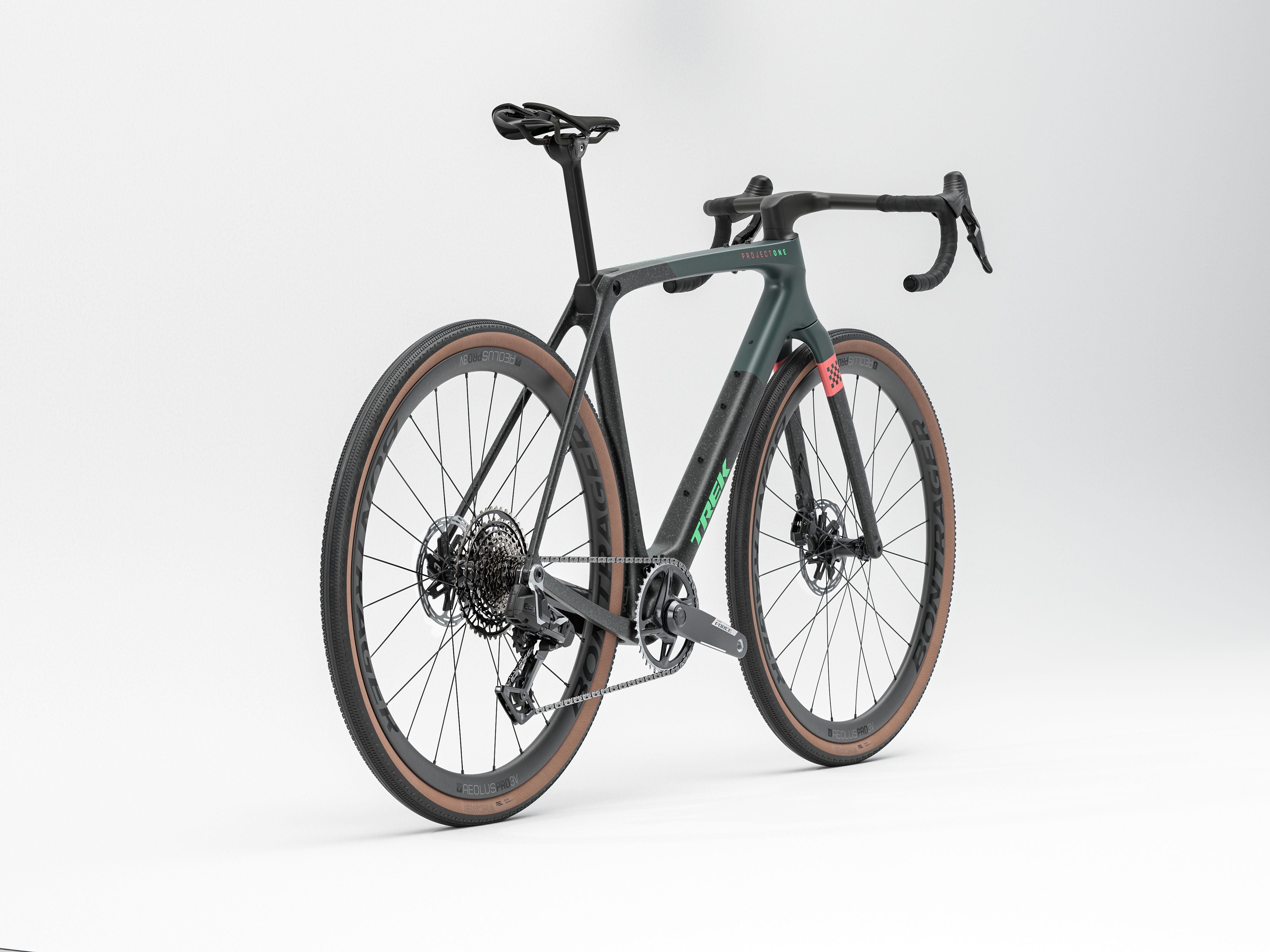

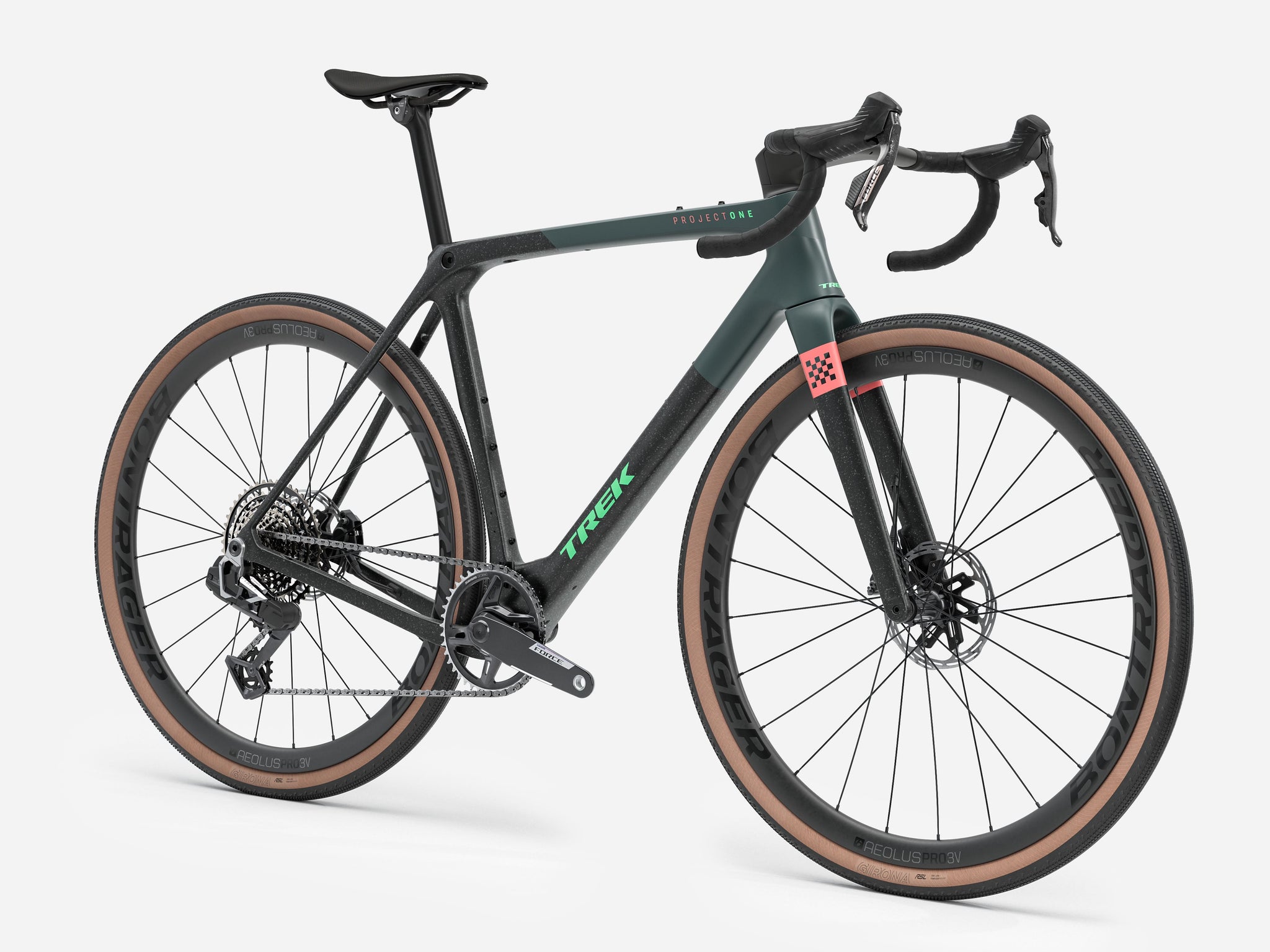

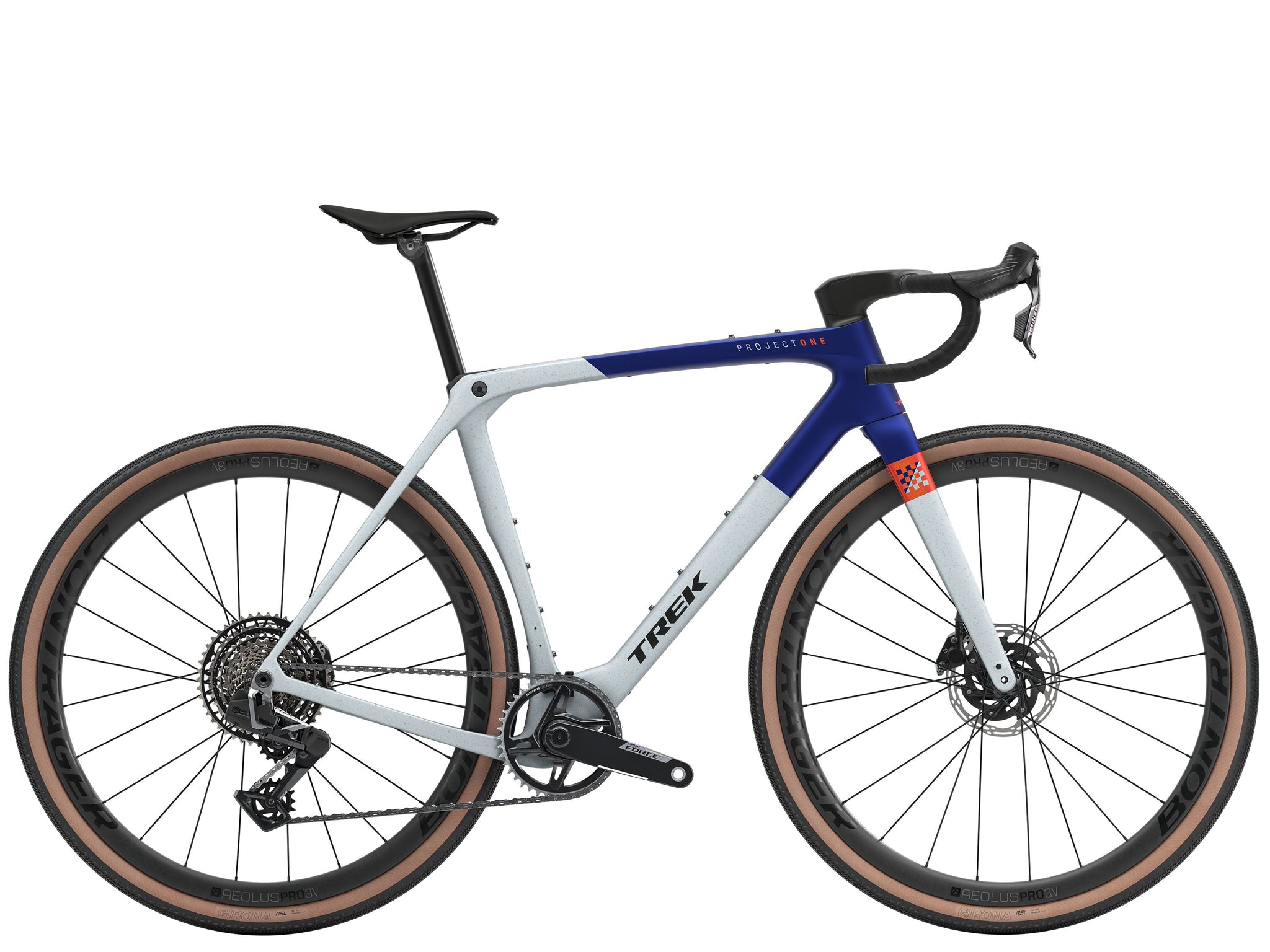

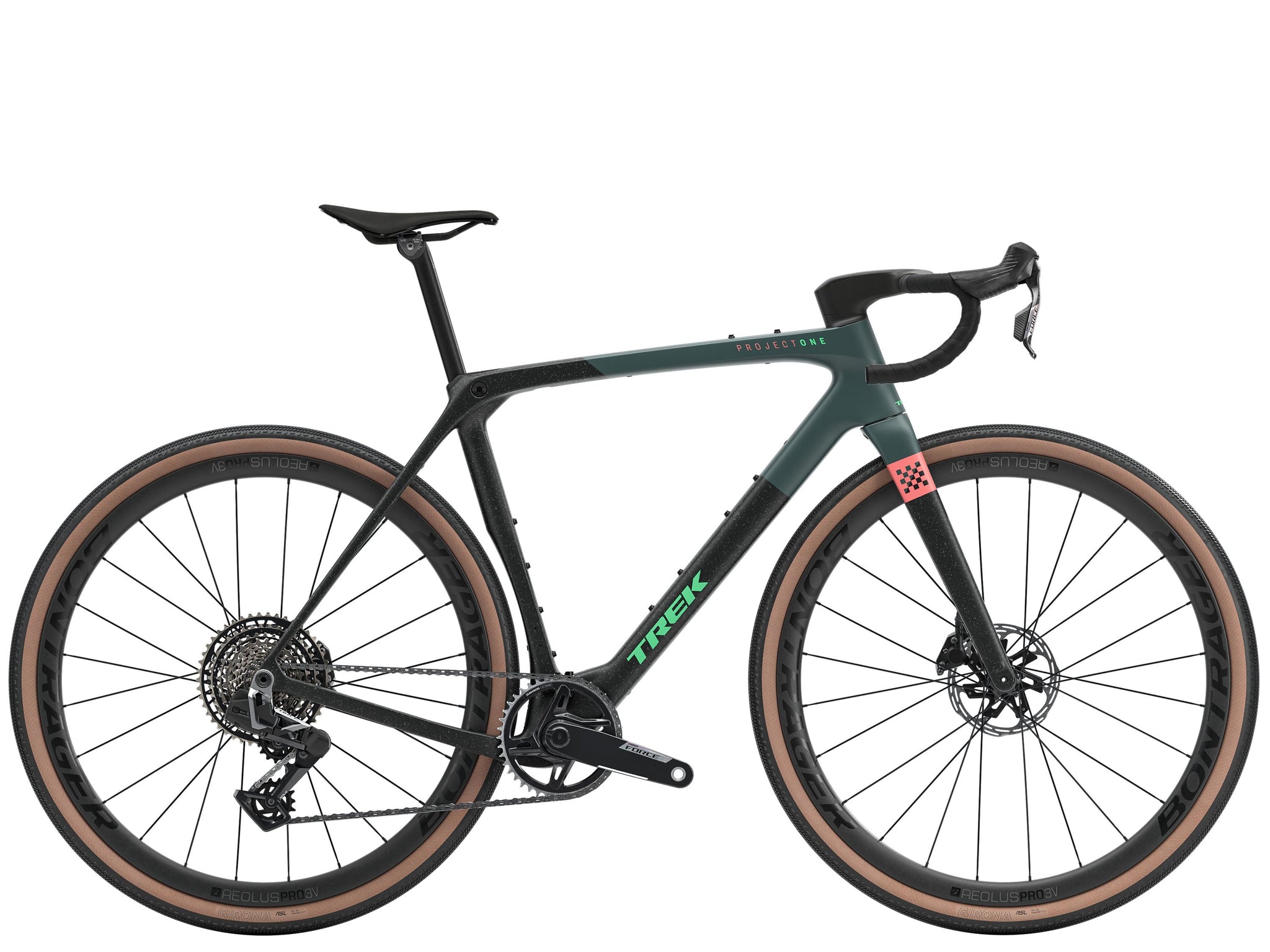

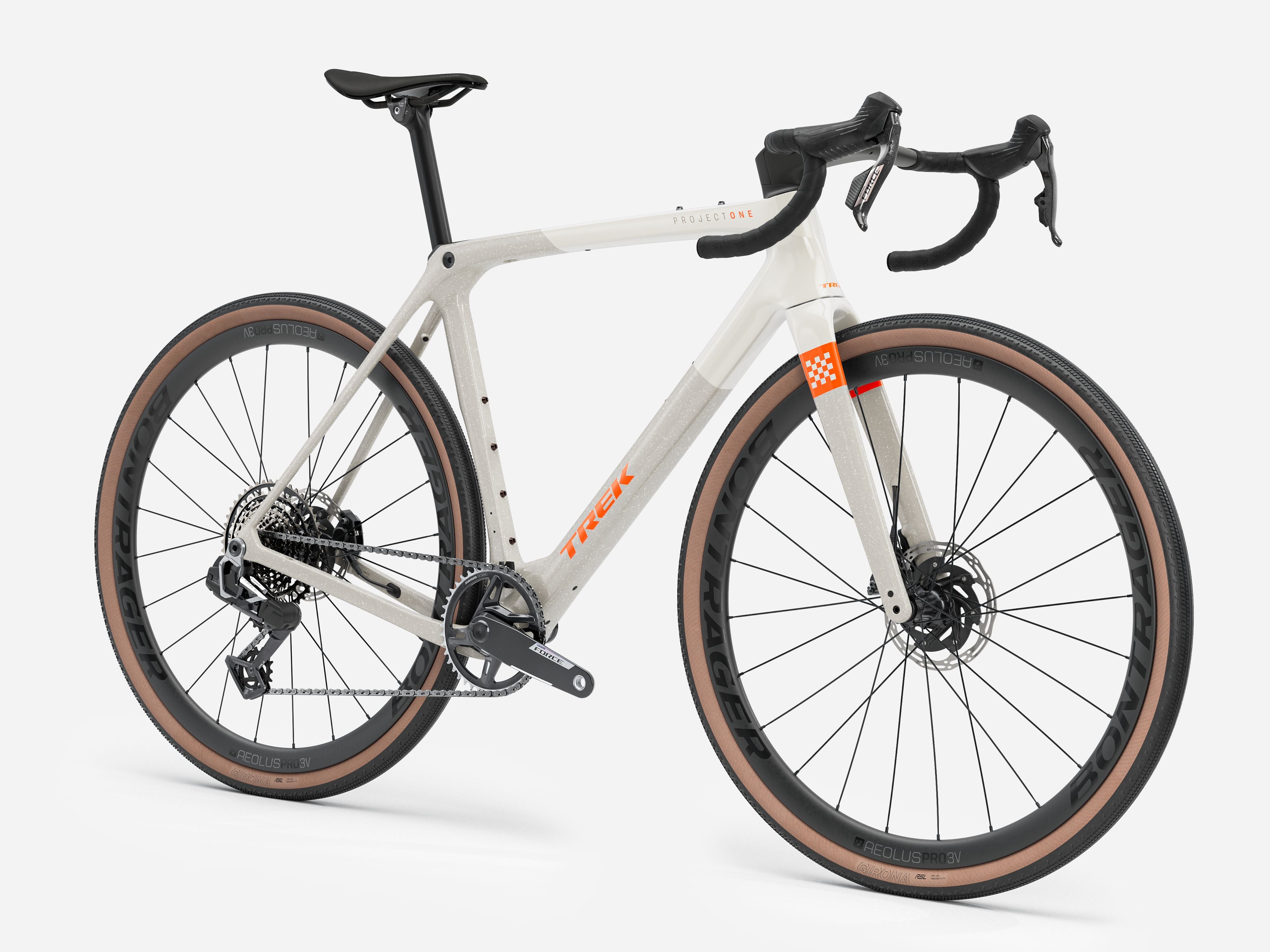

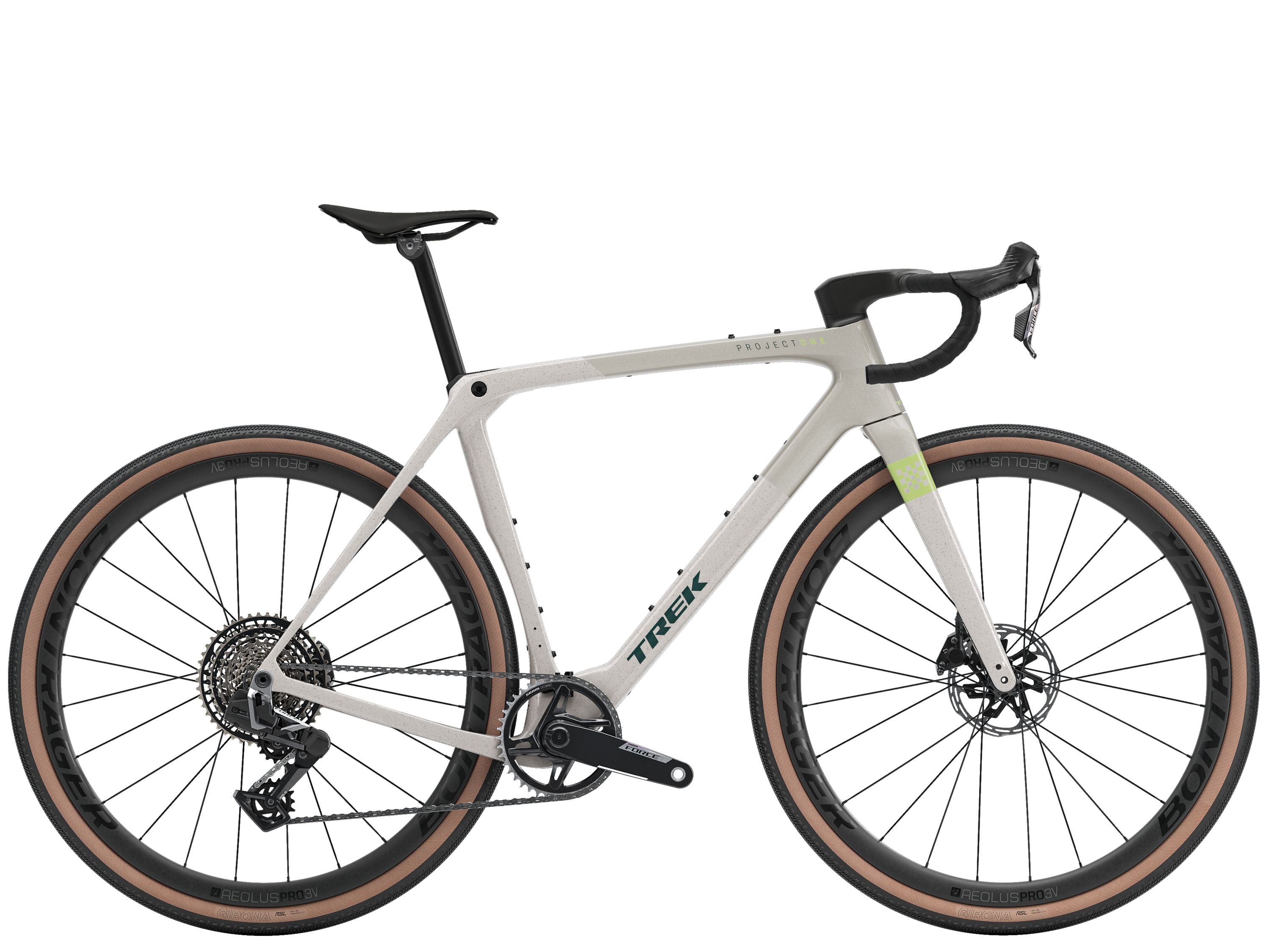

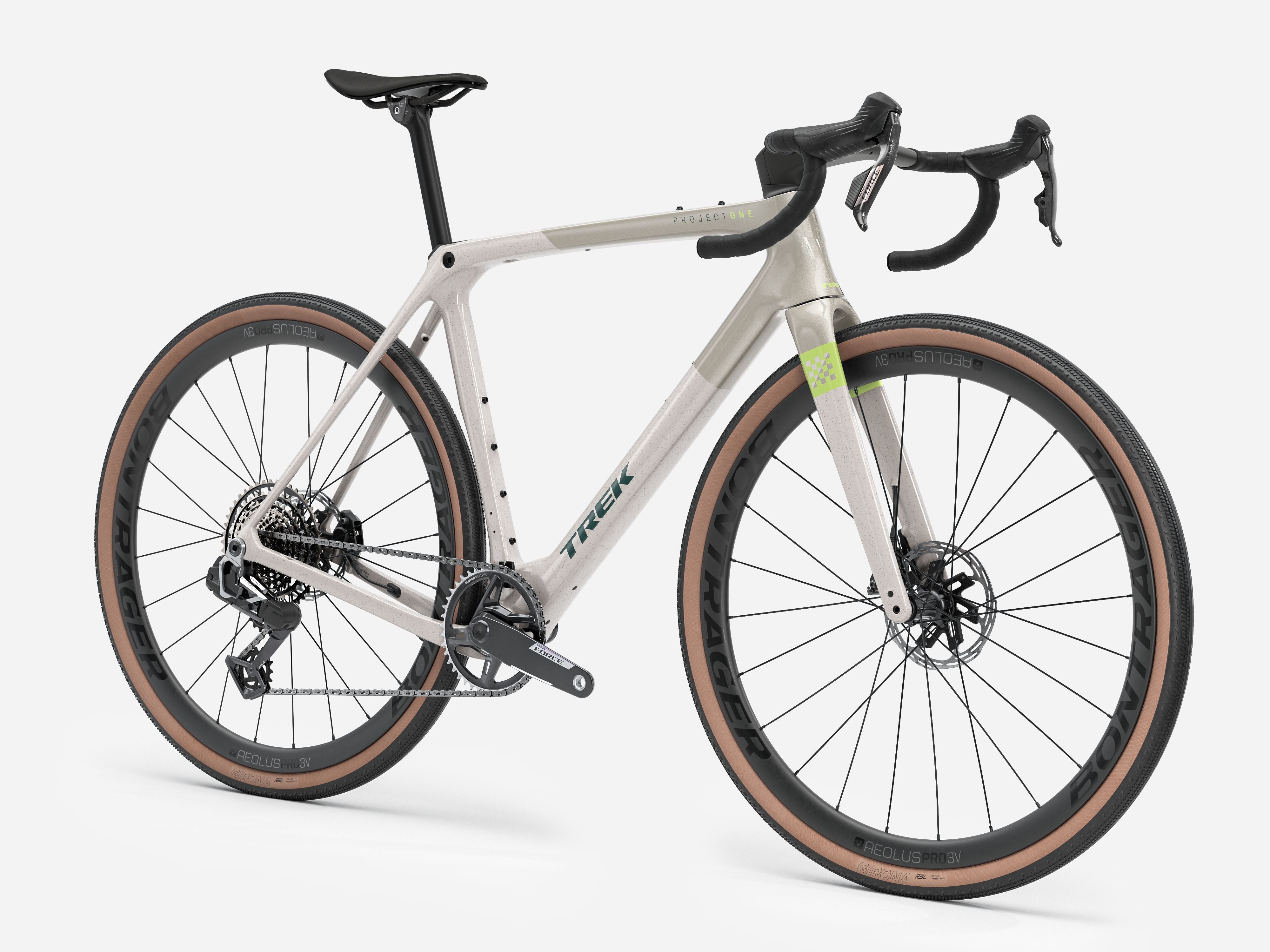

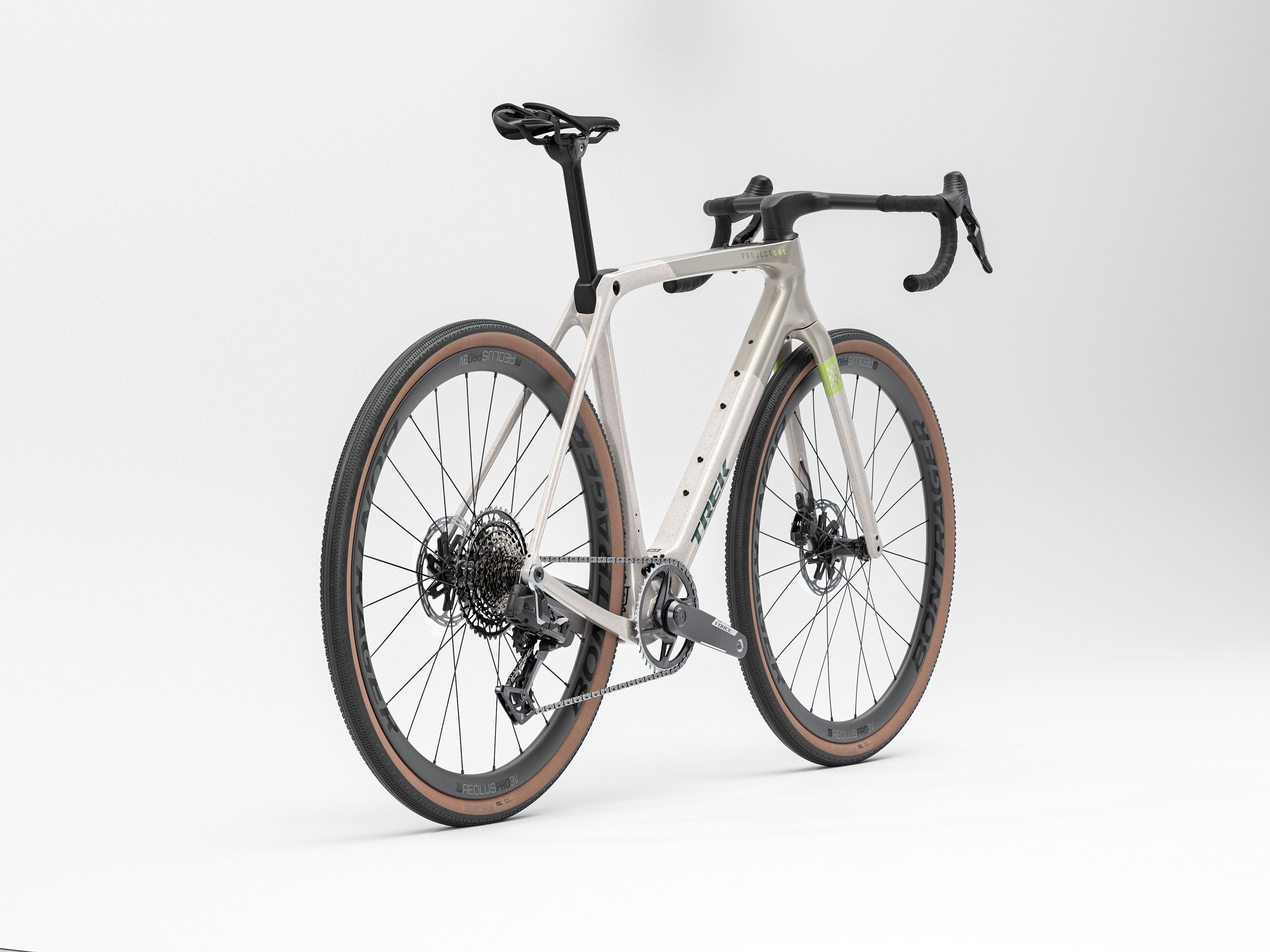

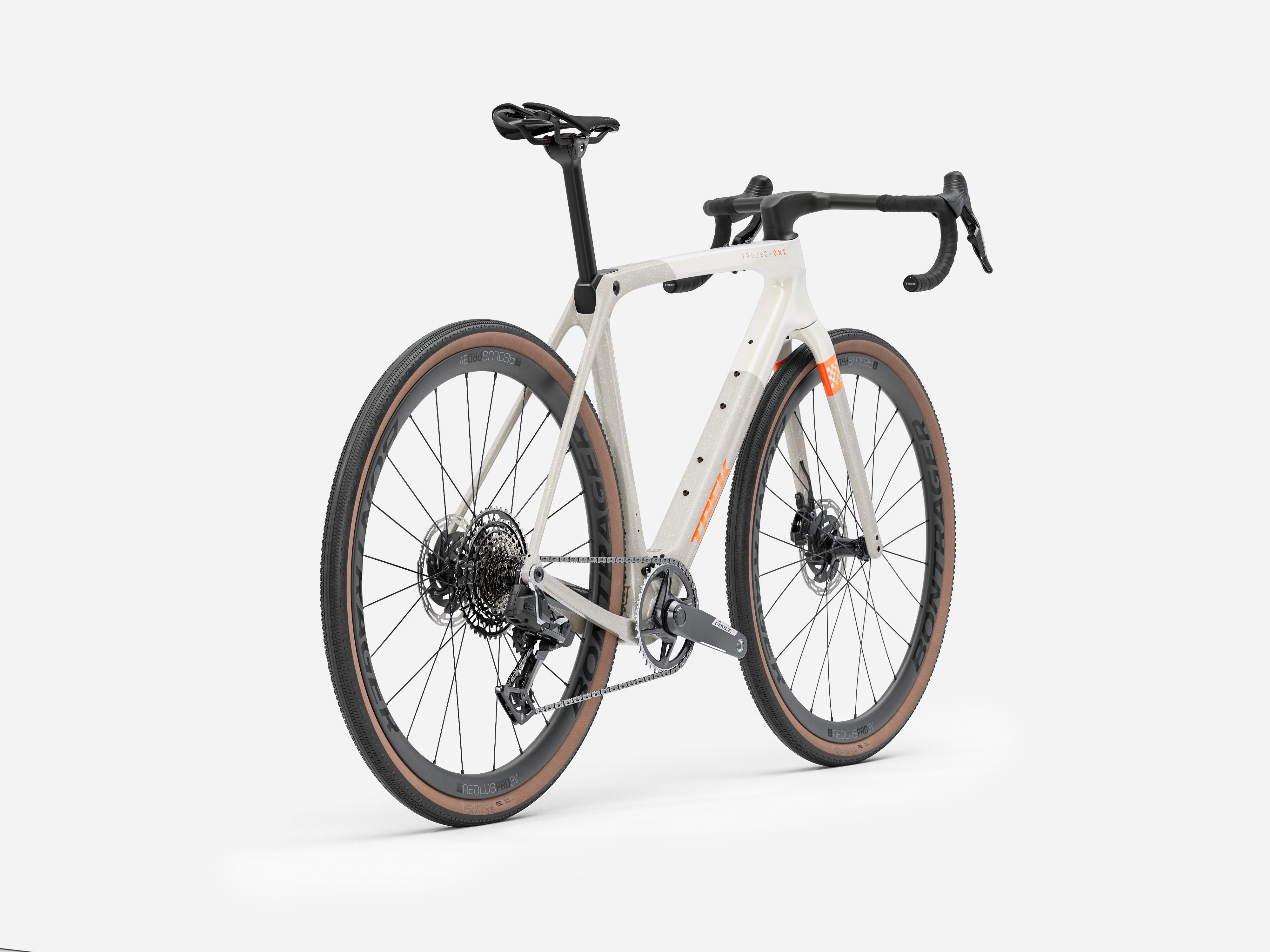

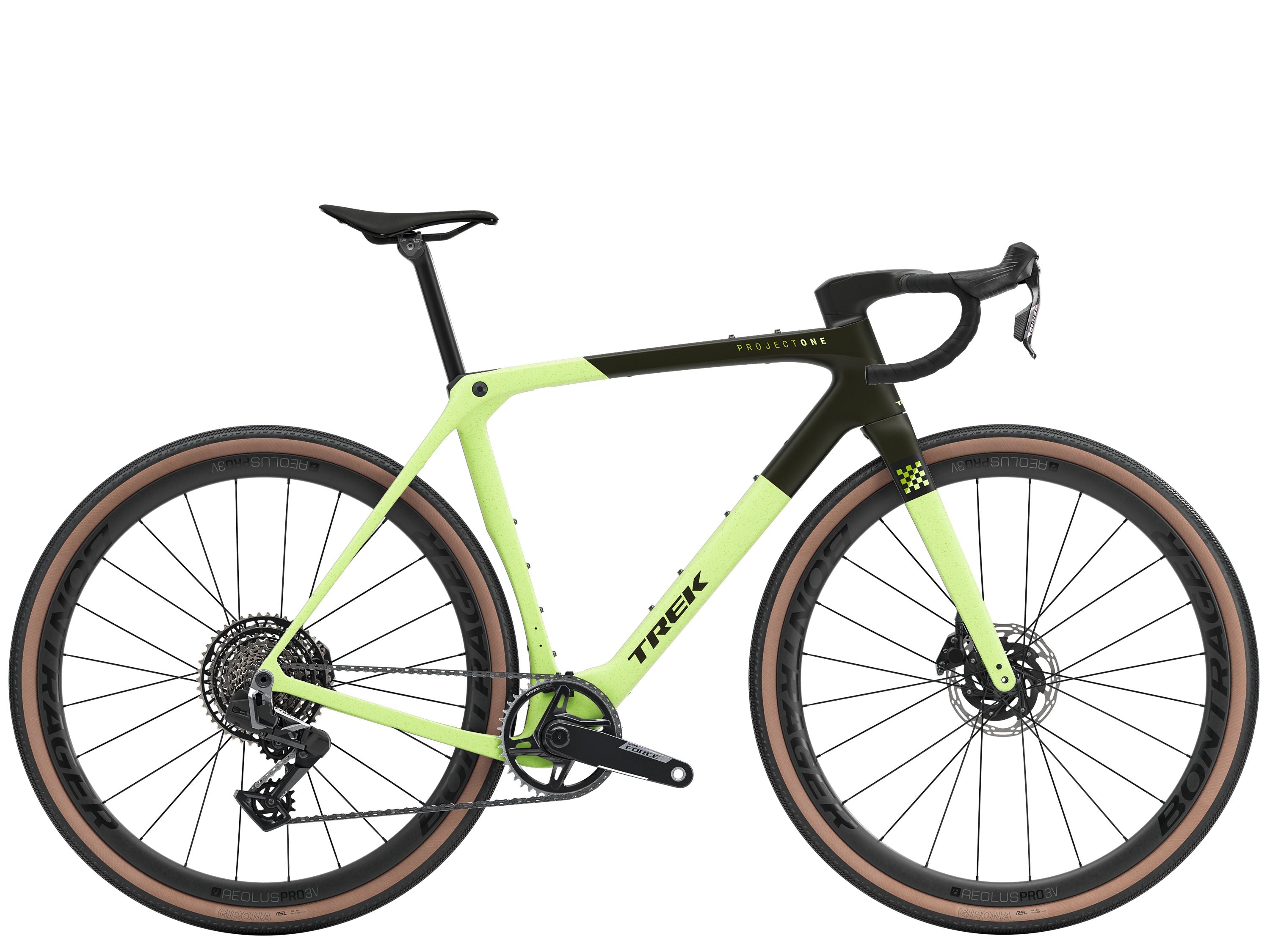

Checkmate SLR 7 AXS
The Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver ultimate race-day performance, Checkmate combines a lightweight aero design with IsoSpeed and Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a SRAM Force XPLR AXS E1 wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.
Technology
Our fastest gravel bike ever - New Full System aero tube shapes and an aero-yet-ergonomic one-piece bar stem help make Checkmate our fastest gravel bike to date.
Specification
| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
|---|---|
| Frame Material | CARBON |
| Rim Size | 28 |
| Fork | Trek |

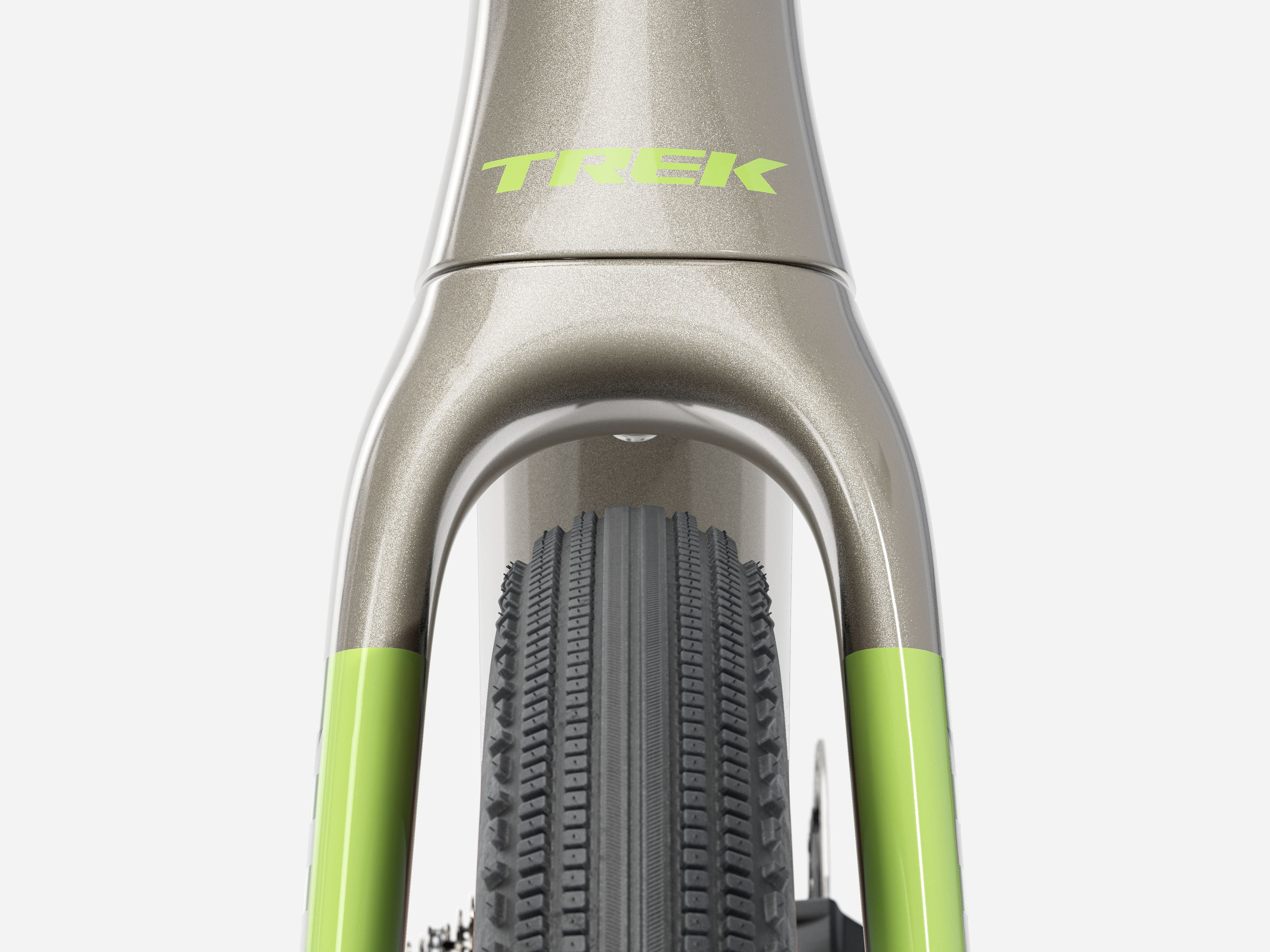

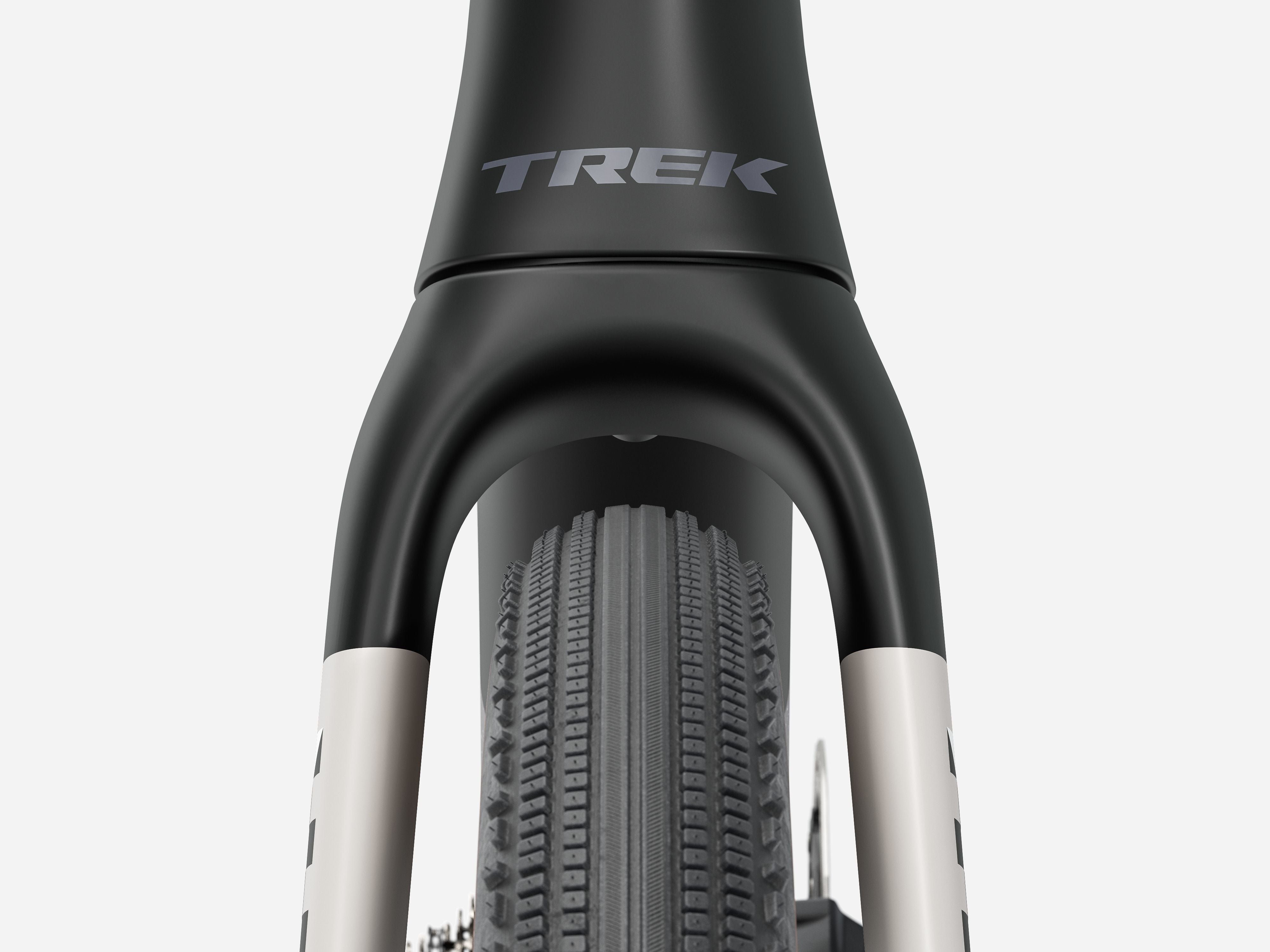

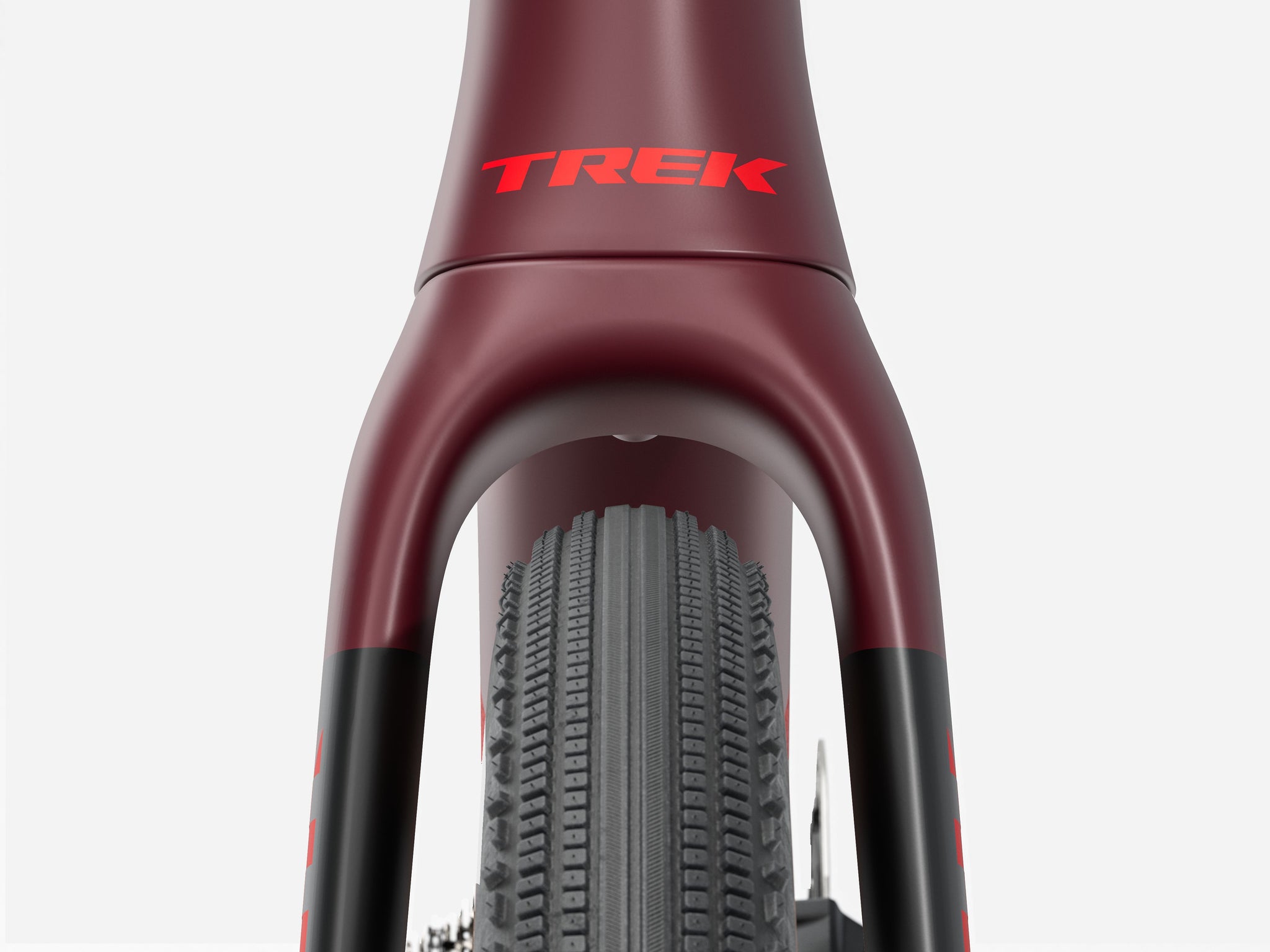

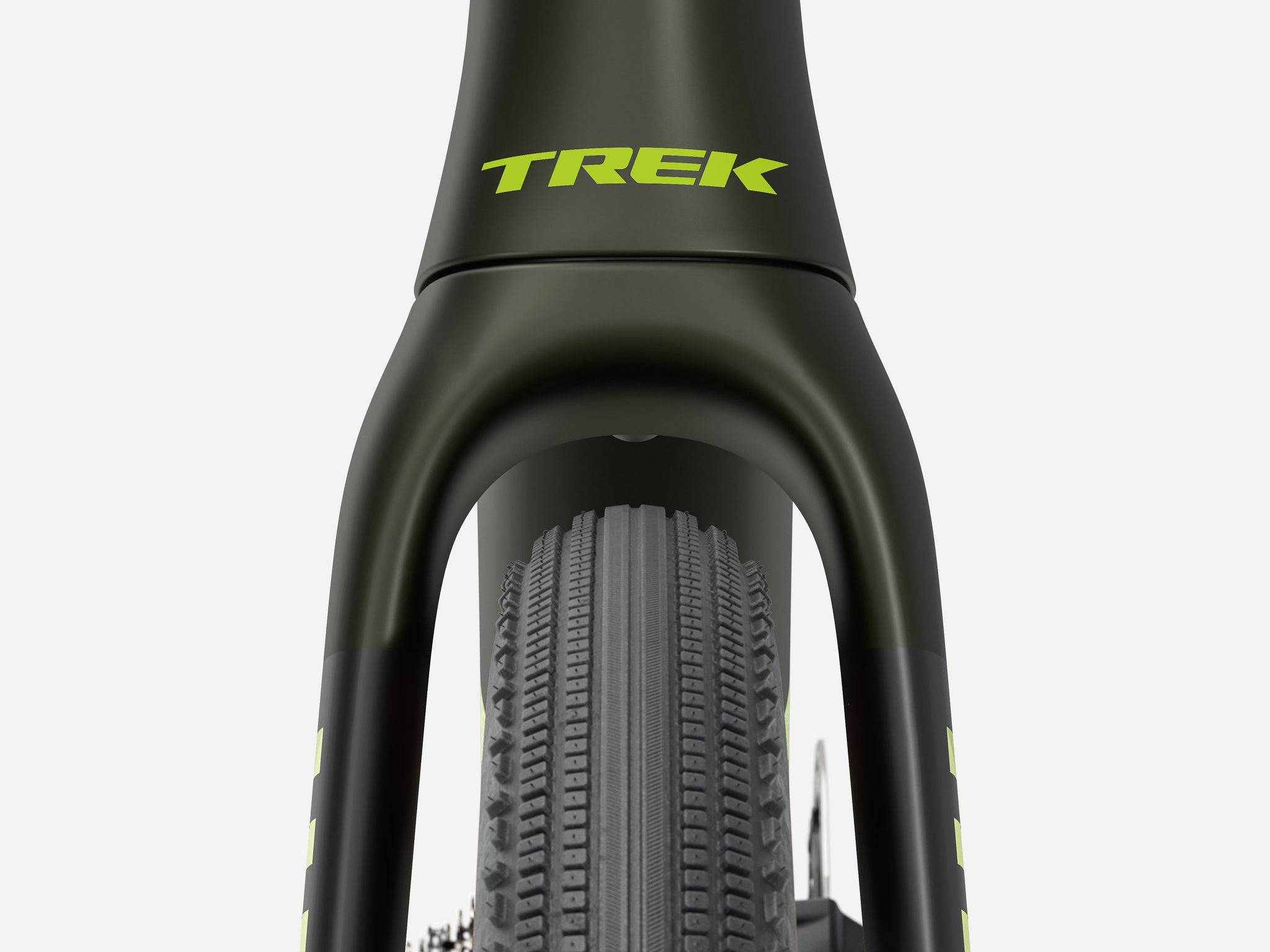

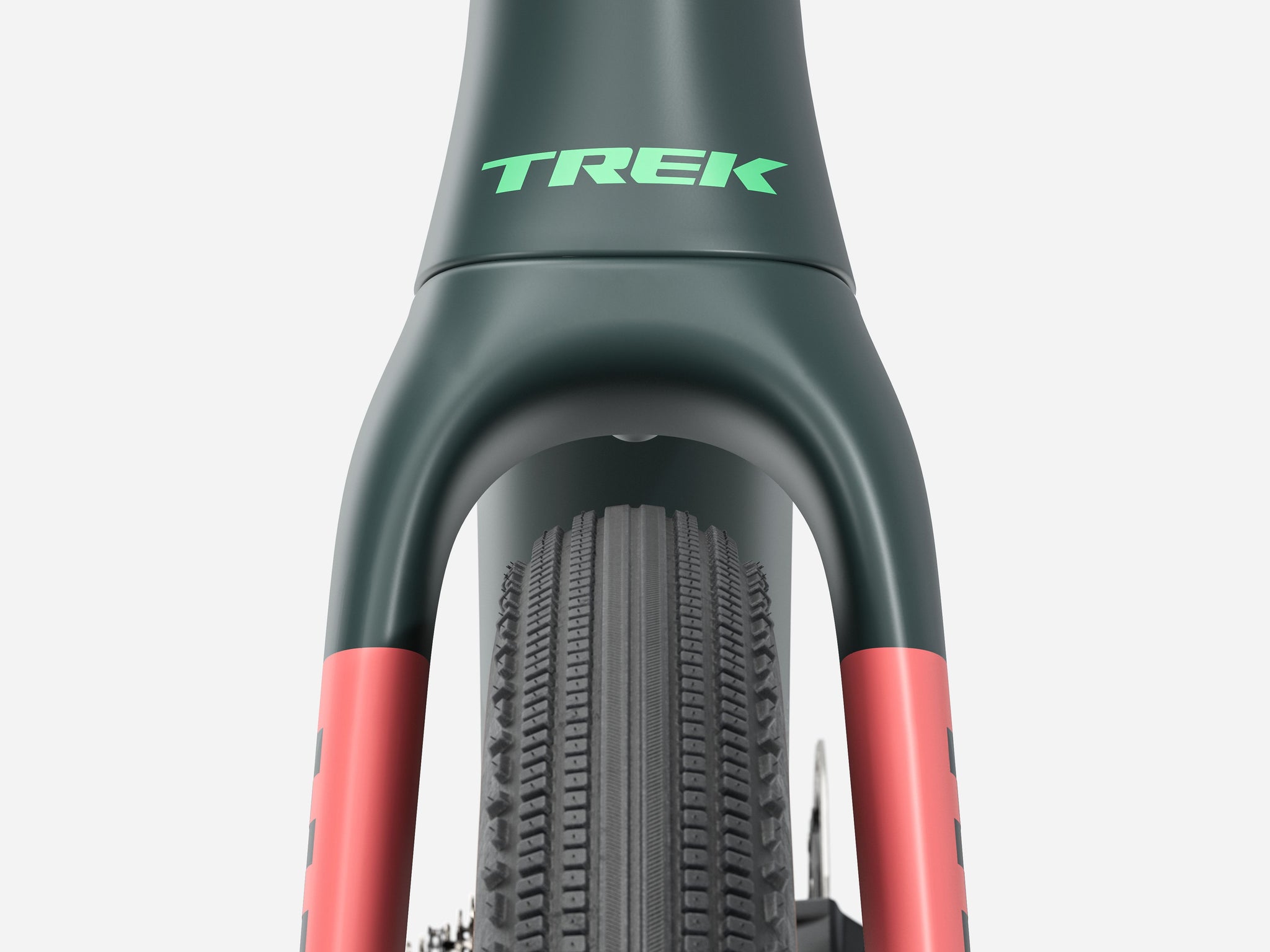

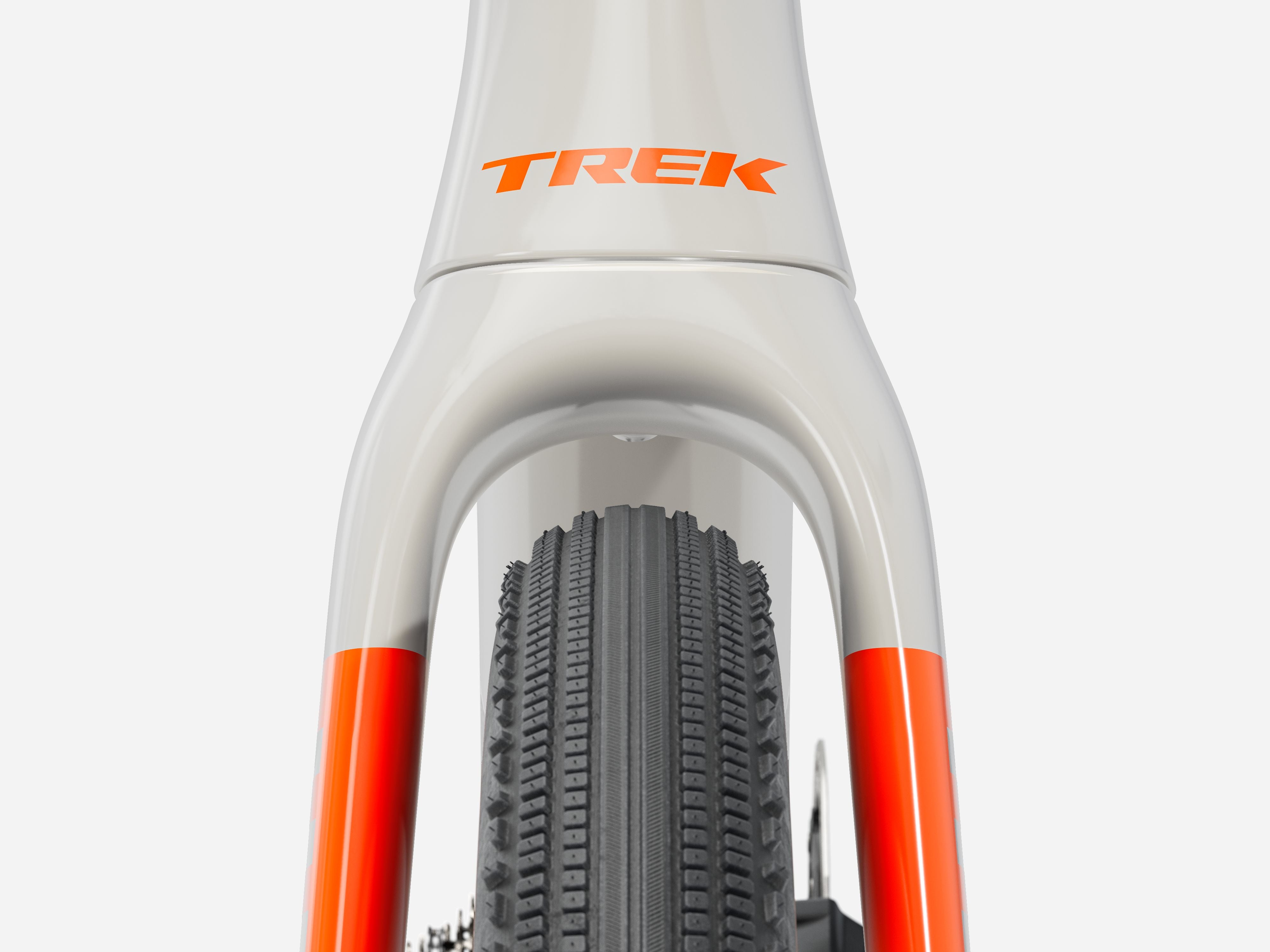

| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru |
| Wheels | Bontrager Aeolus Pro 3V |
| Tires | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Shifter | SRAM |

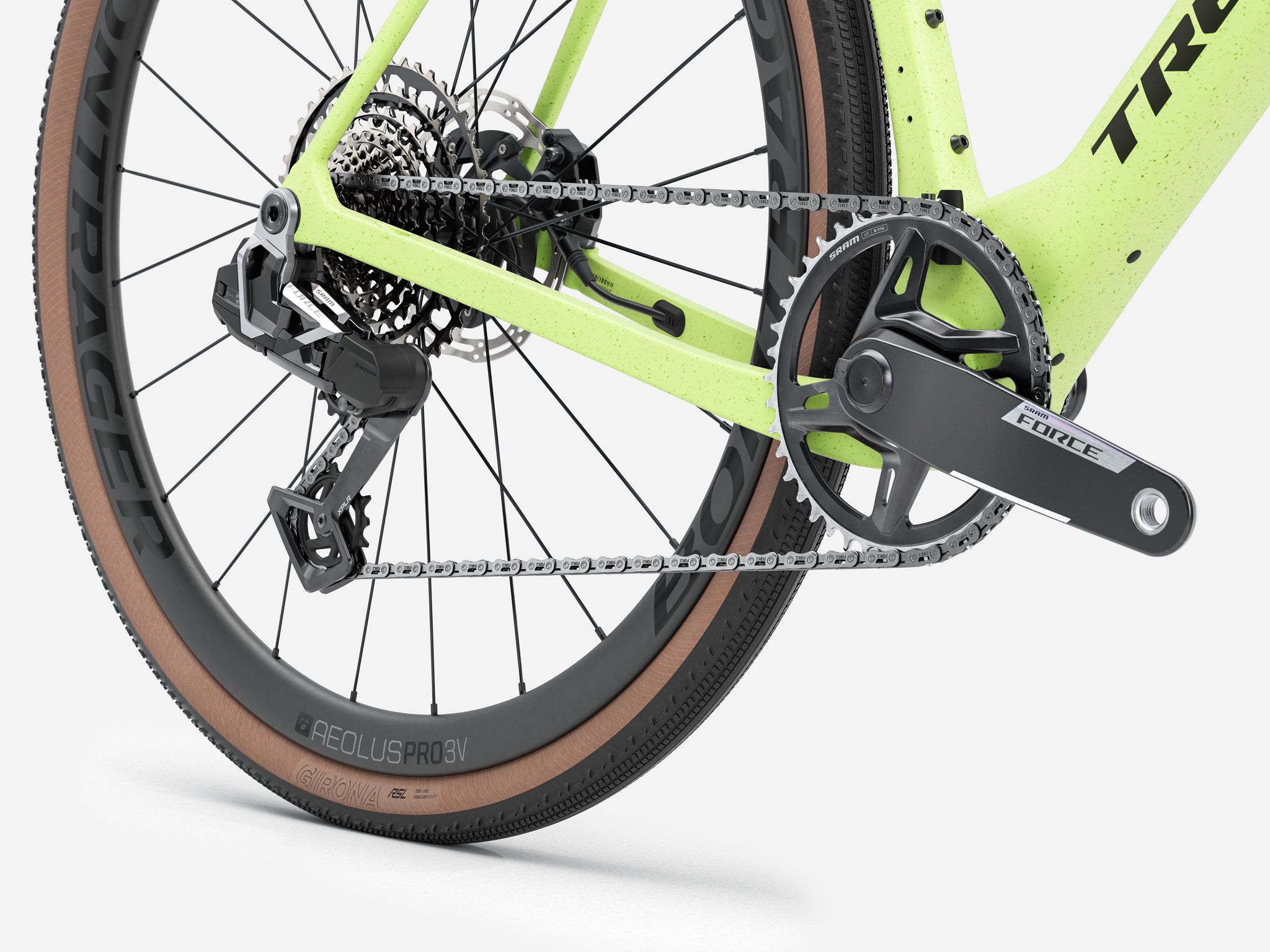

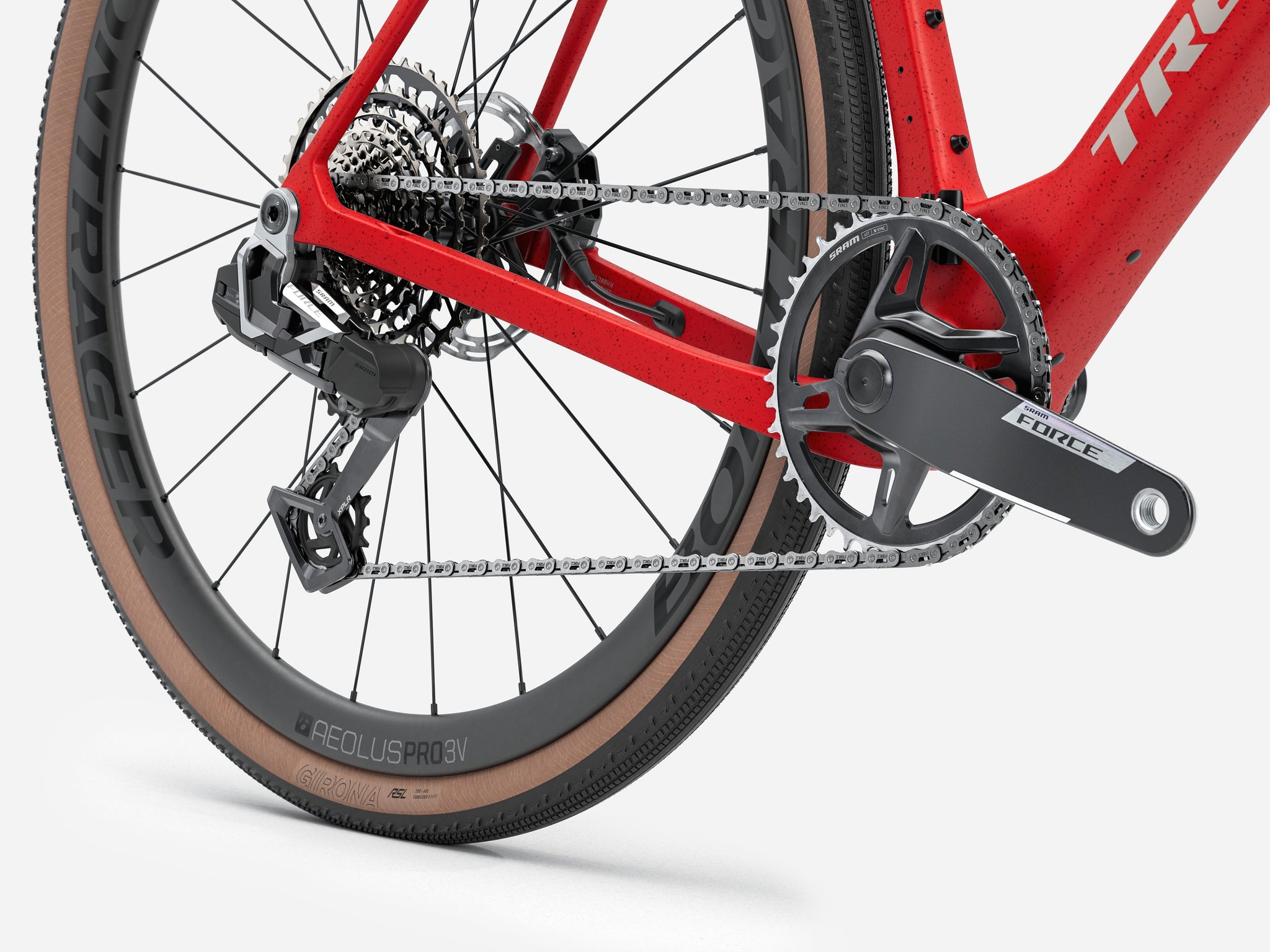

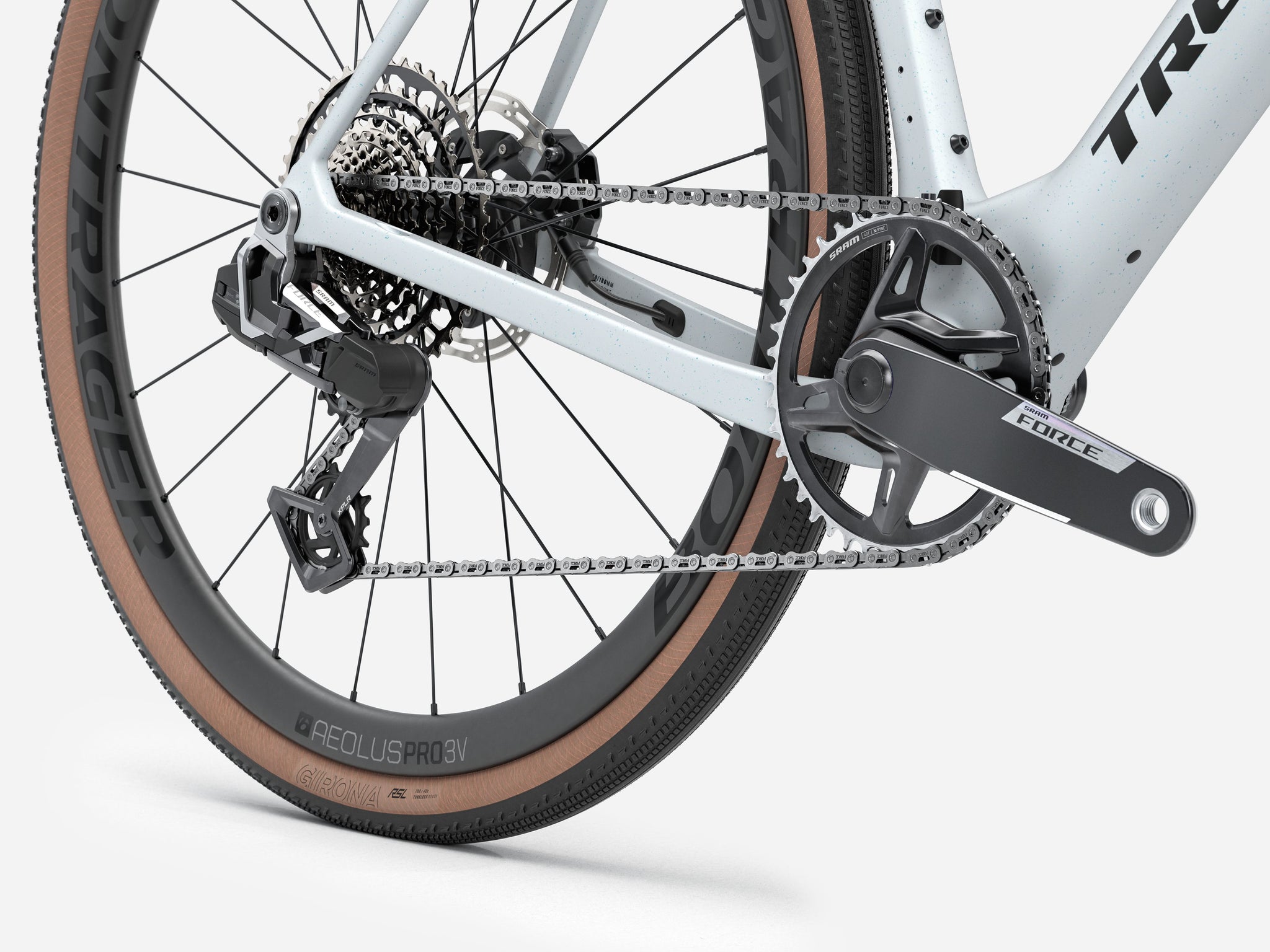

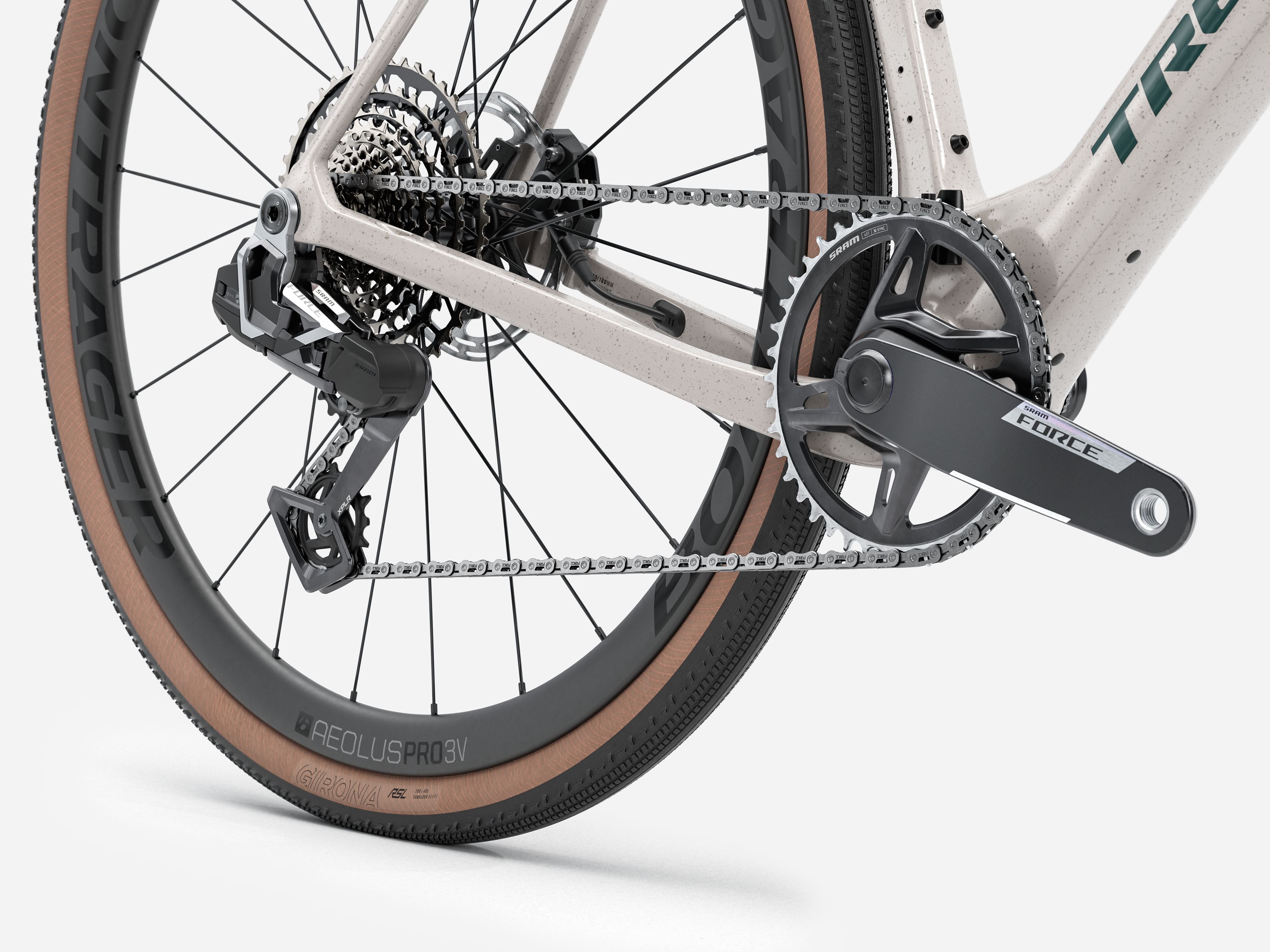

| Derailleur Rear | SRAM Force XPLR AXS, 46T max cog |

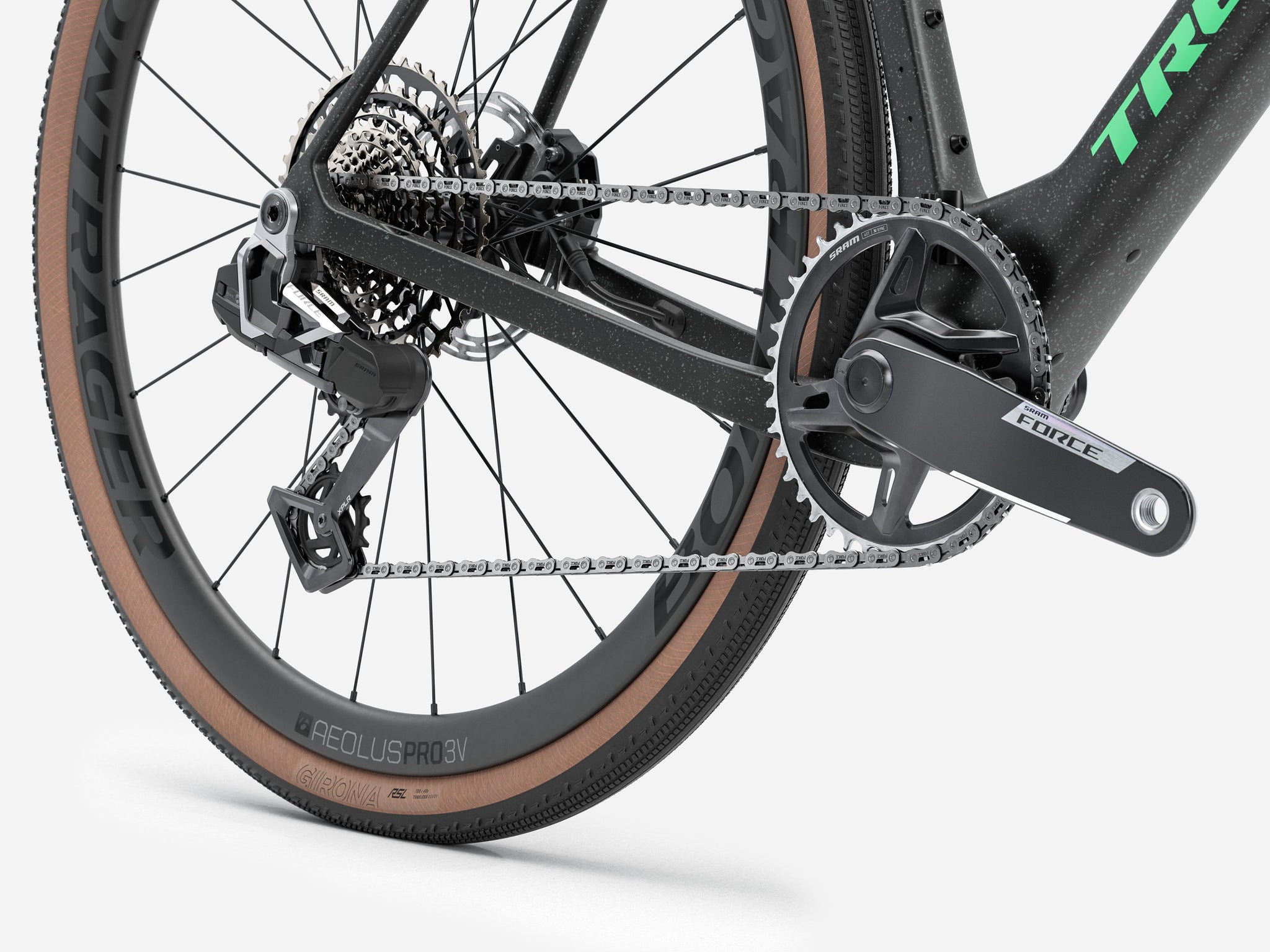

| Crank | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5 mm length |
| Bottom Bracket | SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13-speed |
| Chain | SRAM Force E1, 12/13-speed |
| Brake Rotor | SRAM CentreLine X, CentreLock, round edge, 160 mm |
| Saddle | Bontrager Aeolus Pro, carbon rails, 145 mm width |
| Seatpost | KVF aero carbon seat post, 5 mm offset, 280 mm length |

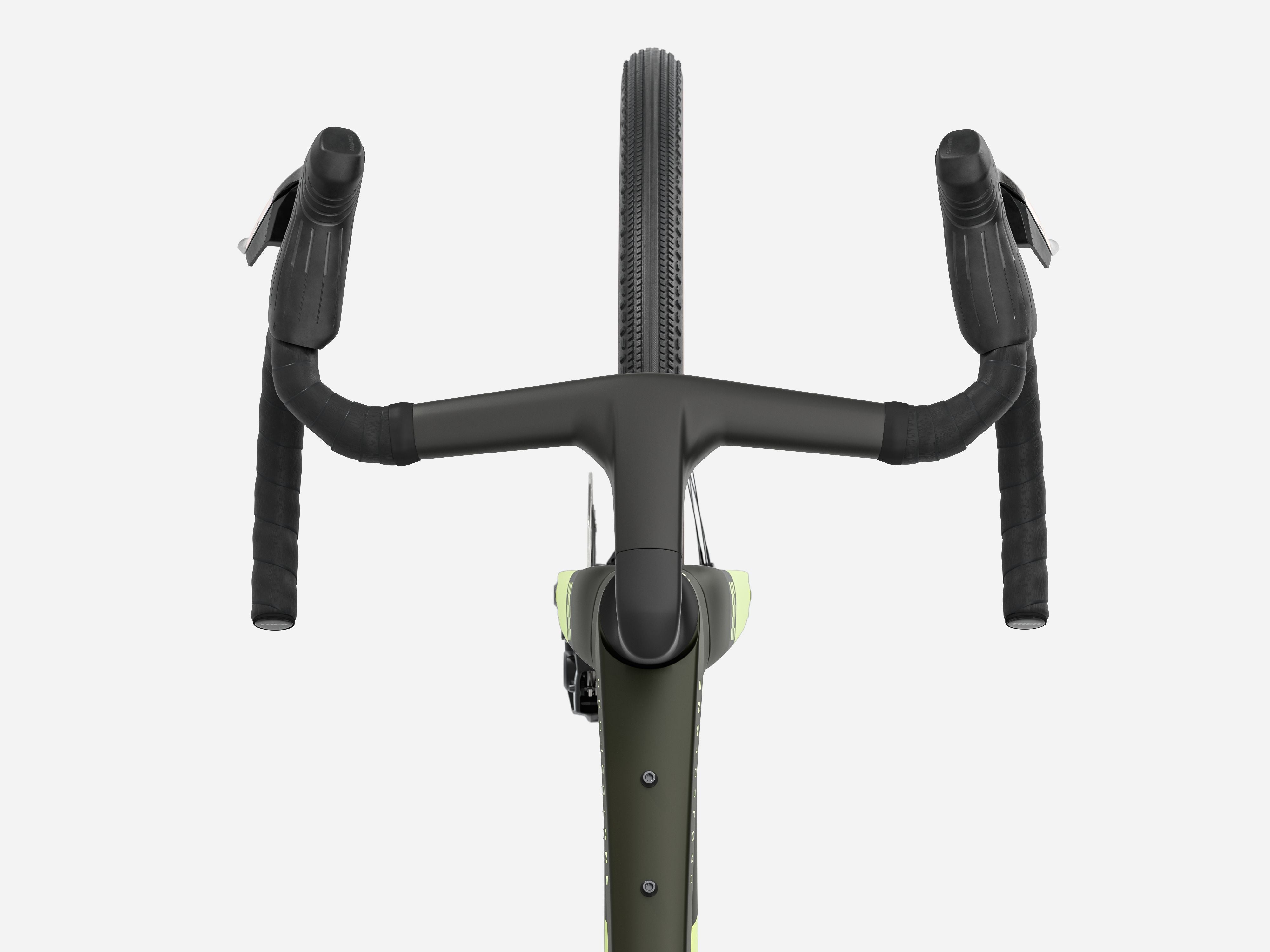

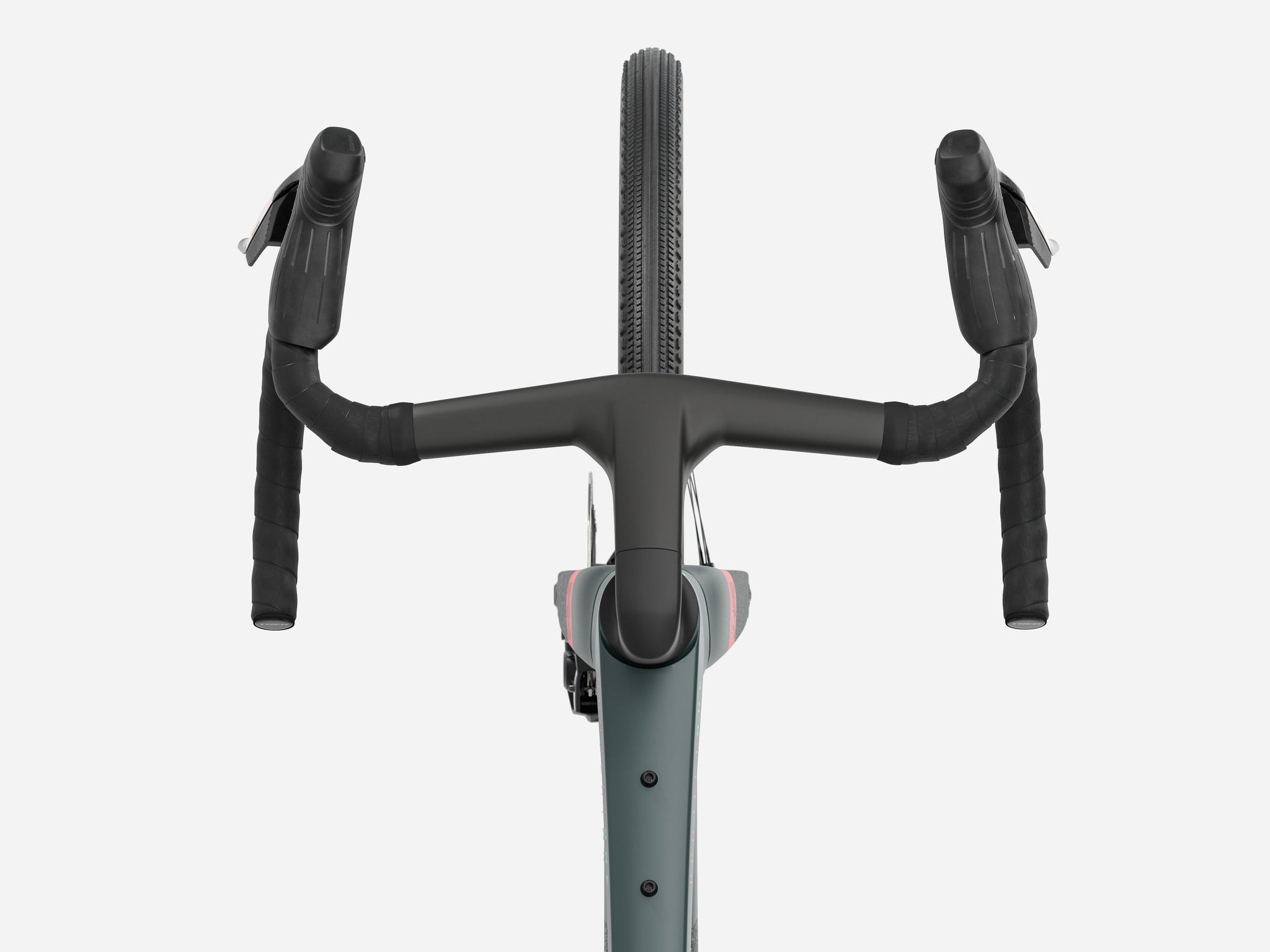

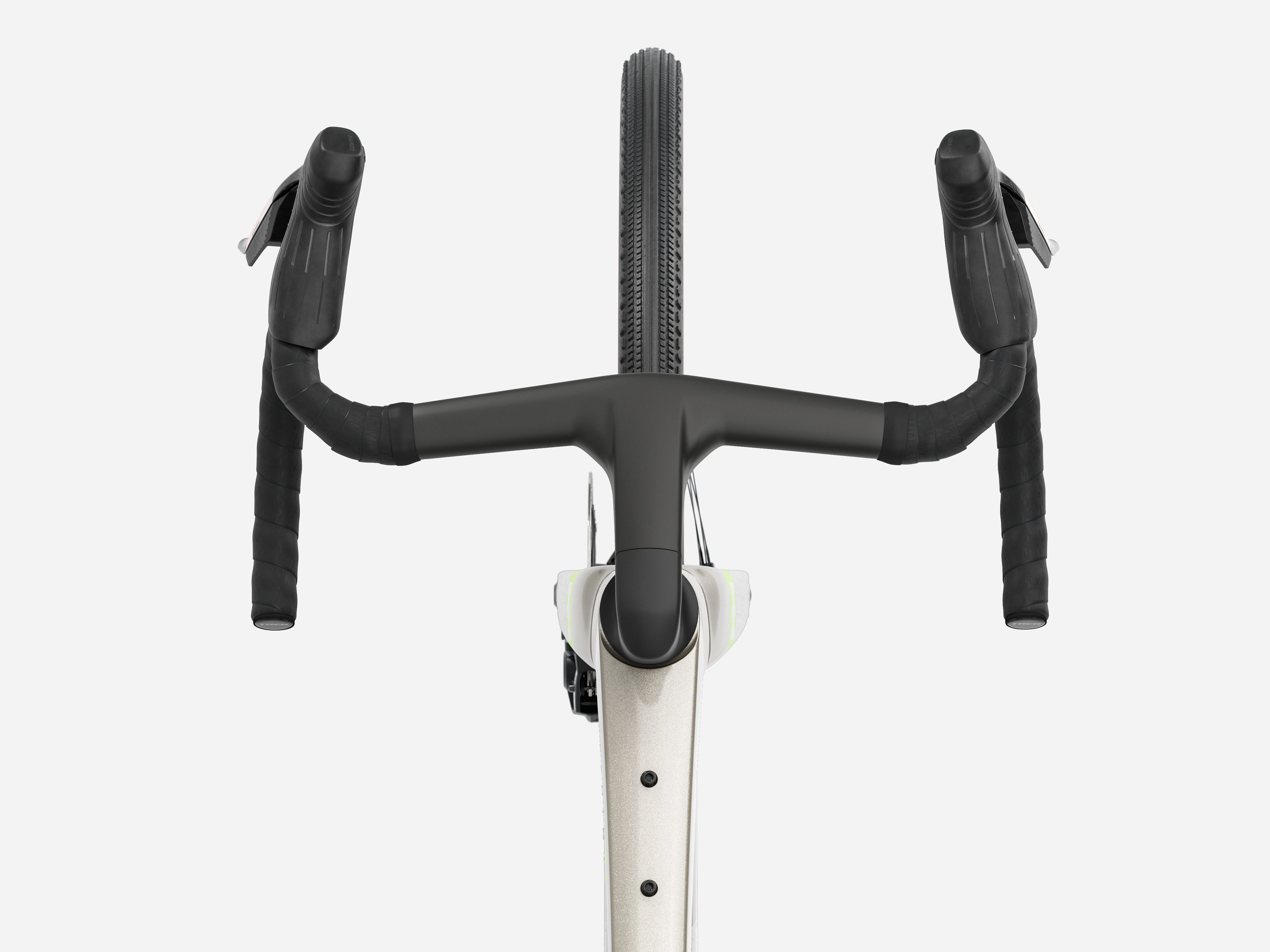

| Handlebar | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 100 mm stem length |
| Battery | SRAM AXS battery pack (with charger) SRAM AXS battery pack (with charger) |
| Size Chart Rider Height | Rider Height - 188.0 - 194.0 |
| Size Chart Rider Inseam | Inseam - 88.0 - 91.0 |
